40W 30W Laser Module 20W 10W Laser Head 450nm Blue Lase for Laser Engraving Machine Wood Marking Cutting Tool Engraving Head

  • Home
  • 40W 30W Laser Module 20W 10W Laser Head 450nm Blue Lase for Laser Engraving Machine Wood Marking Cutting Tool Engraving Head

40W 30W Laser Module 20W 10W Laser Head 450nm Blue Lase for Laser Engraving Machine Wood Marking Cutting Tool Engraving Head

$63.45$603.45

SKU: 1005001808993101 Category:

Description

  • Brand Name: KKMOON
  • Certification: NONE
  • Origin: CN(Origin)
  • Model Number: Engraving Head

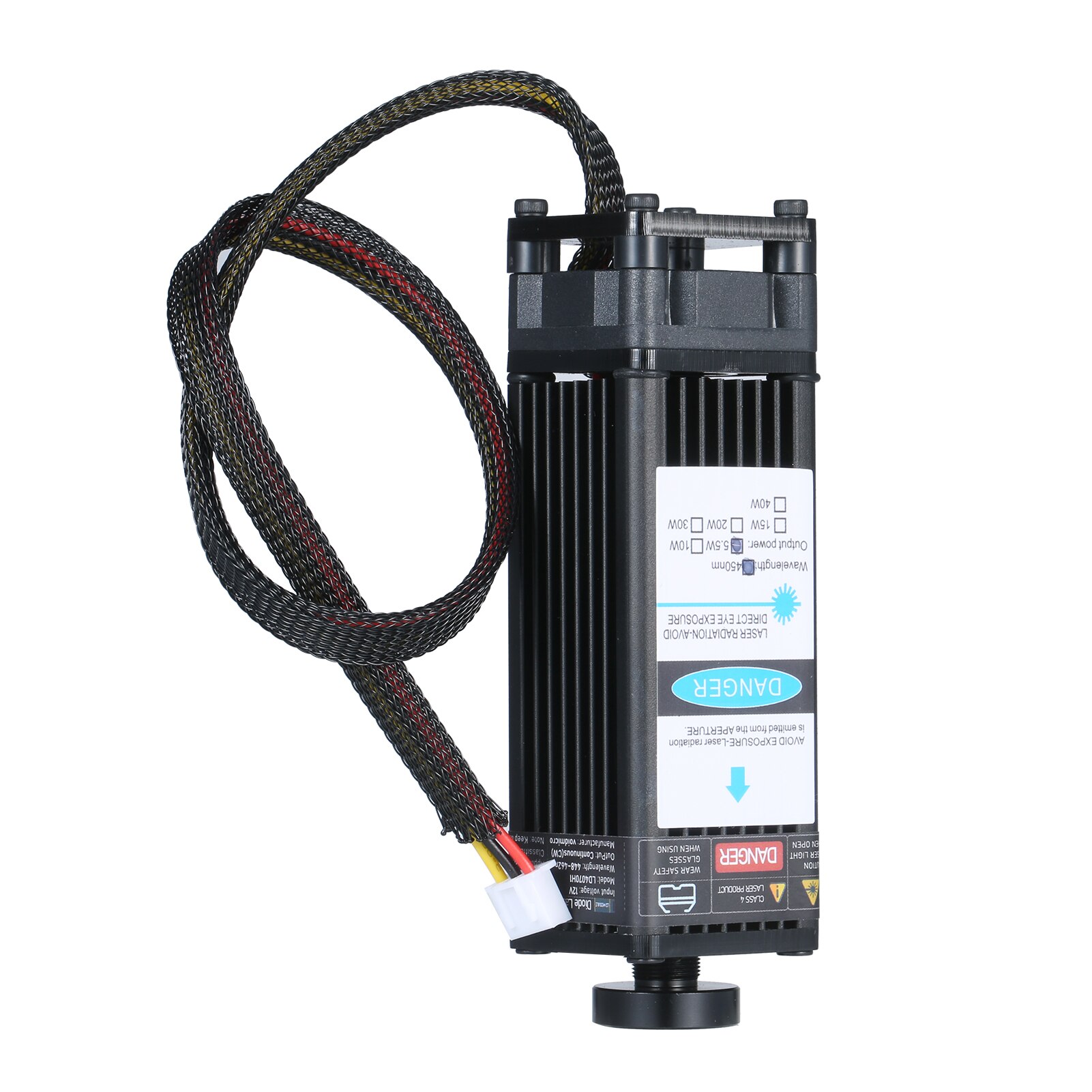

40W Laser Head:

40W upgrade Blue Laser Module with Lower Loss and Higher Precision, which is designed for both 3D printer and CNC mill.  With 448-462nm wavelength, it is 6-7 times faster and 3-4 times accuracy than the traditional laser module.  There 5 powerful laser modual for choose, they can engrave and cut a variaty of materials.

Features:
Applicable for All Metal Material — 40W high powerful laser module can provide better carve effect on paint and oxide layers and stainless steel. Compare with other brand our 40W laser module can even engrave metals without carbon content!
Longevity & Lower Loss — Upgrade 40W laser module with higher engraving speed, precision and stability meanwhile ensure a lower loss to prolong the laser module's service life.
Simple & Safety Use — Small and compact, convenient and easy to install.  Come with a protect goggles, ensure a safety working process.
40W Carving Material — It can engrave 201/304 stainless steel, titanium steel and anodized aluminum, stone, MDF, Balsa, wood, fabric, plastic, PCB, paper, bamboo, horn, leather, sponge paper, etc. Not engravable: copper raw materials, aluminum raw materials.
Cutting materials — Cutting plywood, cutting black acrylic board, leather, paper, etc.
Focus — Come with a red piece help to alignment the engraving distance between laser module and carving objects.

Specification:
Color: Black + Yellow
Laser Power: 40W
Material: Aluminum Alloy+Plastic
Light Color: Blue-violet
Wave Length: 448-462nm
Beam Shape: Dot, Using red focuse ausiliary pieces to adjust focuse distance.
Input Voltage: 12V 2A

Interface Parameter: Support TTL signal controls power
Line Length: 380mm

Item Size: 112*40*40mm/4.4*1.6*1.6
Item Weight: 227g/0.5lb

Packing List:
1 * 40W Laser Head
1 * Pretect Goggles
9 * Kraft Paper
1 * Red Focus Auxiliary Accessory
1 * Bag of Installation Accessories
1 * Screwdriver

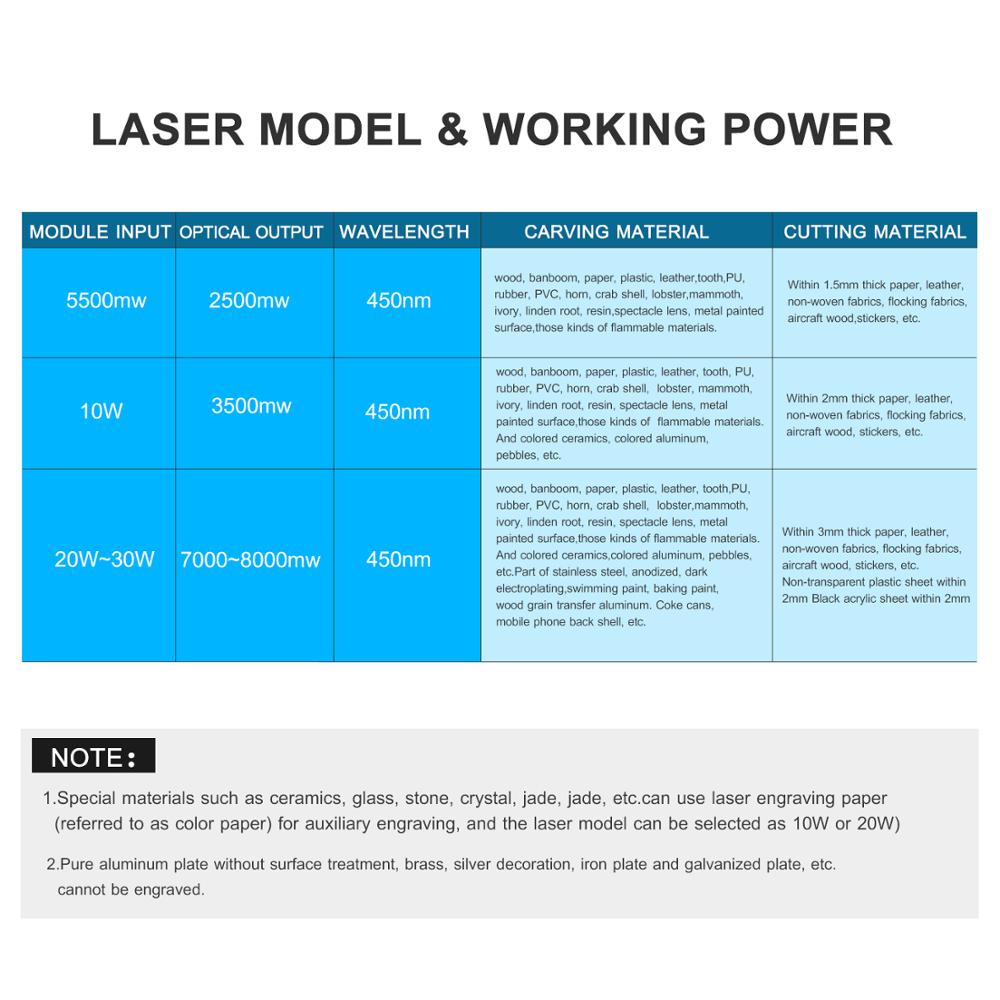

5500mW/10W/20W/30W Laser Head:

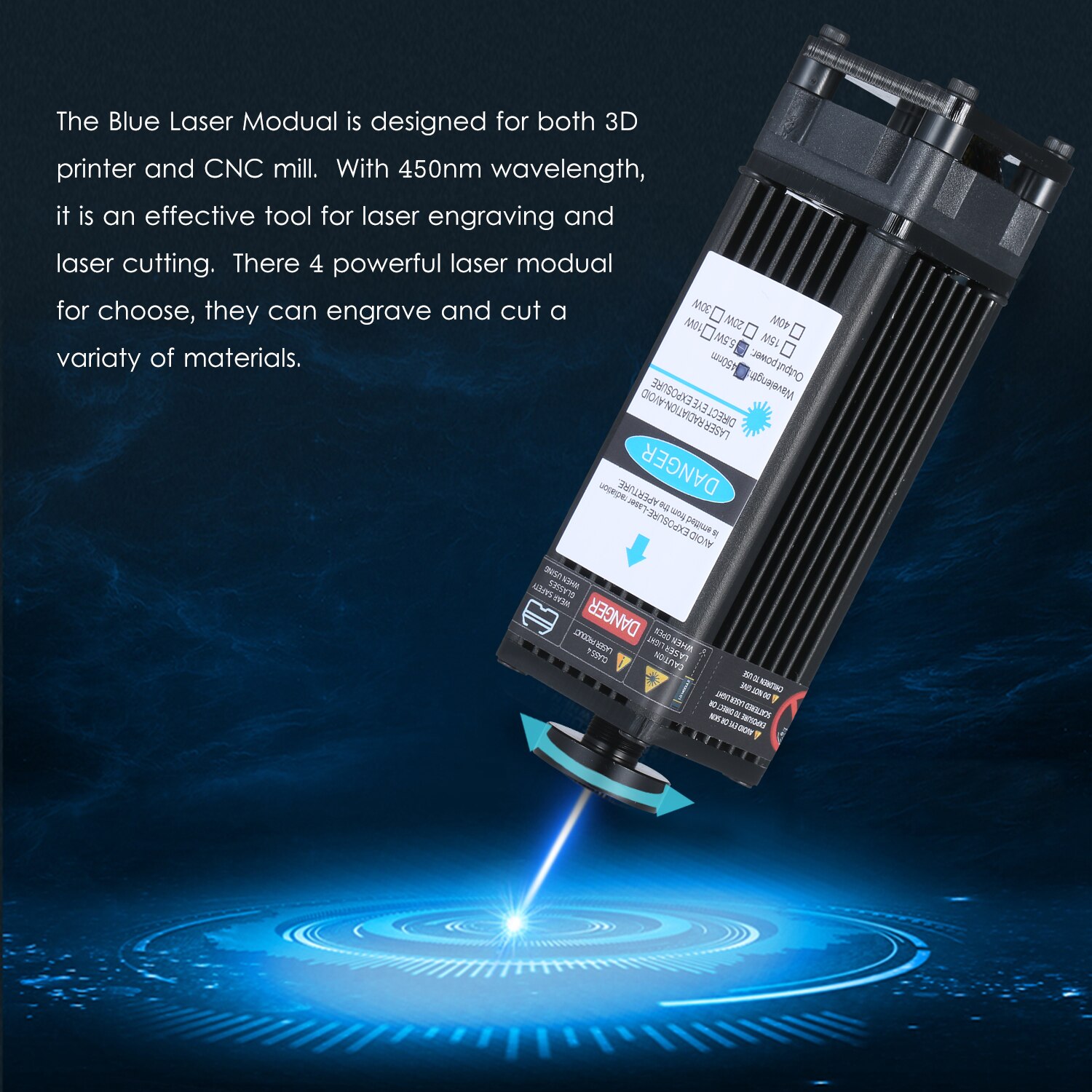

The Blue Laser Modual is designed for both 3D printer and CNC mill.  With 450nm wavelength, it is an effective tool for laser engraving and laser cutting.  There 4 powerful laser modual for choose, they can engrave and cut a variaty of materials.

Features:
Blue Laser Modual — Professional laser head with high speed and high stability. Bright blue-violet light, easy for locating when engraving.
More Powerful and Clean — 30W with more powerful in engraving and carving,  provide a neat and clear image.  High power also ensure a fast carving and cutting. ( focuse distance from carving objects keep 1.8cm)
Easy to Assemble — Small and compact, convenient and easy to install.
30W Carving Material — Wood type, some plastics, paper, bamboo, horn, thin leather (wallet), rubber stamp, tooth, PU, Printing paper, PVC, horn, crab shell,  lobster, mammoth, ivory, linden root, resin, spectacle lens, metal painted surface,those kinds of flammable materials.   And colored ceramics, colored aluminum, pebbles, etc.    Part of stainless steel, anodized, dark electroplating, swimming paint, baking paint, wood grain transfer aluminum. Coke cans, mobile phone back shell, etc.
30W Cutting Material — Within 3mm thick paper, leather, non-woven fabrics, flocking fabrics, aircraft wood, stickers, etc.    Non-transparent plastic sheet within 2mm Black acrylic sheet within 2mm

ATTENTION:
1. 30W Laser Head is Focused, no focusing button required.
2. During operation, the laser head and the object must be kept at a distance of 2 cm.
3. Please use the metal column for the 30W laser head to adjust the focal length of the laser head and the engraved object.

Specifications:

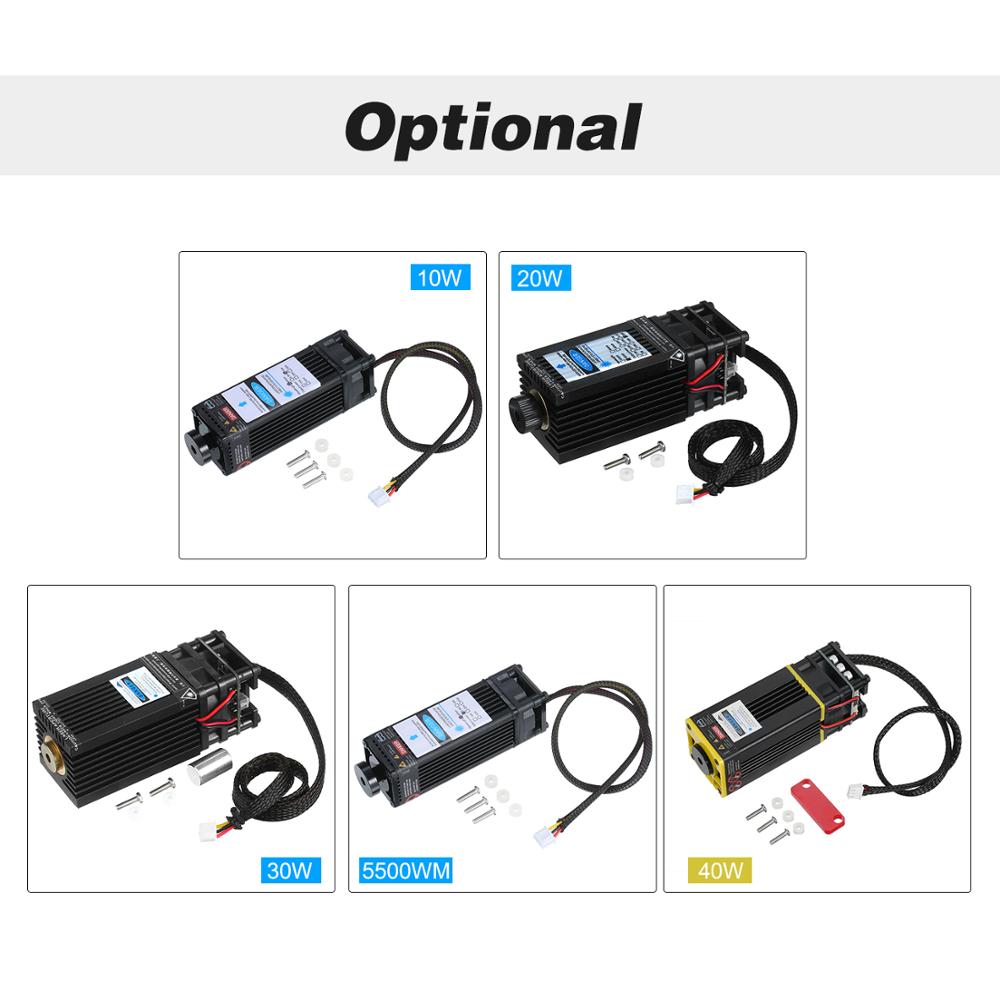

Laser Power: 5500mW/10W/20W/30W (Optional)
Material: Aluminum Alloy+Plastic
Light Color: Blue-violet
Wave Length: 450nm
Facula Form: Punctiform, Adjustable Focus(30W can not adjust focuse)
Input Voltage: 12V 2A

Interface Parameter: Support TTL signal controls power

Item Size: 11*4*4cm / 4.33*1.57*1.57in
Package Size: 15*15*5cm / 5.9*5.9*1.96in
Item Weight: 281g / 9.91oz

Package List:
1 * Laser Head

Shipping:

1.We guarantee to ship goods out within 24-72 hour after payment confirmation except holiday.
2.We ship by China post,HKpost EMS,DHL,Fedex,according to your choice when placing orders .
3.If you didn't receive the item after 45 days,please feel free to contact us.We will make all our effort to resolve the problem.

Warranty:

1.All items have 1 year guarantee.IF your purchase do not meet merchantable quality, fitness for purpose or match the description, We can make sure your issues are resolved .
2.For wrongly-shipped items, Please contact us in 48 hours after delivery.We will arrange to deliver the correct items or return all your payment.
3.For defective or faulty products,please take photos or videos,we would resend or refund after confirmation.
