Laser Parameters

Laser colour : R G B
Wavelength : R638nm G 520nm B445nm
Laser power : R1300mW G900mW B1900mW
Power output : 4W
Beam size :2.5*6mm
Divergence : ＜1.1mRad
Modulation : Analog, >100KHz
Scanner : 40Kpps ILDA@8º，Scan angle max 60° (max±30°)
Cooling : Heatsink+Casting aluminum housing+Fans (at bottom)
Power consumption : 95W
Dimension : 156*224*125mm
Net Weight : 4.3kg
Packaging :Carton+foam
Gross Weight : 6.5kg

PACKAGE

Electrical Parameters

AC 110~240V wide voltage input;
Plug type: US, EU, UK, and AU

Integrated RGB laser module

All the diodes are installed inside the chamber, and the optical roads are not easily to be contaminated.

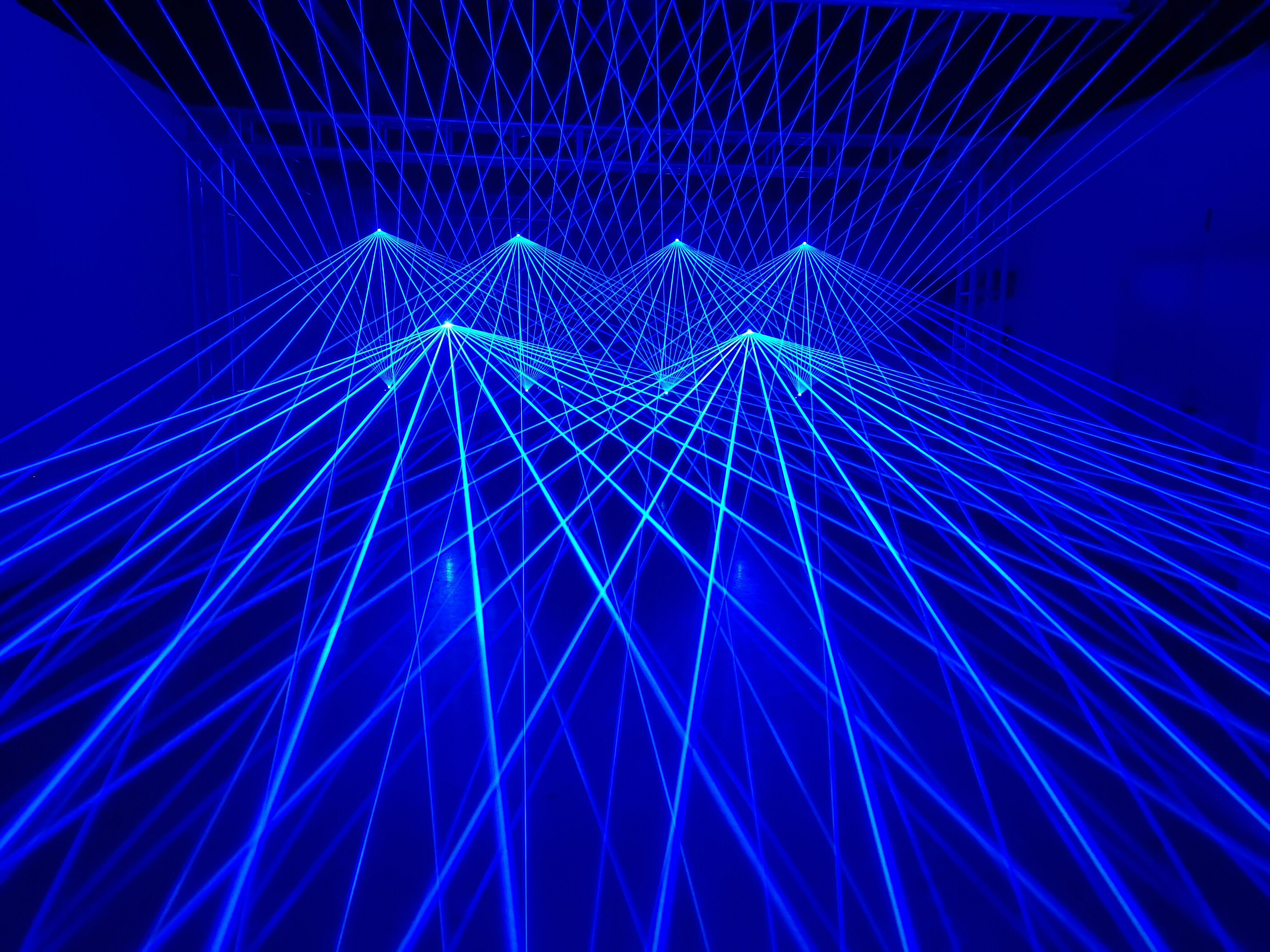

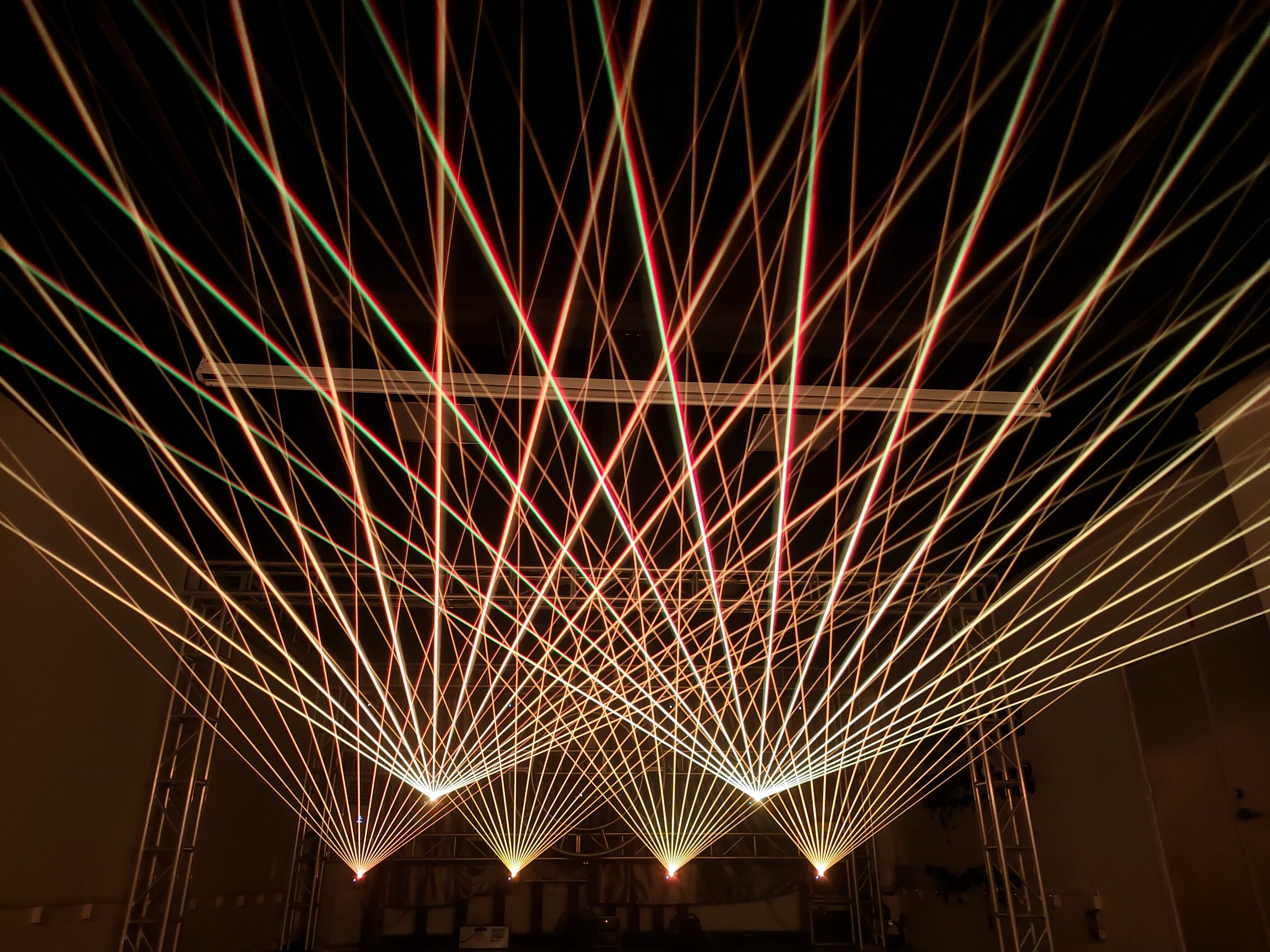

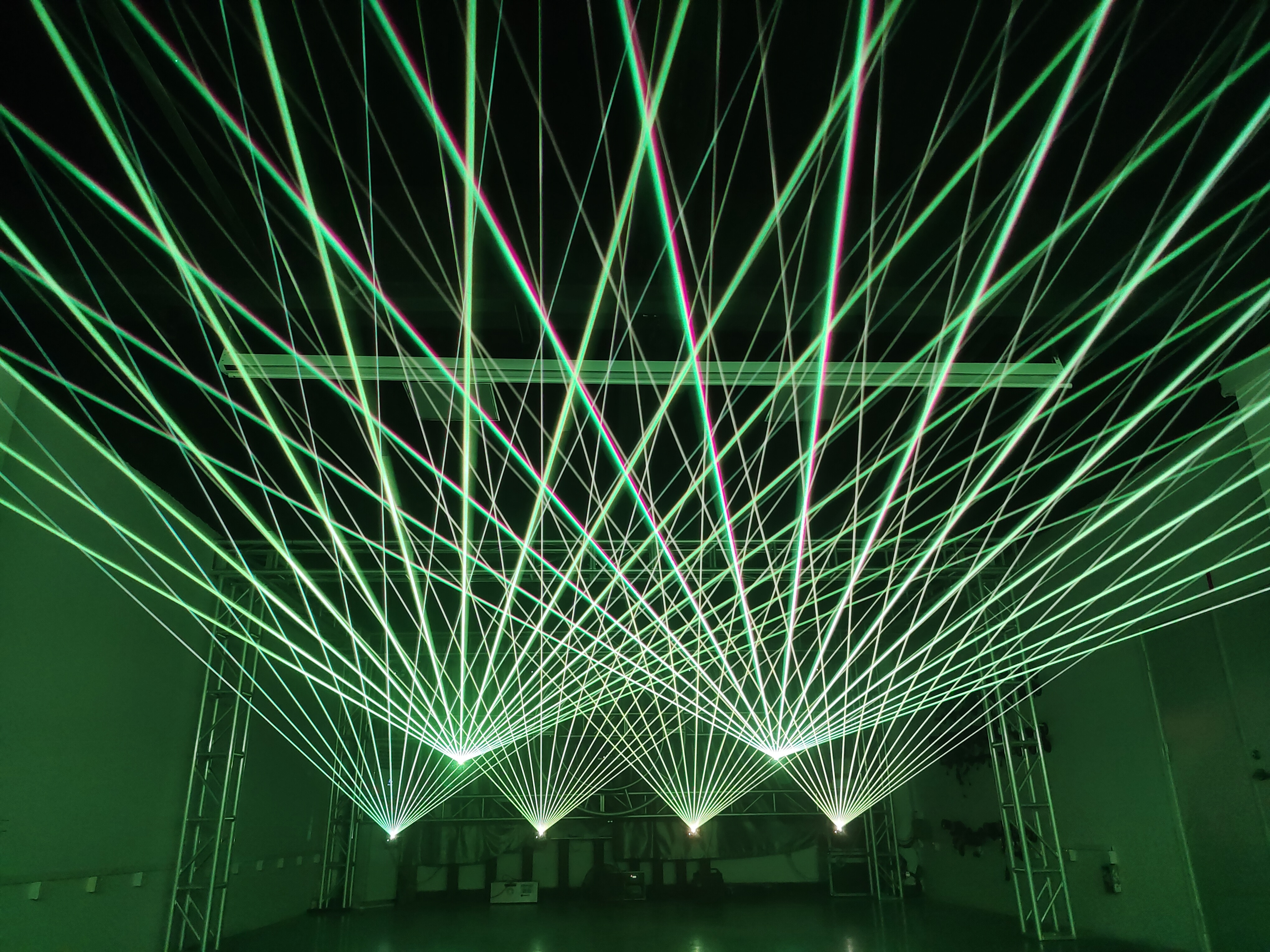

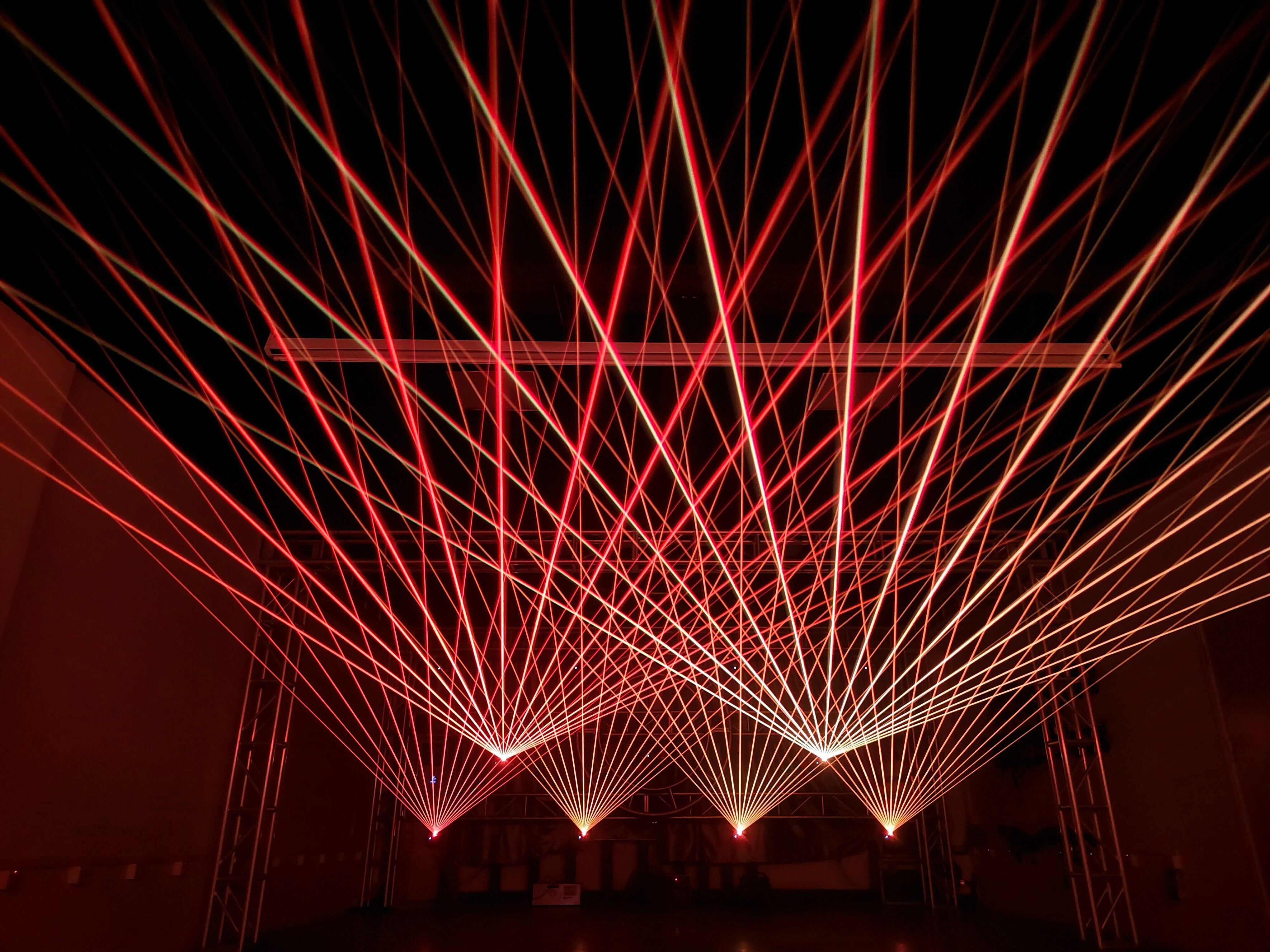

Live laser show photos
