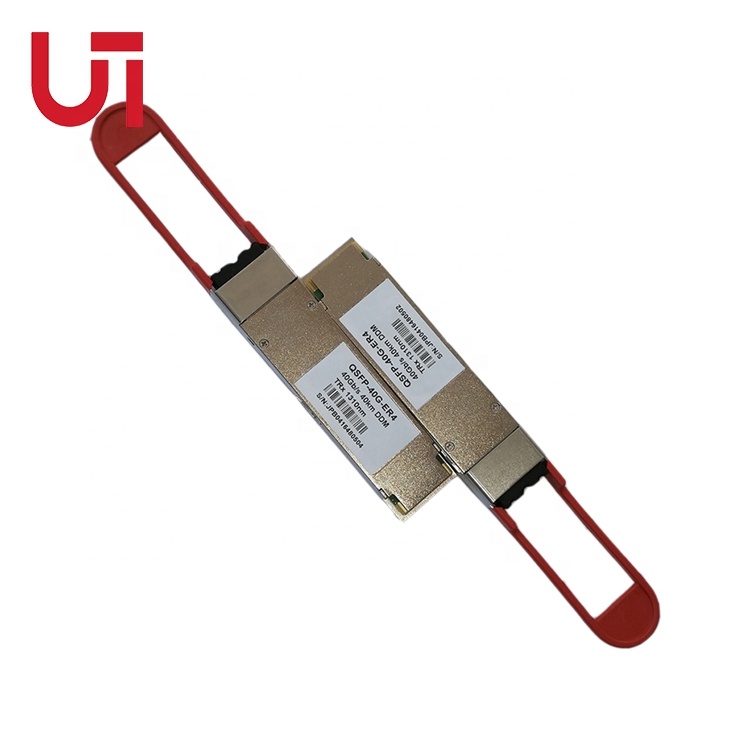

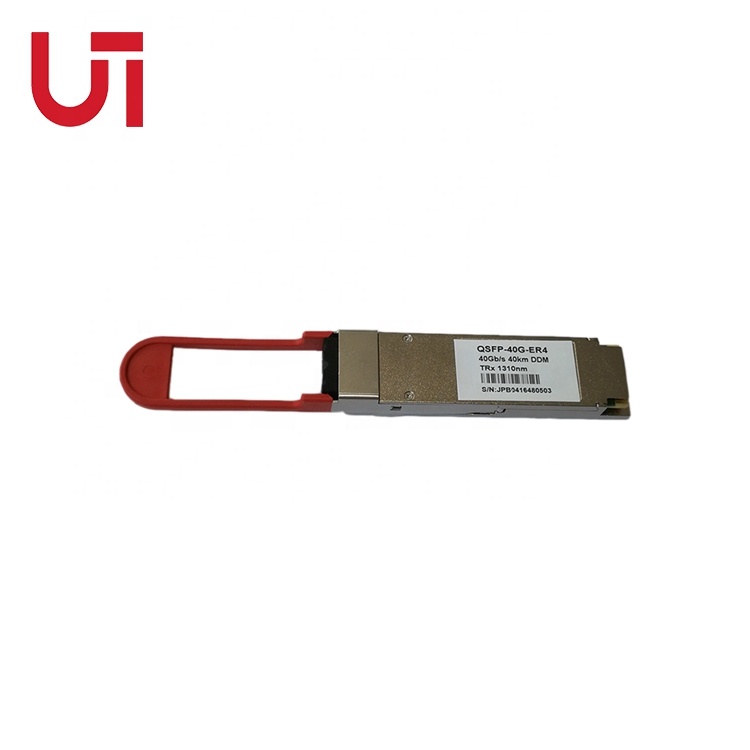

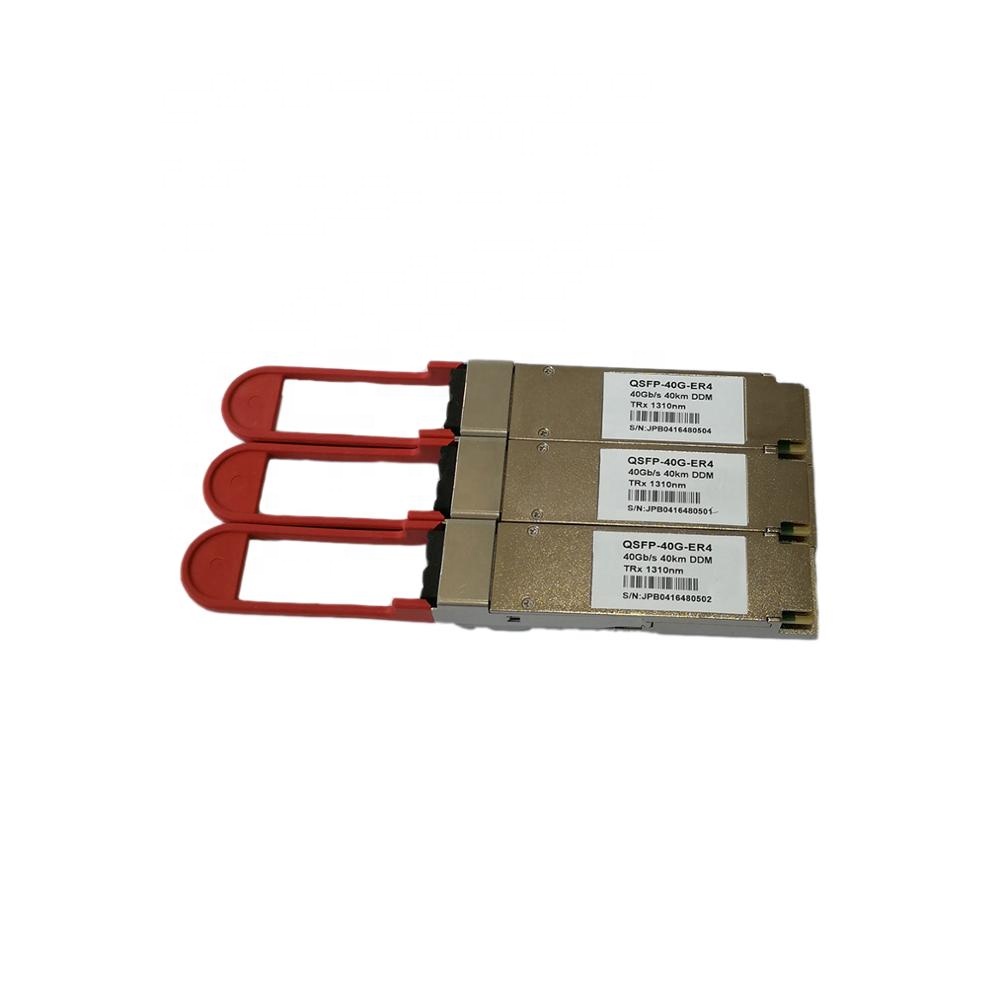

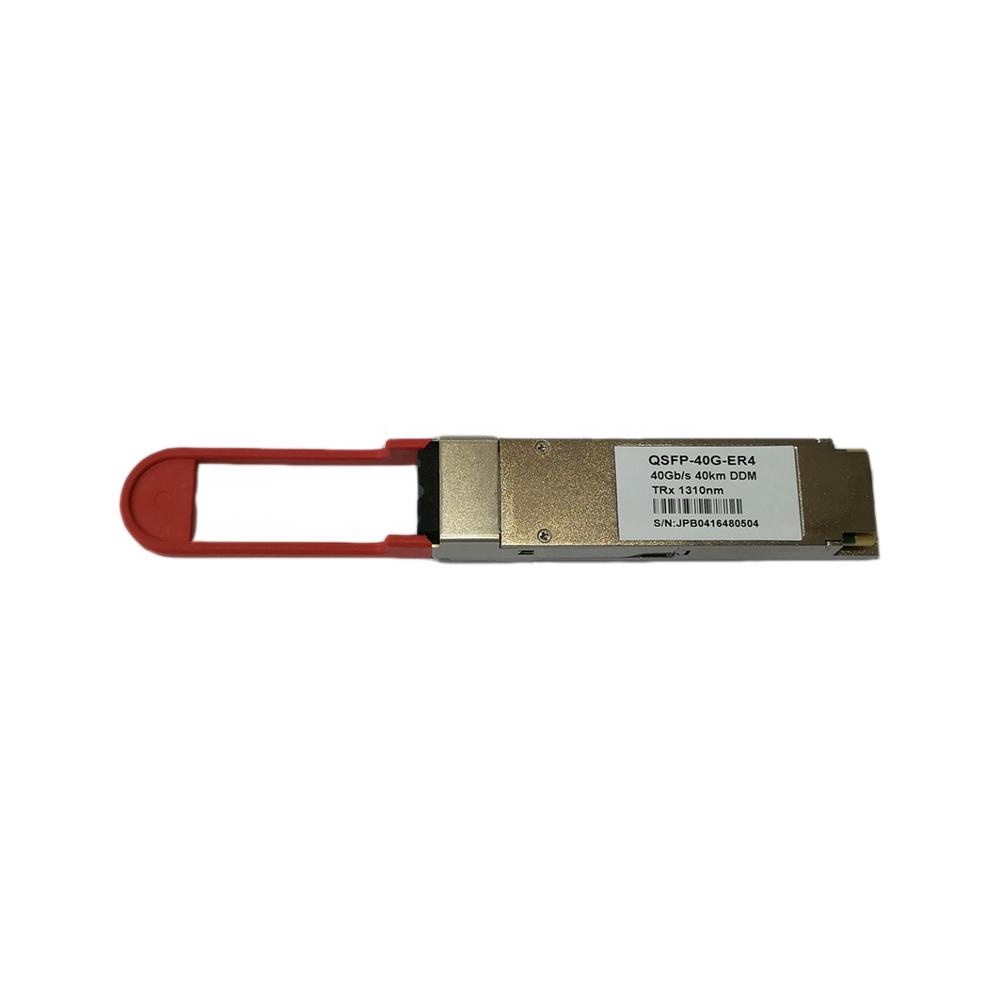

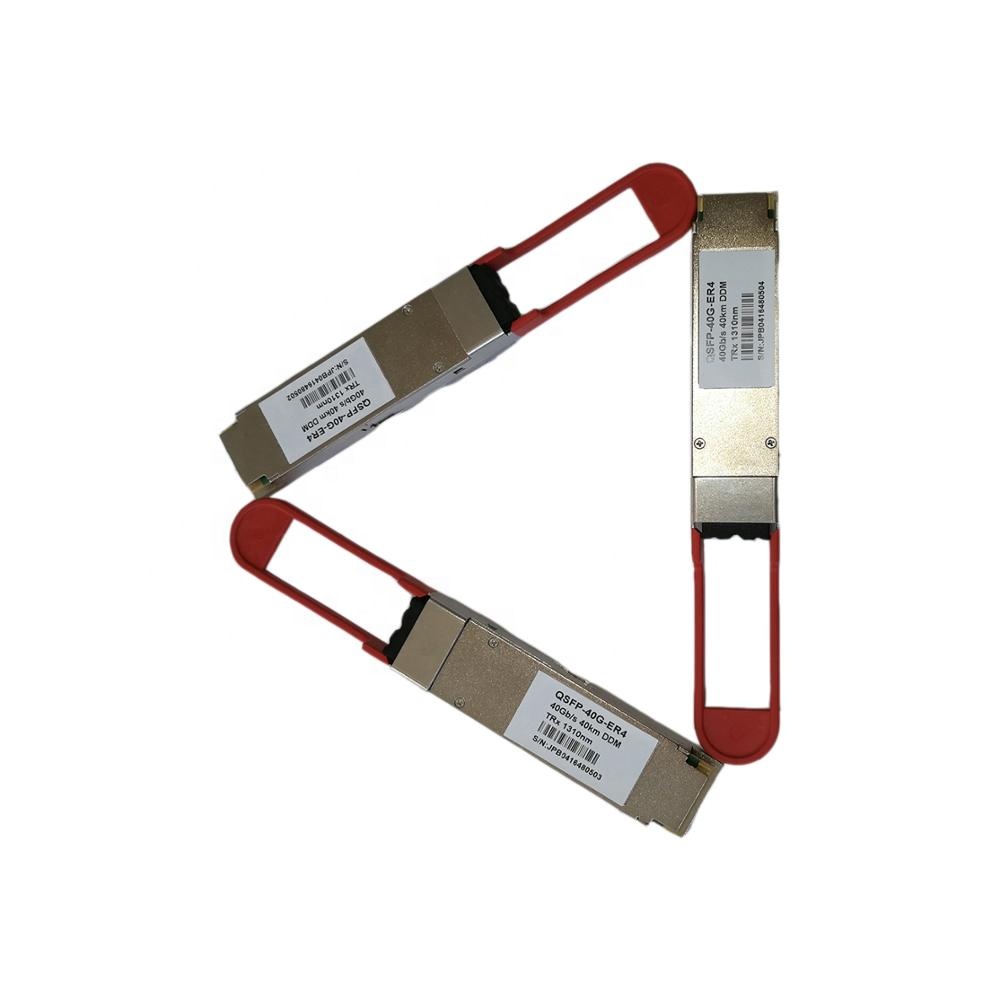

40G QSFP ER4 is a 4x10G hot pluggable optical transceiver. The Sourcelight Technology enables the integration of 4 transmitters, 4 receivers and an optical MUX/DeMUX into a small form factor package that delivers a 40Gbps data link in a compact QSFP footprint.

The optical connectivity is based on two SMF LC connectors, one for Tx and one for Rx. The Tx and Rx each consist of 4 10GB/s CWDM channels, whose wavelengths are in the 1300nm range. The QSFP-ER transceiver is designed for applications based on the IEEE 802.3ba 40BASE-ER4 standard of up to 40km reach.

• Features
• Compliant with 40G Ethernet IEEE802.3ba and
• 40GBASE-ER4 Standard
• QSFP+ MSA compliant
• Compliant with QDR/DDR Infiniband data rates
• Up to 11.2Gb/s data rate per wavelength
• 4 CWDM lanes MUX/DEMUX design
• Up to 40km reach over standard single mode fiber
• Operating case temperature 0°C to +70°C
• 3.5V power supply
• RoHS 6 compliant (lead free)
•
• Parameter

• 40GBASE-ER4 40G Ethernet links
• Infiniband QDR and DDR interconnects
• Client-side 40G Telecom connections
