Description
- Brand Name: electric magic
- Origin: Mainland China
- is_customized: Yes
- Model Number: 005576
Specification

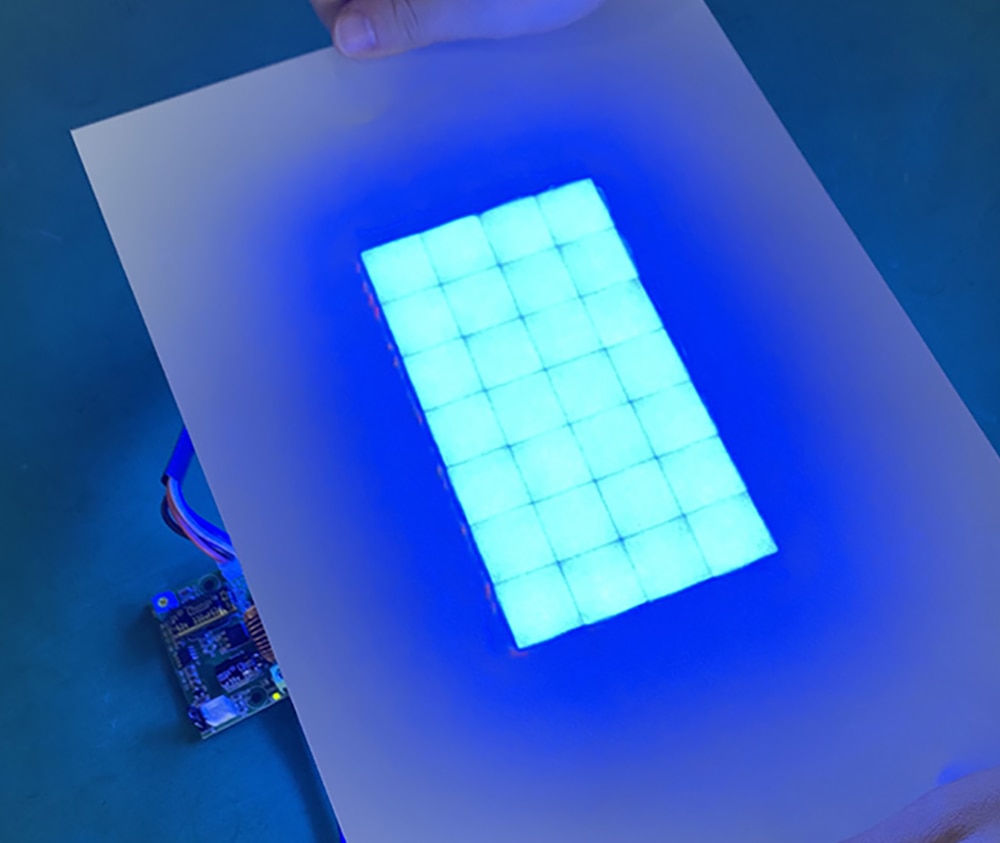

Uniform energy distribution, uniform light transmission, zero spot, no dead angle. With 3D printer, the screen with high precision can print very well.

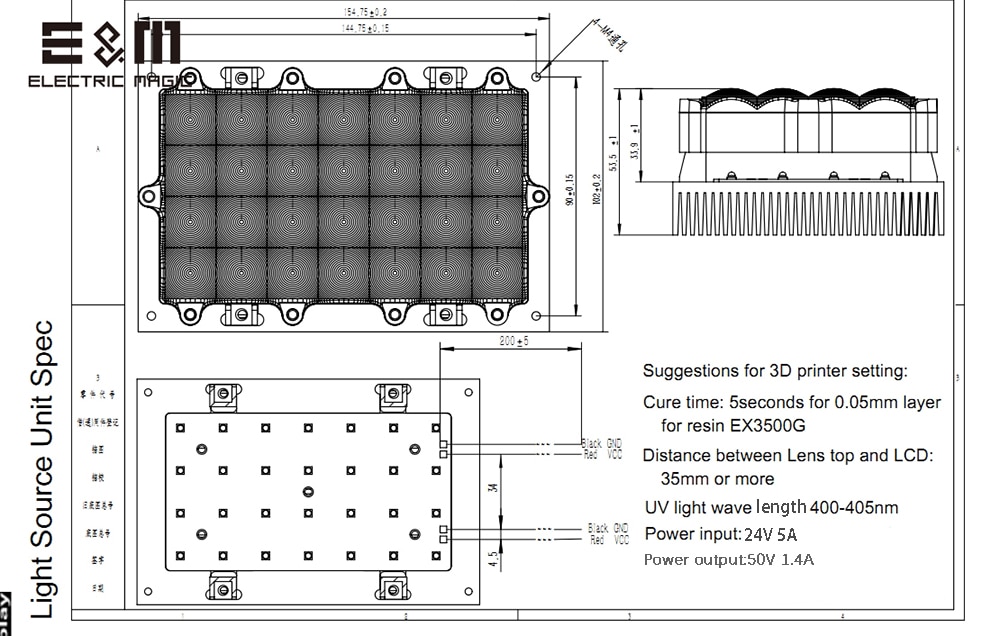

Power input:24V 5A
Power output:50V 1.4A
There are two ways to realize PWM signal control (light source on / off):
Uniform energy distribution, uniform light transmission, zero spot, no dead angle. With 3D printer, the screen with high precision can print very well.
Power input:24V 5A
Power output:50V 1.4A
There are two ways to realize PWM signal control (light source on / off):

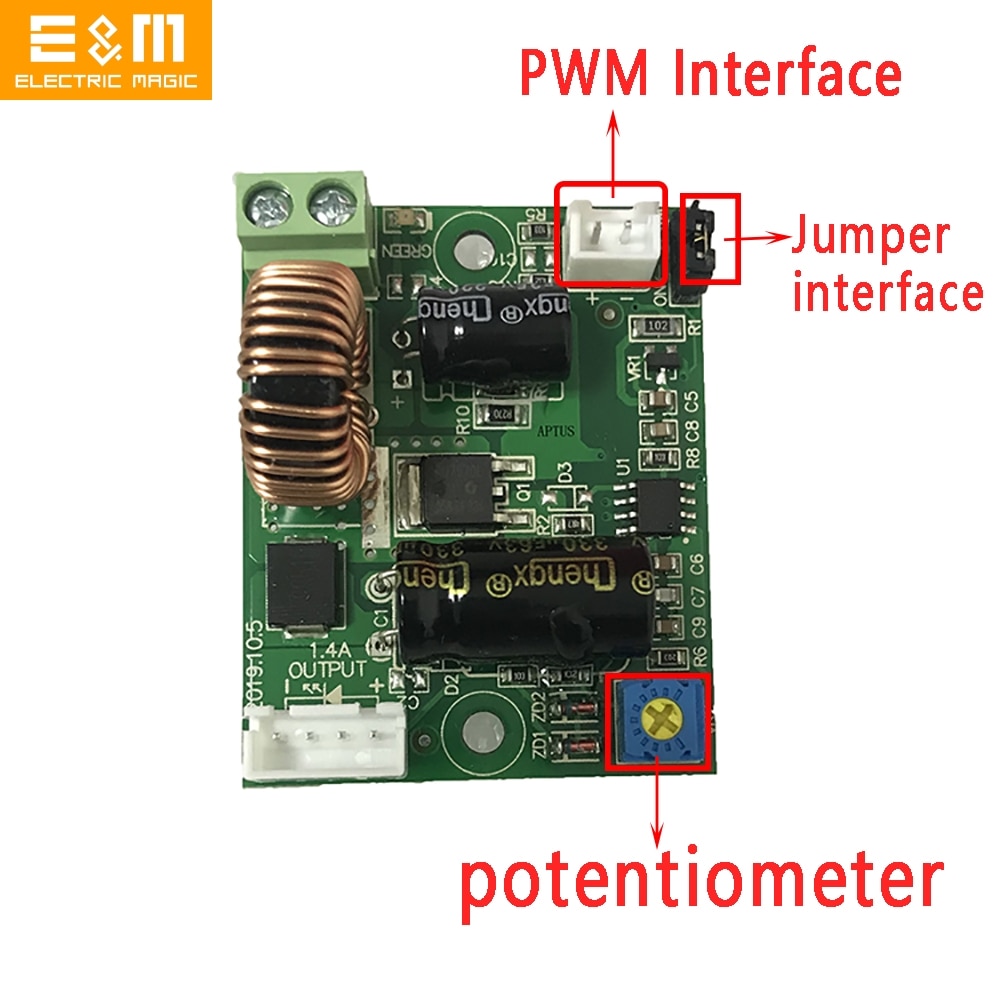

First, directly using our driver version is to plug the jumper and the wire from the printer motherboard into the white interface.
Second, use solid-state relay to realize PWM signal control
Package Including
UV curing light option:

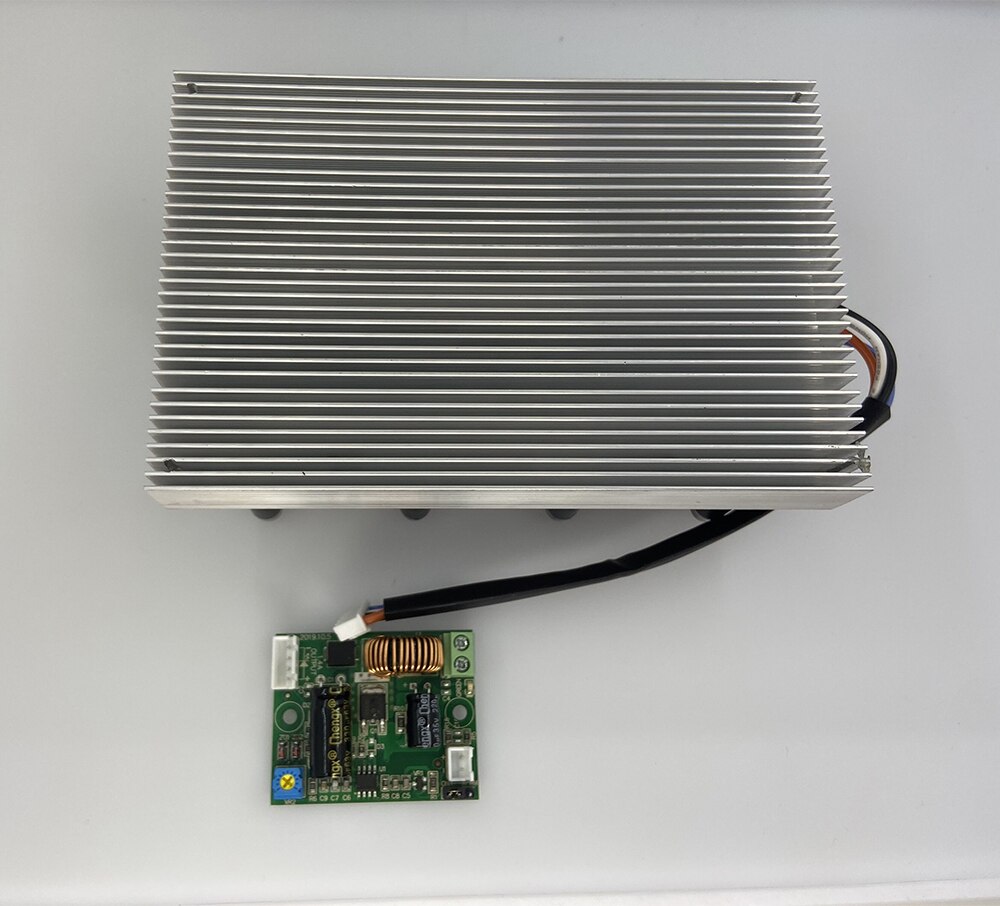

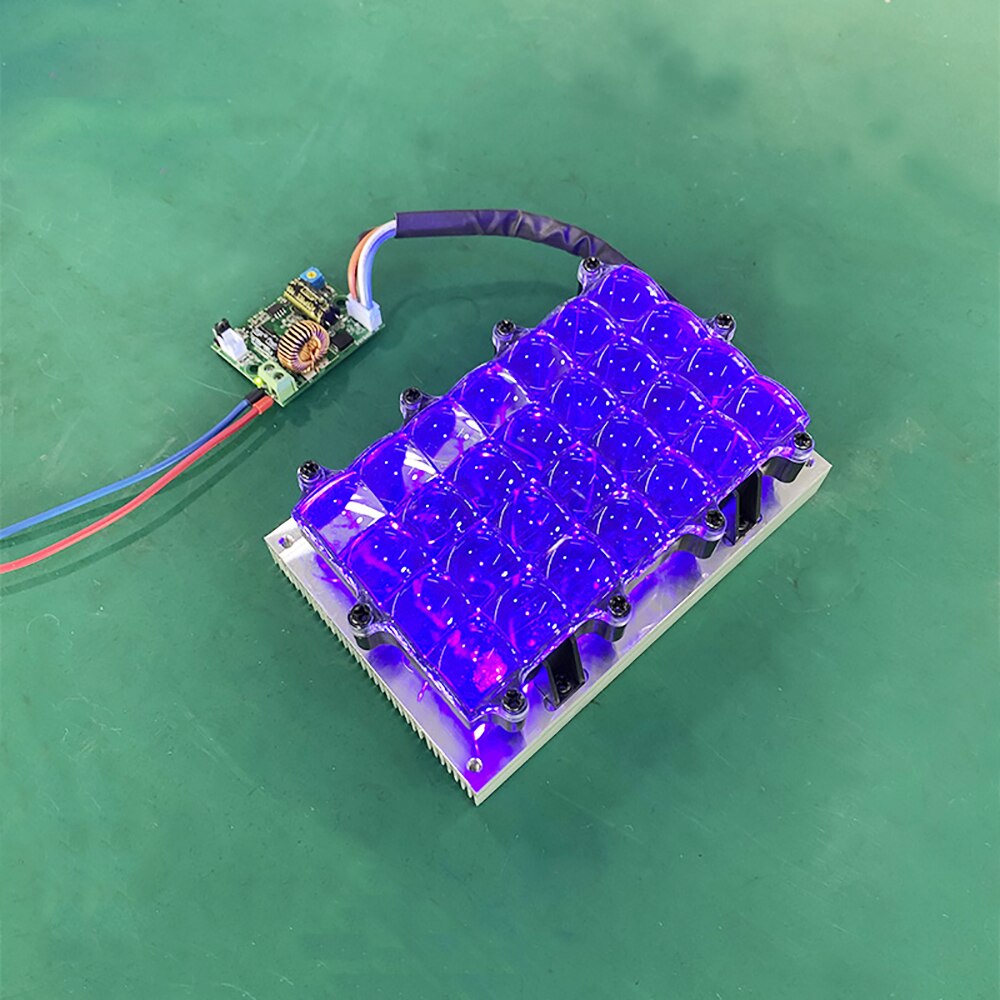

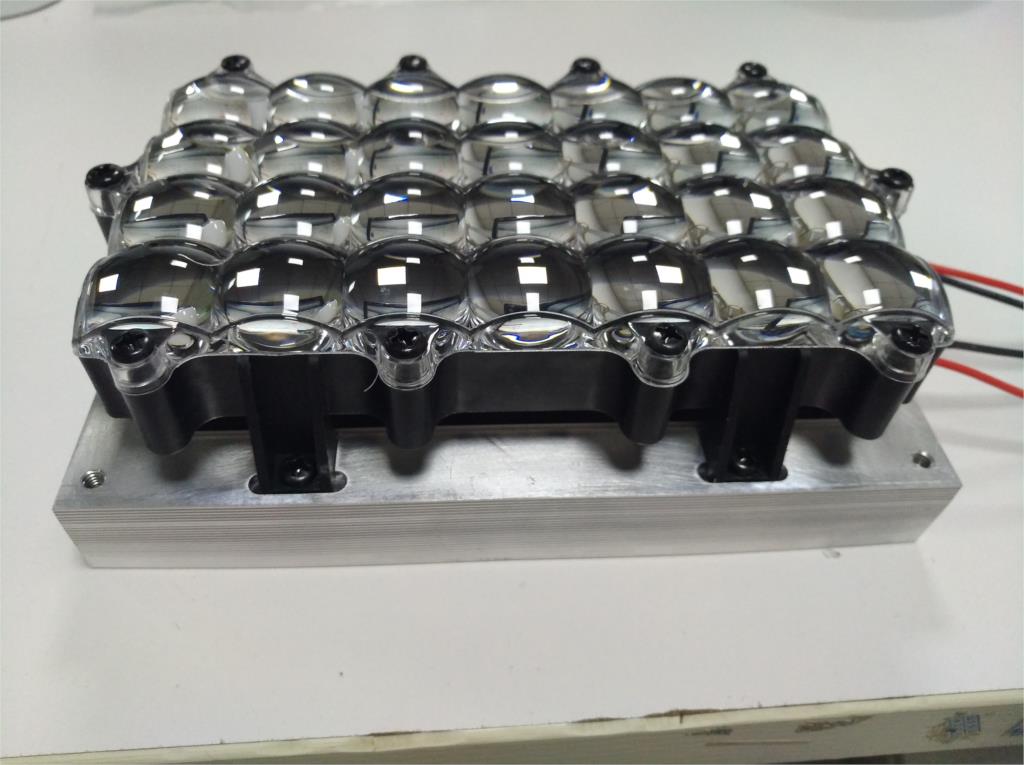

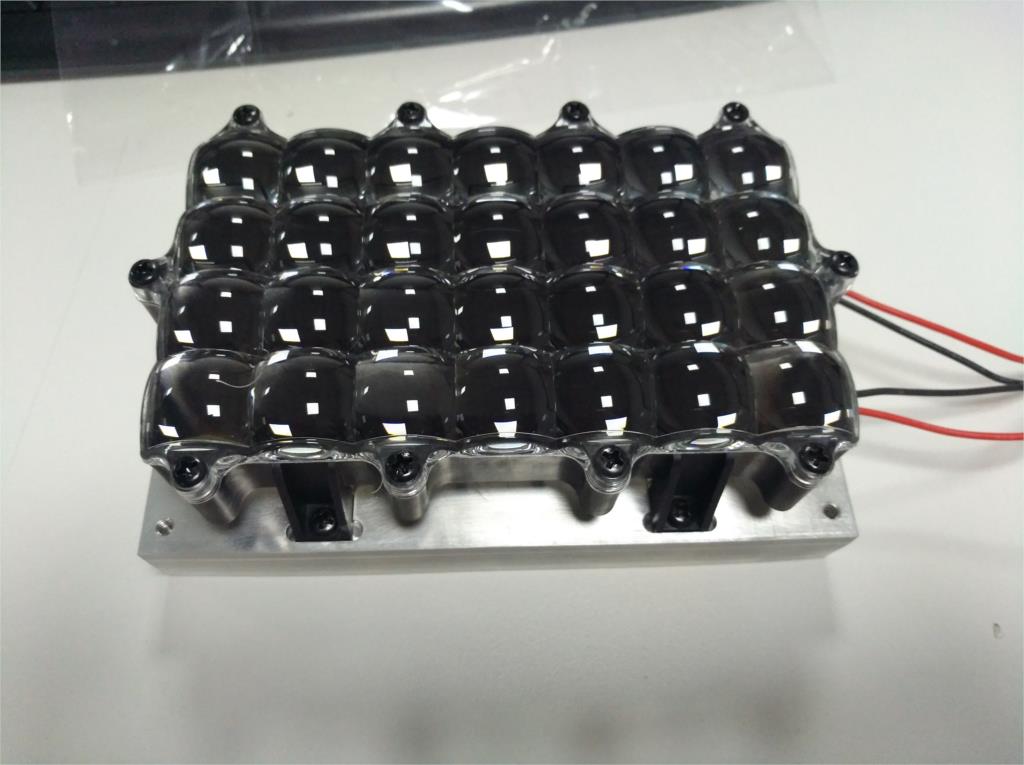

1 * Parallel Ultraviolet Rays Backlight Module
1 * Drive Board
Only a drive board option:
1*drive board
FAQ:
how many watts?—–70 watts,If you want to use other wattage parallel light, you can use the resistance of the drive board to adjust, raise or lower.

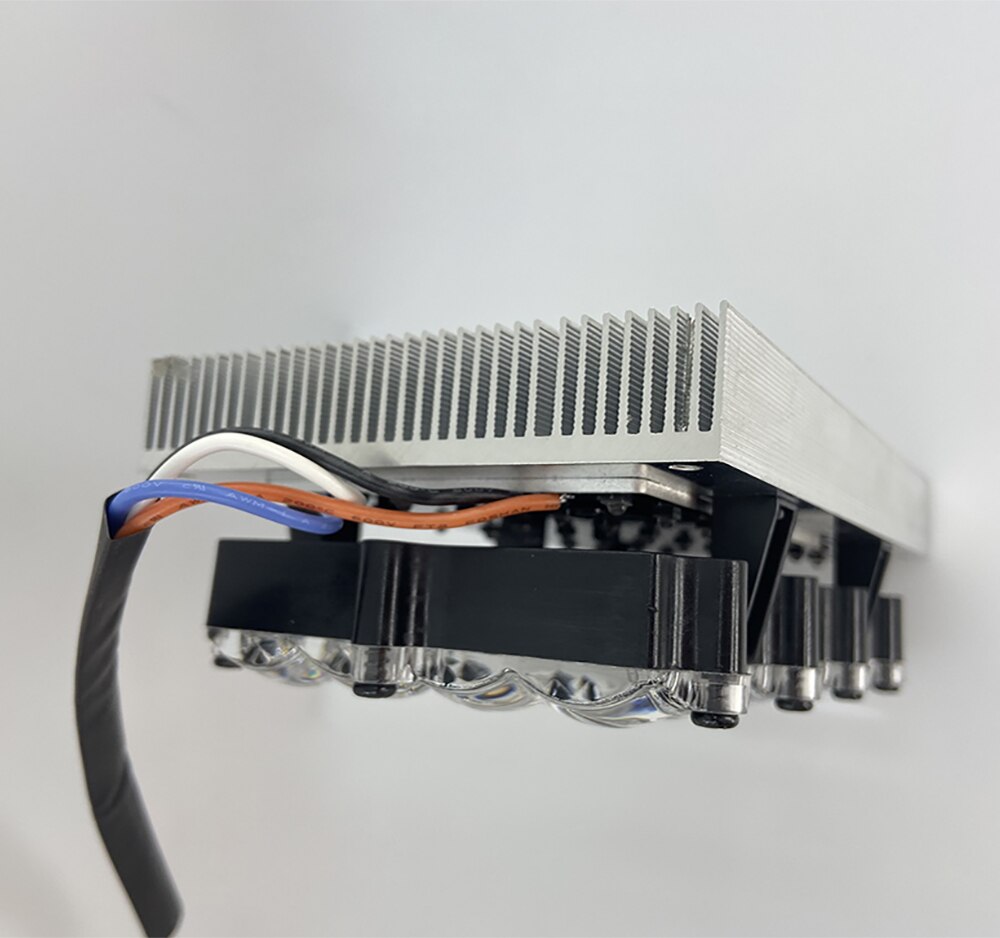

does it need extra cooling?—-No need.the item includes heat sink.

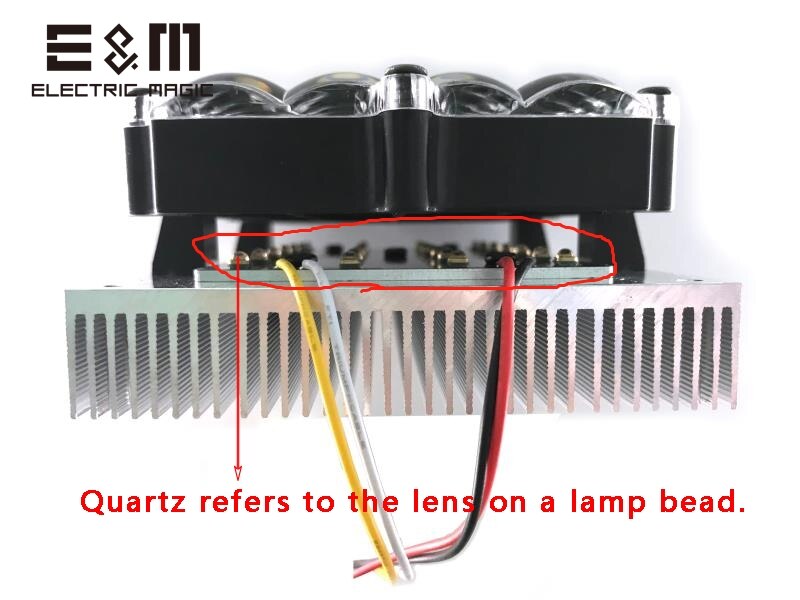

Does it have aluminium fins on the backside?—–Yes.The aluminium is a heat sink.
