Description
Product Description
|
Central wavelength (nm)
|
405±5
|
||
|
Operating mode
|
CW
|
||
|
Output power (mW)
|
>5000,6000, … , 10000
|
||
|
Power stability (rms, over 4 hours) at 25℃
|
< 1%, <2%, <3%
|
||
|
Beam diameter at the aperture (mm)
|
~ 12×7
|
||
|
Beam divergence, full angle (mrad)
|
~2.0×1.2
|
||
|
Polarization direction
|
Horizontal+ Vertical
|
||
|
Warm-up time (minutes)
|
<5
|
||
|
Operating temperature (℃)
|
10-35
|
||
|
Power supply ( 100-240VAC)
|
PSU-W-LED/ PSU-W-FDA
|
||
|
TTL / Analog modulation
|
TTL or Analog with 1Hz- 1kHz 1kHz- 10kHz, 10kHz-30kHz optional
|
PSU-H-FDA
|
|
|
Expected lifetime (hours)
|
10000
|
||
|
Warranty
|
1 year
|
||
|
Warranty
|
1 year
|
||

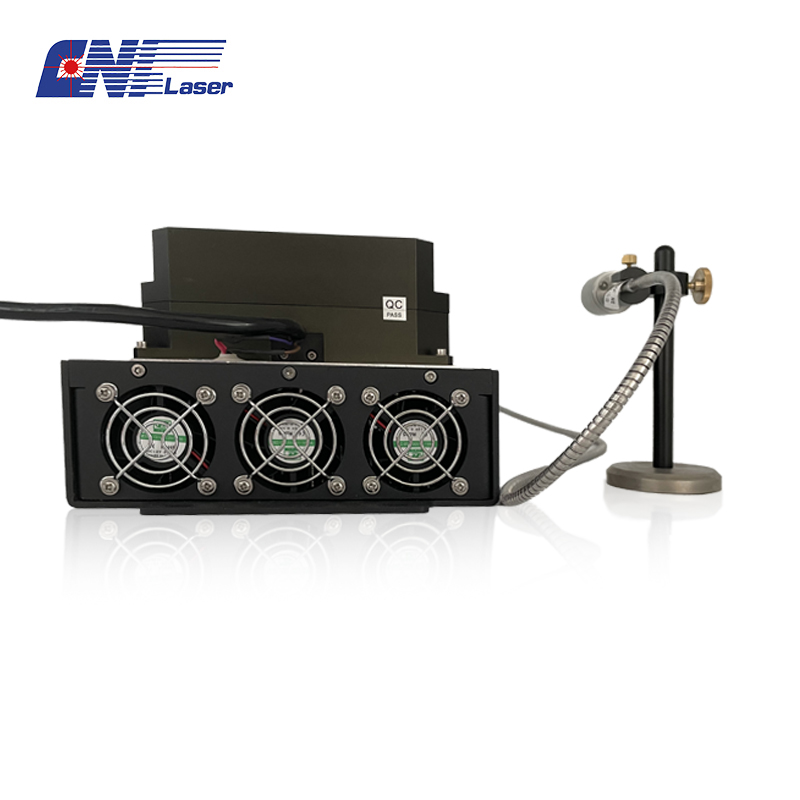

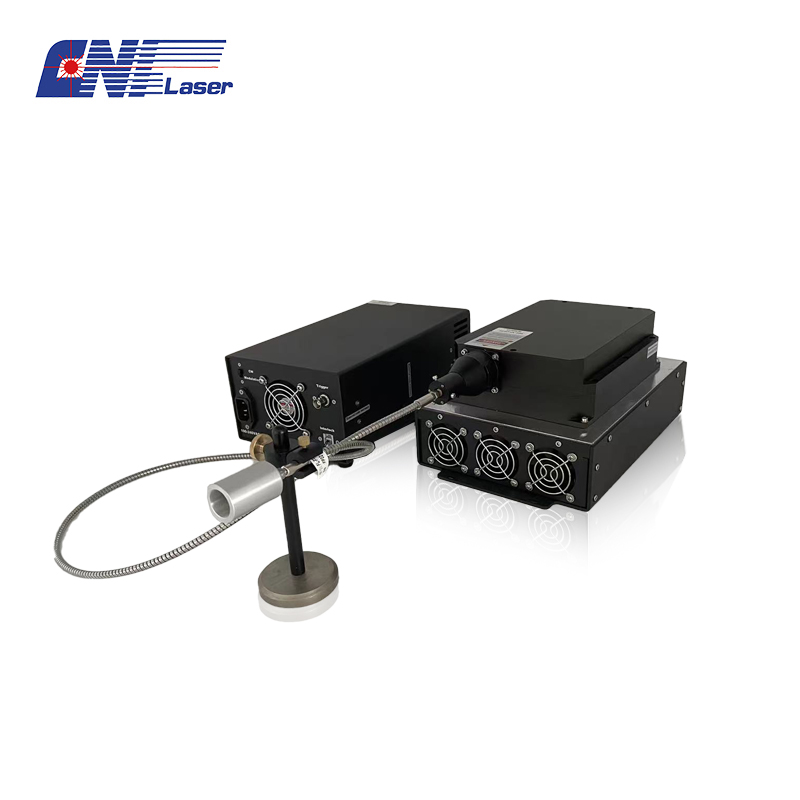

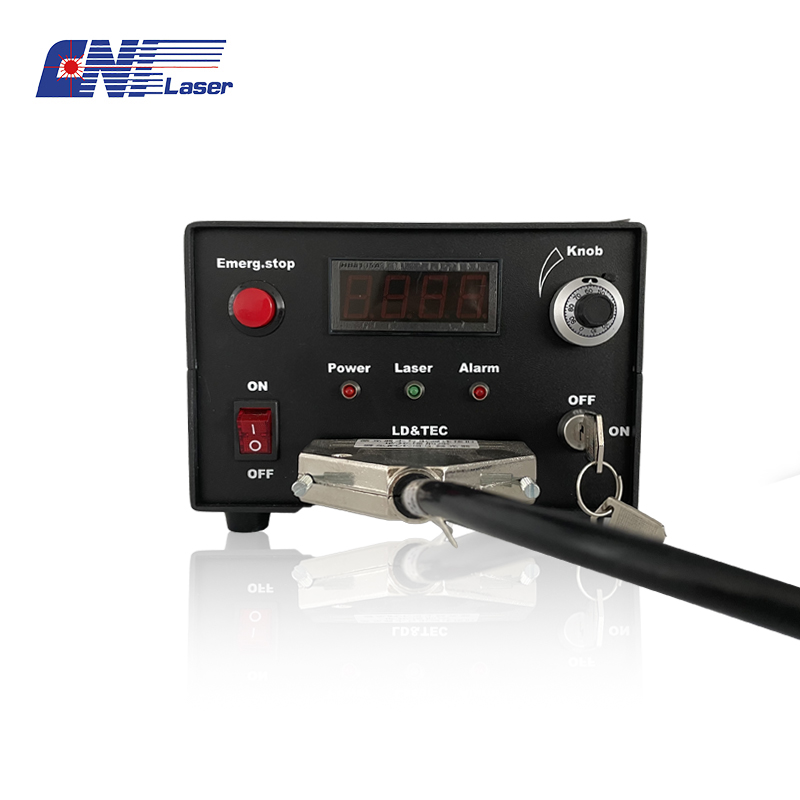

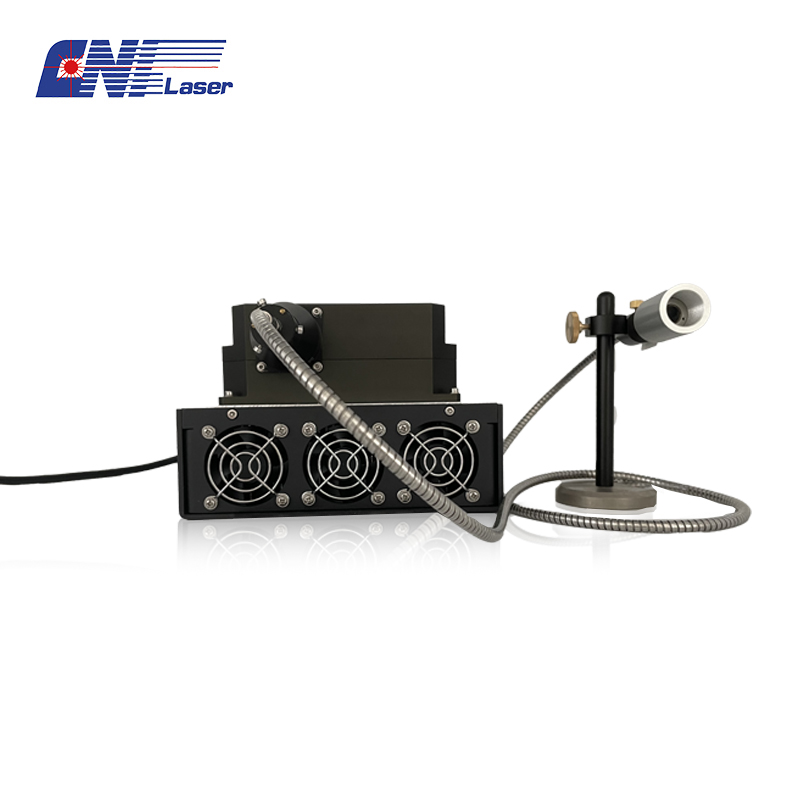

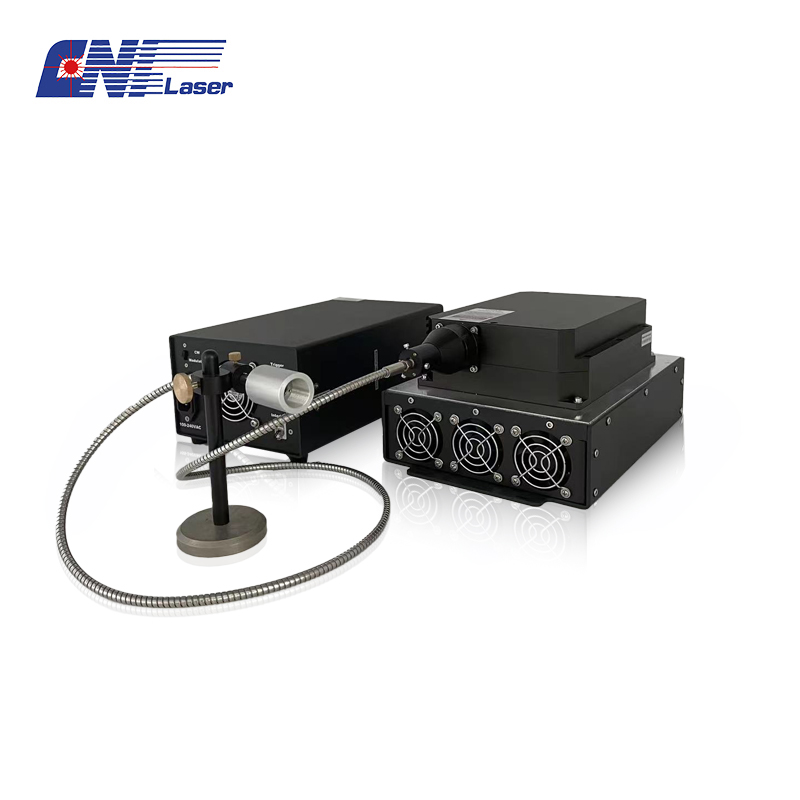

Product Show
