Description

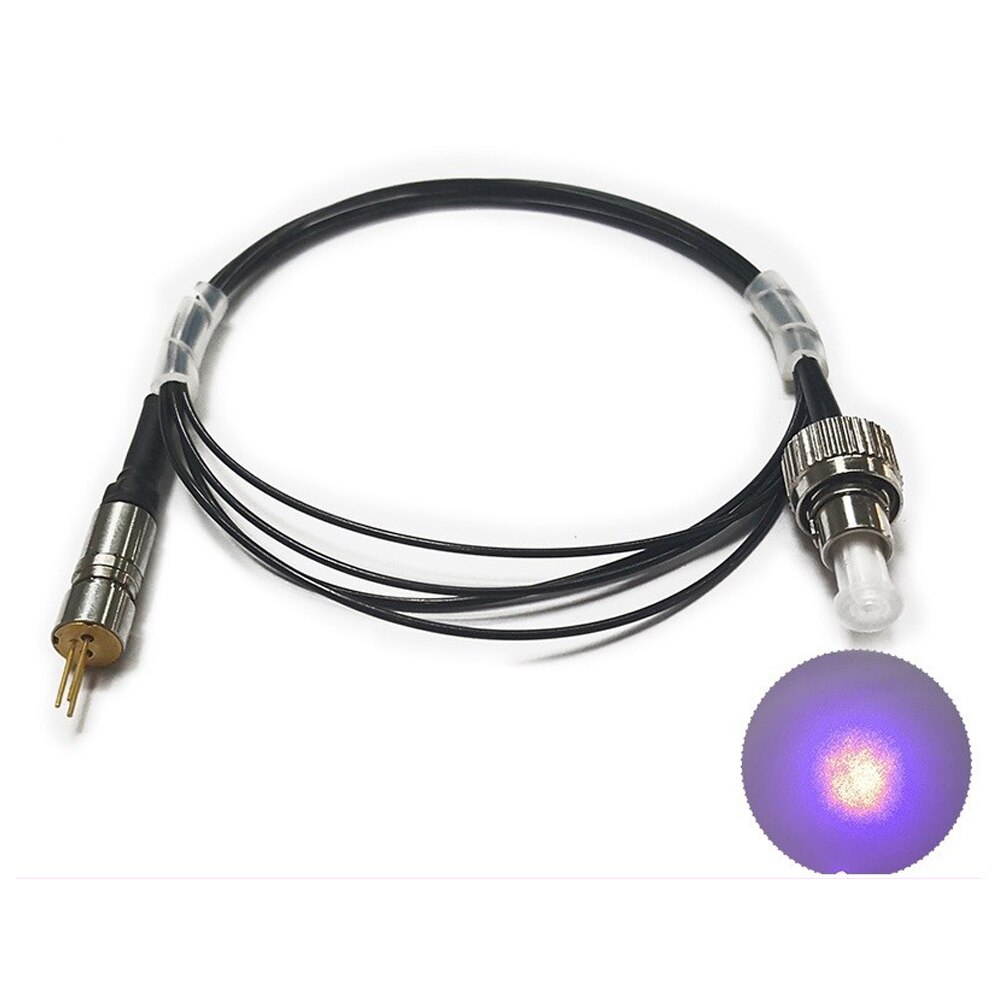

405nm20mw Semiconductor Laser Coupled Fiber Blue Violet Laser Module FC Connector Core 200um



Specifications:

Output wavelength: 405 ± 5NM

Output power: <20MW

Size: 6*16MM

Fiber Material: Quartz

Fiber core diameter: 200 microns

Fiber length: 1 meter

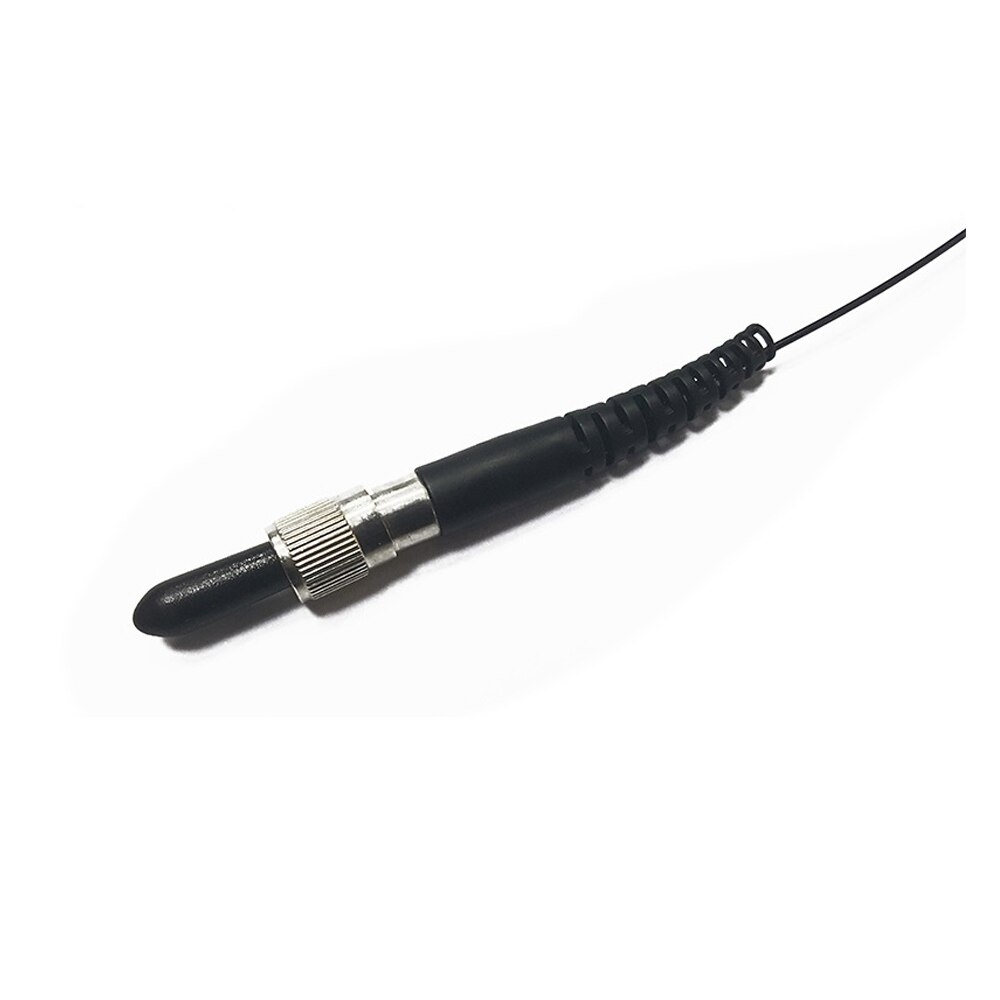

Connector type: FC connector

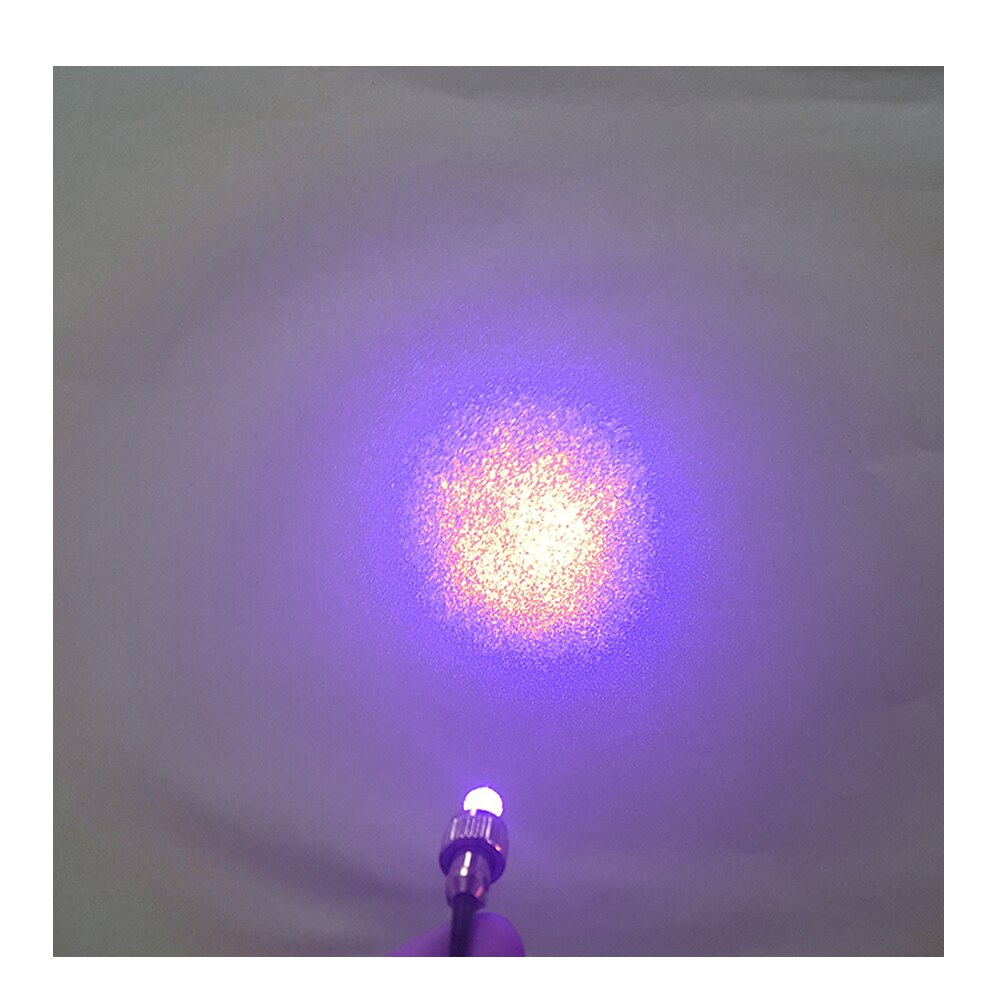

Spot shape: astigmatism

Coupling lens material: optical glass

Bare tube starting voltage: DC5V

Plus driver board voltage: DC6V

Circuit control mode: ACC constant current control board

Bare tube maximum working current: <60MA

Wire: UL1571 28#150MM red and black electronic wire

Working temperature: 0°C~+75°C

Storage temperature: -40 ° C ~ +85 ° C



Buying advice:

Please determine the distance used and reserve a certain length.

The default product does not have a board. If you want to add a board, please contact us.



Prompt:

Do not bend the fiber optic cable excessively to avoid fiber breakage.

Do not place heavy objects on the fiber.

When the dust jacket is not in use, try not to remove it to prevent dust pollution.

Do not pull too much to avoid the fiber connection falling off



Package:

405nm20mw Semiconductor Laser Coupled Fiber Blue Violet Laser Module FC Connector Core 200um
