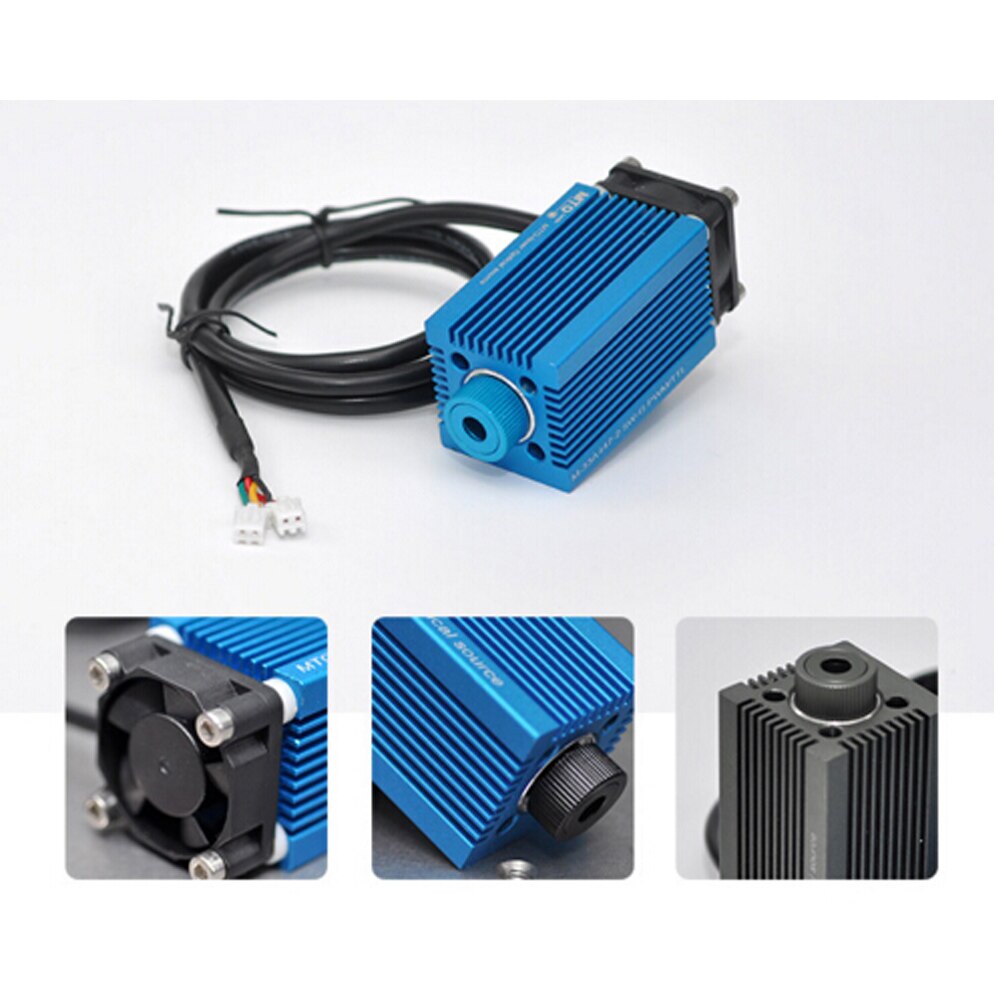

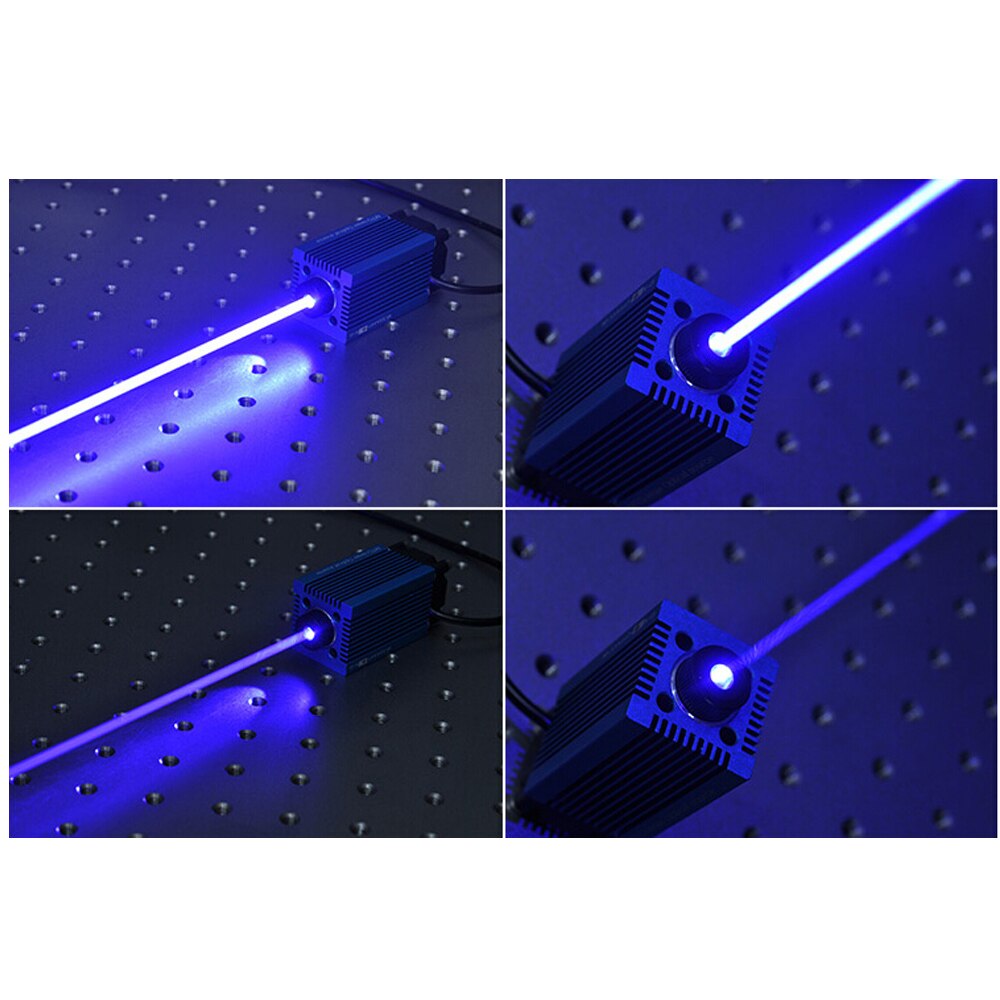

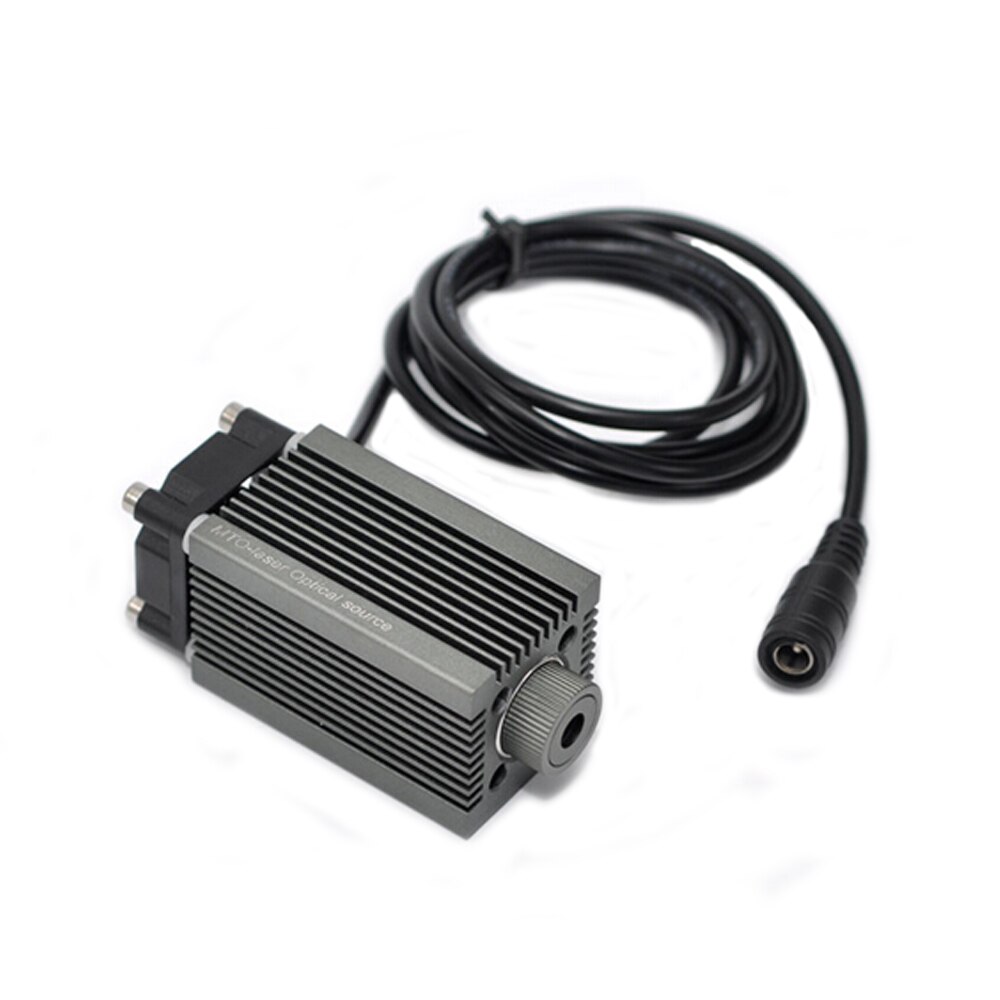

405nm 12V Point Laser Blue Violet Adjustable Focus DIY 3D Ddicated Engraving



Product parameters:

Power: ≤0.5W/500mW

Current: ≤250mA

Voltage: DC12V/1A

Control mode: PWM/TTL or optional constant light (power on or work)

Spot mode: dot-shaped minimum spot (3.5W4W fast scan or galvanometer): >0.1 mm

Working distance: best engraving focal length (20mm-200mm)

Working frequency: 0-20KHz

Material: Housing / Aviation #7075; Die / Copper

Cooling method: radiator and cooling fan

Continuous work: <12 hours

Size 33*55*77mm

Optical System: Optically Plated Glass Lens

Working temperature: -40 ° C ~+180 ° C



Features:

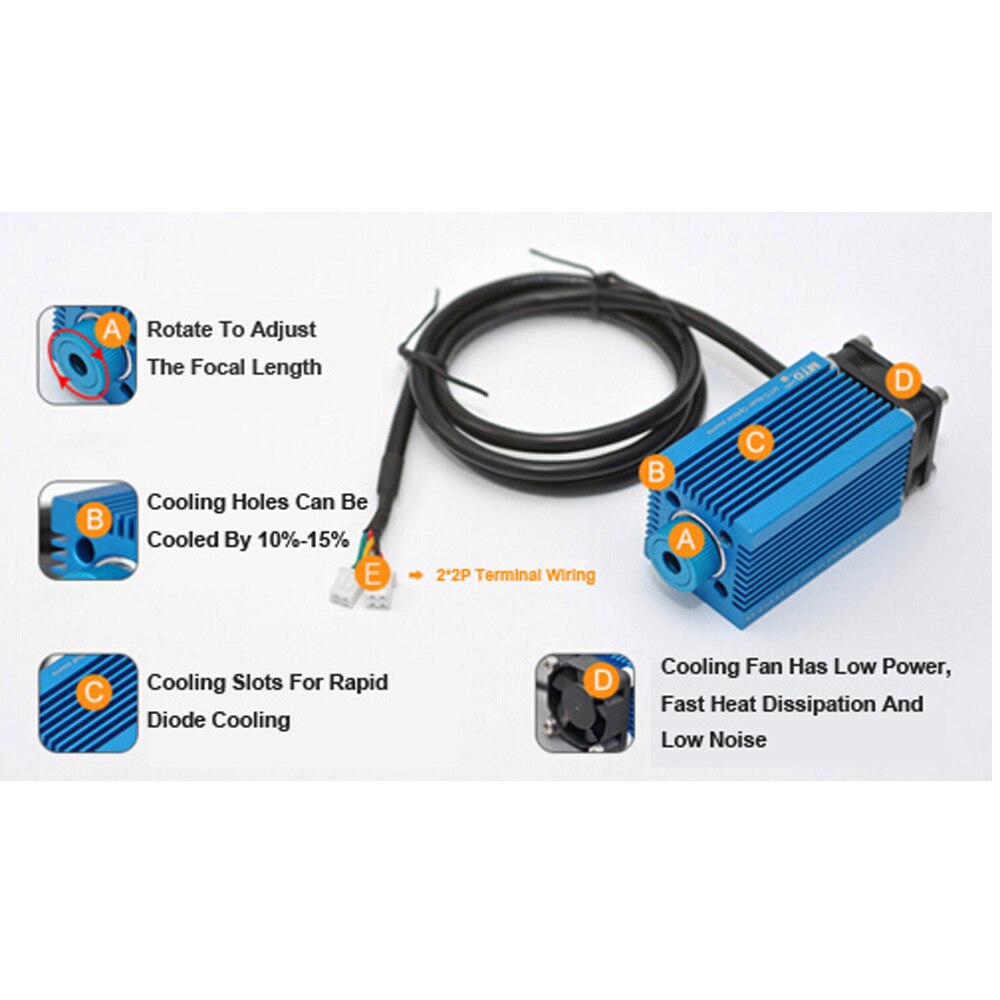

PWM high-power blue-violet micro-engraving machine controllable laser module, adjustable focus, micro-engraving, self-contained fan, efficient heat dissipation.



Tip:

1. Only the national standard power supply, if you need more than 1A power supply or a word focusing head, please contact us.

2. The default Connector is DC Connector, you can customize other interfaces. If you need to customize, please contact us.

3. If you need this product with a power of 200mW/300mW/1.6W/2.5W/3.5W/4W, please contact us.

4. Customized products cannot be returned or exchanged.



Use:

Can engrave the following materials: wood, some plastics, paper, bamboo, horns, thin leather? (such as wallet), rubber stamp, photosensitive stamp, printing paper, sponge paper, etc. Tip: Can not engrave metal, stone, set, jewelry, jade, reflective material, transparent glass, ivory, colorless transparent material, some white plastic (usually smooth plastic is difficult to engrave) can cut sponge paper, thin leather, printing paper .



Package:

1* 405nm 12V Point Laser Blue Violet Adjustable Focus DIY 3D Ddicated Engraving
