Description
- Brand Name: laserlands
- Certification: NONE
- Origin: CN(Origin)
- Style: Mini
- Occasion: Home Entertainment

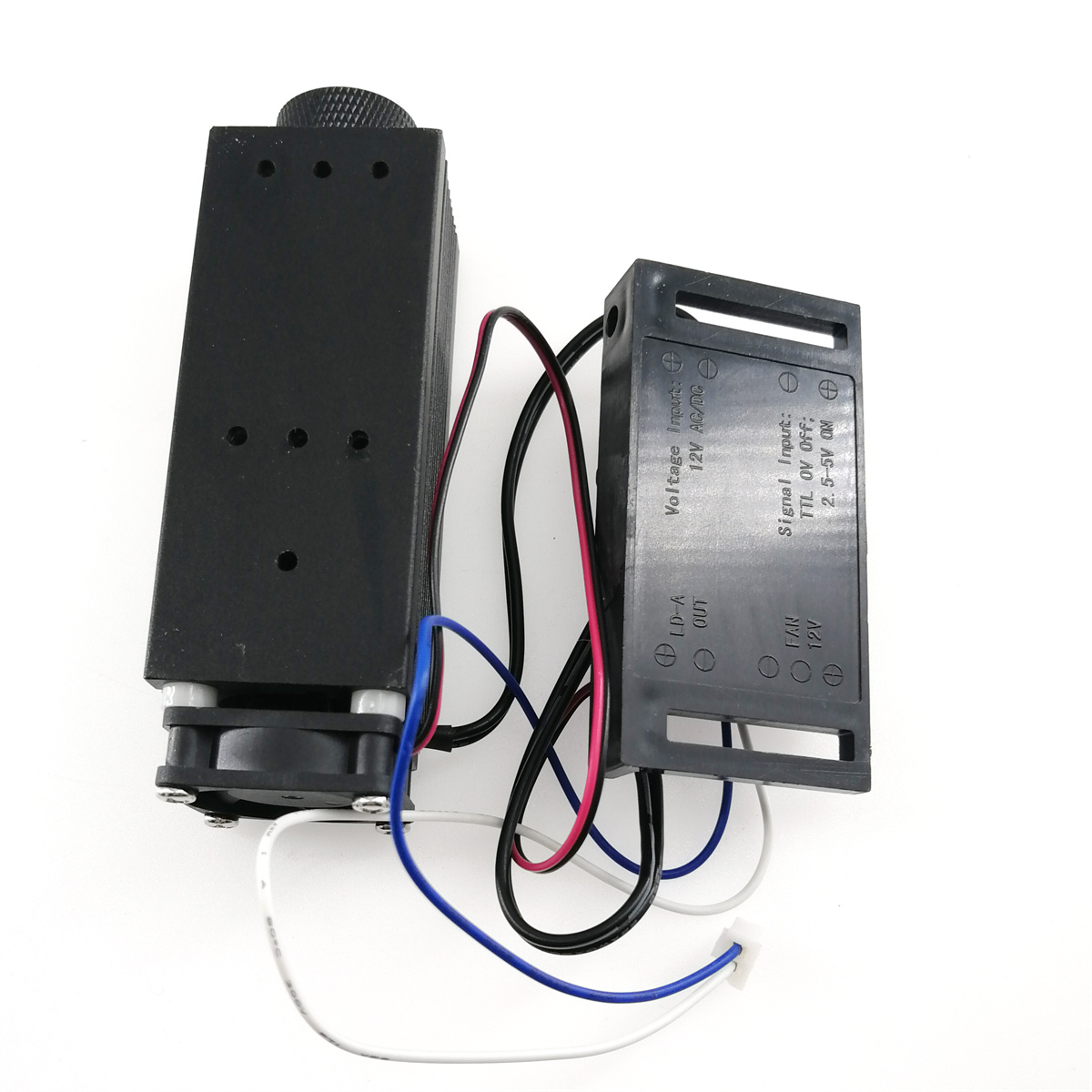

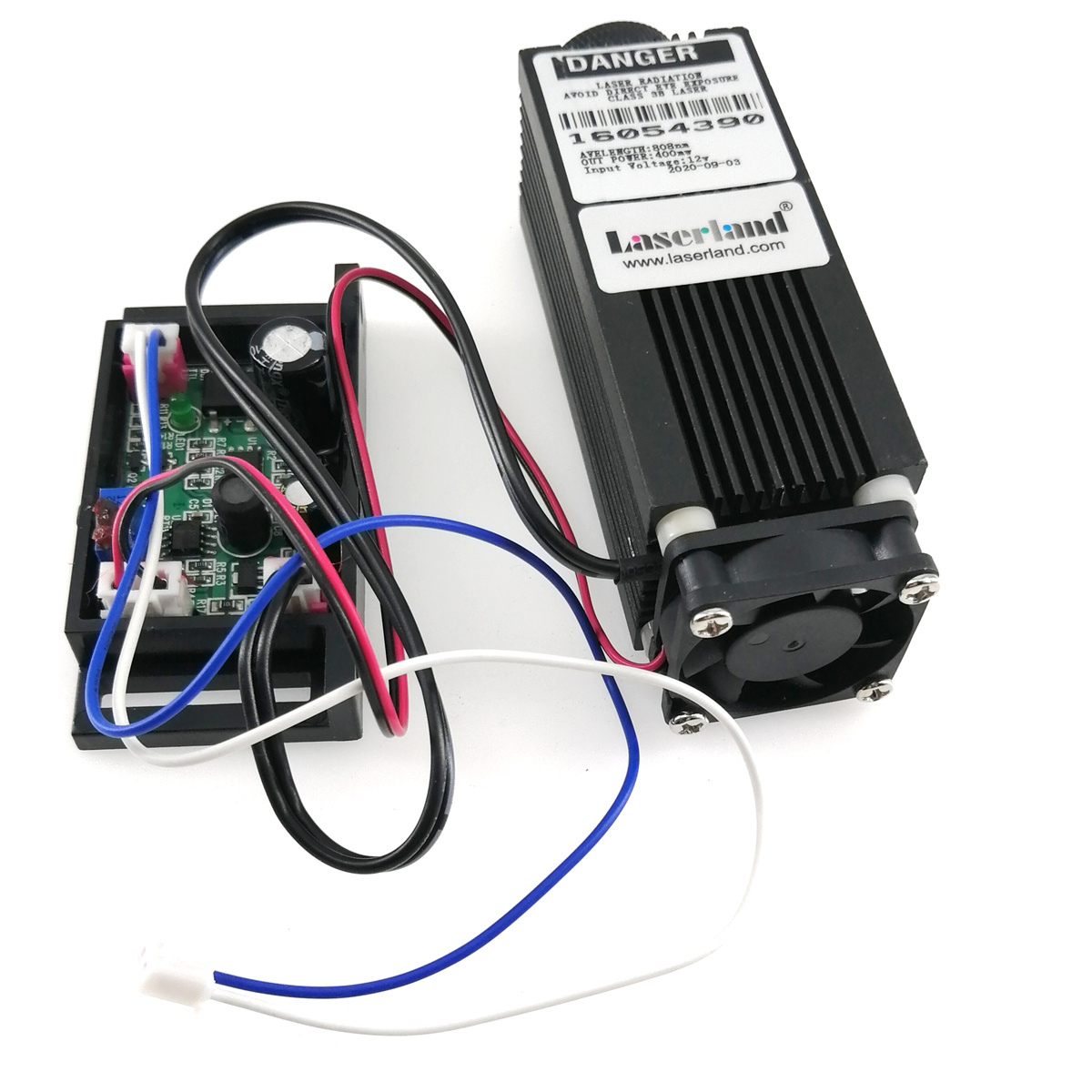

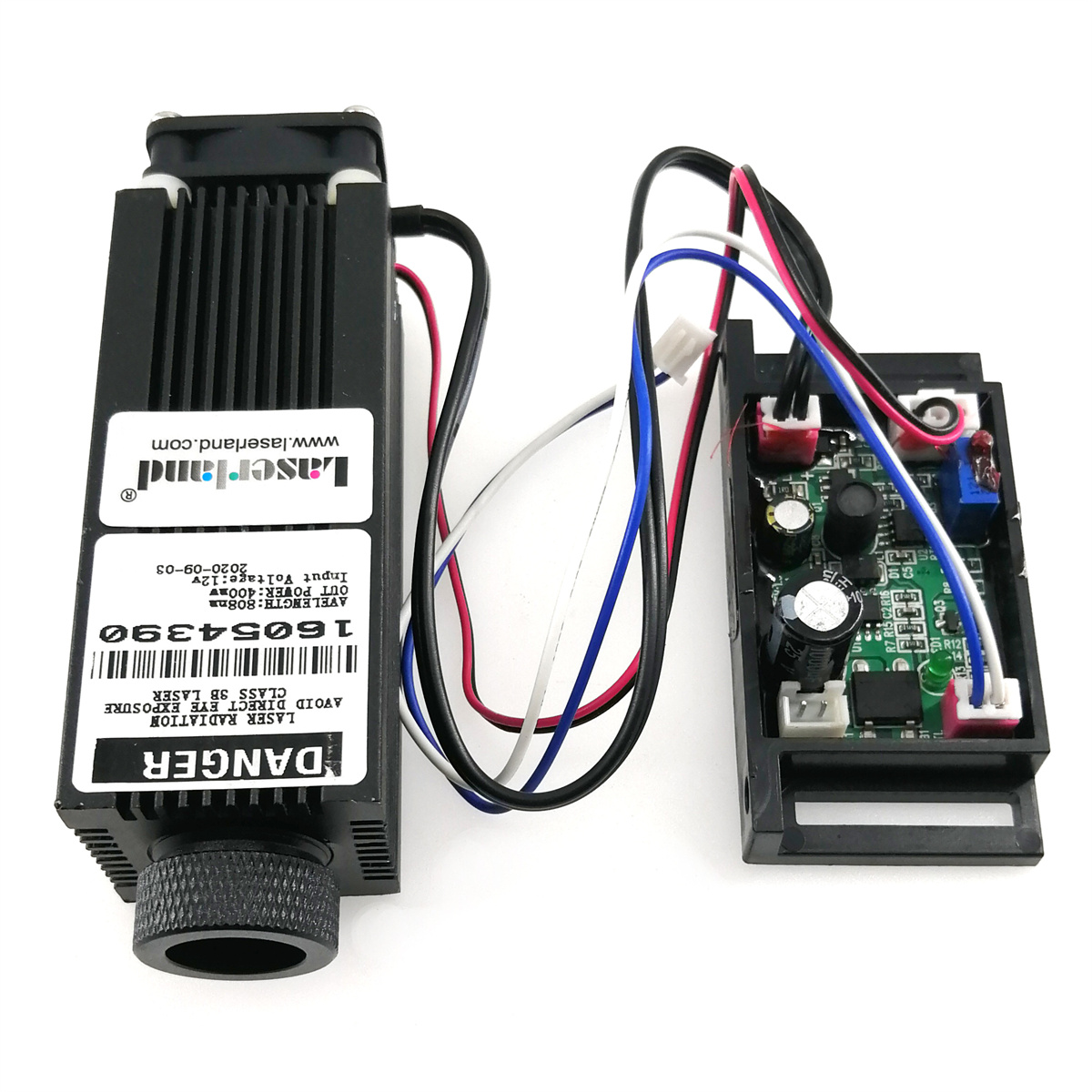

Focusable 400mW 800mW 808nm 810nm Infrared Laser Diode Module TTL Something buyer need to know:
1. This laser module can not work for a long time if there is no cooling device to keep the laser working under 30 centigrade.

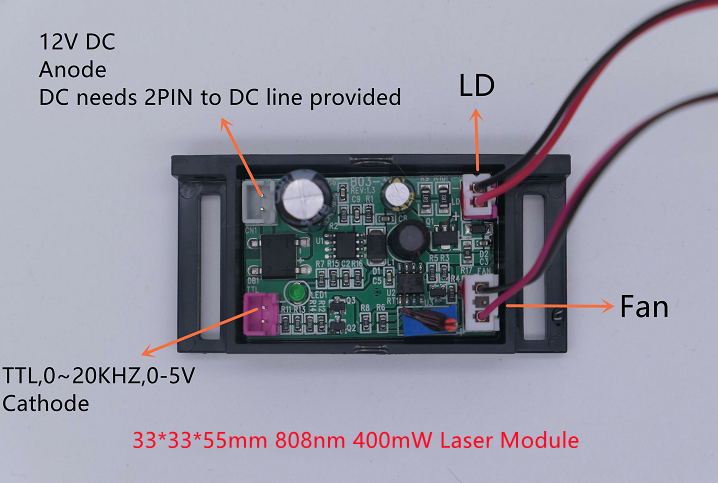

2. Please add a 12VDC power to this laser module. Red wire connects”+” pole; Black wire connects “-” pole. TTL 3-5V on, 0V off. If you don’t use TTL, please just leave the blue and white wire.

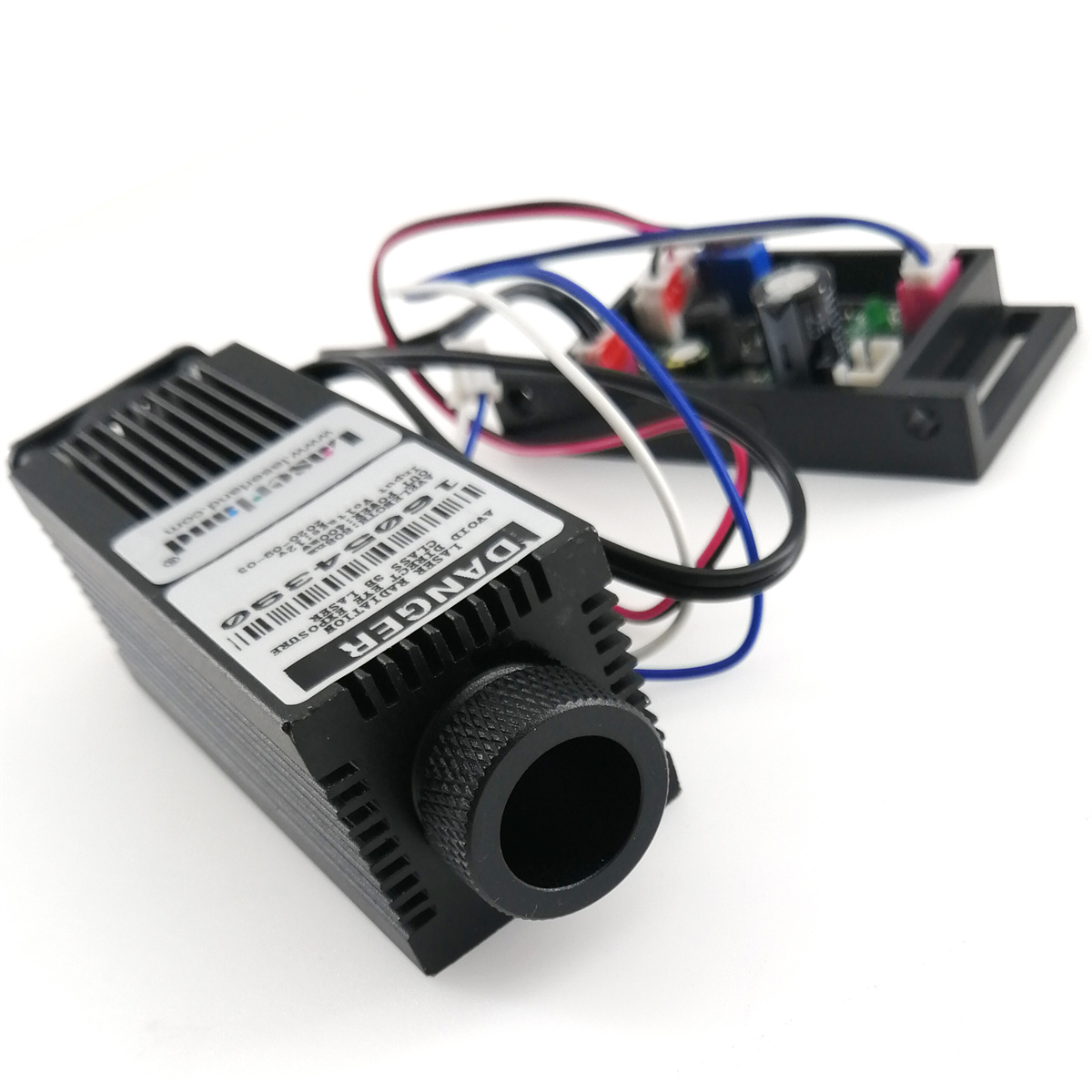

3. This is a focusable laser module. Please do not take off the lens adjustable part off to avoid dust. dot shape: tactangle

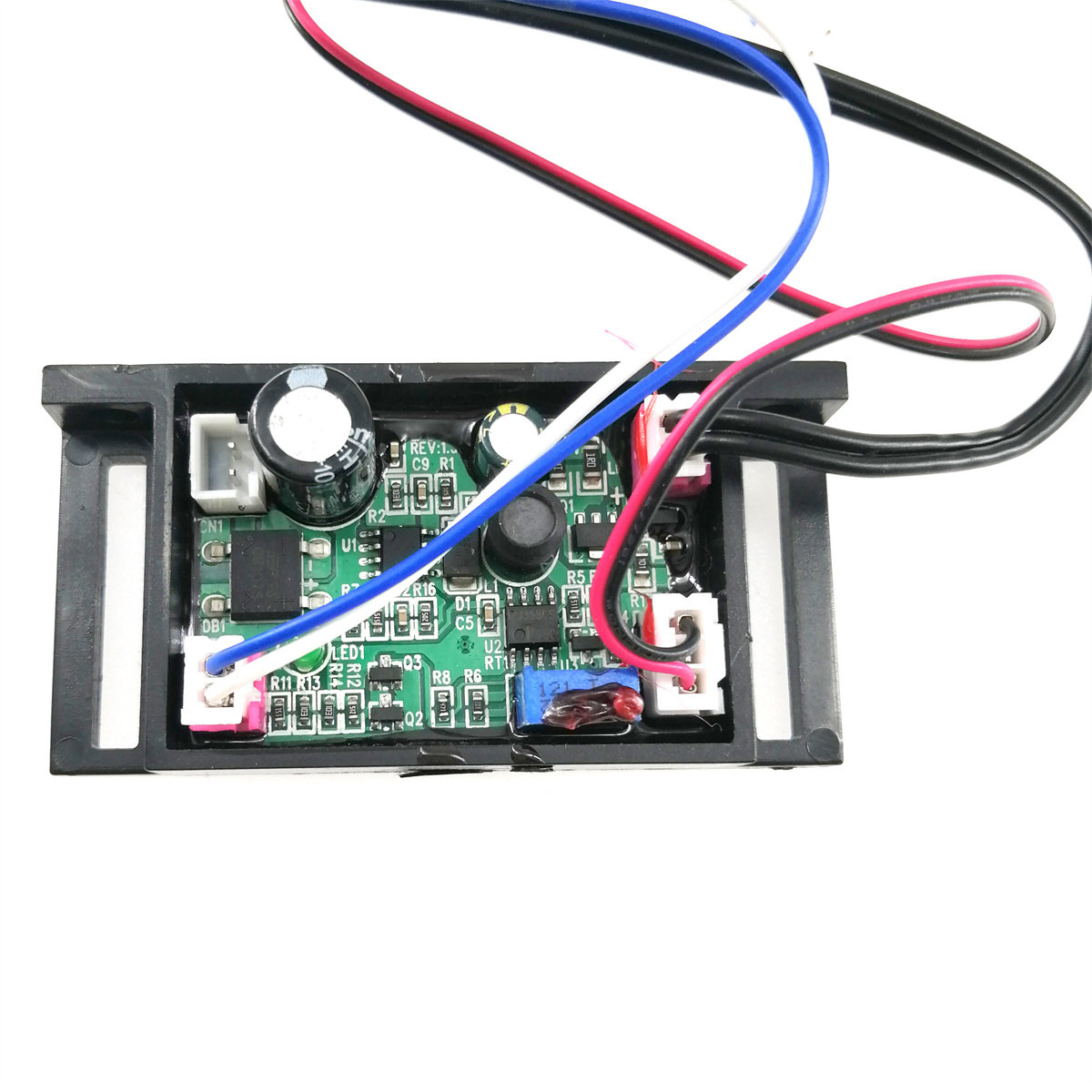

4. There is a potentiometer on the driver. You can turn it to adjust the power of the laser. Turn Clockwise to increase the laser power. Otherwise to decease the power. But the current can not surpass the current we have set up.
5. Please wear 808nm laser protection goggles to protect your eyes when working on this module.
6. Package: 1X laser module
Specification
|
Products Type |
LLM3380-810-0.4w |
Size |
33*33*80mm |
|
Wavelength |
810nm |
Lens |
Glass |
|
Output |
400mW(0.4W) 0.8w |
Divergence |
5mrad |
|
Working Voltage |
12VDC |
TTL |
>20KHz |
|
Working Current |
1.35A +-15% |
LD |
808nm 500mW |
|
Working Temperature |
-10- 30 centi-degree |
Operating Life |
>5000 Hours |
