Description
- Brand Name: MEIBAI
- Compatible Brand/Model: None
YOU CAN ADD ALL ITEMS TO YOUR CART,THEN PLACE ORDER TOGETHER, SO IT WILL COST ONLY ONE SHIPPING COST ACCORDING TO THE TOTAL WEIGHT, THANKS MUCH】
use:
Light intensity detection, light intensity sensor, smart car light-seeking module

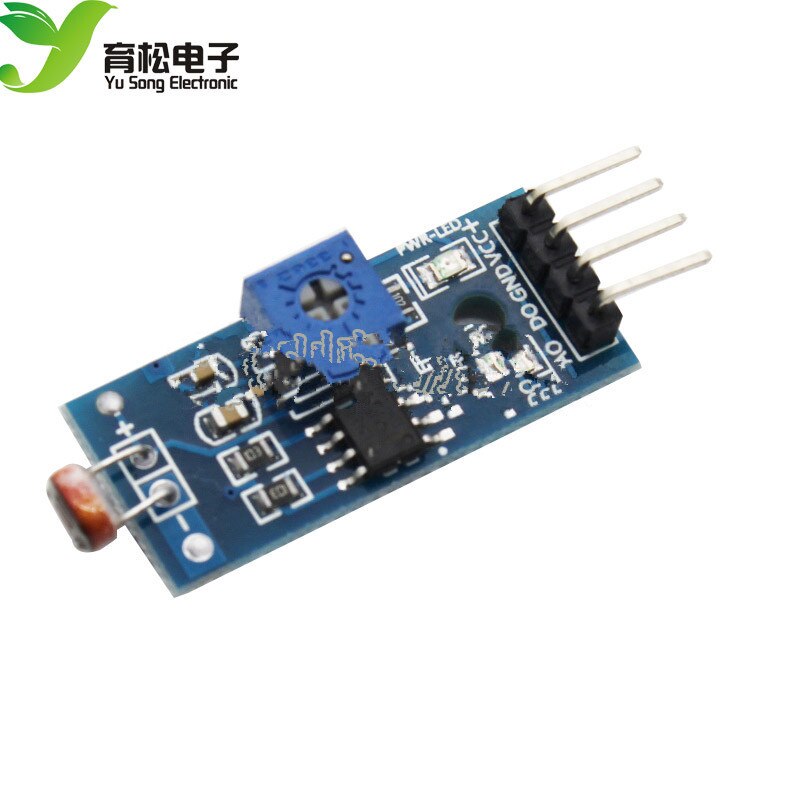

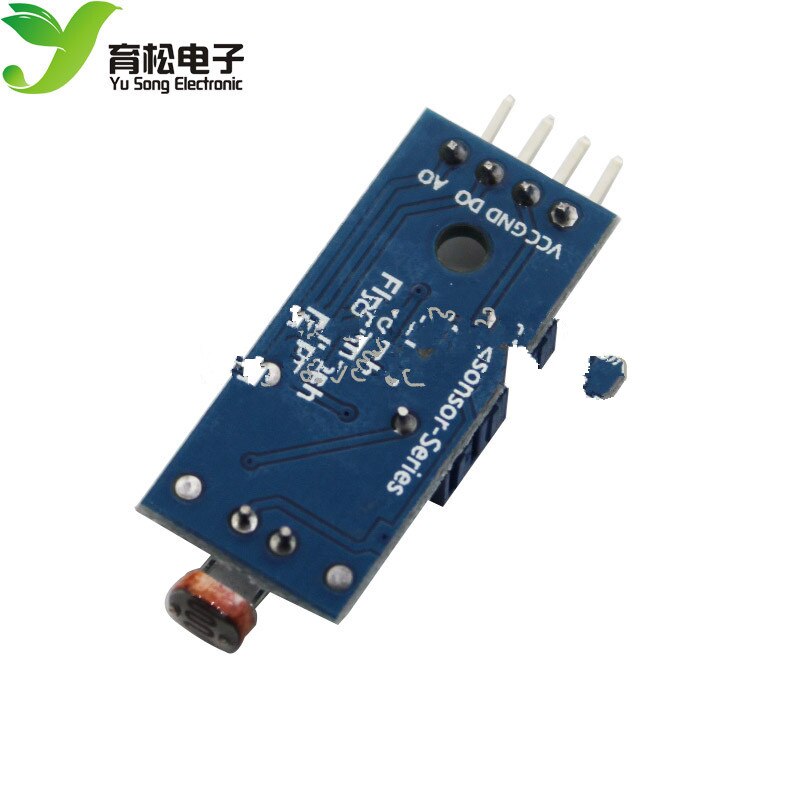

Module features:
1. Using sensitive photosensitive resistance sensor
2. Comparator output, clean signal, good waveform, strong driving ability, more than 15mA.
3. Equipped with adjustable potentiometer to adjust the brightness of detection light
4. Working voltage 3.3V-5V
5. Output form: DO digital switch output (0 and 1) and AO analog voltage output
6. With fixing bolt holes for easy installation

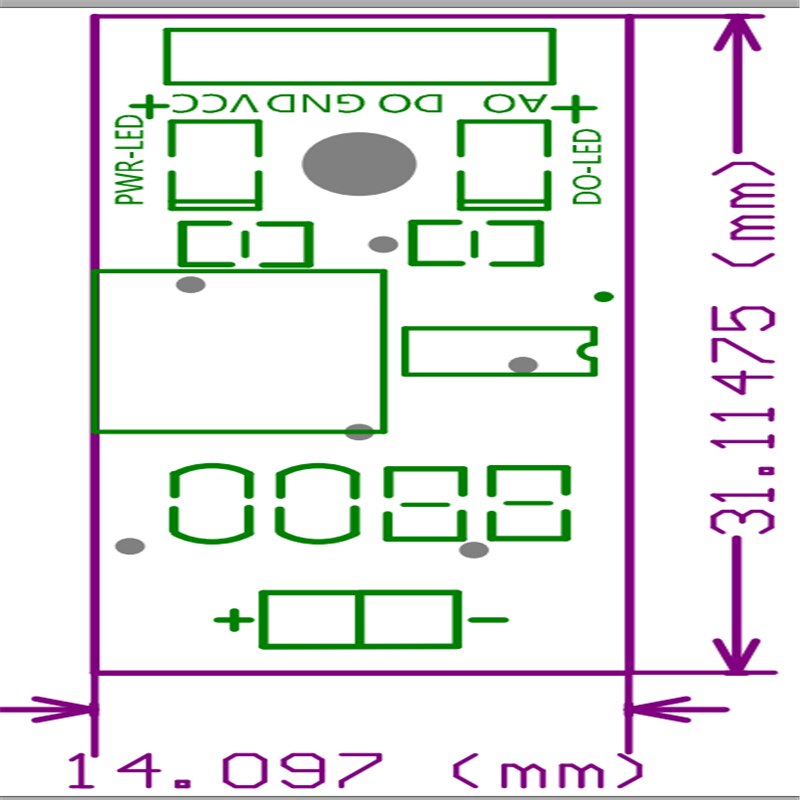

7. Small board PCB size: 3.2cm x 1.4cm
8. Use wide voltage LM393 comparator
Module instructions
1. The photoresistor module is sensitive to ambient light, and is generally used to detect the brightness of the ambient light, trigger the single-chip microcomputer or relay module, etc.;
2. When the module’s ambient light brightness does not reach the set threshold, the DO terminal outputs a high level; when the ambient light brightness exceeds the set threshold, the DO terminal outputs a low level;
3. The DO output terminal can be directly connected with the single-chip microcomputer, and the high and low level can be detected by the single-chip microcomputer, thereby detecting the change of the ambient light brightness;
4. The DO output terminal can directly drive our relay module, which can form a light control switch.
5. The analog output AO of the small board can be connected to the AD module, and through AD conversion, a more accurate value of the ambient light intensity can be obtained;
