Description
- Brand Name: HESAI
- Origin: CN(Origin)
- Usage: Consumption Sensor
- Material: Mixture
- Type: Optical-Electronics Sensor
- Output: Analog Sensor
- Theory: Inductance Sensor
- Model Number: 4-pin Module
- is_customized: Yes
Purchase Notes
1. The two logistics of Yanwen Economic Air Mail and China Post Ordinary Small Packet Plus do not have tracking information, so there is no time limit. We recommend using China Post Registered Air Mail or AliExpress Standard Shipping.
2. We do not accept refunds for minor damage (pin bending, slight screen abrasion,etc.)during the transit of the material, without affecting normal use. If you mind,please do not buy.
3. Some products provide technical support, if you need help, please contact us, we will handle your message the first time.
4. If you have any questions about the product, please contact us before you open a dispute. We will give you the most satisfactory answer.
5. We provide each customer with good quality products, very favorable prices and the most sincere service. We hope to get your good feedback.
Wish you a pleasant shopping!
2. We do not accept refunds for minor damage (pin bending, slight screen abrasion,etc.)during the transit of the material, without affecting normal use. If you mind,please do not buy.
3. Some products provide technical support, if you need help, please contact us, we will handle your message the first time.
4. If you have any questions about the product, please contact us before you open a dispute. We will give you the most satisfactory answer.
5. We provide each customer with good quality products, very favorable prices and the most sincere service. We hope to get your good feedback.
Wish you a pleasant shopping!

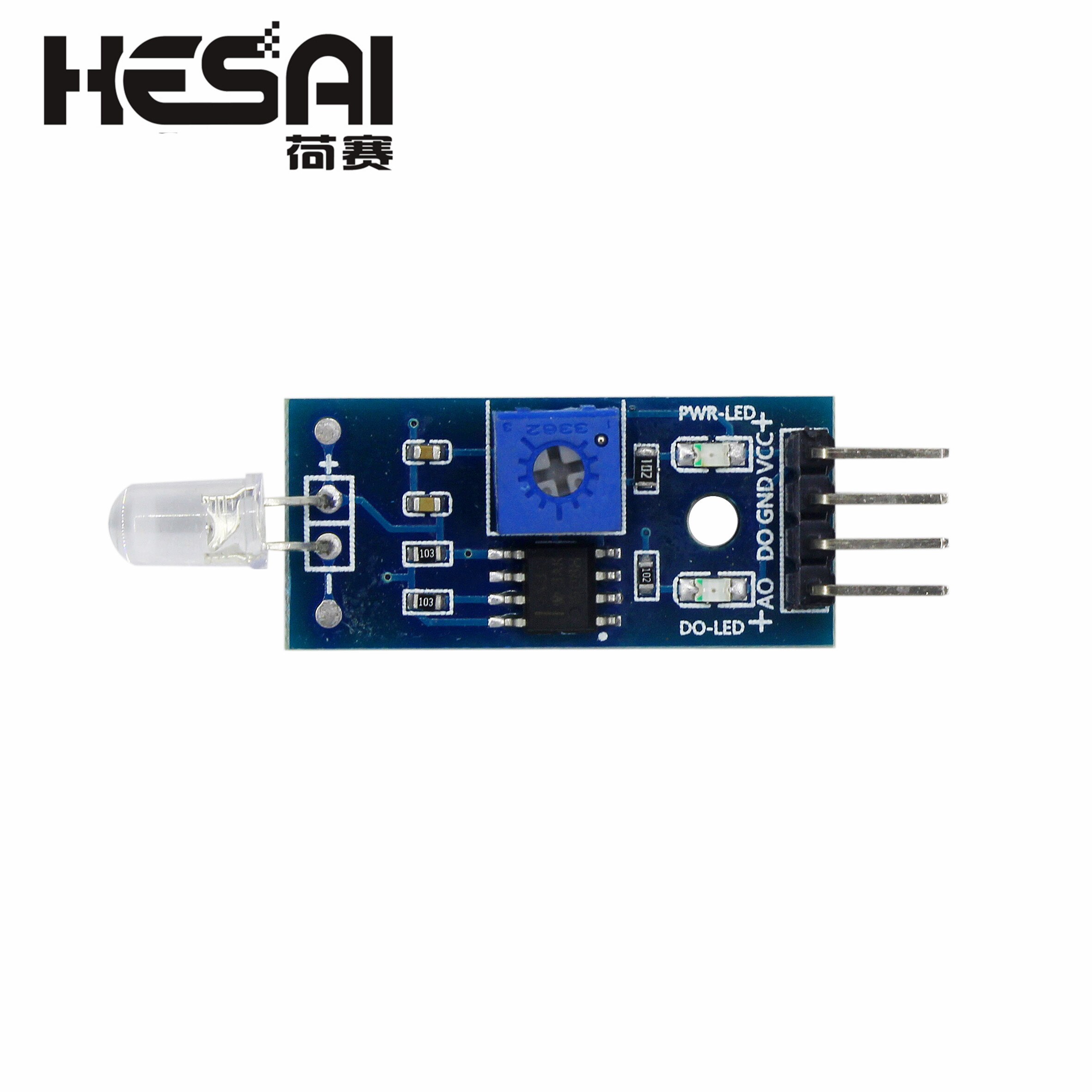

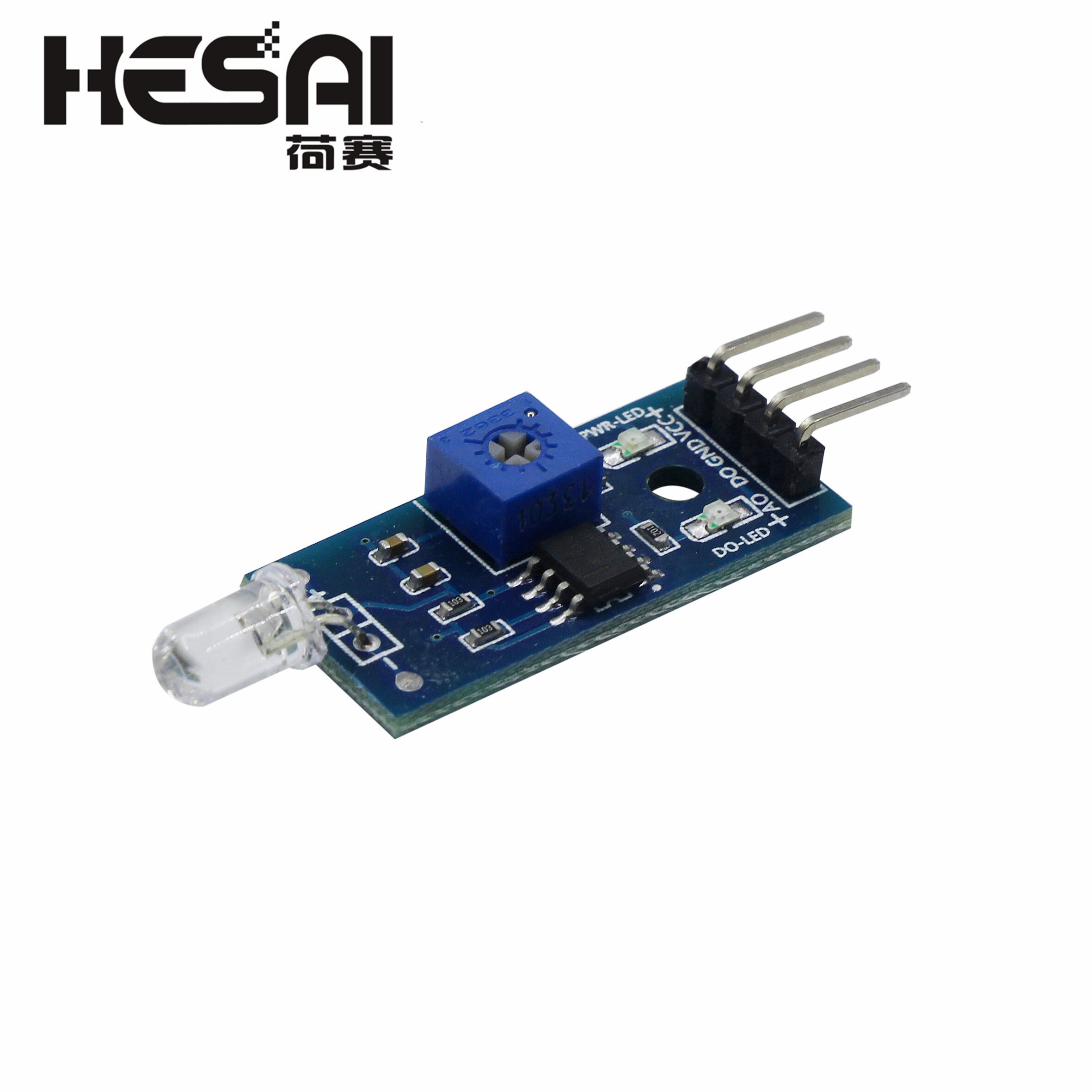

Light brightness detection, light brightness sensor, directional, only inductive light source directly in front of the sensor, for better light-seeking effect.
1. It can detect the brightness and light intensity of the surrounding environment (compared with the photoresistor, the directionality is better, and the light source in the fixed direction can be perceived)

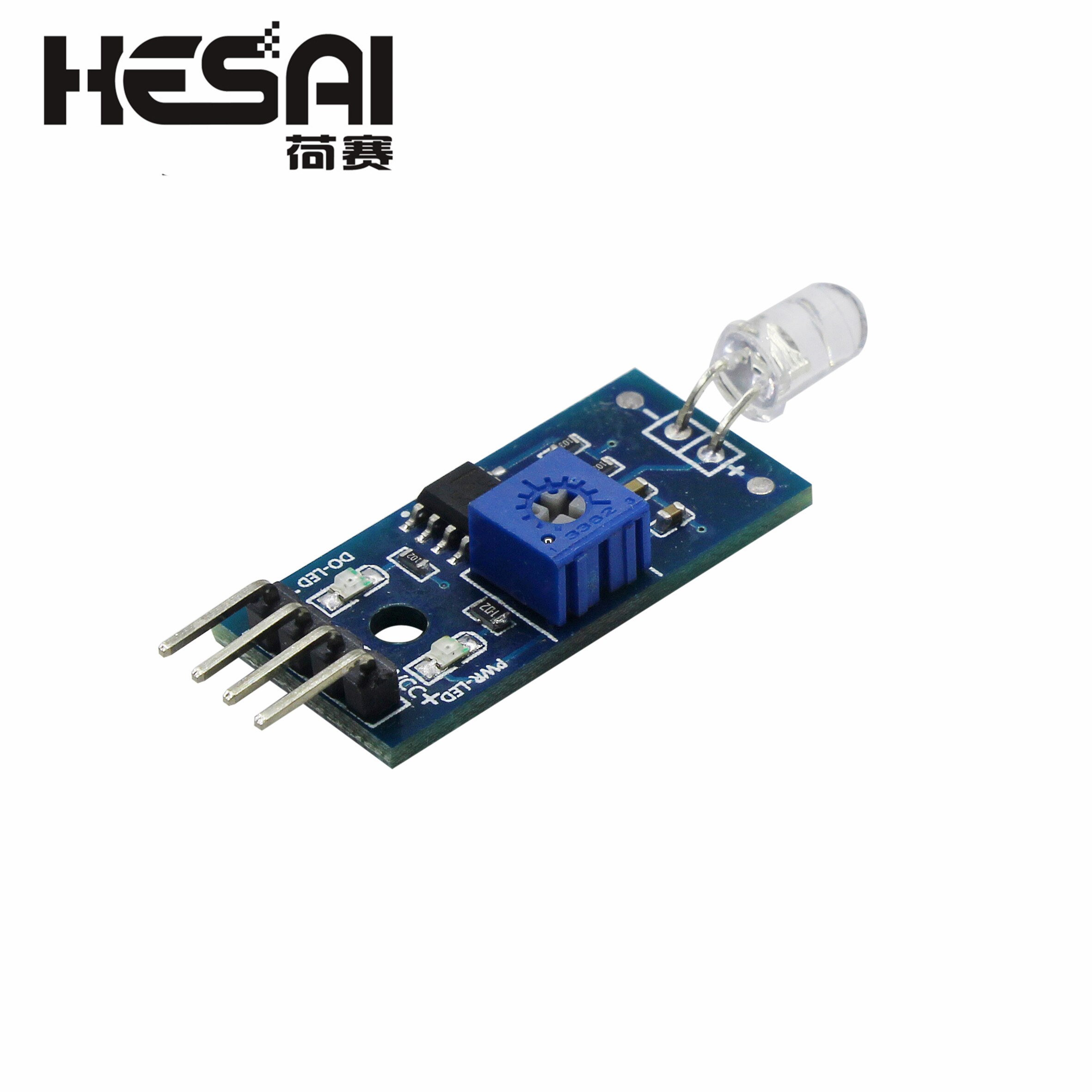

2. Sensitivity is adjustable (blue digital potentiometer adjustment in the figure)
3. Working voltage: 3.3V-5V
4. Output form: DO digital switch output (0 and 1) and AO analog voltage output
5. With fixing bolt holes for easy installation
Instructions for use
1. Photodiode module is most sensitive to ambient light intensity. It is generally used to detect the brightness and light intensity of the surrounding environment. In most cases, it can be used with the photoresistor sensor module. The difference between the two is that the photodiode module has good directionality. A light source that senses a fixed direction.

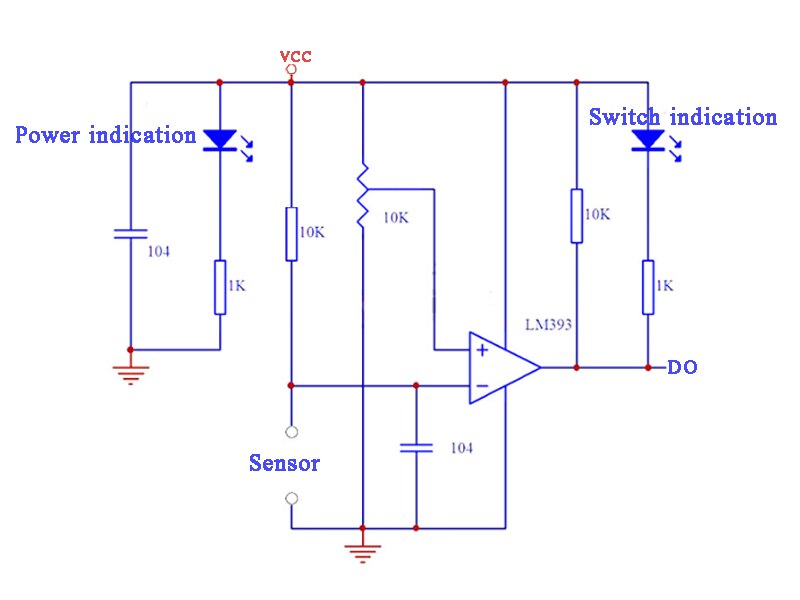

2. When the module is in no light condition or the light intensity does not reach the set threshold, the DO port outputs a high level. When the ambient light intensity exceeds the set threshold, the module D0 outputs a low level.
3. The small-plate digital output D0 can be directly connected to the single-chip microcomputer, and the high-low level is detected by the single-chip microcomputer, thereby detecting the change of the light intensity of the environment.
