Description

Product Description

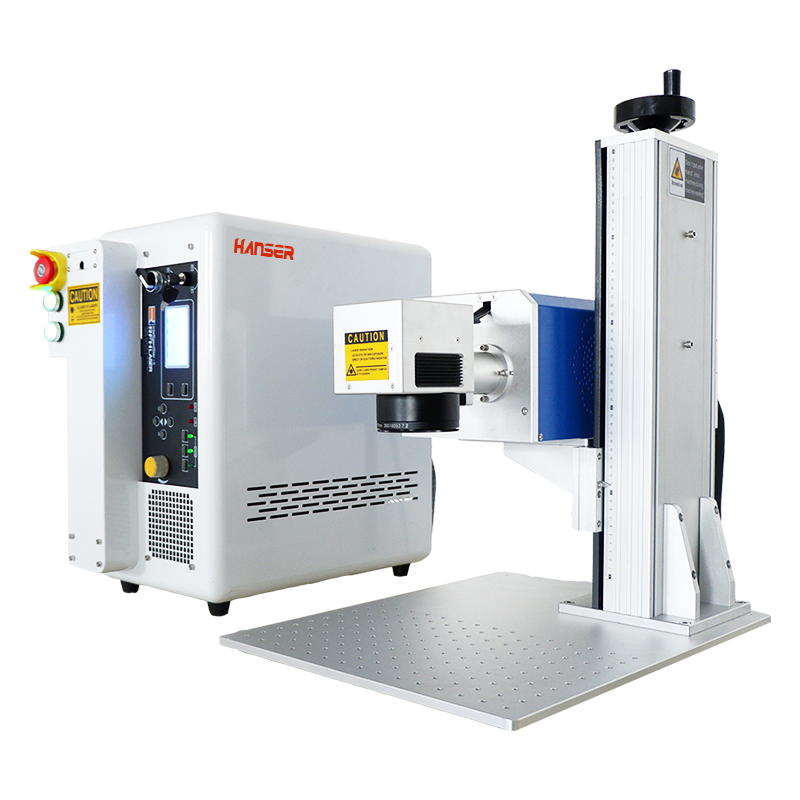

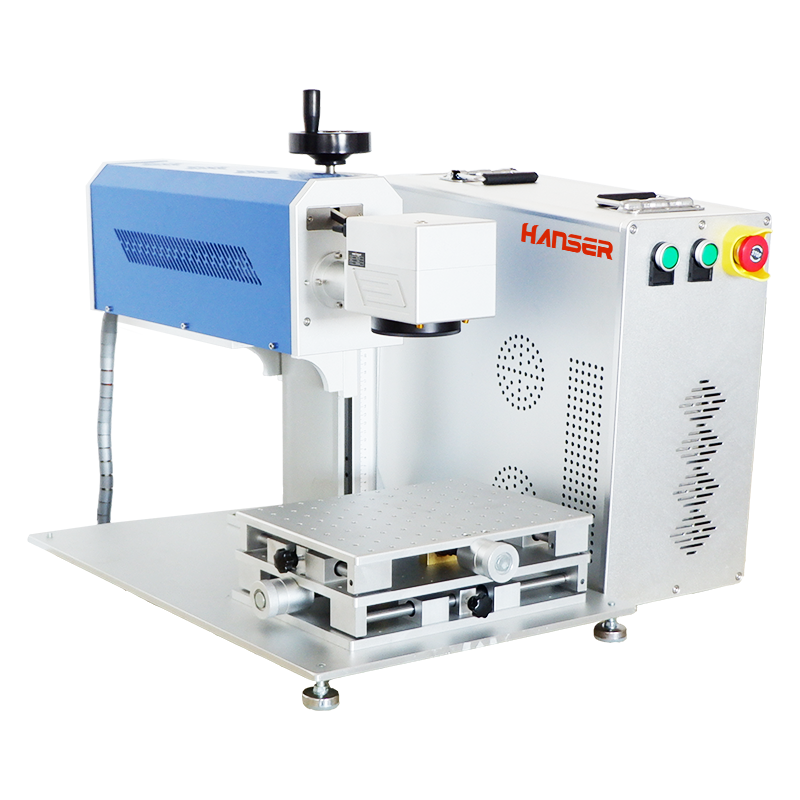

3W UV laser marking machine for glass metal nonmetal engraving machine

We have our own factory and we can customize any types of laser machine according to your requirements

Features

1.High speed: High quality laser scanning system. the marking speed up to 7000mm/s.
2.High precision:Re-position precision is 0.001mm.
3.Easy operating: Operating video will be sent. guiding online at anytime.

4.No consumables, free maintenance:Just follow the correct using manual.

Item Name		Technical Parameters
Model		HTU-3T
Laser power		3W
Laser wavelength		355nm
Laser type		RFH laser source
Repeat frequency		50KHz-60KHz
Repeatability		0.001mm
Marking area		100×100-(300×300)mm(Optional)
Power Required		220V/50HZ-60HZ
Marking depth		0.01-5mm(Optional)
Cooling		Water Cooling
Shape dimension(LWH)		9007801180mm(Optional)
Marking speed		≤7ooomm/s
Package		non-fumigation Plywood case

Application

Applicable

super fine marking on plastic, and other material like glass, Gold, copper, silver, aluminum, anodised aluminum, stainless steel, carbon steel, chrome, alloy, plated metal, PVC plastic, etc

Applied industries

electronic components, IC, electrical appliances, mobile phones, plastic buttons, color paper, food packaging, clocks and watches, molds, gaskets and seals, bearing, auto parts, hardware, tools, building materials, PVC tubes, etc.
