Description
Youtube Link: https://youtu.be/lfYT9YR6Tdk
UV laser printer for PVC pipe upgrade 355nm coding plastic pipe 3w uv laser marker
Product Introduction:
UV laser printer for PVC pipe upgrade 355nm coding plastic pipe 3w uv laser marker is suitable for cables, PE pipes, the it is especially suitable for automatic production line of date code or bar code. According to customer’s different needs matching fiber, CO2, UV and other models and automatic assembly line work bench to meet customer requirements of flight standards system, to achieve assembly line operations to improve production efficiency.
Compared with ink jet printer, laser marking machine has functions of no consumption, no pollution, no noise, energy saving and environmental protection.
Product Advantages:
BEC Laser Printers: BEC Laser coding solution is use high energy density aggregation in carved the underlying surface, within a very short period of time make the surface of biomass gasification by controlling the effective displacement of the laser beam, precisely burning and carving out exquisite patterns or characters. Reduce production costs, no consumption, high efficiency, permanent mark to ensure that the product can be traced back. Enhance the additional value and brand effect. Performance is more stable, work continuously for 24 hours and the maintenance time of the laser is more than 100,000 hours. Environmentally friendly non-toxic and no noise pollution.
Ink Jet Printers: The use for marking on the food and medical by inkjet printing with some problems such as large number of special ink consumption, high cost; ink jet printer often appear ink clogging nozzle, long time professional maintenance staff maintenance; single style of the products. The mark is easy to be erased, it has effect to product credibility.
Technical Parameters:
| Product Name | UV laser printer for PVC pipe upgrade 355nm coding plastic pipe 3w uv laser marker | |
| Model | BEC-UV3J | BEC-UV5J |
| Laser Power | 3W | 5W |
| Wavelength | 355nm | |
| Pulse Width | <15ns@30kHz | <15ns@40kHz |
| Frequency Range | 20KHz-150KHz | |
| Beam Quality | M2 ≤1.2 | |
| Beam Diameter | Non-expanded: 0.7±0.1mm | Beam expansion: 7.0±1.0mm |
| Product Line Speed | The encoder measures speed, it can be adjusted according to the line speed. | |
| Marking Speed | 800 standard characters /s | 1000 standard characters /s |
| Cooling Mode | Water cooling | |
| Enviornment Temperature | 15℃~35℃ ( No condensation ) | |
| Power Supply | 220V( 110V ) 50Hz/60Hz | |

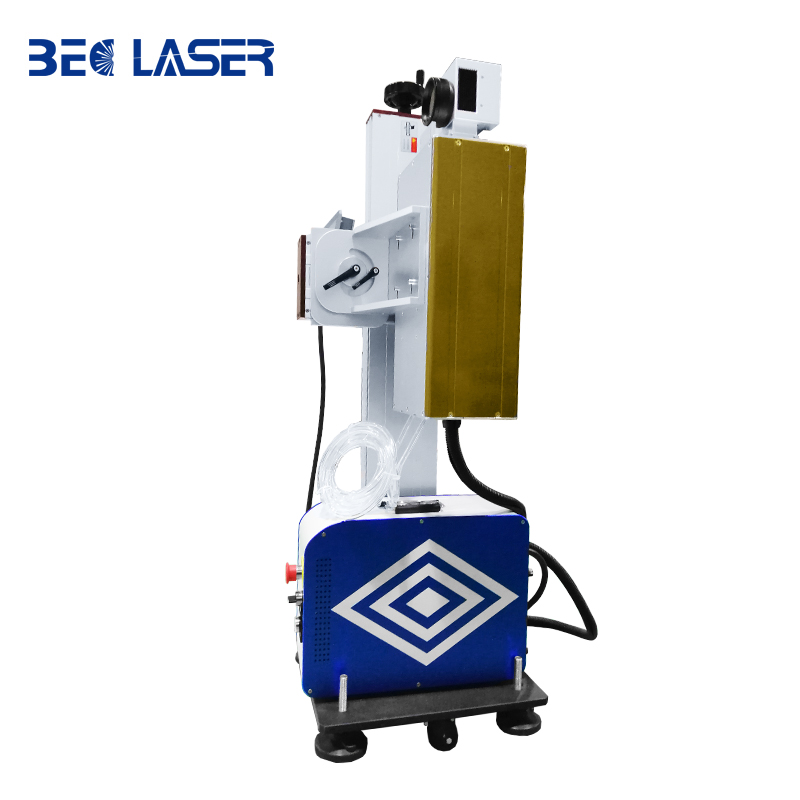

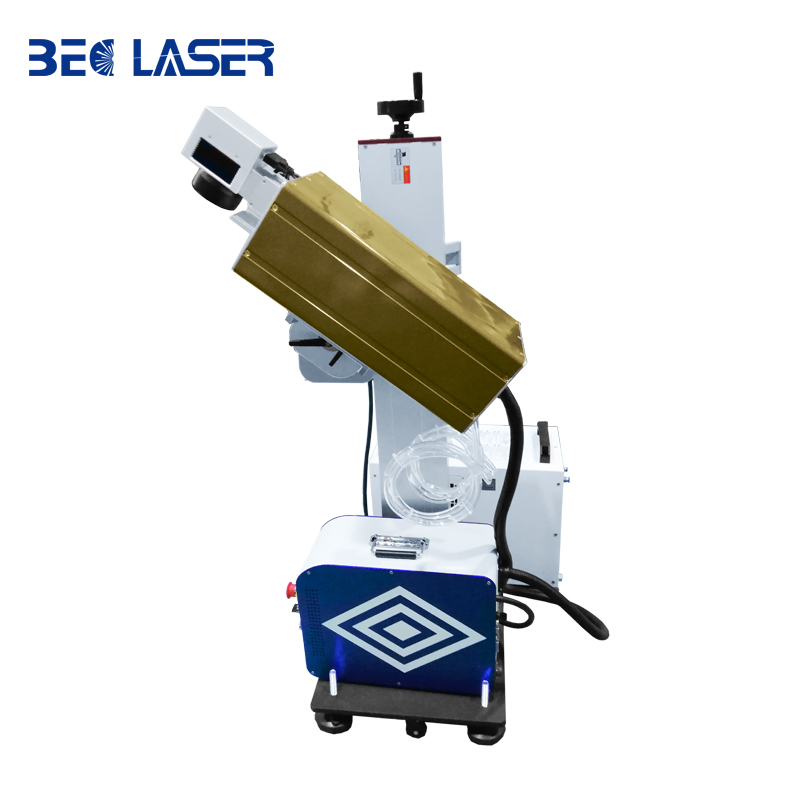

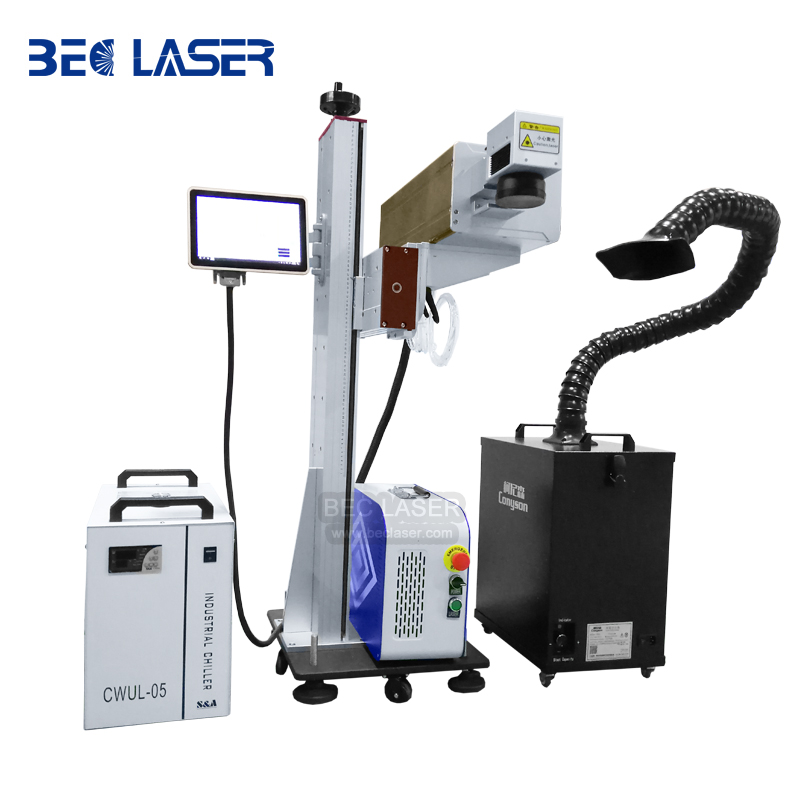

Structures of UV laser marking machine
Details about UV laser marking machine
Application:

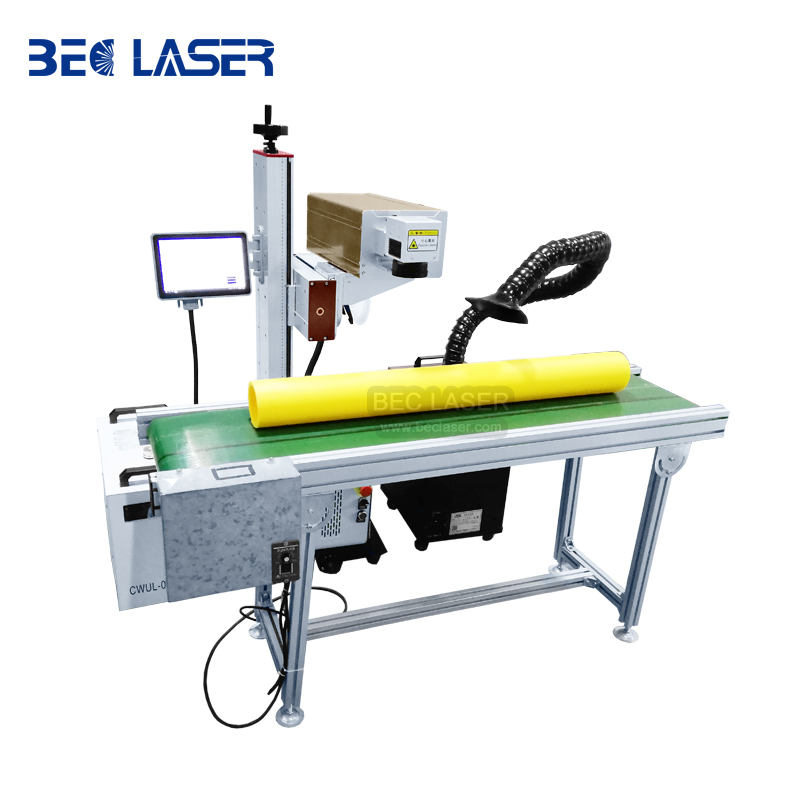

UV laser printer for PVC pipe upgrade 355nm coding plastic pipe 3w uv laser marker combines laser technologies with production line, it can mark on fast moving items for conveyor/pipe/cable and conduct 24 hours continuous working.
It is mainly used to mark characters, figures, batch numbers, production dates, validity, LOGO, real time clock information and anti-counterfeiting, especially the pharmaceutical industries GMP and food industries HACCP.
We can do the marking on any materials, just only choose a suitable laser type! You just need to tell us what material of your products, and send the pictures to us, we will do the marking samples for you!
Production Line Demo
Training for Customers
