Description

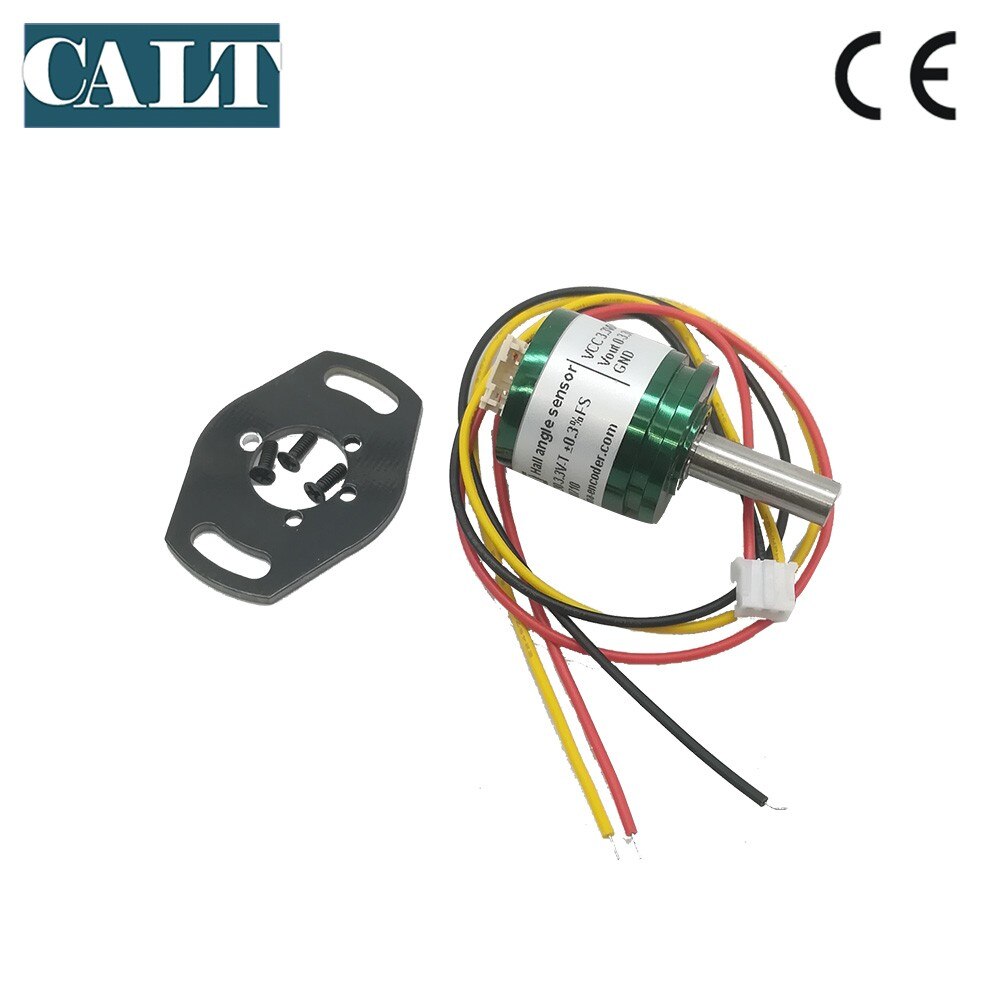

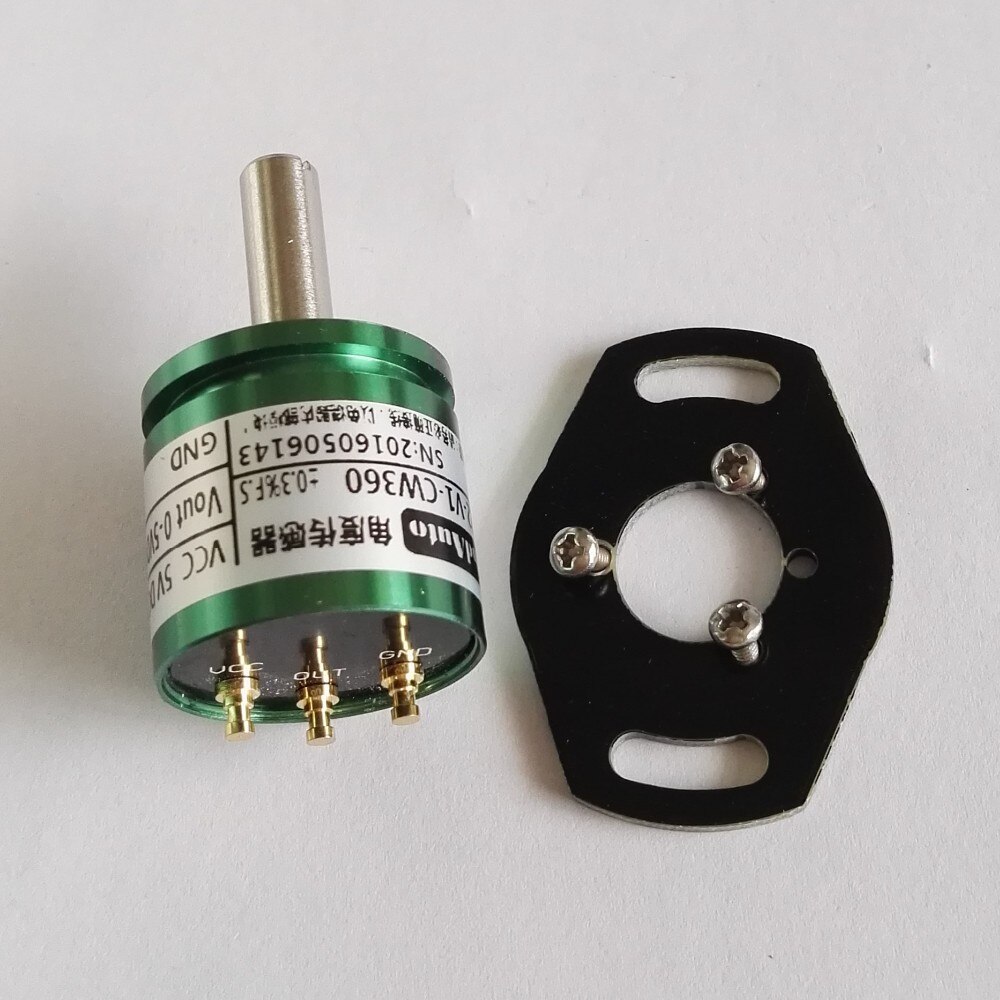

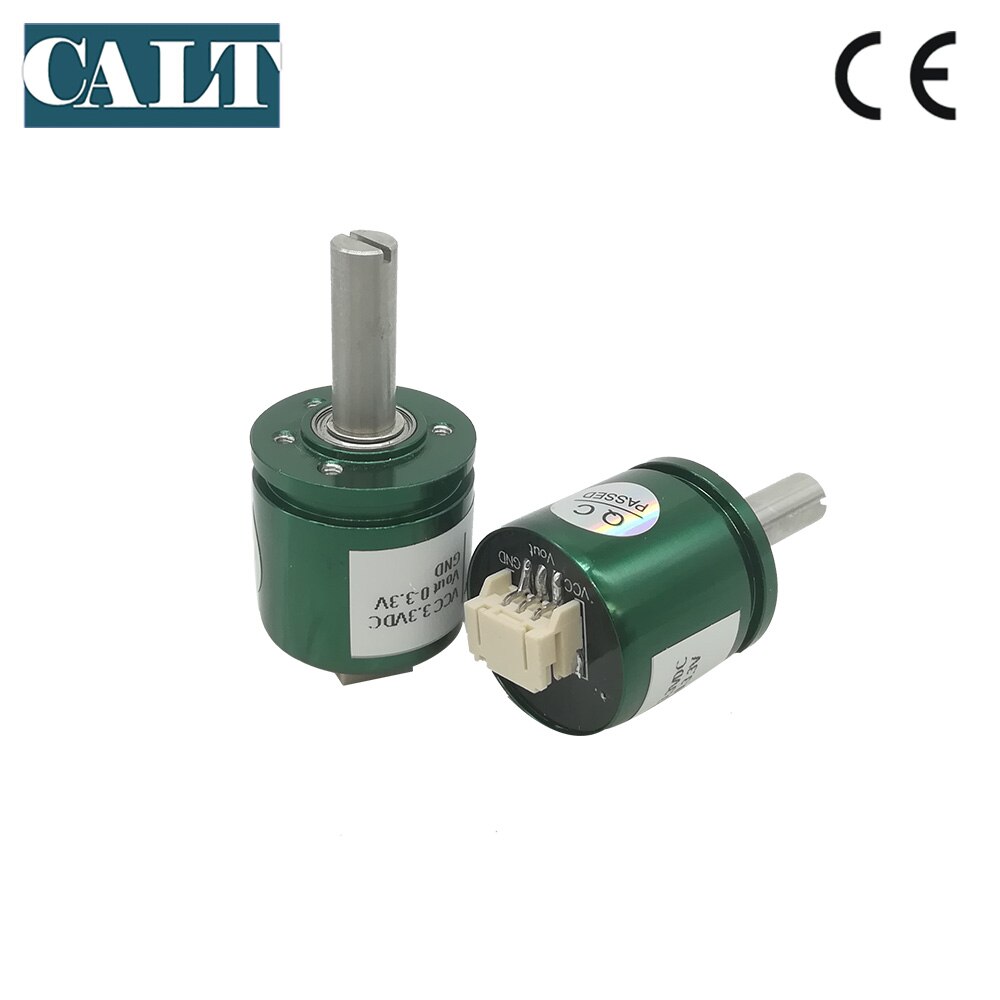

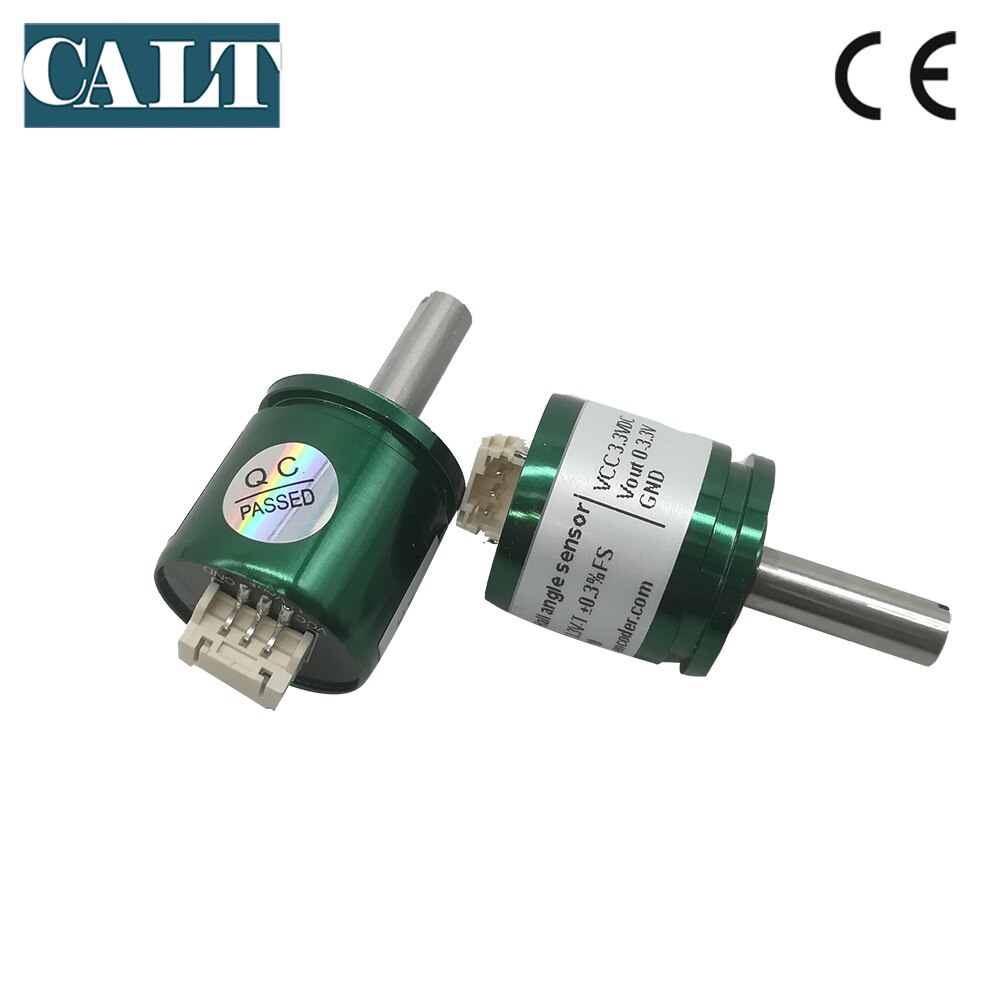

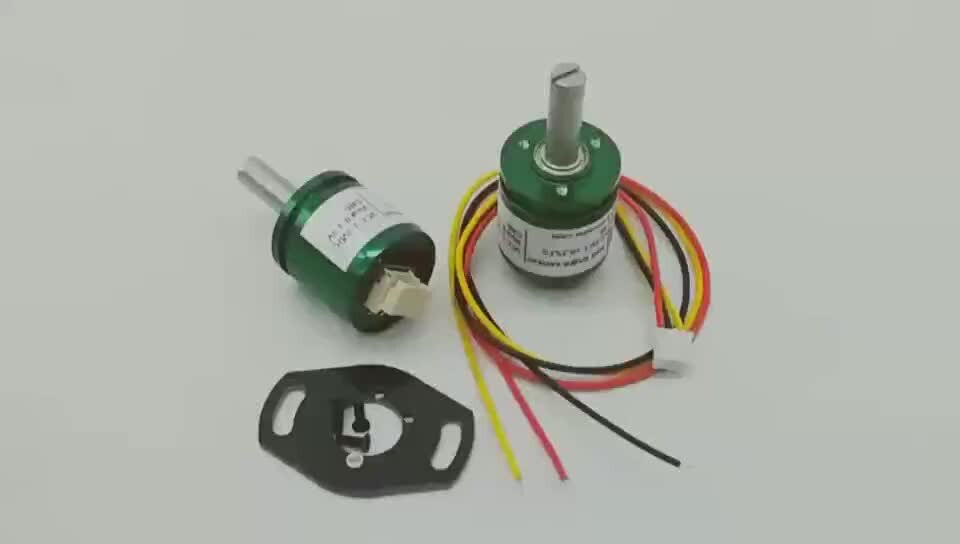

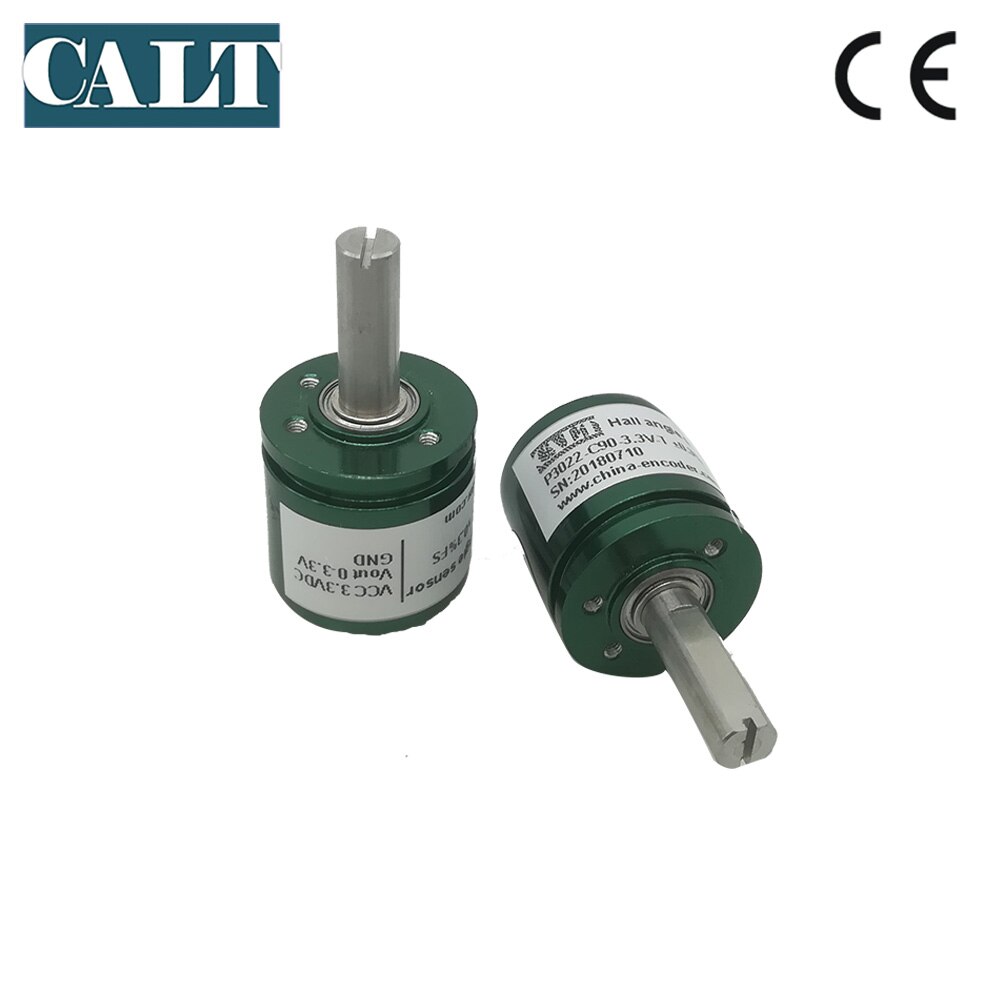

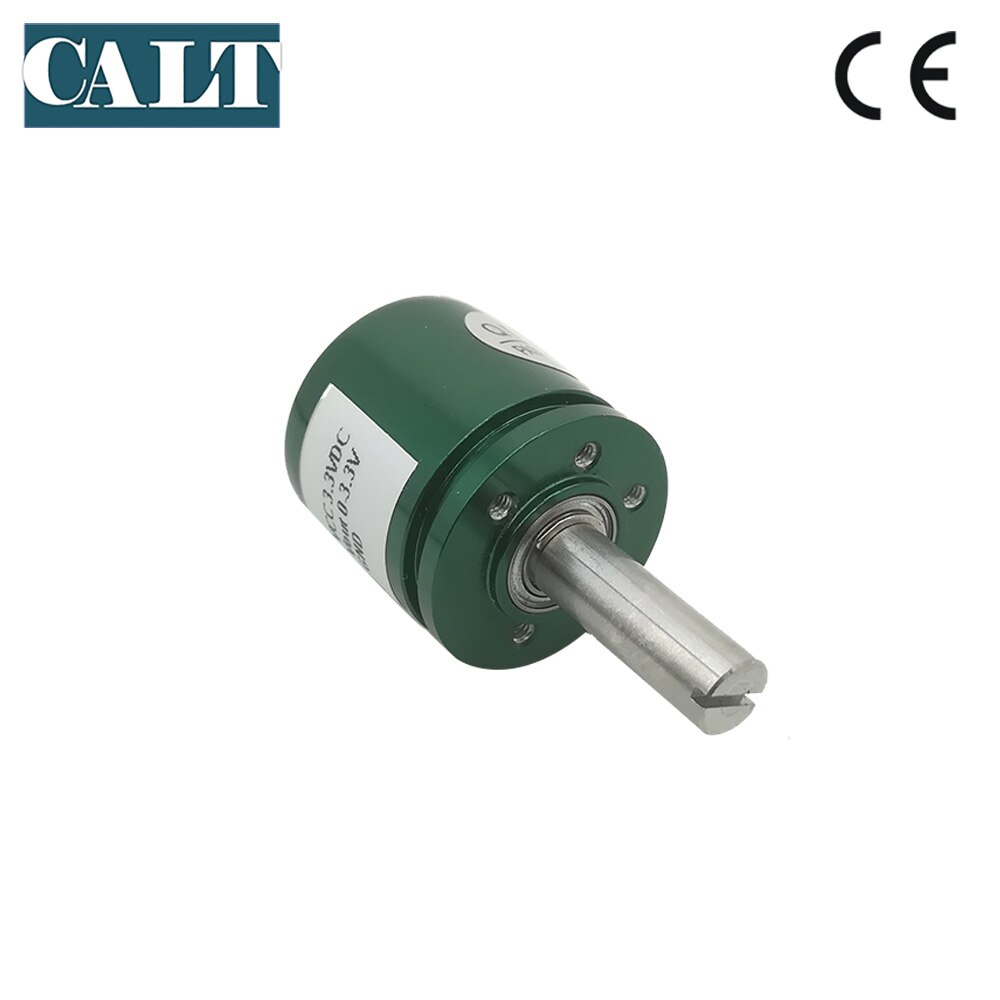

360 Degree Contactless Hall Angle Sensor 0-5V output Hall Effect Potentiometer Sensor
- Brand Name: LanYuXuan
- Certification: CE
- DIY Supplies: ELECTRICAL
- Place of Origin: Shanghai, China
- Brand Name: CALT

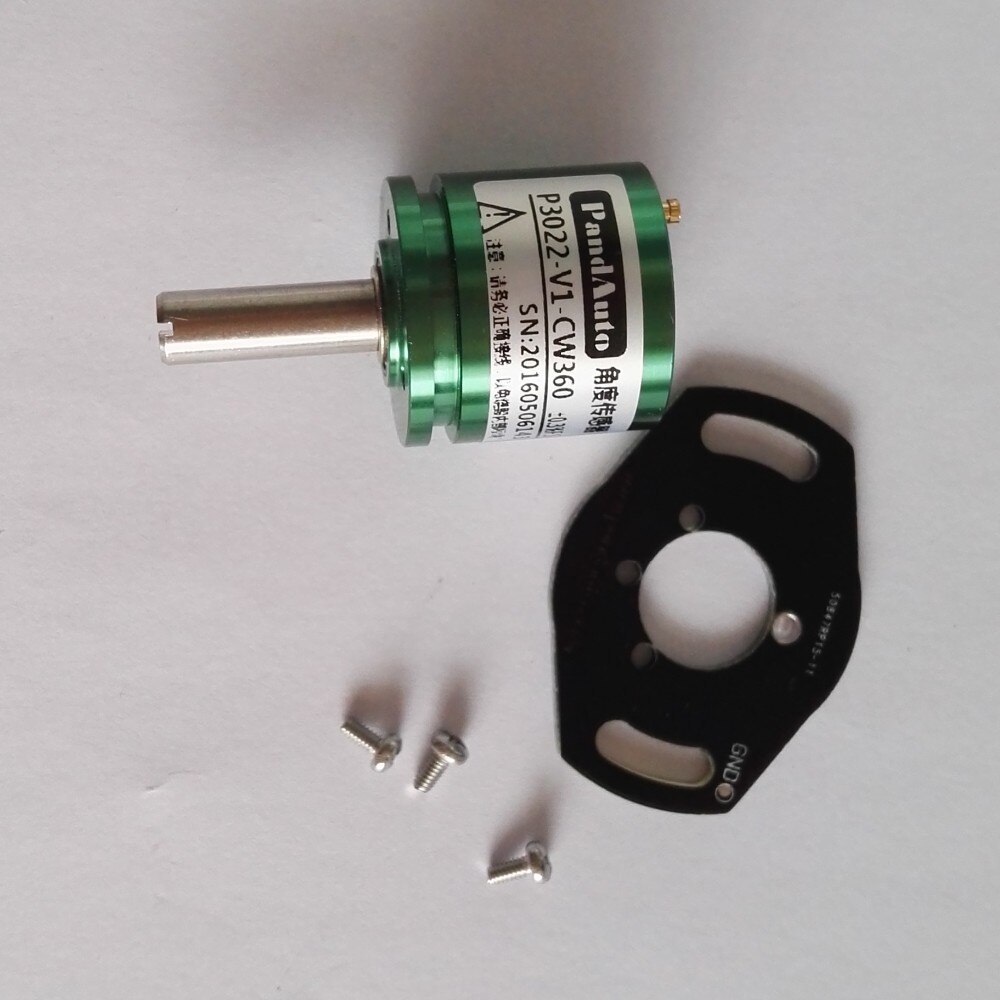

- Model Number: P3022
- Usage: angle sensor, Magnetic Sensor
- Theory: Hall Sensor
- Output: hall sensor
- Description: hall angle sensor
- Application: Industrial Automation, Manipulator

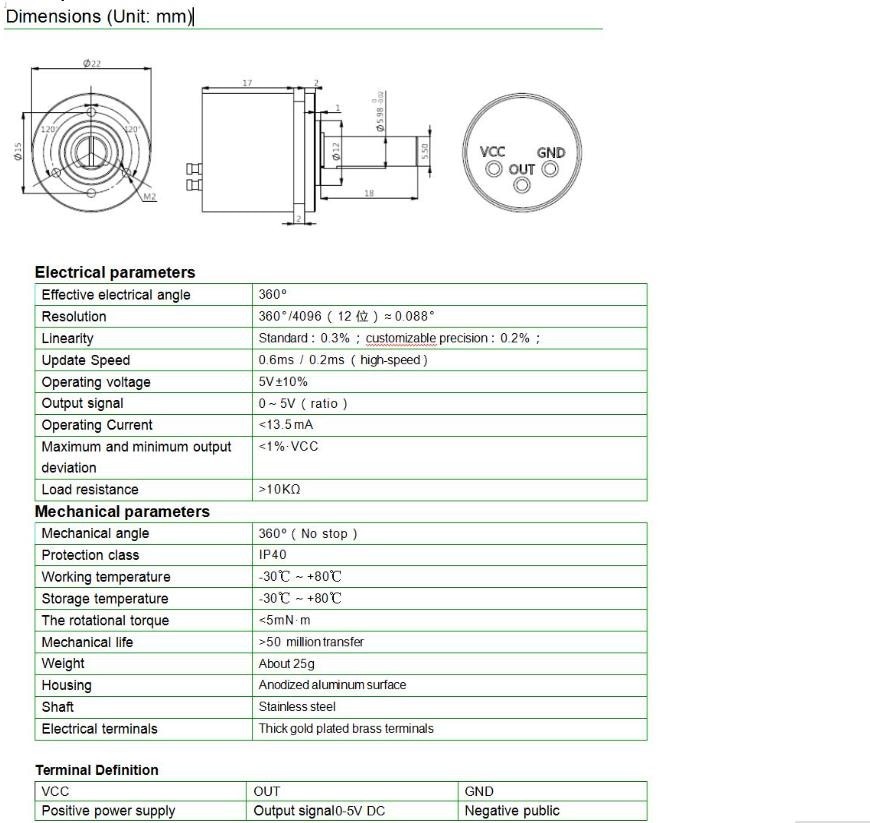

- Resolution Ratio: 4096(12bits)
- Operating Current(MAX): <13.5mA
- Voltage: DC 5v
- Angle: 360°
- Protection class: IP40
- Type: Micro sensor
- Warranty: 12 Months
- Material: Shaft: Stainless Steel
360 Degree Contactless Hall Angle Sensor 0-5V output Hall Effect Potentiometer Sensor
● Non-contact sensing technology
● Absolute bit 12、14
● Power supply: 5V
● Serial data output SSI（12 bit）、SPI(14 bit)
● Unitary structure design, high strength
● Environment and vibration resistant, high protection grade
● Built-in two sets of ball bearings, suitable for industrial environment
This series of products using hard aluminum alloy material shell; Hall-type non-contact technology, P3022 series angle sensor has the advantages of non-contact angle sensor, and the use of high-quality imported high quality stainless steel high speed bearing member, so that it reduced frictional resistance when measuring the minimum, not because of the wear surface measurement component caused decrease measurement accuracy, long service life theoretically unlimited; the product compact structure, small size, optional strong, high resolution, smooth rotation dynamic noise in addition to the excellent performance suitable for electromagnetic interference outside the water, oil, vibration, shock and other harsh industrial environment, is a cost-effective non-contact angle sensor.
