Description
- Brand Name: LanYuXuan
- Certification: CE
- Origin: CN(Origin)
- DIY Supplies: ELECTRICAL
- Place of Origin: Shanghai, China
- Model Number: P3036
- Brand Name: CALT
- Usage: Magnetic Sensor
- Theory: Hall Sensor
- Output: Digital Sensor
- Name: hall encoder
- Out Diameter: 6mm
- shell diameter: 36.5mm
- Type: potentiometer encoder
- Application: Angle sensor encoder
- Angle: 0-360 degree no dead Measurement
- Resolution: 12bit 4096bits
- power supply: 24V DC

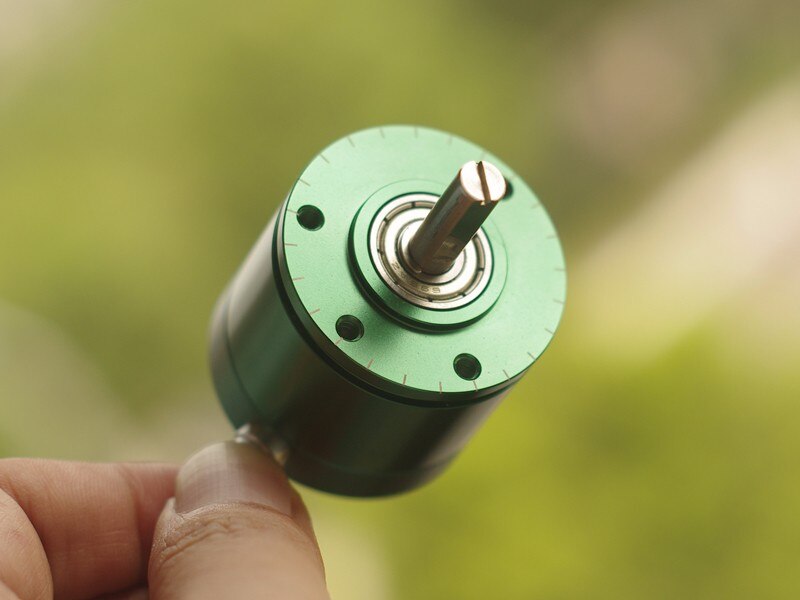

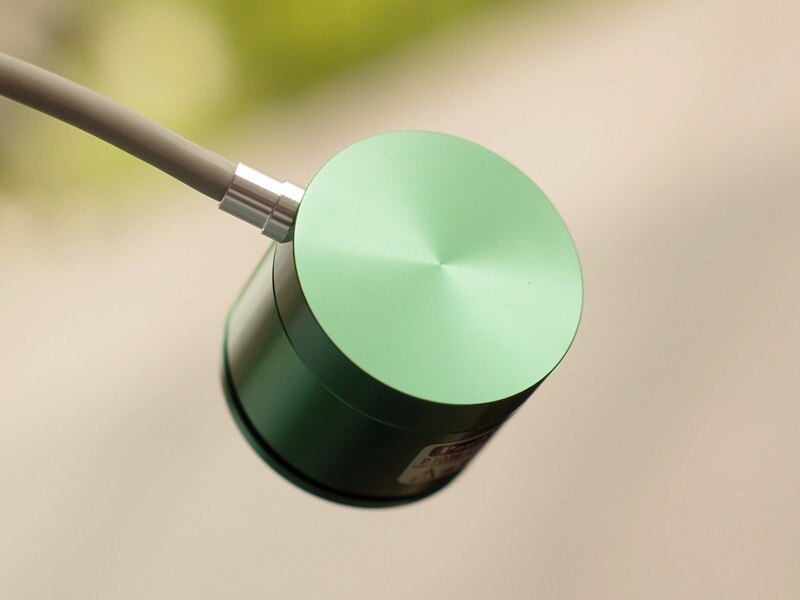

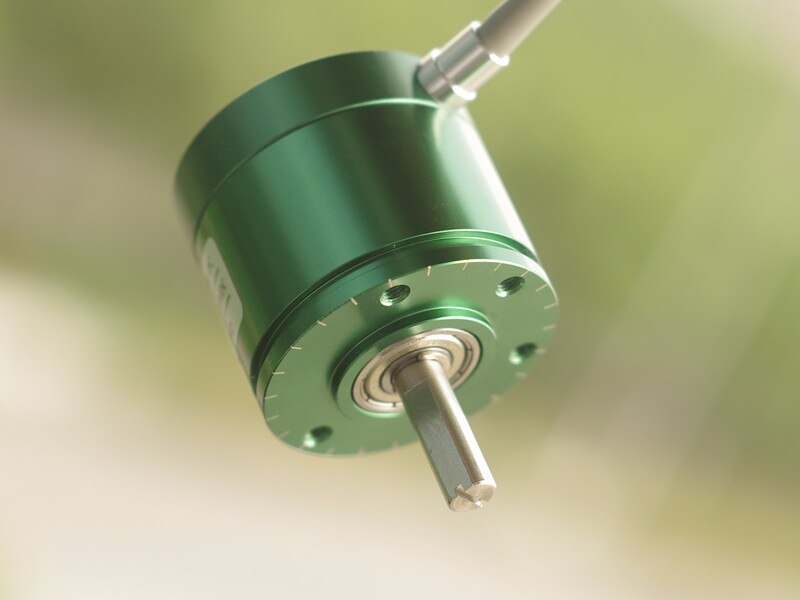

Hall effect rotary potentiometer
Maximum outer diameter 36.5mm
Linearity is 0.3% F.S.
Output signal 4-20mA, 0-5V DC or 0-10V DC
Supply voltage 24V DC
Mechanical theory of infinite life
Small rotary damper
Easy to install
*If you have other requirement for special specifications (such as digital signal), please feel free to contact with us.
