Description
- Brand Name: HESAI
- Condition: New
- Origin: CN(Origin)
- Resistance Tolerance: 5%
- Technology: Wirewound
- Type: Organic Solid Potentiometer
- Operating Temperature: -55- 125C
- is_customized: Yes
- Max. Operating Voltage: 450V
- Model Number: 3590S-2-103L
- Rated Power: 2W
Purchase Notes
1. The two logistics of Yanwen Economic Air Mail and China Post Ordinary Small Packet Plus do not have tracking information, so there is no time limit. We recommend using China Post Registered Air Mail or AliExpress Standard Shipping.
2. We do not accept refunds for minor damage (pin bending, slight screen abrasion,etc.)during the transit of the material, without affecting normal use. If you mind,please do not buy.
3. Some products provide technical support, if you need help, please contact us, we will handle your message the first time.
4. If you have any questions about the product, please contact us before you open a dispute. We will give you the most satisfactory answer.
5. We provide each customer with good quality products, very favorable prices and the most sincere service. We hope to get your good feedback.
Wish you a pleasant shopping!
2. We do not accept refunds for minor damage (pin bending, slight screen abrasion,etc.)during the transit of the material, without affecting normal use. If you mind,please do not buy.
3. Some products provide technical support, if you need help, please contact us, we will handle your message the first time.
4. If you have any questions about the product, please contact us before you open a dispute. We will give you the most satisfactory answer.
5. We provide each customer with good quality products, very favorable prices and the most sincere service. We hope to get your good feedback.
Wish you a pleasant shopping!

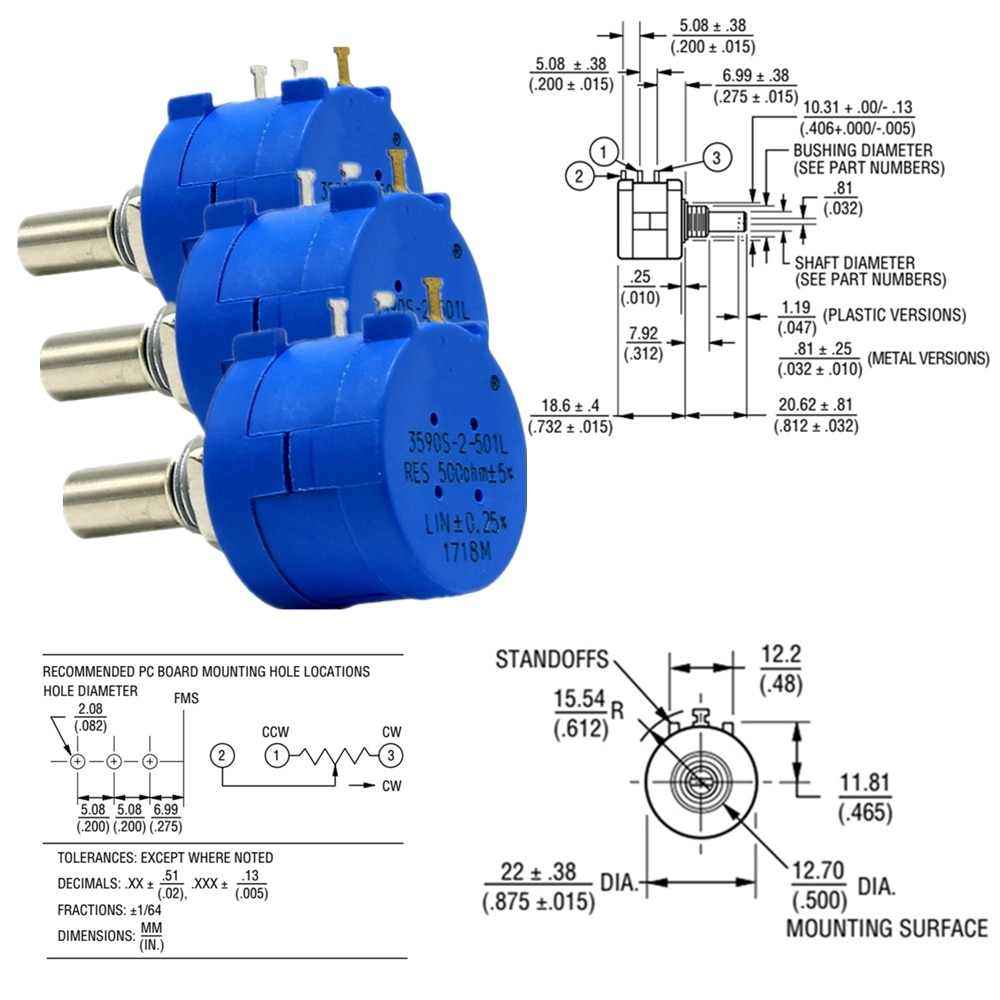

Specification:
Material: Plastic
Color: Blue
Type: Rotary Shaft
Technology: Wirewound
Turns: 10
Spinning life: 1,000,000 revolutions
Power: 2W
Resistance Tolerance: ±5%
Linearity: ±0.25%
Shaft Diameter: 6mm/0.24″
Threaded Diameter: 9mm/0.35″
Total Length: 40mm/1.6″
Load life: 1000 hours
Mechanical angle: 3600° ±10°
Operating temperature range: -55° – 125°
Size(No Include Shaft): 22x19mm/0.9″x0.7″(DxH)

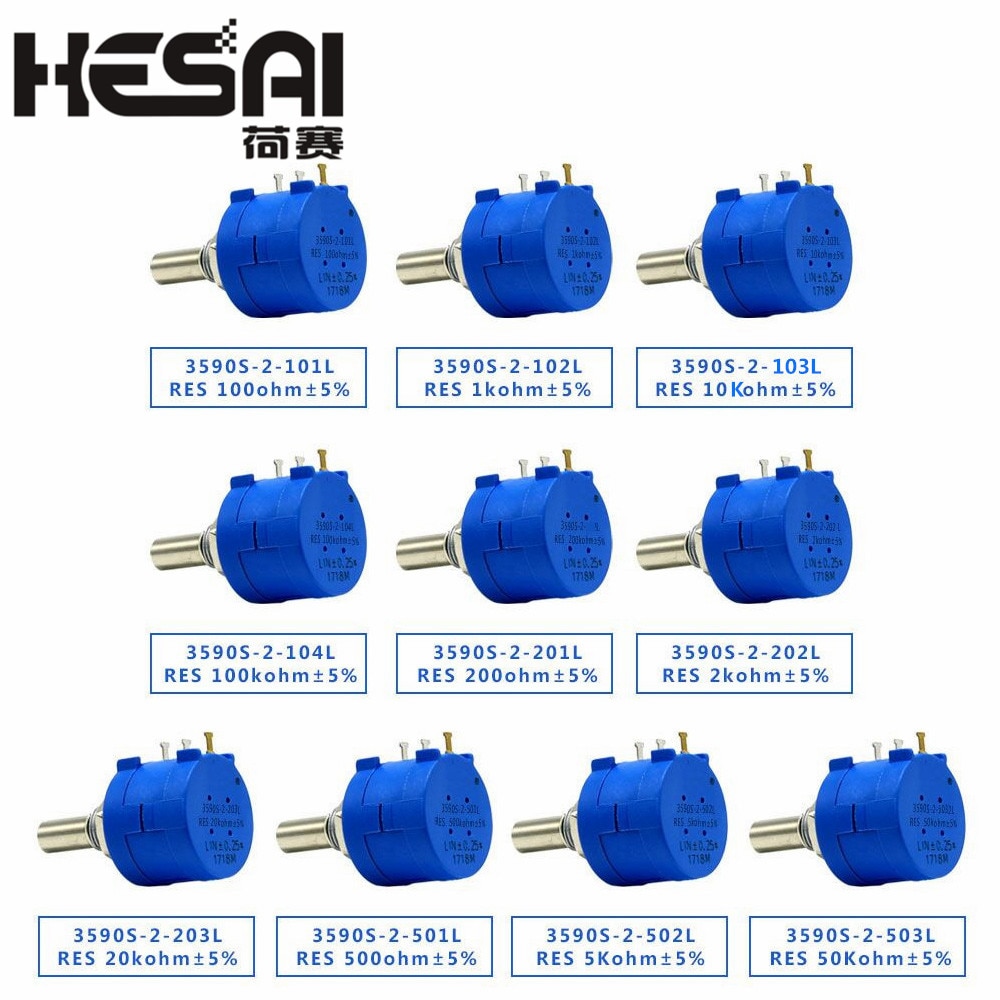

1pcs 3590S Series Potentiometer
3590S-2-101L 100ohm
3590S-2-102L 1Kohm
3590S-2-103L 10Kohm
3590S-2-104L 100Kohm
3590S-2-201L 200ohm
3590S-2-202L 2Kohm
3590S-2-203L 20Kohm
3590S-2-501L 500ohm
3590S-2-502L 5Kohm
3590S-2-503L 50Kohm
If need more parts Pls click
and submit the order.If you need more quantity,Pls contact us. If you mind the price,If some parts can not find out in my store,Pls contact us,we still have many parts don’t published.
We will send thelatest version of product, the upgraded function. It may has different shape or color. If you can’t agree, pls don’t buy.
Please don’t open dispute and leave any bad feedback, if you have any question, feel free to contact us,we will give you satisfactory answer. Hope you understand us, thank you in advance.
Your satisfaction and positive feedback is very important to us. Please leave positive feedback and 5 stars if you are satisfied with our items and services.
If you have any problems with our items or services, please feel free to contact us first before you leave negative feedback. We will do our best to solve any problems and provide you with the best customer service
