Description
- Condition: New
- Origin: CN(Origin)
- Resistance Tolerance: 5%
- Technology: Wirewound
- Type: Wirewound Potentiometer
- Operating Temperature: standard
- Max. Operating Voltage: standard
- Model Number: 3590S-2-103 B10k
- Rated Power: 2W
- 2W: 2W 3590S-2-103 B10k
- 3590S: adjustable resistance 3590S B10k
- potentiometer: potentiometer knob A03
- 1: 3590S ulti-turn winding potentiometer
- 2: 3590S series potentiometer kit
- 3: Adjustable 3590S Multiturn Potentiometer
- 4: Multiturn Adjustable Potentiometer
- 5: Wirewound Resistor
A03 6.4mm Multiturn Adjustablepotentiometer3590S2W Wirewound Resistor
Just one set!!!

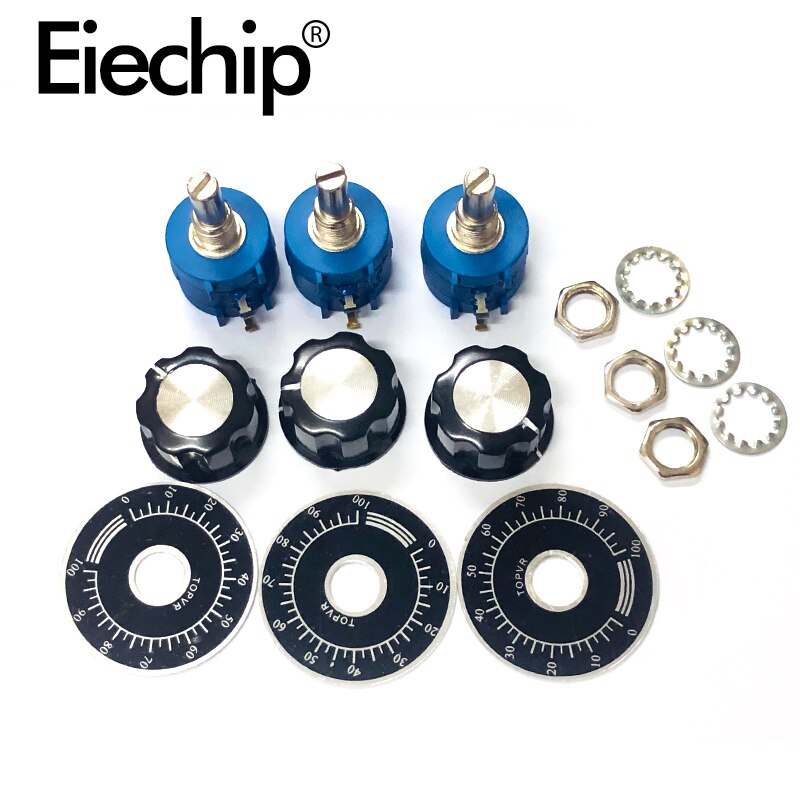

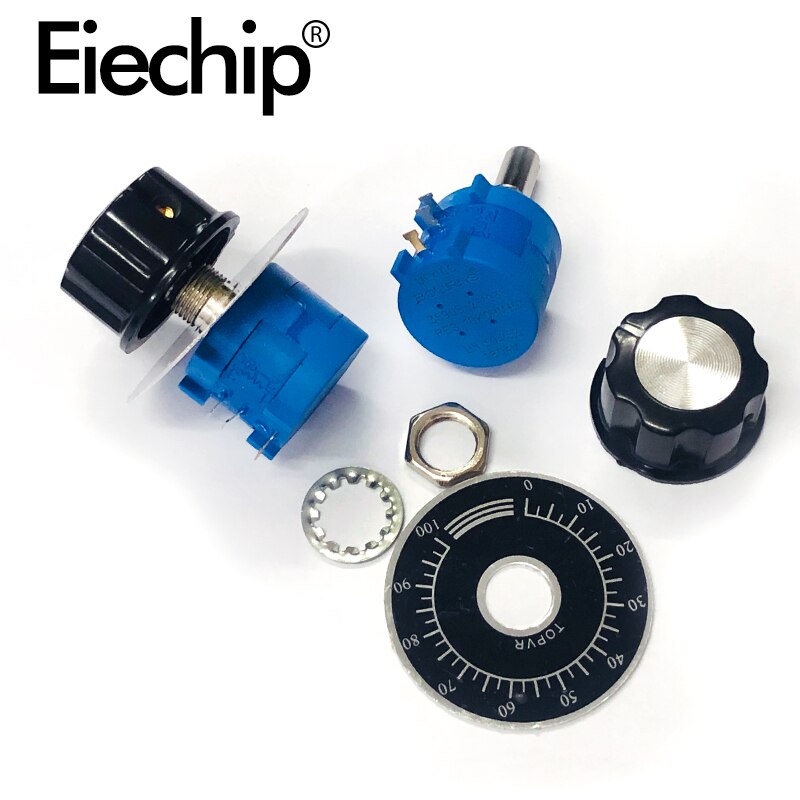

3590S potentiometer + knob cap + scale sheet* 1=1set
3590S-2-101L 100R
3590S-2-201L 200R
3590S-2-501L 500R
3590S-2–102L 1K
3590S-2-202L 2K
3590S-2-502L 5K
3590S-2-103L 10K
3590S-2-203L 20K
3590S-2-503L 50K
3590S-2-104L 100K
3590S-2-101L 100R
3590S-2-201L 200R
3590S-2-501L 500R
3590S-2–102L 1K
3590S-2-202L 2K
3590S-2-502L 5K
3590S-2-103L 10K
3590S-2-203L 20K
3590S-2-503L 50K
3590S-2-104L 100K
Description:
3590S Series 200R -100KΩ ±5% 2W Potentiometer
Product name : potentiometer;
model : 3590S-2-102L 1K ohm ;
Type : rotary potentiometer
Resistance Tolarance : +/-5%;
Linearity : +/-0.25%;
Shaft Diameter : 6.35 x 10mm/ 0. 25″ x 0. 4″(D*l)
Threaded Diameter : 9mm/ 0.35″;
Body Size(No Include Shaft) : 22 x 19mm/ 0.9″ x 0.7″ (D*H);
Total Length : 42mm / 1.65″
Type : Rotary Shaft ;
Technology : Wirewound;
Turns : 10;
Power: 2W ;
Rotating Life: 1,000,000 times
