Description
- Brand Name: diymore
- Condition: New
- Origin: CN(Origin)
- Technology: Wirewound
- Type: Rotary Potentiometer
- is_customized: Yes
- Model Number: 3590 102 202 502 103 A03 knob 3590S

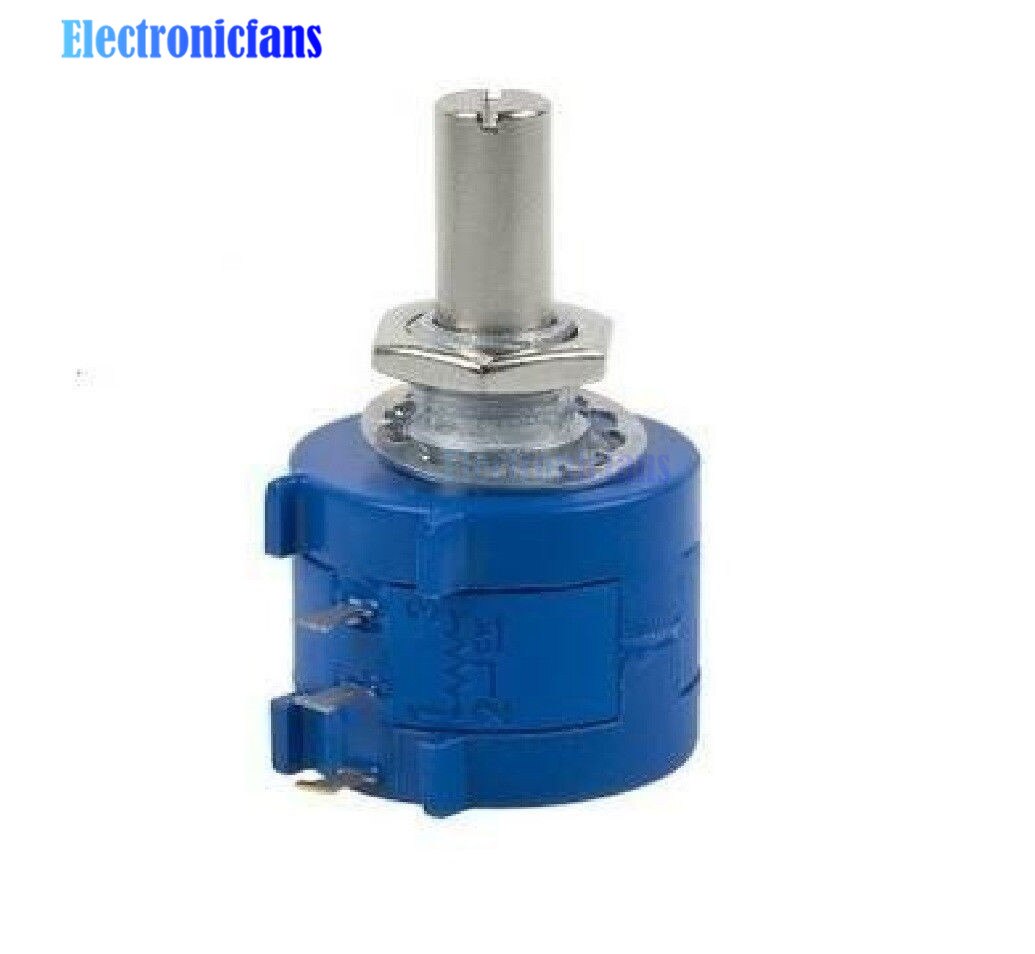

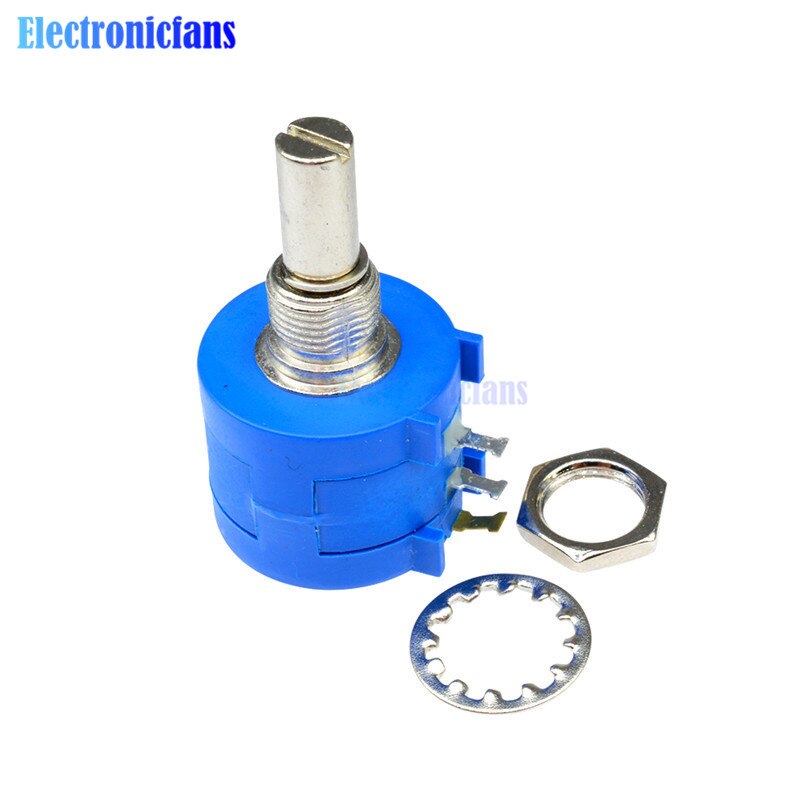

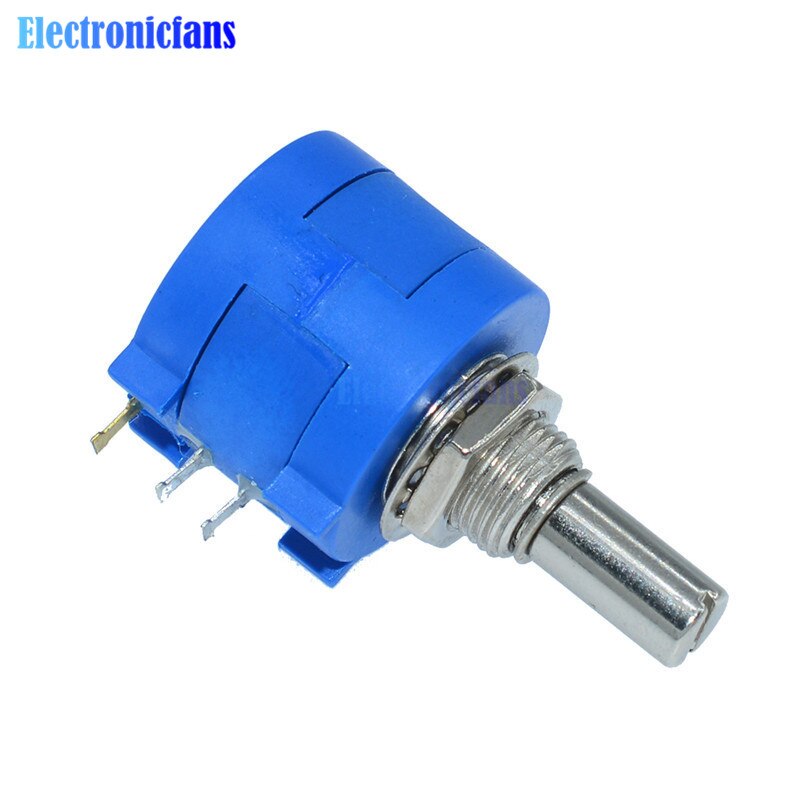

3590 102 202 502 103 +A03 knob 3590S Multiturn Potentiometer 500 1K 2K 5K 10K 20K 50K 100K ohm Potentiometer Adjustable Resistor
Description:
3590S Series 500R -100KΩ ±5% 2W Potentiometer
Product name : potentiometer; model : 3590S-2-102L 1K ohm ; Type : rotary potentiometer
Resistance Tolarance : +/-5%; Linearity : +/-0.25%; Shaft Diameter : 6.35 x 10mm/ 0. 25″ x 0. 4″(D*l)
Threaded Diameter : 9mm/ 0.35″;Body Size(No Include Shaft) : 22 x 19mm/ 0.9″ x 0.7″ (D*H);Total Length : 42mm / 1.65″
Type : Rotary Shaft ; Technology : Wirewound; Turns : 10; Power: 2W ; Rotating Life: 1,000,000 times
Model:
3590S-2-501L, 3590S-2-102L, 3590S-2-202L, 3590S-2-502L, 3590S-2-103L, 3590S-2-203L, 3590S-2-503L, 3590S-2-104L
Type: Rotary Shaft
Technology: Wirewound
Turns: 10
Product Specifications
Color102L 1k ohm
MaterialPlastic
Size102L 1K ohm
Package include:

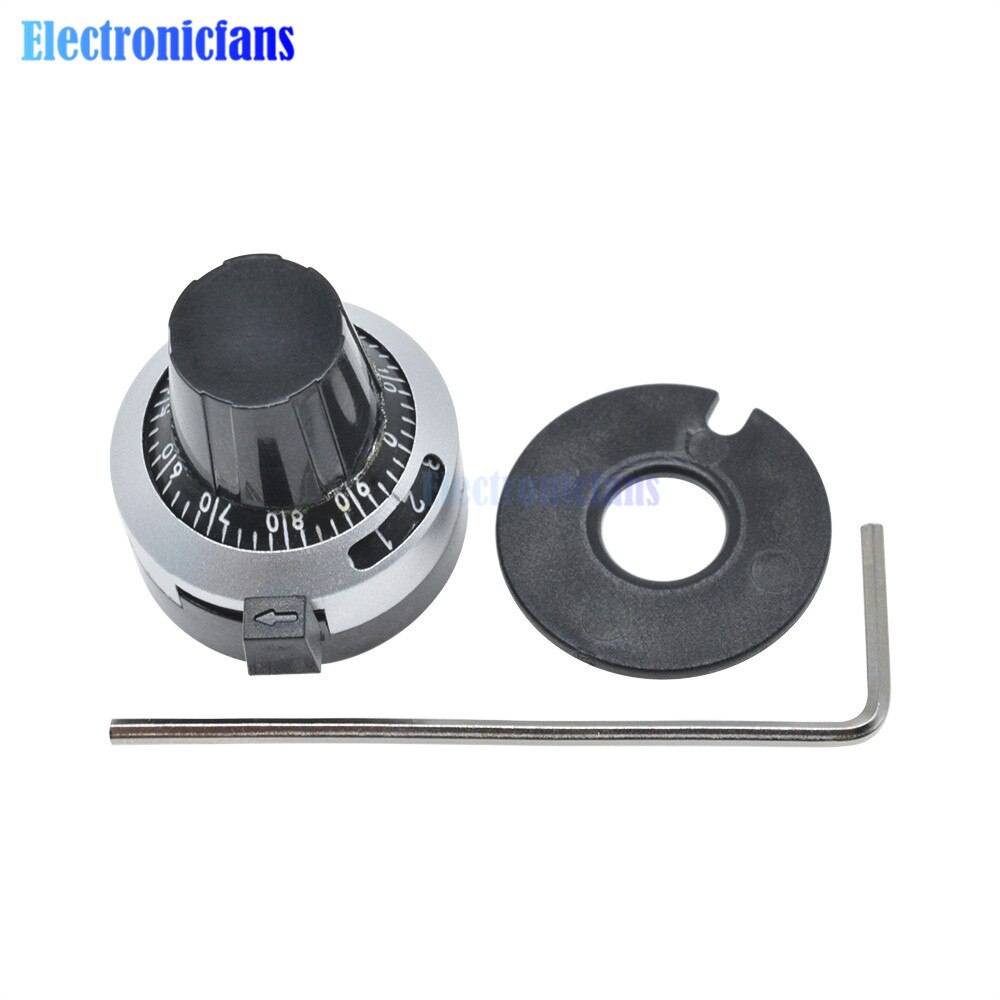

According your choice(Potentiometer with A03 knob)
