Description
Product Description
|

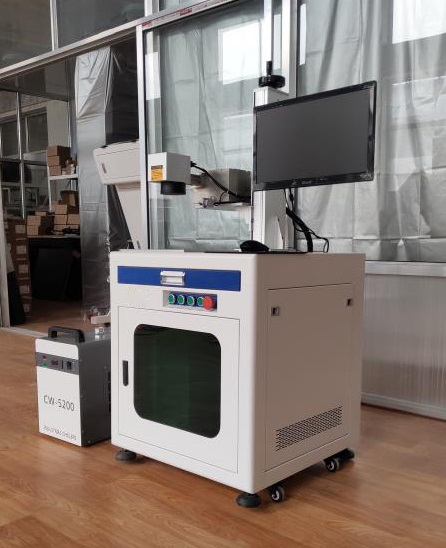

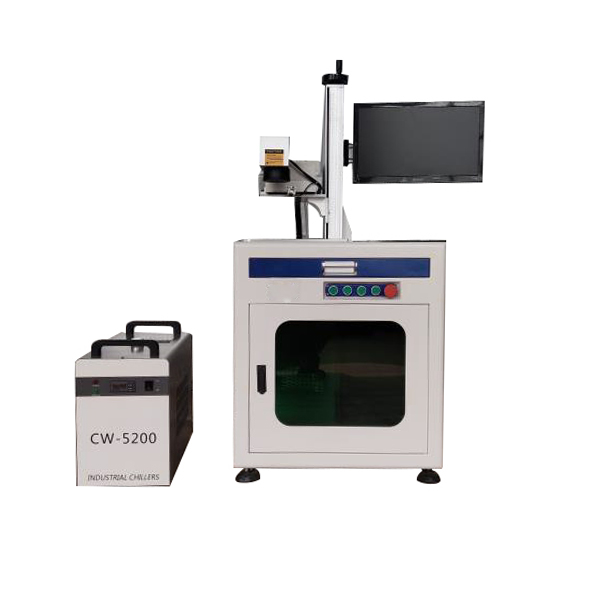

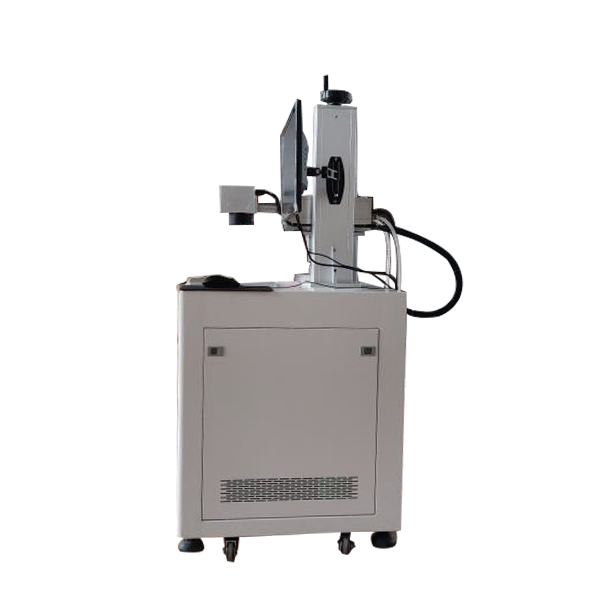

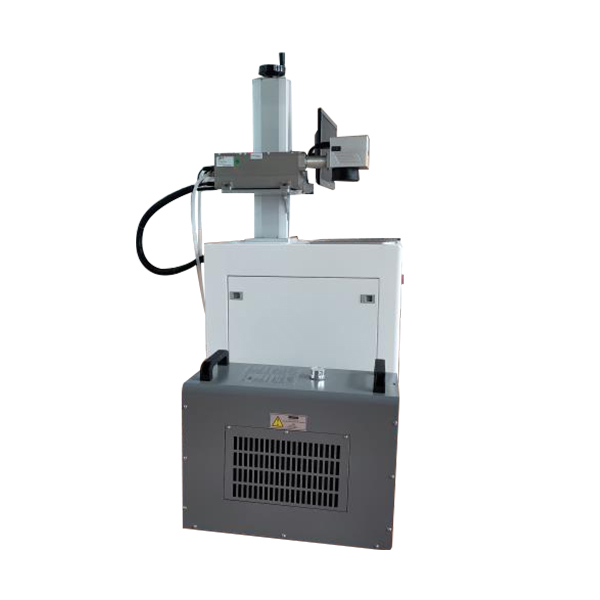

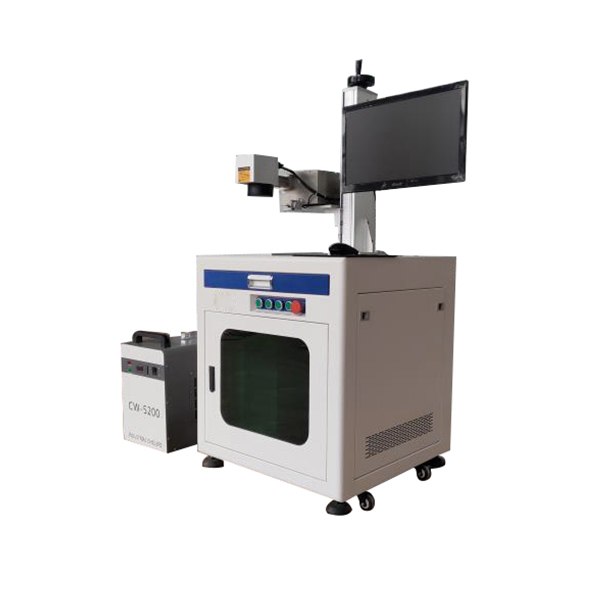

Desktop UV 3W Laser marking machine with CW5200 Industrial chiller
|
||||||||
Introduction UV laser marking machine user semiconductor end-pumped laser, after the third harmonic generationproduce 355nm UV laser. High photoelectric conversion rate, the use of Humanizationoperate interface, easy to use, excellent equipment stability, galvanometer-type high precision marking headwith afine effect, lasting 355nm output wavelength, reducing the thermal impact of the workpiece.
Specification
|
Machine Power
|
3W
|
5W
|
10W
|
||||
|
Average power
|
>3W@30kHz
|
>5W@40kHz
|
>10W@60kHz
|
||||
|
Pulse Width
|
<15ns@30kHz
|
<15ns@40kHz
|
18ns@60kHz
|
||||
|
Frequency Range
|
20kHz-150kHz
|
40kHz-300kHz
|
|||||
|
Spatial model
|
TEM00
|
||||||
|
Laser wavelength
|
1064nm
|
||||||
|
Beam quality
|
M² ≤ 1.2
|
||||||
|
Marking speed
|
7000mm/s
|
||||||
|
Marking area
|
70×70–300x300mm(Optional)
|
||||||
|
Machine control
|
EZCAD control
|
||||||
|
Repeat Precision
|
±0.001mm
|
||||||
|
Cooling Style
|
Water Cooling
|
||||||
|
Operating Temperature
|
10℃-35℃
|
||||||
Main machine configuration
JPT Laser source
—China’s very good laser brand can provide you with high-quality beam quality.
355nm UV Laser head
—
Professional UV galvanometer, it has the advantages of fast marking speed and high marking accuracy.
Professional UV galvanometer, it has the advantages of fast marking speed and high marking accuracy.
EZCAD UV control card
—
It supports the use of the rotary axis function and the Z-axis drive function.
It supports the use of the rotary axis function and the Z-axis drive function.
CW5200 Industrial chiller
—
It can effectively reduce the temperature of the machine and maintain the machine to work stably for a long time.
It can effectively reduce the temperature of the machine and maintain the machine to work stably for a long time.
Machine application
|
Main Features For materials:
The machine employs the JPT UV laser and imported high-speed galvanometer as its centraldevices. It is widely used for metal or nonmetal’s surface marking to make up for the lack of IR Laser’s processing ability. The main applicable materials are electronic products shell marking, battery charger, data line, mobile phone, computer fitting marking, electronic components, jewellery, horologe marking, PCB, FPC marking and cutting, Glass product marking, metal, alloys marking and plastics material’s marking, etc.
For industries:
This series UV Laser Markers Machine is widely used in leather, food, beverage, cloth, electronic, meter, communication instruments, package and other industries, can be combined with streamline for online
marking. |
||||||||
