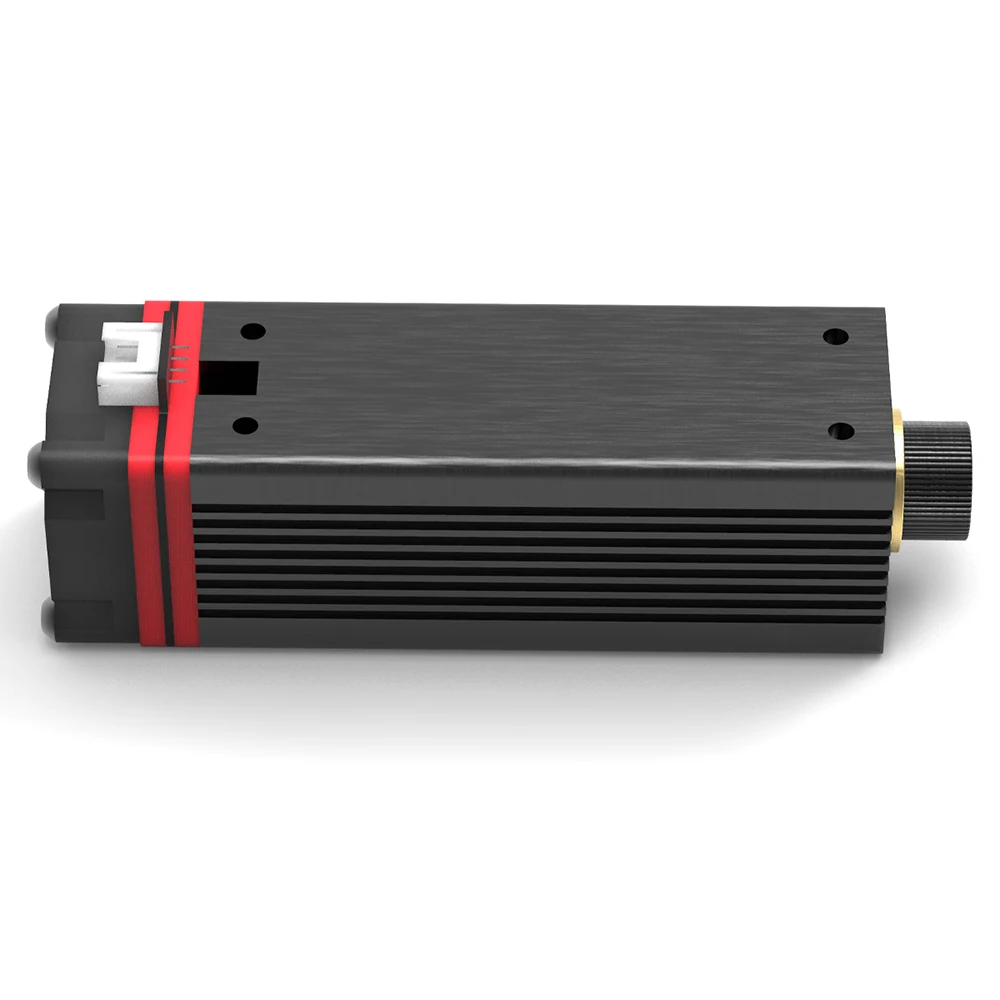

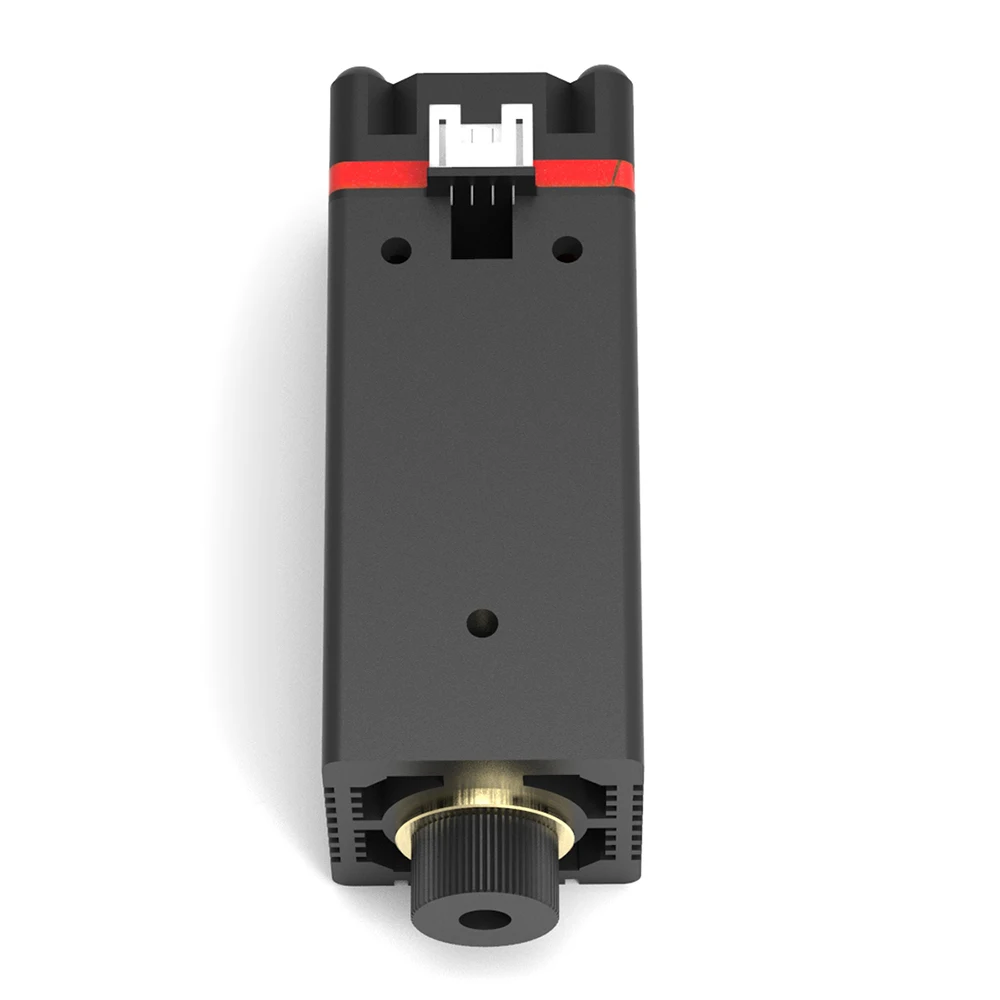

This item is a necessary accessory for Master series DIY engraving machine. It is a professional laser head with high speed and high stability.



Features:

Professional laser head with high speed, high precision and high stability.

Bright violet light, easy for locating when engraving.

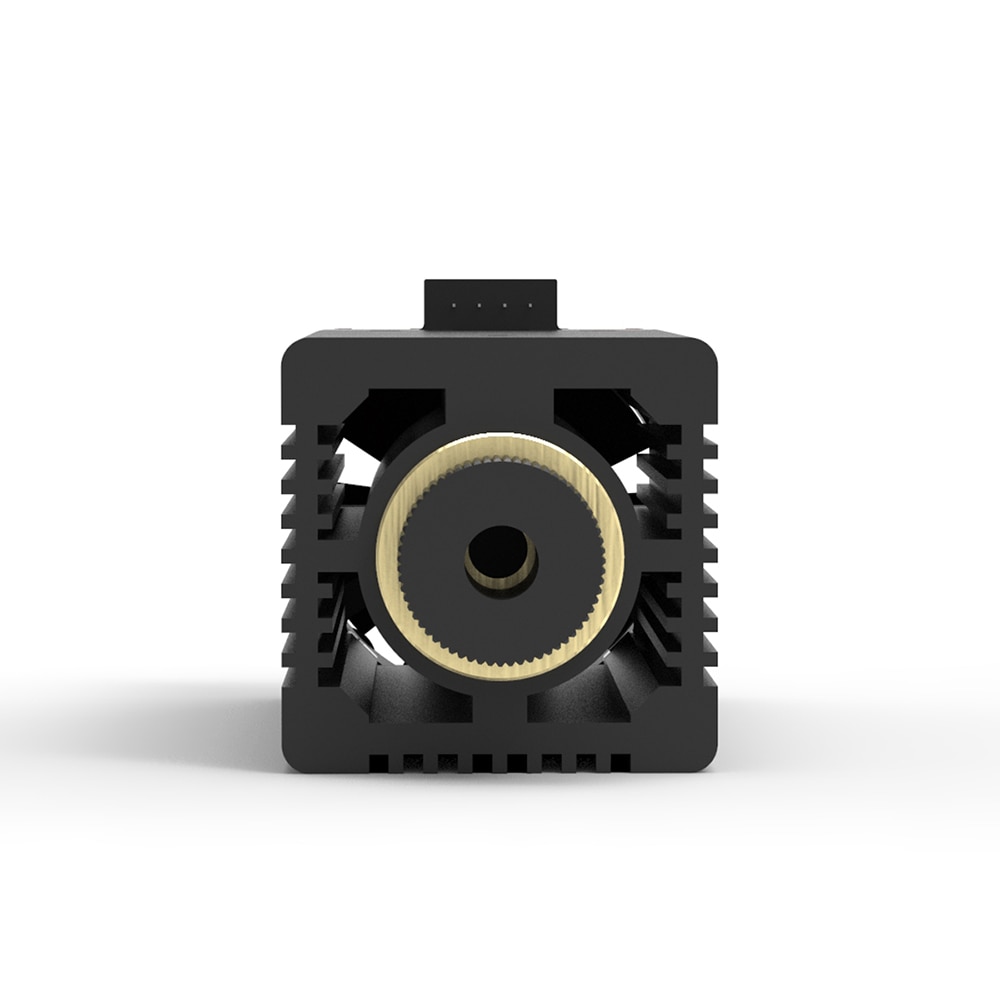

Adjustable laser head, easy to adjust, ensure engraving with good quality and high efficiency.

Laser head is more durable and stable after high temperature and long time aging.

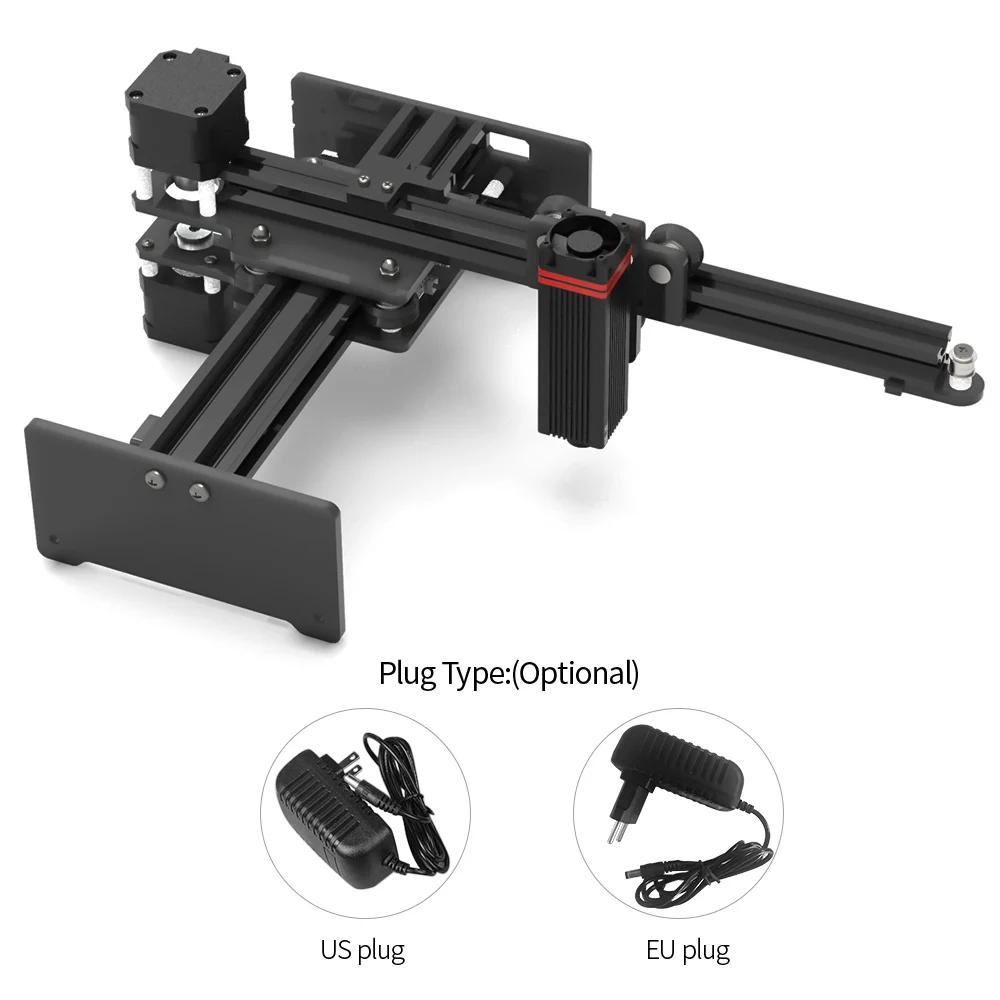

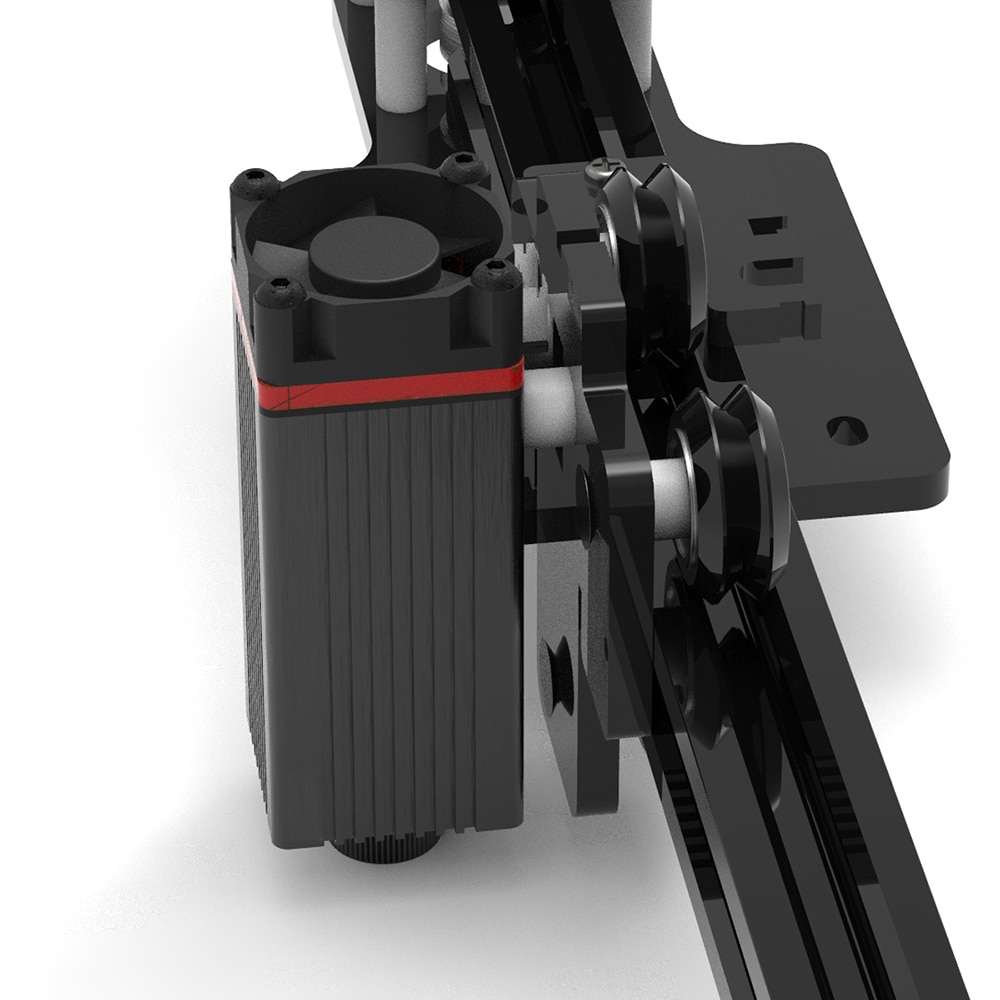

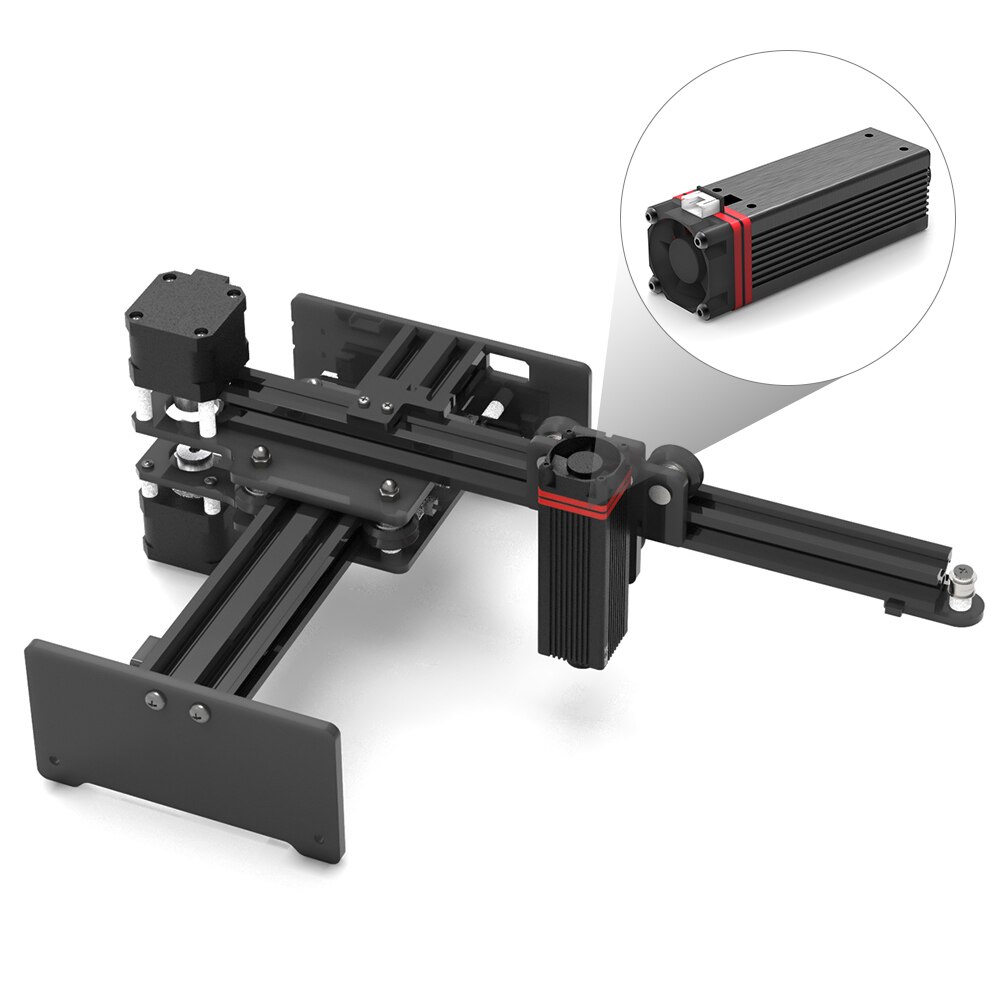

Suitable for Master series DIY engraving machine, easy to install.

Main applications: Grayscale engraving, Photo engraving, Depth engraving, Paper cutting, G-code drawing…

Especially good at grayscale engraving, depth of engraving 0.5-1mm, cutting paper 0.5mm, unable to engrave metal and glass. Supported engraving materials: Wood, gray paper, leather, bamboo, blackening plastics, rubber, pcb, etc.

Can not work on the stainless steel, alloy, glass, and some reflective materials.



Specifications:


Laser Power: 3500mW / 6000mW / 7000mW / 20W (Optional)

Material: Copper + Aluminum

Light Color: Violet

Power: 3500mW

Wave Length: 405nm

Input power: approx. 12V 280mA (without fan power)

Output optical power: 600mw

PWM: 50KHz-20KHz / 3.3V-12V

Temperature Sensor: yes

Focus range: 0mm-50mm ( Recommend 0-10mm)

Max cutting thickness(Non Woven Fabric): 3mm(Light diameter:<0.15mm)

Minimum Focus Diameter: 0.01mm ( Recommend Focus Range<10mm)

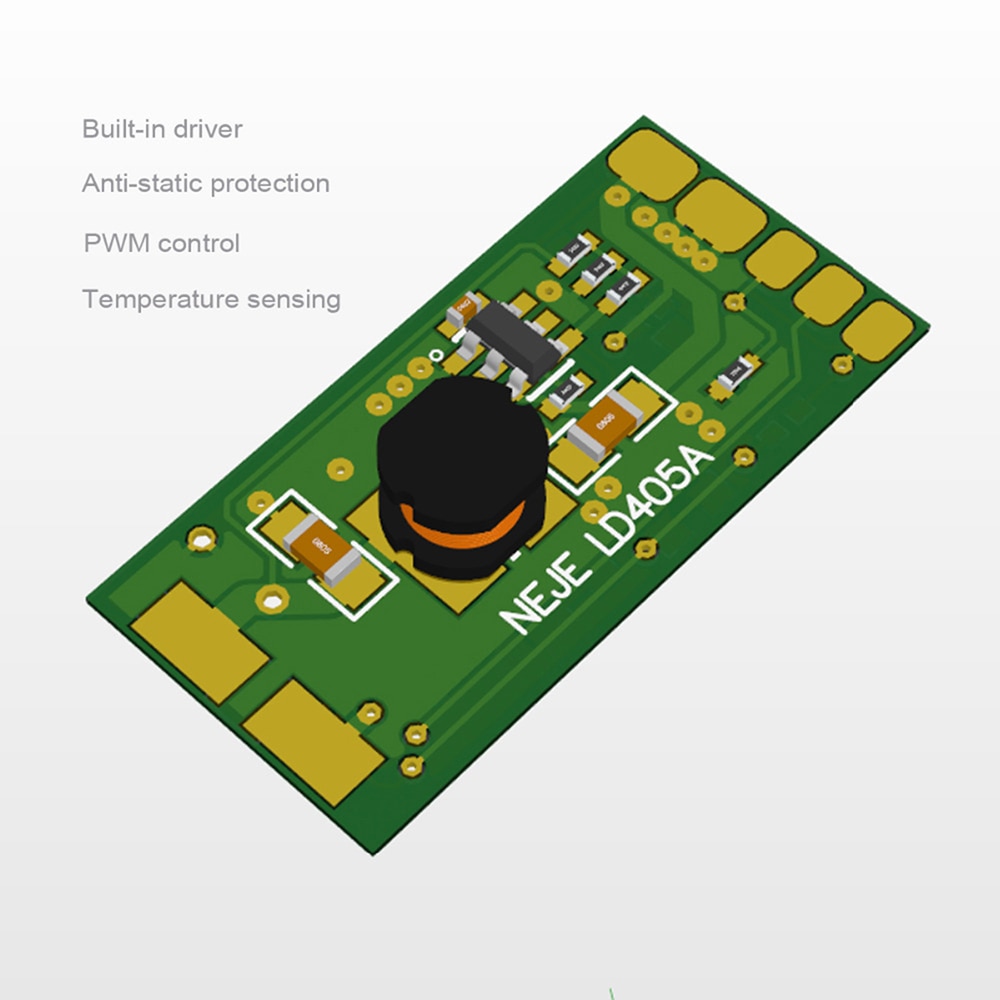

Drive Position: Built-in

Is the Power Adjustable: PWM can be adjusted

Drive Protection: Surge protection, overvoltage protection

Line Length: 300mm

Line Length Material: Sports silicone

Control Line Installation Method: Pluggable

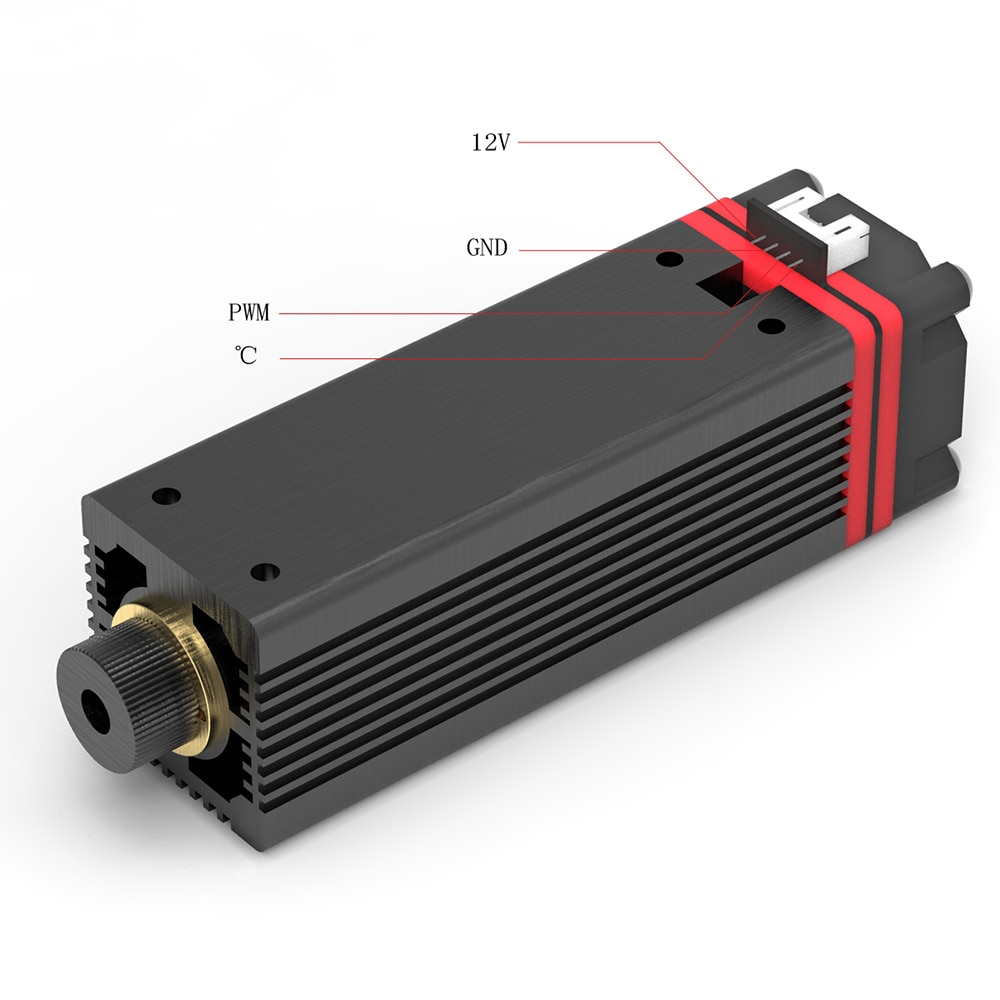

Interface Specification: 4pin PH2.0 (red: 12V, black: GND, yellow: PWM, green: temperature signal)

Radiator Size: 30 * 60mm

Fan Size: 30 * 10mm

Fan Speed: 10,000 rpm

Controllable Temperature: Less than 60 degrees Celsius

Focus Range: 10 ~ 100mm (best focus: 50mm from the light exit)

Item Size: Approx. 80 * 30 * 30mm / 3.15 * 1.18 * 1.18in

Item Weight: Approx. 128g / 4.52oz

Package Size: Approx. 20 * 15 * 3cm / 7.88 * 5.91 * 1.18in

Package Weight: Approx. 134g / 4.73oz



Package List:

1 * Module

1 * Wrench

2 * Screw

2 * Gasket
