Parameters

Brand:MTO-Laser

Core device:OSRAM

Wavelength:405nm

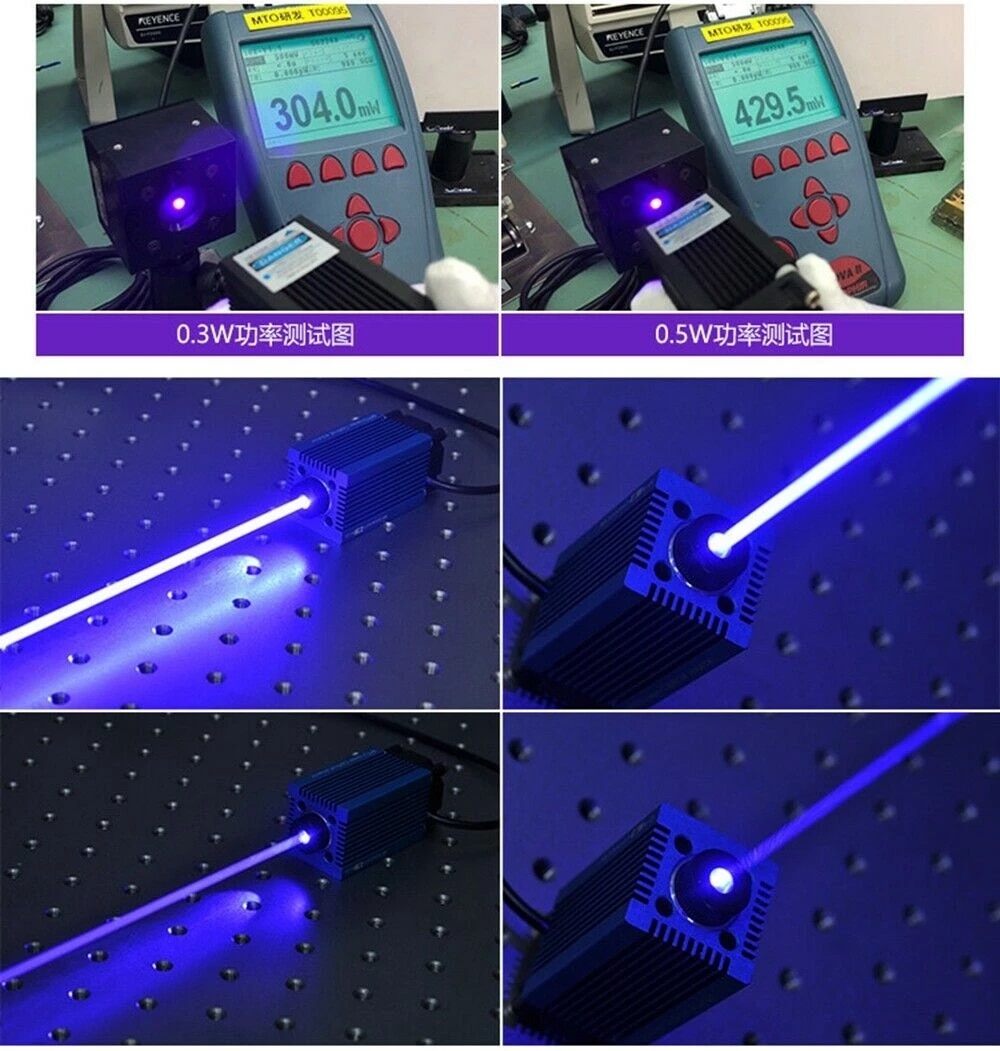

Output Power:500mw

Power Supply:DC12V

Working current:250mA

Spot shape:Dot

Output wave band:the visible light

Material:Aerospace aluminum

Optical portion:Focus Lens

Lens Material:PVC Focus Lens

Focusable:Yes

Operating temperature:-40℃-75℃

Working medium:Semiconductor

Working life:8000 hours.It comes with a powerful heat sink fan can work for long hours.

Dimensions:33MMx55MM DC cable length 1.2 m (adjustable focus)

Structural features:Aluminum shell+ laser diode+ K9 glass lenses+ Constant current driver board

Features
Can engrave the following materials:

wood, some plastic, paper, bamboo, horn, thin leather (wallet), rubber stamp, photosensitive stamp, printing paper (mainly used for engraving, less material to cut), sponge paper Other materials that are easy to burn.

The following materials cannot be engraved: metal (whether thick), stone, ceramic, jewellery, reflective material, transparent glass, ivory, colorless transparent material, partially white plastic (usually very smooth plastic is difficult to engrave)

Package

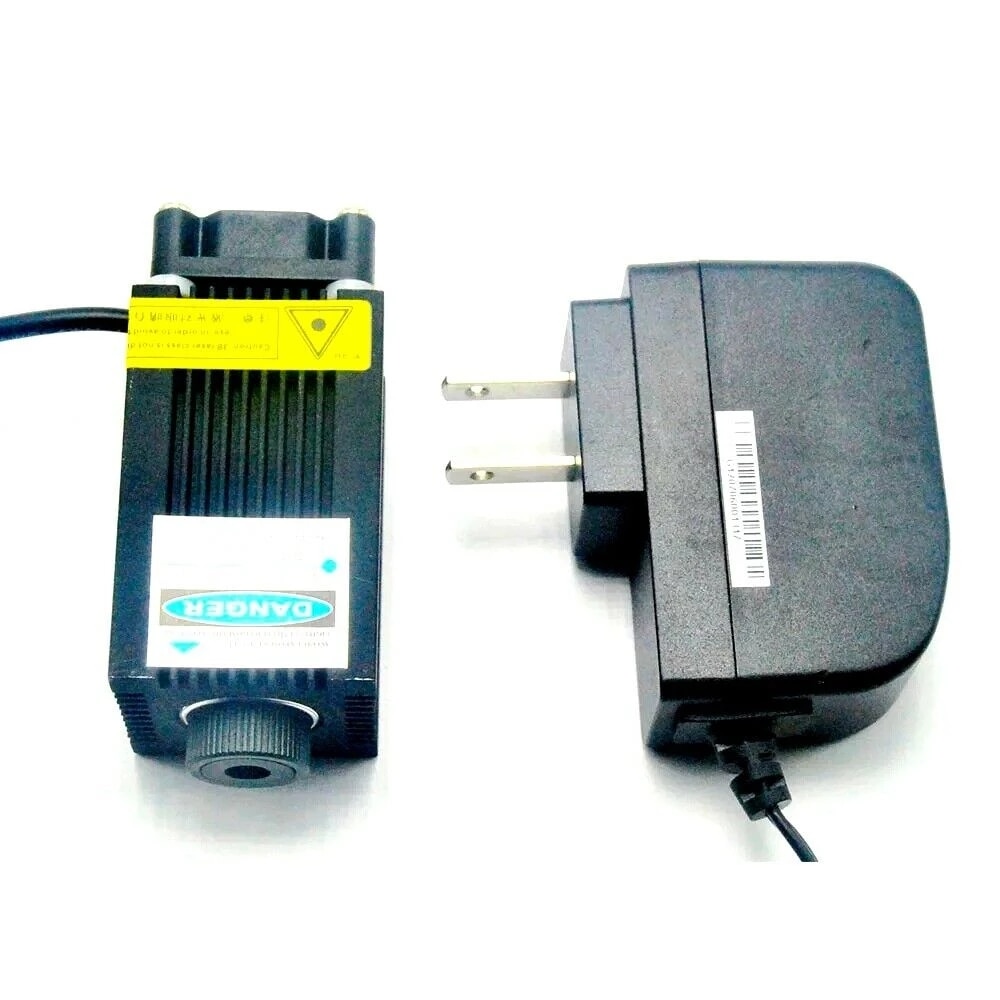

1pc 405nm 500mw laser dot module

1pc 12V adapter
