Description
- Brand Name: diymore
- Condition: New
- Resistance Tolerance: ±10%
- Technology: Cermet
- Rated Power: 1/2W
- is_customized: Yes
- Max. Operating Voltage: 315V
- Type: Trimming Potentiometer
- Model Number: 3362P
- Operating Temperature: ±250ppm/℃
Specification:
Model: 3362P
Power Rating: 315 volts max, 5W at 70°C, 0W at 125°C
Temperature Coefficient: ±250ppm/°C
Tolerance: ±10%
PIN Number: 3

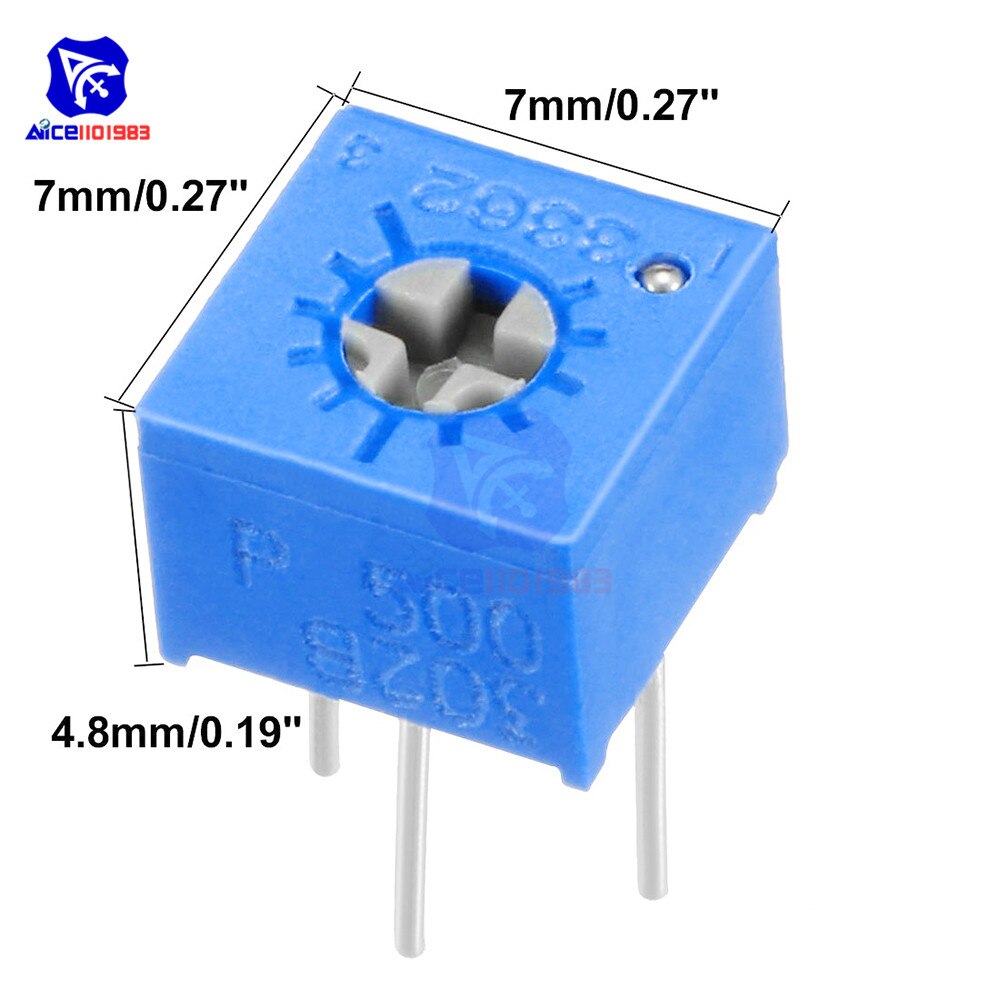

Size: 0.27 x 0.27 x 0.19 inch/7 x 7 x 4.8mm
Rotational Life: 200 cycles
Style:Top Adjustment, linear change
Mounting Type: Through Hole(DIP)
Material: Cermet,durable and sturdy
Application: Apply for PCB or DIY
Resistance Value:
3362P-101 100 Ohm
3362P-102 1K Ohm
3362P-103 10K Ohm
3362P-104 100K Ohm
3362P-105 1M Ohm
3362P-201 200 Ohm
3362P-202 2K Ohm
3362P-203 20K Ohm
3362P-204 200K Ohm
3362P-501 500 Ohm
3362P-502 5K Ohm
3362P-503 50K Ohm
3362P-504 500K Ohm
