Description
- Brand Name: KKMOON
- Certification: NONE
- Origin: CN(Origin)
- Model Number: Engraving Head
FOR 5500mW/10W/20W/30W
The Blue Laser Modual is designed for both 3D printer and CNC mill. With 450nm wavelength, it is an effective tool for laser engraving and laser cutting. There 4 powerful laser modual for choose, they can engrave and cut a variaty of materials.
Features:

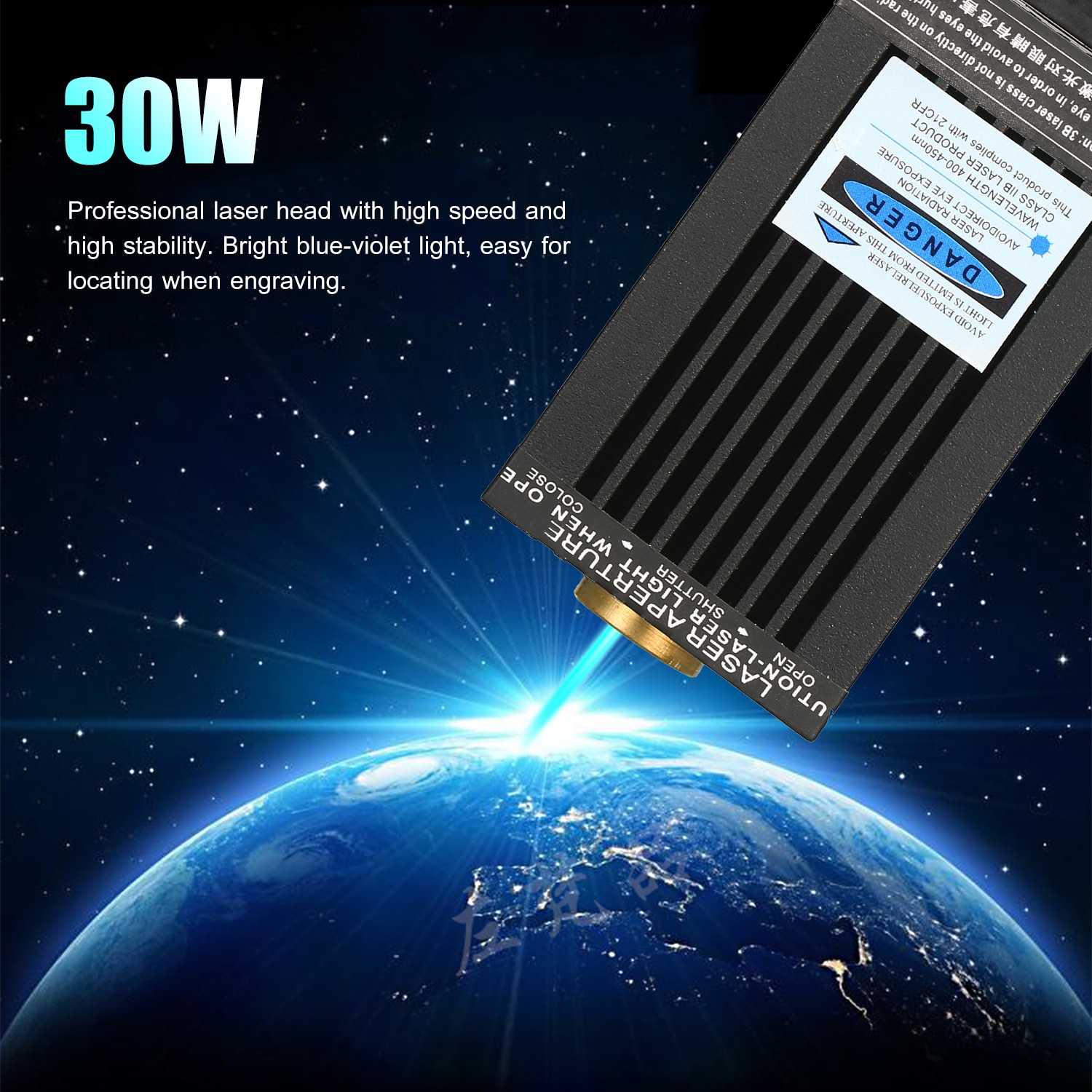

Blue Laser Modual — Professional laser head with high speed and high stability. Bright blue-violet light, easy for locating when engraving.
More Powerful and Clean — 30W with more powerful in engraving and carving, provide a neat and clear image. High power also ensure a fast carving and cutting. ( focuse distance from carving objects keep 1.8cm)
Easy to Assemble — Small and compact, convenient and easy to install.
30W Carving Material — Wood type, some plastics, paper, bamboo, horn, thin leather (wallet), rubber stamp, tooth, PU, Printing paper, PVC, horn, crab shell, lobster, mammoth, ivory, linden root, resin, spectacle lens, metal painted surface,those kinds of flammable materials. And colored ceramics, colored aluminum, pebbles, etc. Part of stainless steel, anodized, dark electroplating, swimming paint, baking paint, wood grain transfer aluminum. Coke cans, mobile phone back shell, etc.
30W Cutting Material — Within 3mm thick paper, leather, non-woven fabrics, flocking fabrics, aircraft wood, stickers, etc. Non-transparent plastic sheet within 2mm Black acrylic sheet within 2mm
Specifications:

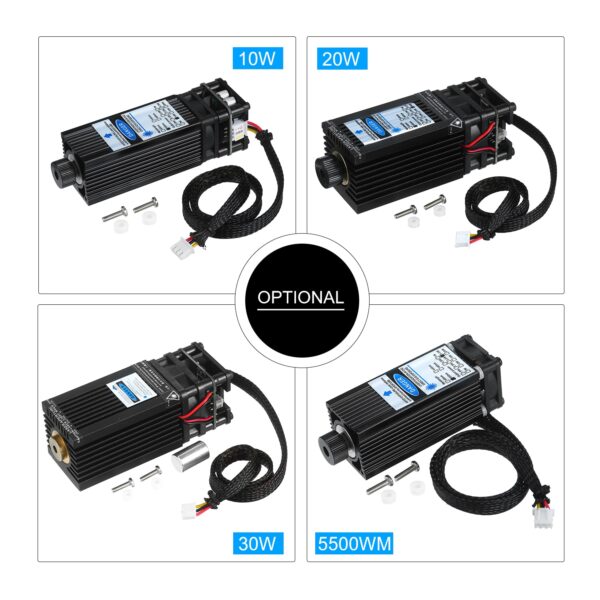

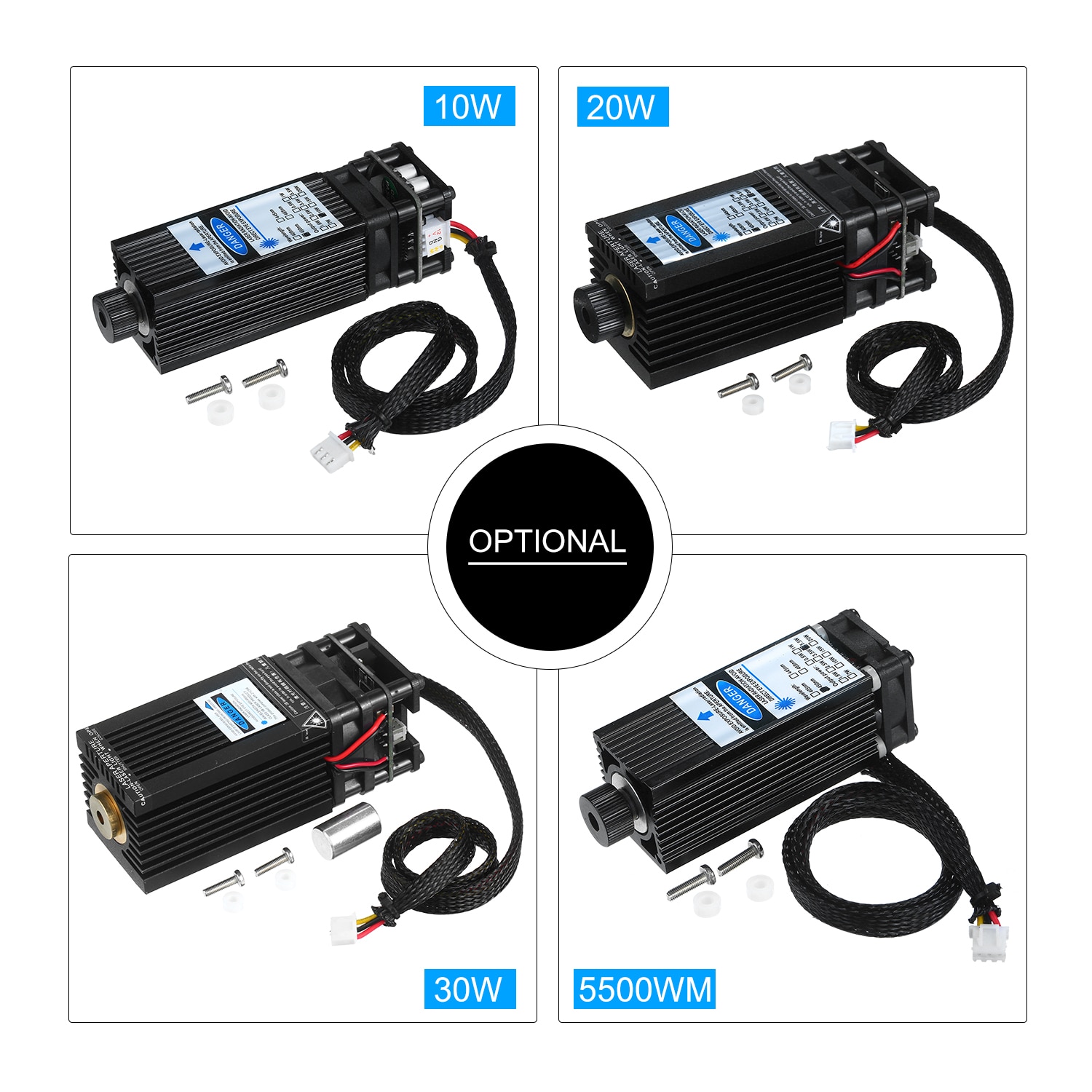

Laser Power: 5500mW/10W/20W/30W (Optional)
Material: Aluminum Alloy+Plastic
Light Color: Blue-violet
Wave Length: 450nm
Facula Form: Punctiform, Adjustable Focus(30W can not adjust focuse)
Input Voltage: 12V 2A
Package Size: 15*15*5cm / 5.9*5.9*1.96in
Item Weight: 281g / 9.91oz
Package List:
1 * Laser Head
FOR 40w
40W upgrade Blue Laser Module with Lower Loss and Higher Precision, which is designed for both 3D printer and CNC mill. With 448-462nm wavelength, it is 6-7 times faster and 3-4 times accuracy than the traditional laser module. There 5 powerful laser modual for choose, they can engrave and cut a variaty of materials.
Features:
Applicable for All Metal Material — 40W high powerful laser module can provide better carve effect on paint and oxide layers and stainless steel. Compare with other brand our 40W laser module can even engrave metals without carbon content!
Longevity & Lower Loss — Upgrade 40W laser module with higher engraving speed, precision and stability meanwhile ensure a lower loss to prolong the laser module's service life.
Simple Use — Small and compact, convenient and easy to install.
40W Carving Material — It can engrave 201/304 stainless steel, titanium steel and anodized aluminum, stone, MDF, Balsa, wood, fabric, plastic, PCB, paper, bamboo, horn, leather, sponge paper, etc. Not engravable: copper raw materials, aluminum raw materials.
Cutting materials — Cutting plywood, cutting black acrylic board, leather, paper, etc.
Focus — Come with a red piece help to alignment the engraving distance between laser module and carving objects.
Specification:
Color: Black + Yellow
Laser Power: 40W
Material: Aluminum Alloy+Plastic
Light Color: Blue-violet
Wave Length: 448-462nm
Beam Shape: Dot, Using red focuse ausiliary pieces to adjust focuse distance.
Input Voltage: 12V 2A
Line Length: 380mm
Item Size: 112*40*40mm/4.4*1.6*1.6
Item Weight: 227g/0.5lb
Packing List:
1 * 40W Laser Head
9 * Kraft Paper
1 * Red Focus Auxiliary Accessory
1 * Bag of Installation Accessories
1 * Screwdriver
