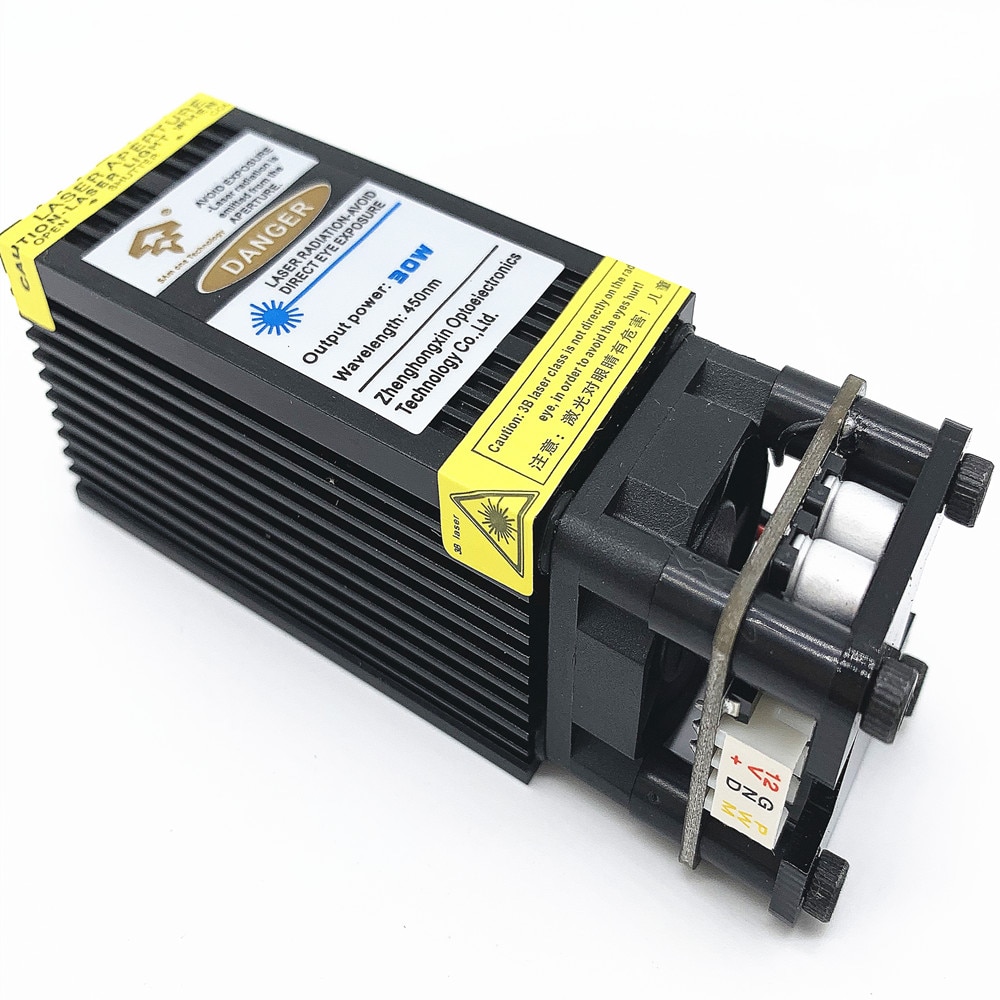

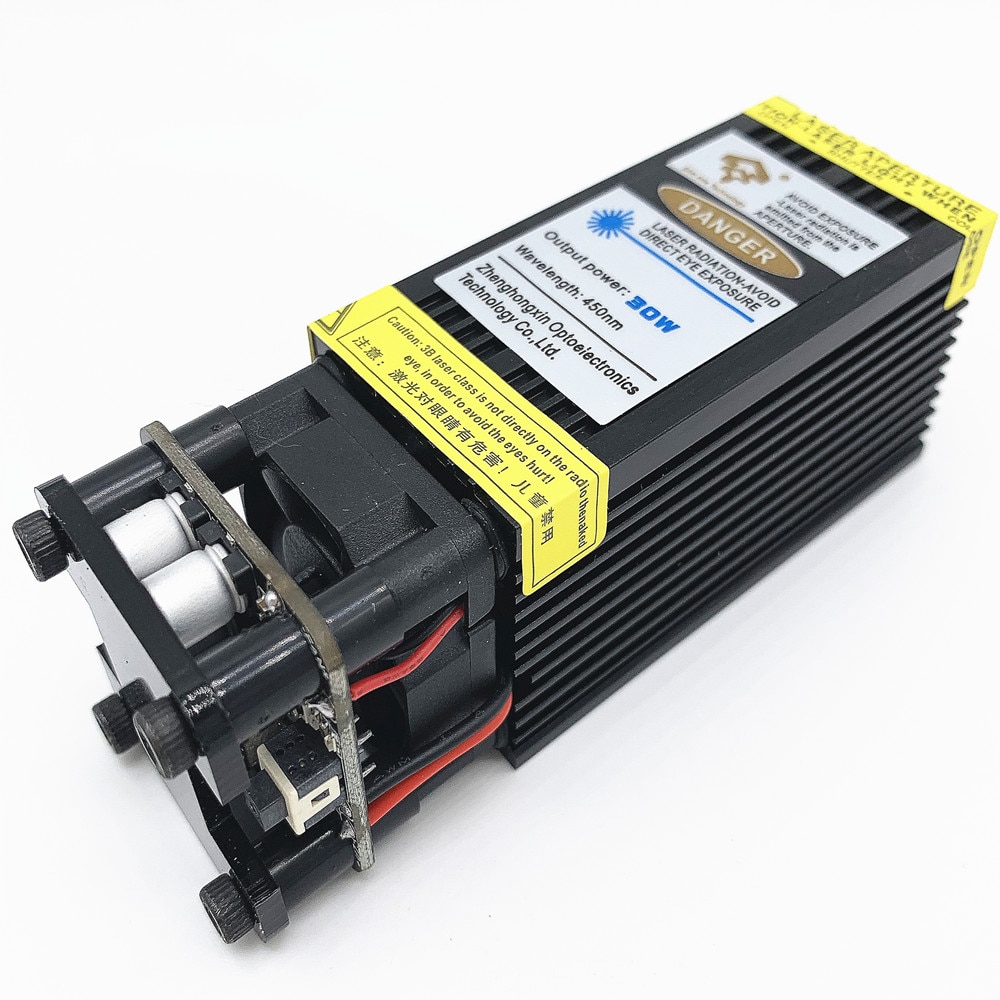

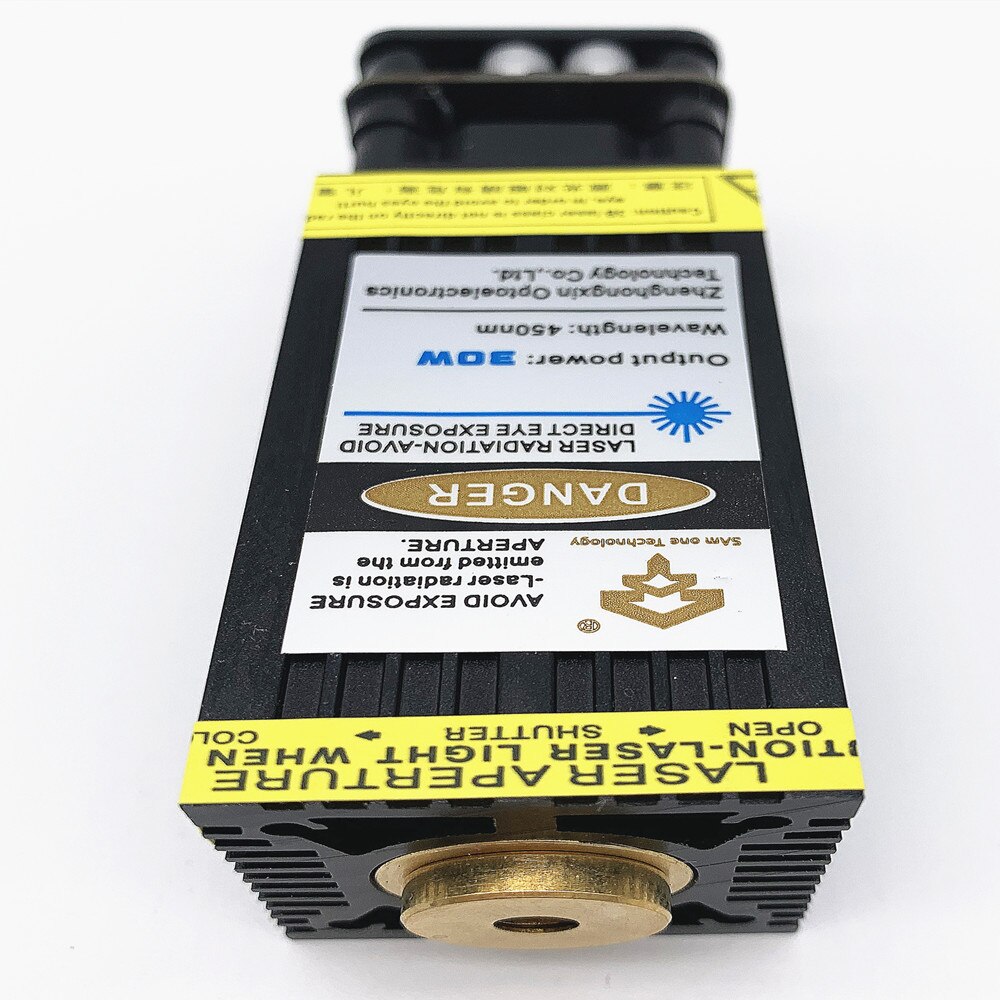

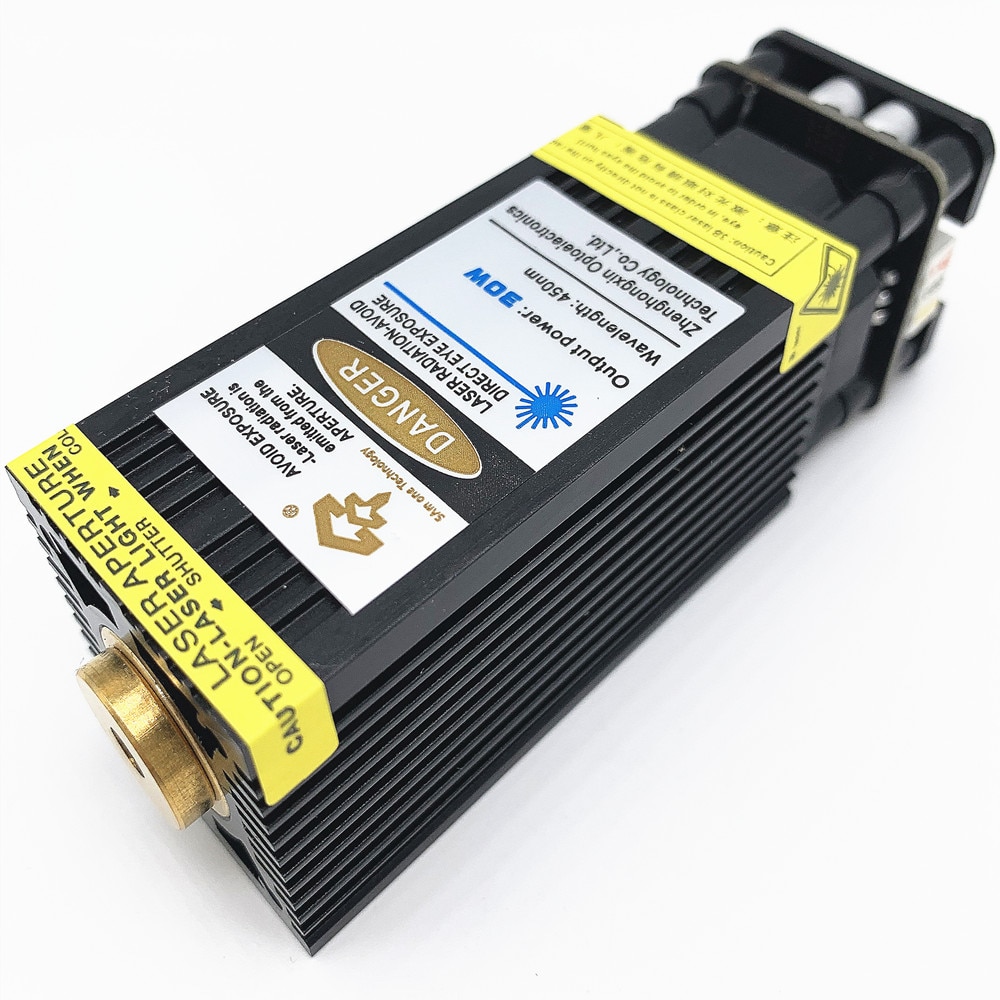

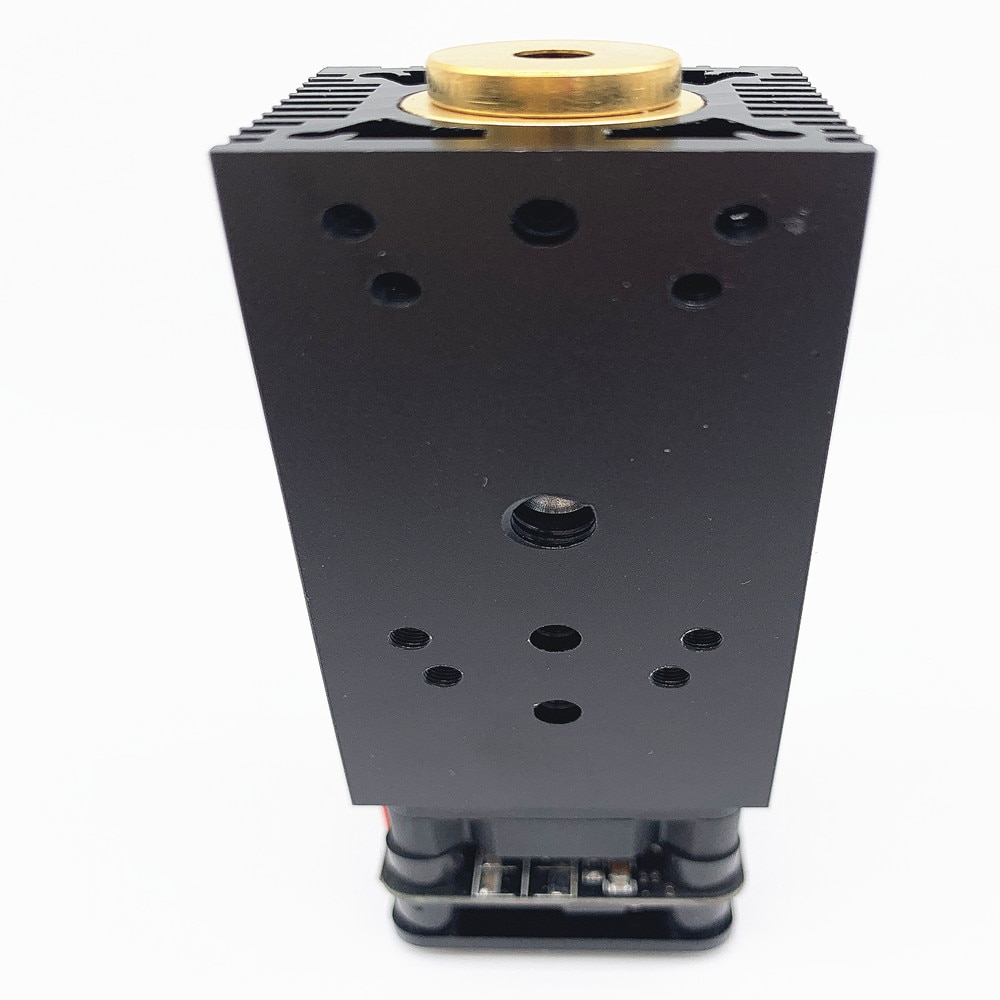

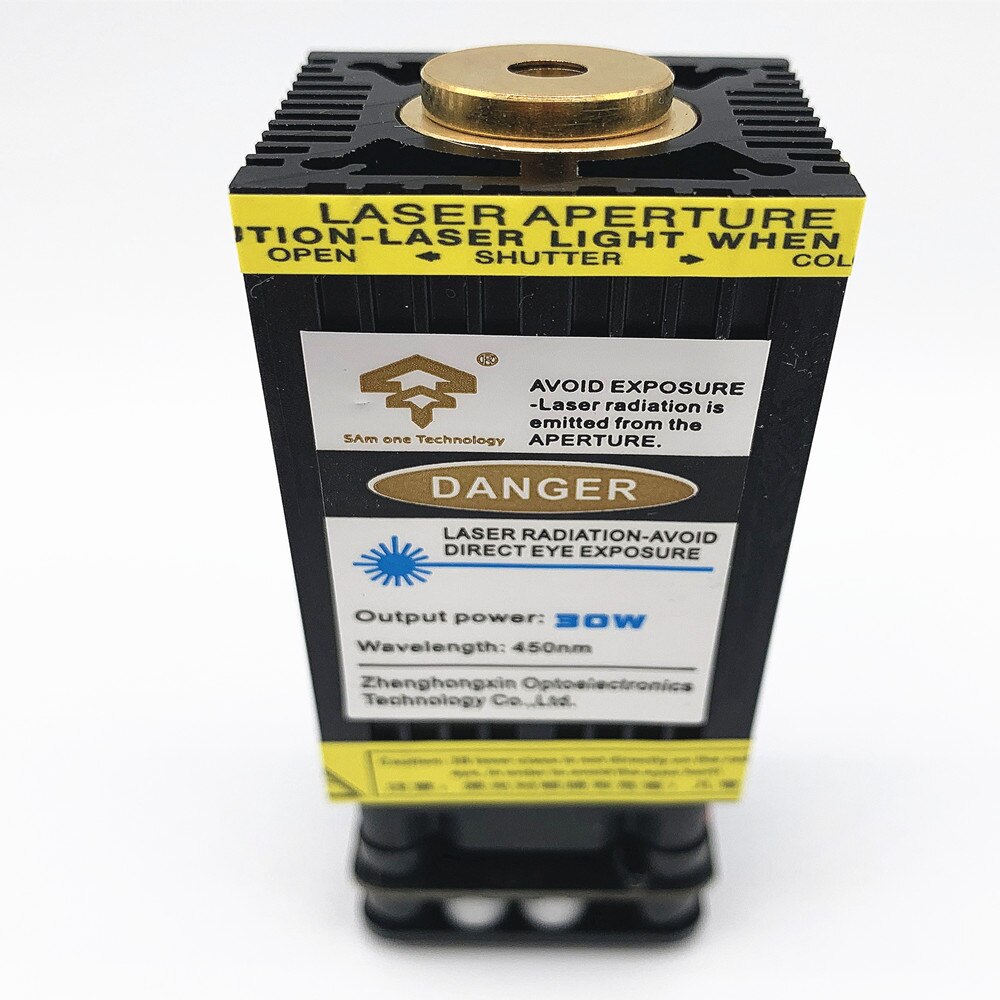

30W laser head, blue laser module, with TTL/PWM, fast engraving speed, can be used to engrave stainless steel and oxidized metal

$505.92

SKU: 1005001958941321 Category:

Description

  • Brand Name: SAM ONE TECHNOLOGY
  • Certification: CE
  • Origin: CN(Origin)
  • Model Number: 30Whs33
  • Laser engraving parts: High power laser engraving head

(OEM compatible production services, enterprise customized solutions,)
(Our company is a laser module manufacturer, actual power, actual wattage, high technical content, stable quality)
(To determine whether the store is a laser module manufacturer, you can check the store’s company business license information in the commercial information on the product page, and you can know the actual business of the store)

The newly upgraded 30W laser module is powerful, the engraving
speed is 4-5 times higher than the traditional 30W laser module, and the engraving speed is 2600mm per minute.
The laser
engraving accuracy is 2-3 times faster than the traditional 30W laser module, the conversion is more refined and precise. This 30W spot is 0.09MM. Traditional 30W laser head, light spot 0.3MM,
(Traditional 30W engraving stainless steel depth 60%) (Newly upgraded 30W engraving stainless steel depth 20%) The effect of engraving stainless steel is better.
The laser power and wattage are calculated according to international standards, and the actual power is normal. Actual wattage.
(Our company is a regular laser head manufacturer. All the product parameters and product information described are the results of strict tests (not exaggerated))

30W technical parameters
Total length of laser + fan: 100mm
Laser light source: semiconductor blue light
Shell material: aviation aluminum
Color: Polar Oxygen Black
Module center material: copper
Shell size: 33✖️ 33✖️ 70mm
Optical power output: 30W
Focus power: 20W
Laser wavelength: 450nm
Supply voltage: 12V
Power control: PWM/TTL (signal control voltage 0-5V)
Supply current: 4A

Interface specifications: 3pin 2.54 /4pin 2.54
Light shape: point-shaped fixed focus
(the best focal length of the laser is 20mm according to the fixed focus column equipped)
The list includes: 4P line*1, 3P line*1, short line DC*1, focal length column*1, glasses*1, laser module*1. (The color of the glasses is delivered randomly)
The life span is 16800 hours. (If the smoke is blurred, please add a fan when engraving or cutting)

Buyers read: Please pay attention to the wire sequence: 3P wire connection method, red wire 12v+, black wire GND -, yellow wire pwm+, if you need to replace, please check carefully
Buyers read: Please pay attention to the sequence of wires: 4P wire link mode, red wire 12V+, black wire 12V-, yellow wire TTL+, white wire TTL- please check carefully
Note: For industrial use only, eye contact is forbidden, children are forbidden to come into contact with this laser product, at your own risk.

Paint and oxide layers can be carved, stainless steel can be carved, aluminum raw materials and copper raw materials cannot be carved. It can be understood that metals with carbon content can basically be carved, and metals without carbon content cannot be carved.
It can engrave 201/304 stainless steel, titanium steel and anodized aluminum, stone, MDF, Balsa, wood, fabric, plastic, PCB, paper, bamboo, horn, leather, sponge paper, etc.
Not engravable: copper raw materials, aluminum raw materials, steel raw materials,
Cutting materials: cutting plywood, cutting black acrylic board, leather, paper, etc.
Frequent cutting can easily lead to power drop, which is the drawback of all laser heads.
Engraving must know: Engraving reflective objects must be blacked out before engraving, otherwise the reflective light will easily damage the laser lens, or the engraving will not be effective.

If you don’t know whether this laser head can use your engraving machine, you can send me a picture of your engraving motherboard. If you take a clear picture, you can see the letters displayed on the interface between the engraving motherboard and the laser module.
