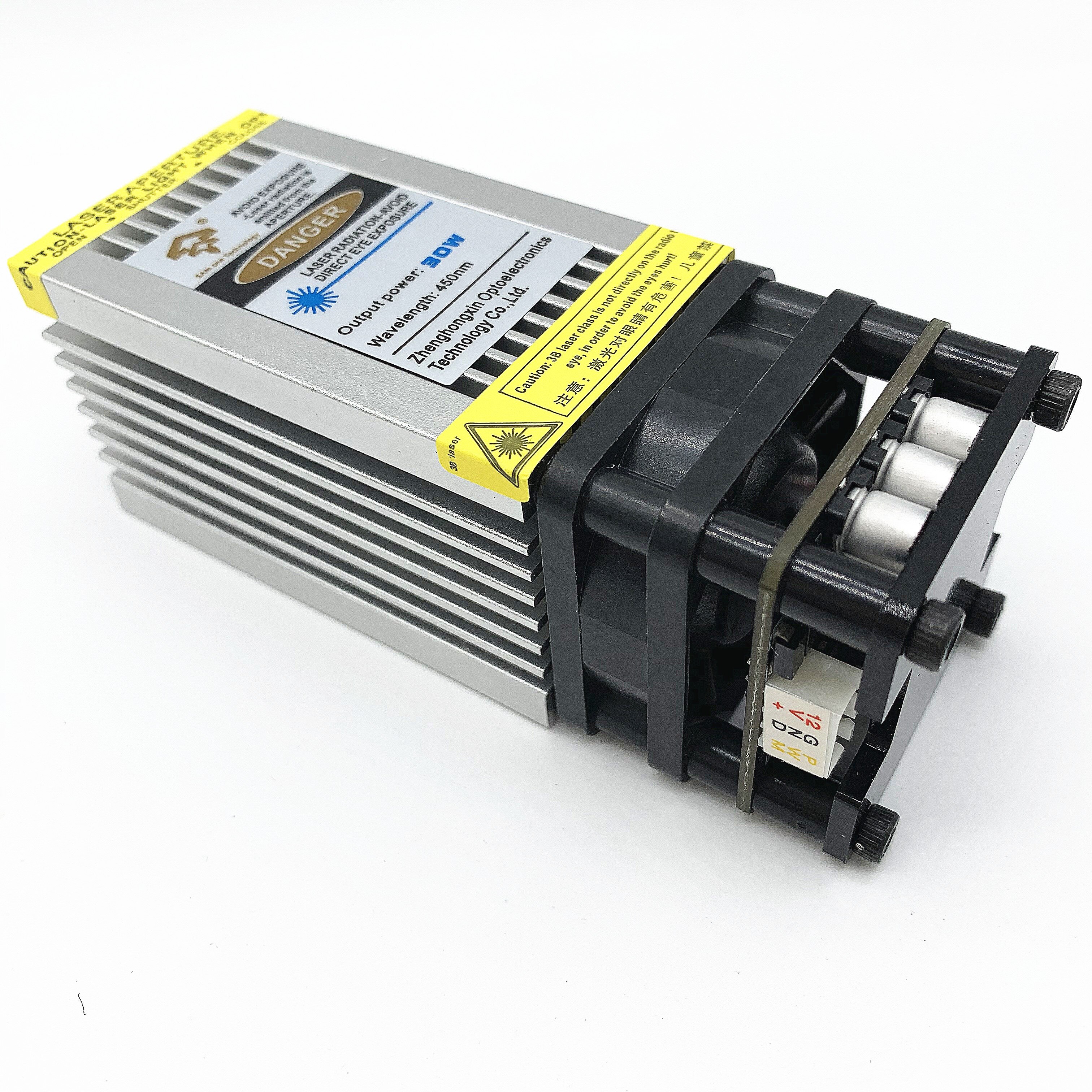

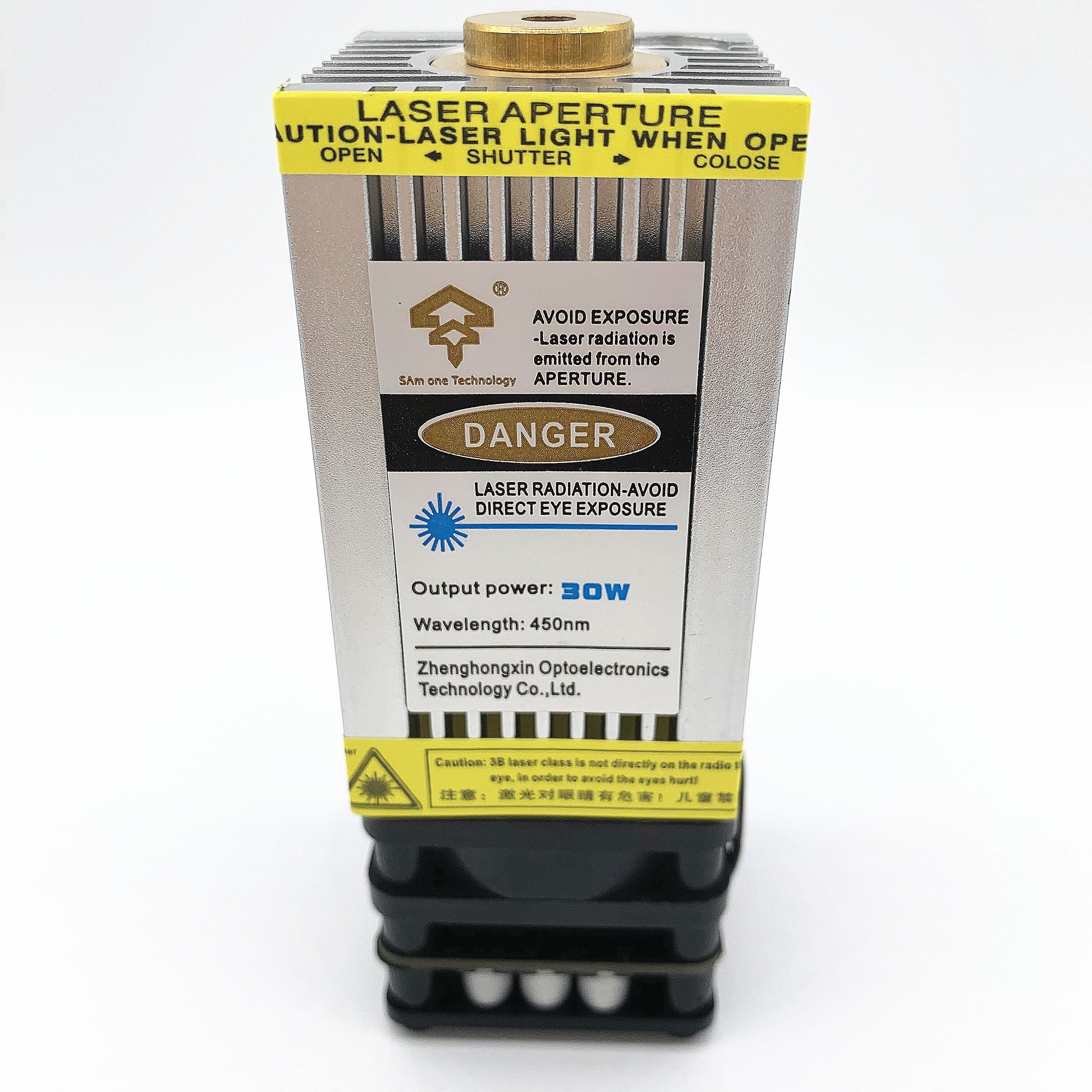

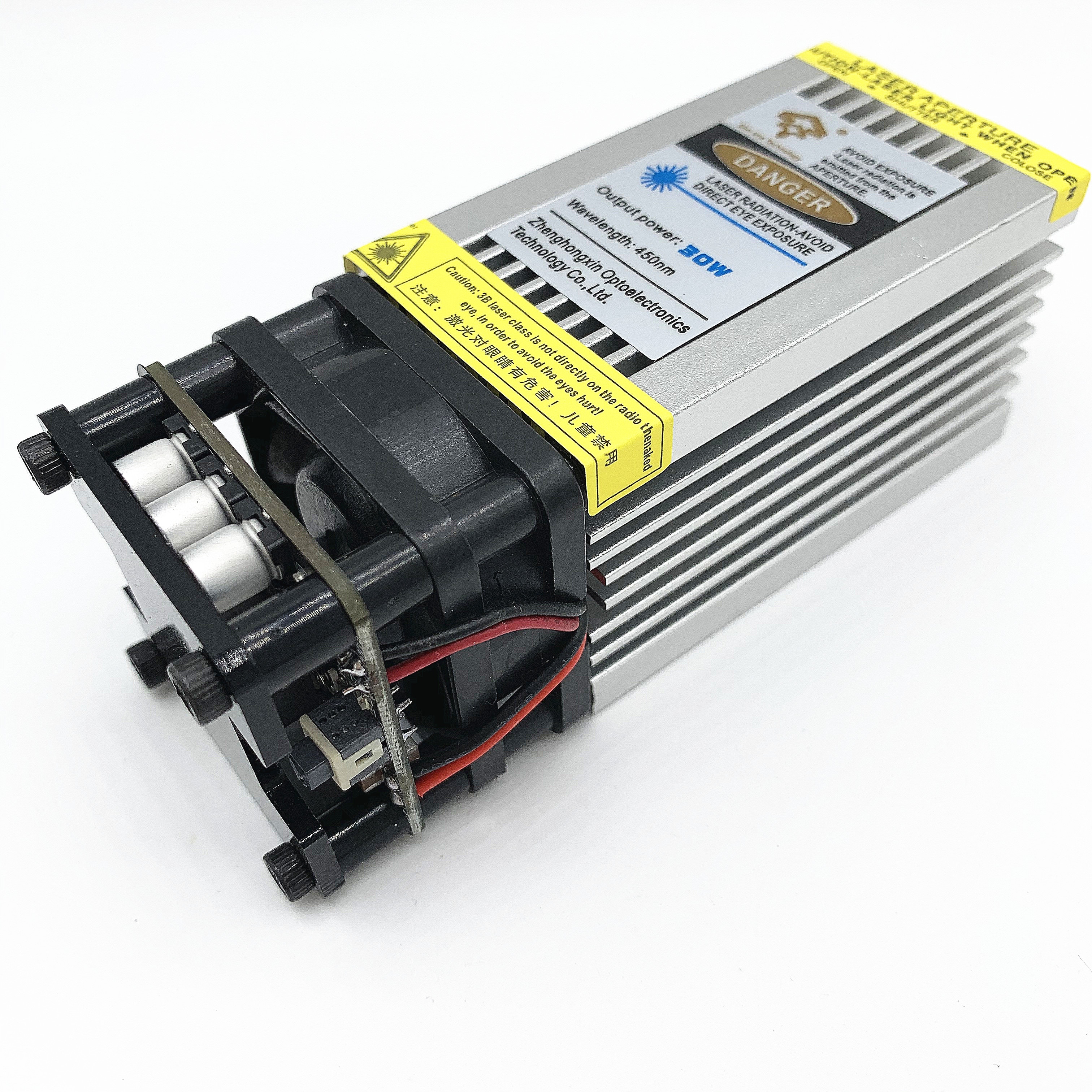

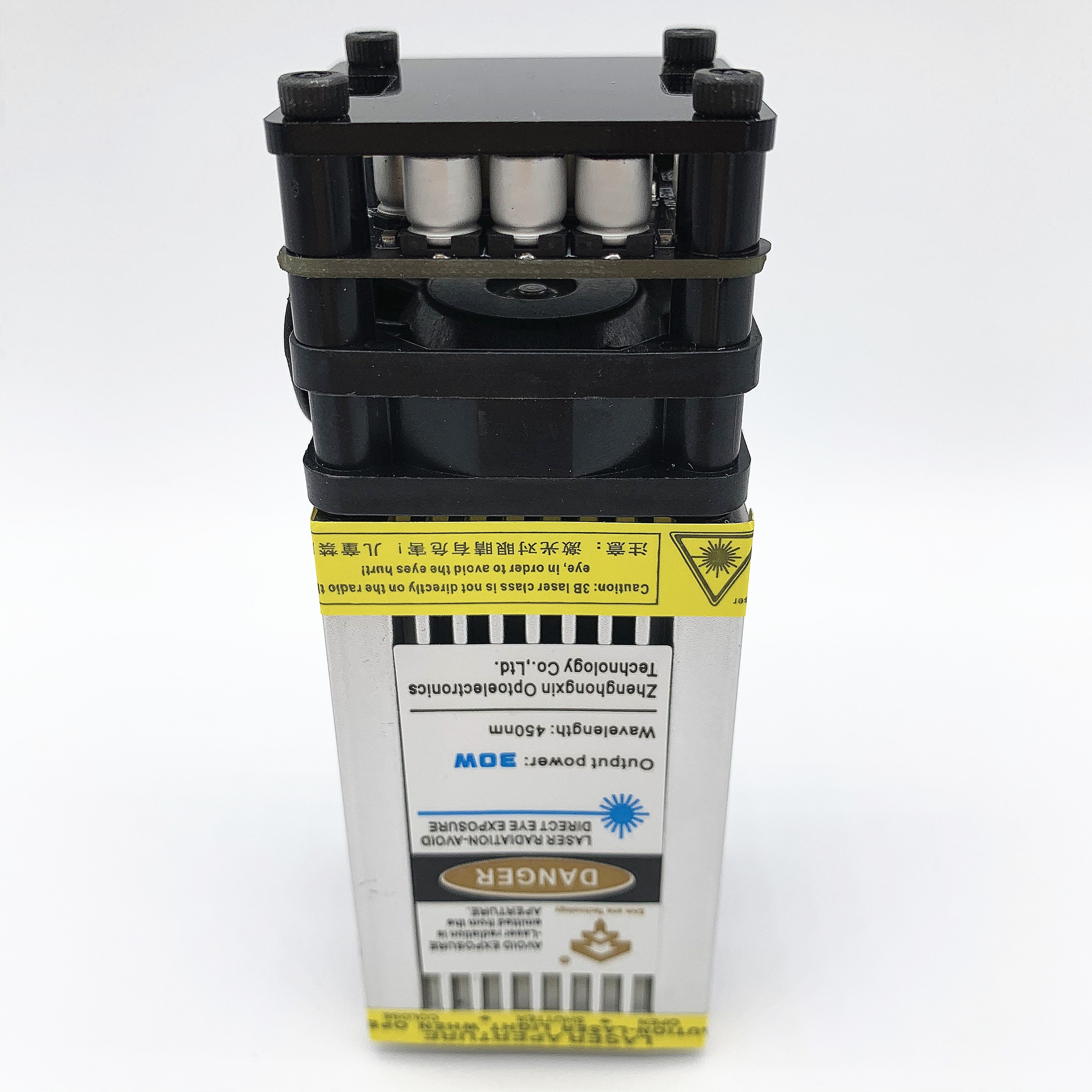

Actual power, actual wattage, 30W blue laser head module, blue laser module ultra-fast engraving stainless steel and oxidized metal
OEM compatible production services, enterprise customized solutions,)
The newly upgraded 30W laser module is powerful, the engraving speed is 4-5 times higher than the traditional 30W laser module, the engraving effect of stainless steel is better, with a cross positioning laser (adjustable).
The laser engraving accuracy is 2-3 times higher than the traditional 30W laser module, faster, finer and more refined conversion. (15W engraving stainless steel depth 60%) (newly upgraded 30W engraving stainless steel depth 20%)
The laser power and wattage are calculated according to international standards, and the actual power is normal. Actual wattage. (The product parameters and product information we describe are the results of rigorous testing (not exaggerated))
30W technical parameters
Total length of laser + fan: 105mm (weight: 305g)
Laser light source: semiconductor blue light
Shell material: aviation aluminum
Color: polar oxygen silver
Module center material: copper
Shell size: 40✖️ 40✖️ 70mm
Optical power output: 30W
Focus power: 20W
Laser wavelength: 445nm

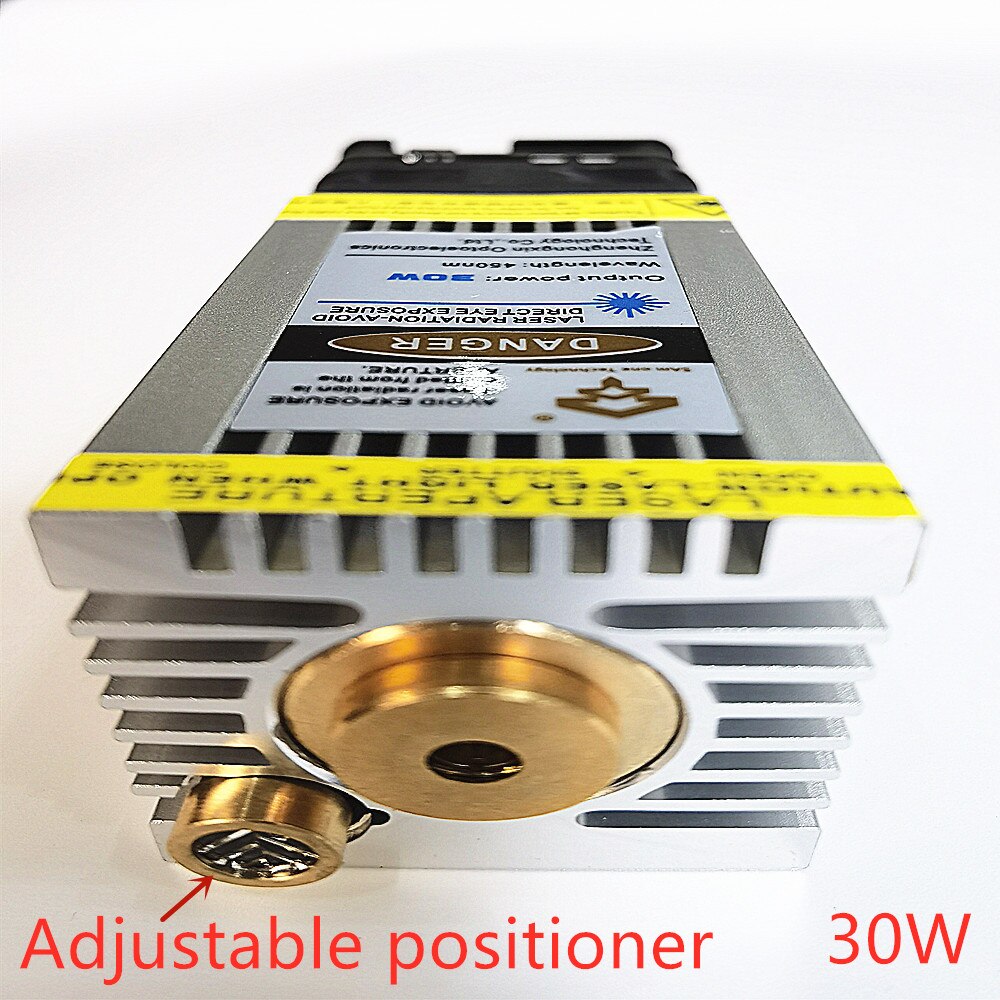

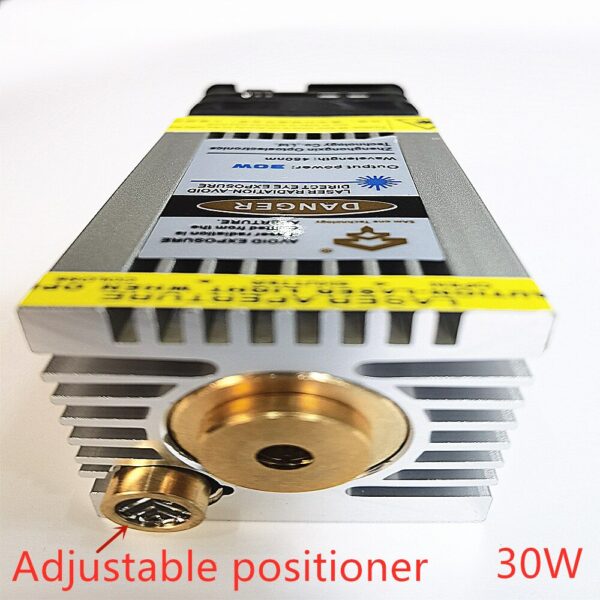

New function: laser with cross positioning (adjustable)
Supply voltage: 12V
Power control: PWM/TTL (signal control voltage 0-5V)
Supply current: 4A
Interface specifications: 3pin 2.54 /4pin 2.54
Light shape: point-shaped fixed focus (the best focal length of the laser is 20mm according to the fixed focus column equipped)
The list includes: 4P line*1, 3P line*1, short line DC*1, focal length column*1, glasses*1, laser module*1. (The color of the glasses is delivered randomly)
The life span is 16800 hours. (If the smoke is blurred, please add a fan when engraving or cutting)
Paint and oxide layers can be carved, stainless steel can be carved, aluminum raw materials and copper raw materials cannot be carved. It can be understood that metals with carbon content can basically be carved, and metals without carbon content cannot be carved.
It can engrave 201/304 stainless steel, titanium steel and anodized aluminum, stone, MDF, Balsa, wood, fabric, plastic, PCB, paper, bamboo, horn, leather, sponge paper, etc.
Not engravable: copper raw materials, aluminum raw materials, steel raw materials,
Cutting materials: cutting plywood, cutting black acrylic board, leather, paper, etc.
Cutting just proves whether the laser module has actual wattage. actual power. Frequent cutting can easily lead to power drop.
Engraving must know: Engraving reflective objects must be blacked before engraving, otherwise the reflective light will easily damage the laser lens, or the engraving will not be effective.
