Description
- Brand Name: Vieruodis
- Origin: CN(Origin)
- Certification: CE
- Applicable Industries: Machinery Repair Shops
- Wavelength: 976nm
- power: 30w
- Laser type: diode laser
- fiber core: 105um
- Numerical Aperture: 0.22NA
- Connector: SMA905,ST,FC
- Warranty: 1 Year
- Application1: medical
- Application2: pumping laser
- Application3: laser marking
Dear, you can purchase directly, if you need to consult product information, welcome to add my WHATSAPP (+86 15616438600)

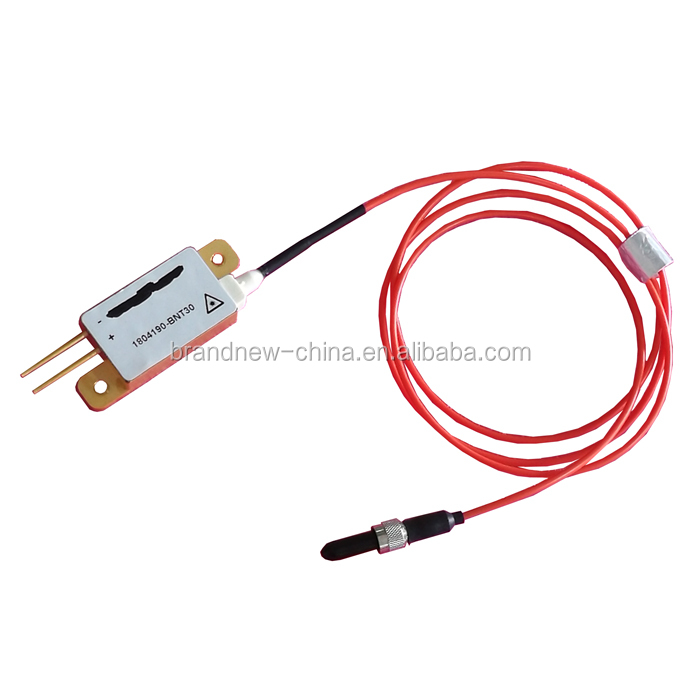

30W 976nm multi-mode fiber coupled diode laser modules with Jenoptik bars
Feature:
fiber core 105um and 0.22NA Numerical Aperture

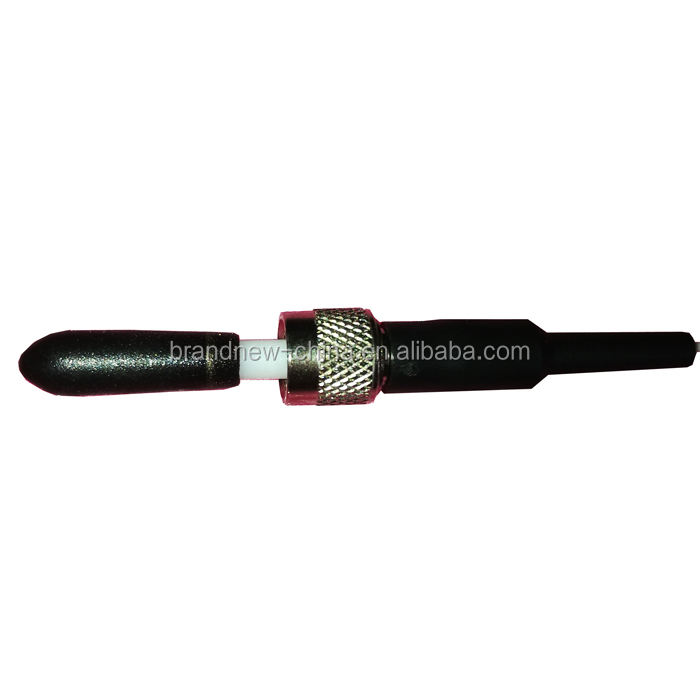

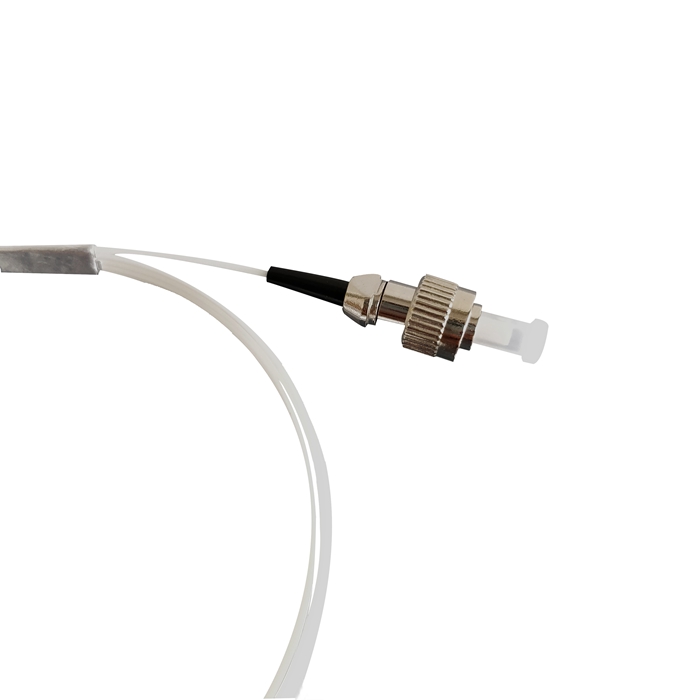

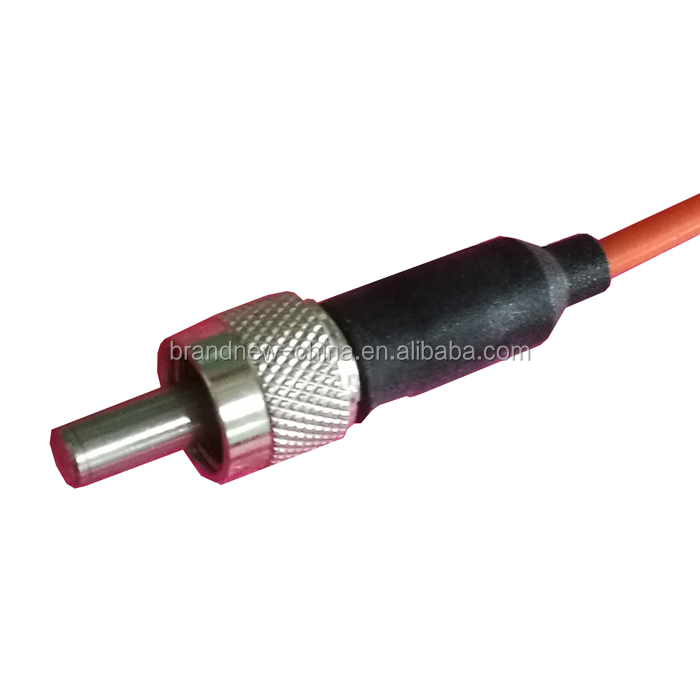

Connector: SMA905 or ST or FC
Jenoptik bars
High Reliability and high power
Item No.: FC976DL30
Item Name: 30W 976nm Fiber Coupled Diode Laser
Optical
Center Wavelength λ: 976±5nm
Output Power :30W
Working Mode: CW
Spectral Width FWHM: 4nm
>90% Power :0.15NA
Slope Efficiency: 2.7W/A
Fiber
Fiber Bend Radius :>60mm
Fiber Length :1m
Fiber Core :105um
Fiber Numerical Aperture :0.22NA
Fiber Connector :SMA905
Electrical
Operating Current Iop: 11.5A
Threshold Current Ith: 0.9A
Operating Voltage Vop :5.6V
Power Conversion Efficiency :45%
Thermal
Operating Temperature (Non-Condensing): 15~55℃
Storage Temperature (Non-Condensing): -30-70℃
Wavelength Temperature Coefficient :~0.3nm/℃
Order Procedure
- Contact us for more details by email
- We send PI to you for payment, payment term is T/T or Western Union
- Once payment is done, we will arrange production
- Delivery time is 1-4 weeks depends on different order qty and request.
- After delivery, we will send you DHL UPS FedEx TNT tracking no
- Quality warranty is 12 months

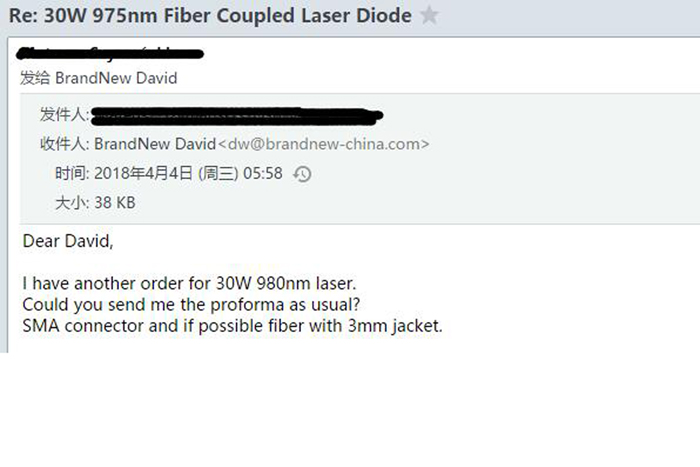

Customers Comments:
Remarks
Other models are available upon your choices,such as with more functions, TEC,PD,Aiming Beam,Detachable Fiber,pls contact us freely
