Description

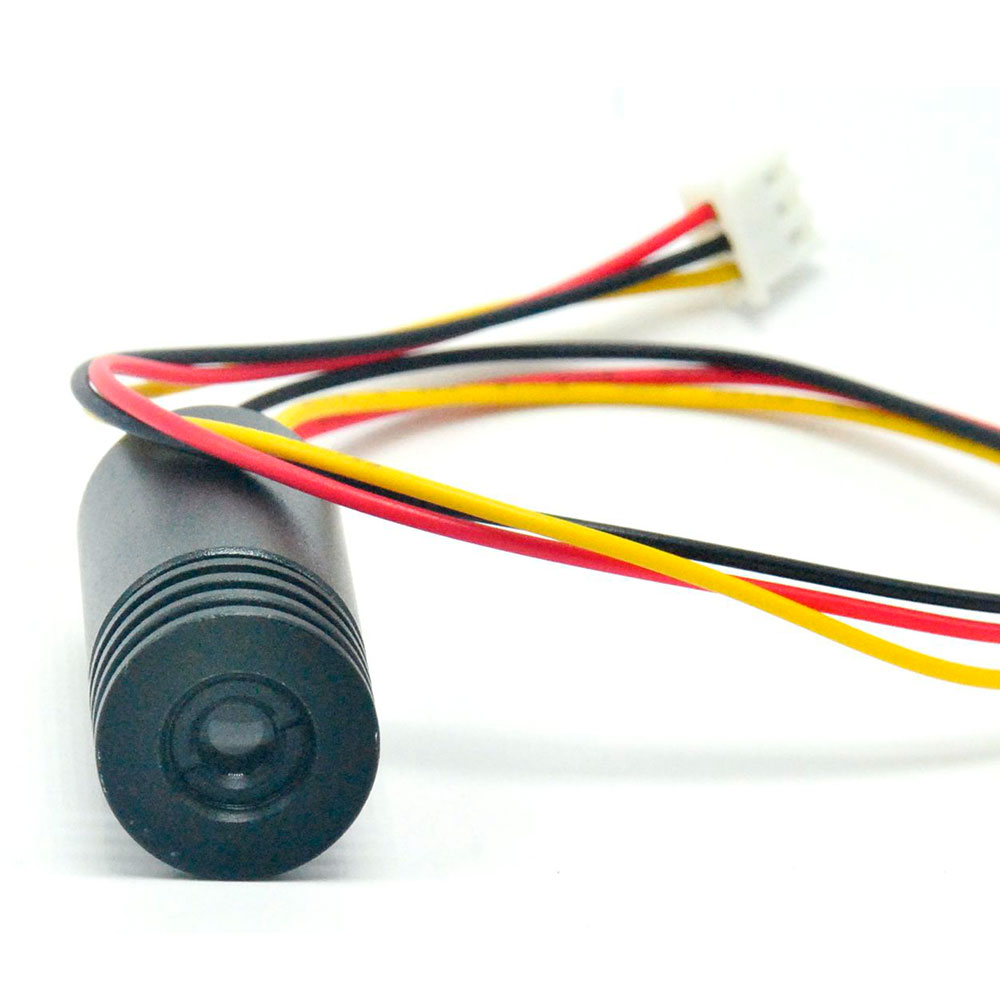

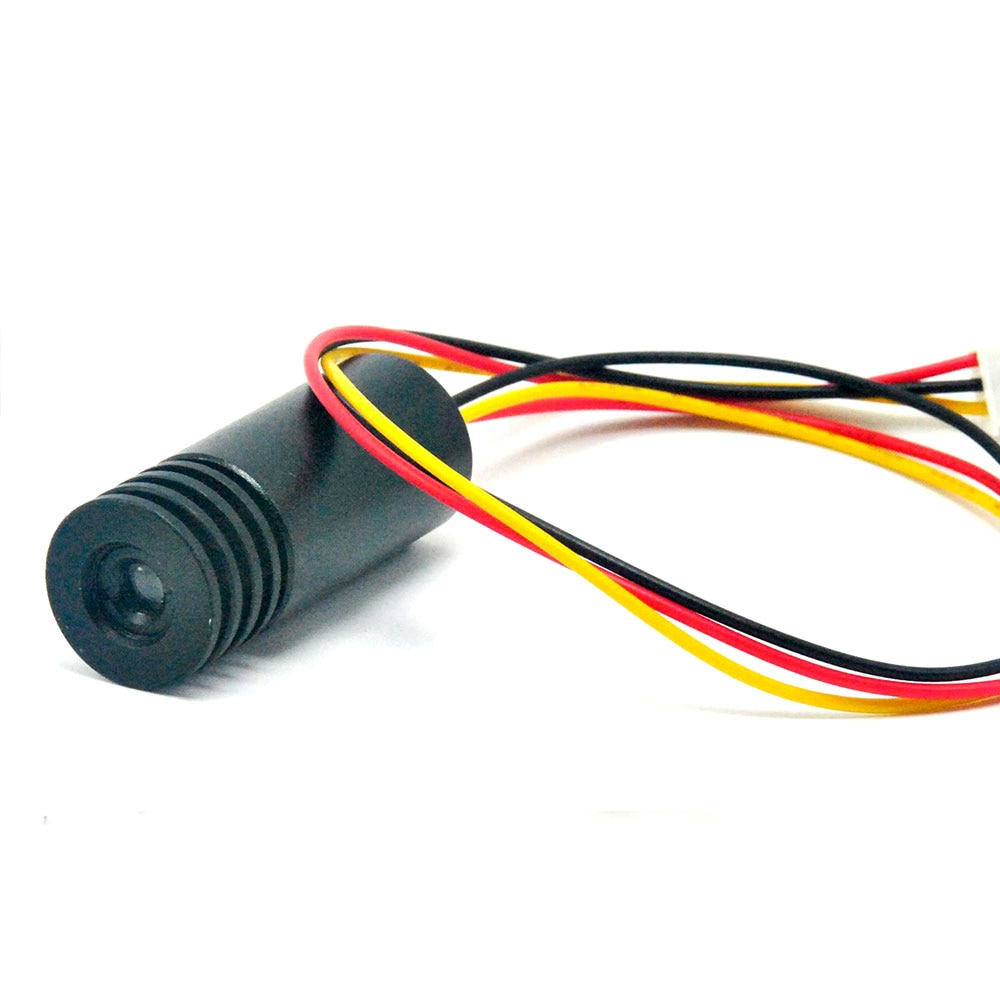

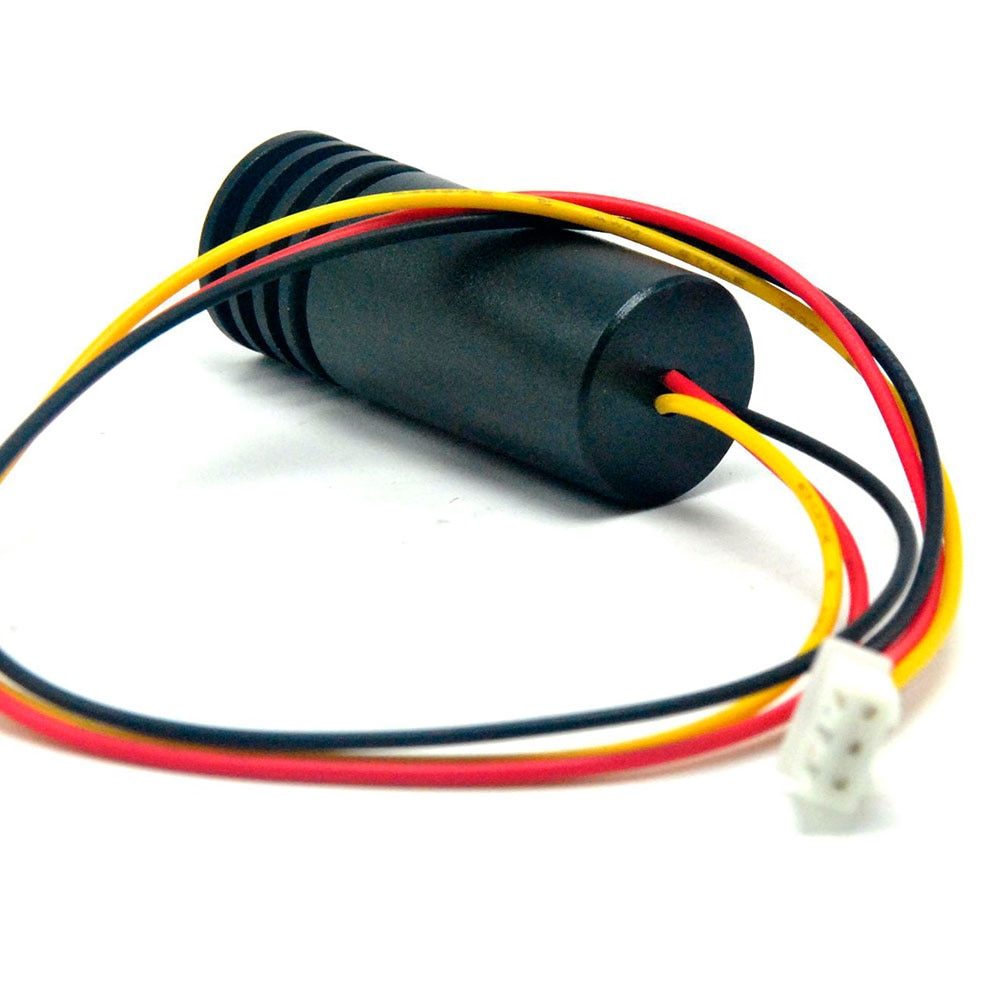

 30mW 905nm IR Infrared Laser Diode Dot Module w/ TTL 0-15KHZ Focusable Unit DC5V

Parameters
Wavelength:905nm
Output Power:30mw
Working Voltage:DC5V
Working Current:I <100mA
Working Temperature:＋15 ℃~＋35 ℃
Laser Shape:Dot
Focusable:yes
Material:Metal
Duty Cycle:5 minutes on,1 minute off
TTL frequency:0-15KHz
TTL modulation Voltage:0-5V Off low, high open, normal status open
Dimension:18X45mm

Features
1.Three-wire input, the red line is positive, black line is negative,  TTL signal yellow line is positive,If you only connect its black wire and red wire, the laser would not work, you also need to connect its yellow wire (TTL+) to 5v+.
2.This 980nm laser module with driver built-in is an industrial electronic component and  used for Industrial testament, Lab.Before carrying on some laser DIY activities, please read about the technical information first and protect your eyes before laser ray. Be sure the operator has experience in optics DIY or testing.
3.Please wear IR lase protection goggles when you work on it.

Package

1pc  Focusable 30mW 905nm IR Infrared Laser Diode Dot Module w/ TTL 0-15KHZ DC5V
