This DIY laser CNC engraving machine is especial designed for DIY fun, study and research with professional GRBL control software, giving you extreme portable experience. This 2-in-1 laser CNC engraving machine features the function of engraving, carving & milling. This carving machine can be engraved plastic, wood, acrylic, pvc, pcb, wood or the like material. Drill bit can not engrave hard metal, jade or other hard materials.

Features:
GRBL 1.1 software control provides stable performance.
Laser supports PWM/TTL control signal, adjustable power range from 0% to 100%.
Spindle supports PWM adjustable power range from 0% to 100%.
With over current protection and upgraded integrate drive chip, stepping motor enables 2A large current and high stability.
No need to code or design, simply import images, which is very easy and interesting to install and use, perfect gift for engraving DIY enthusiasts.

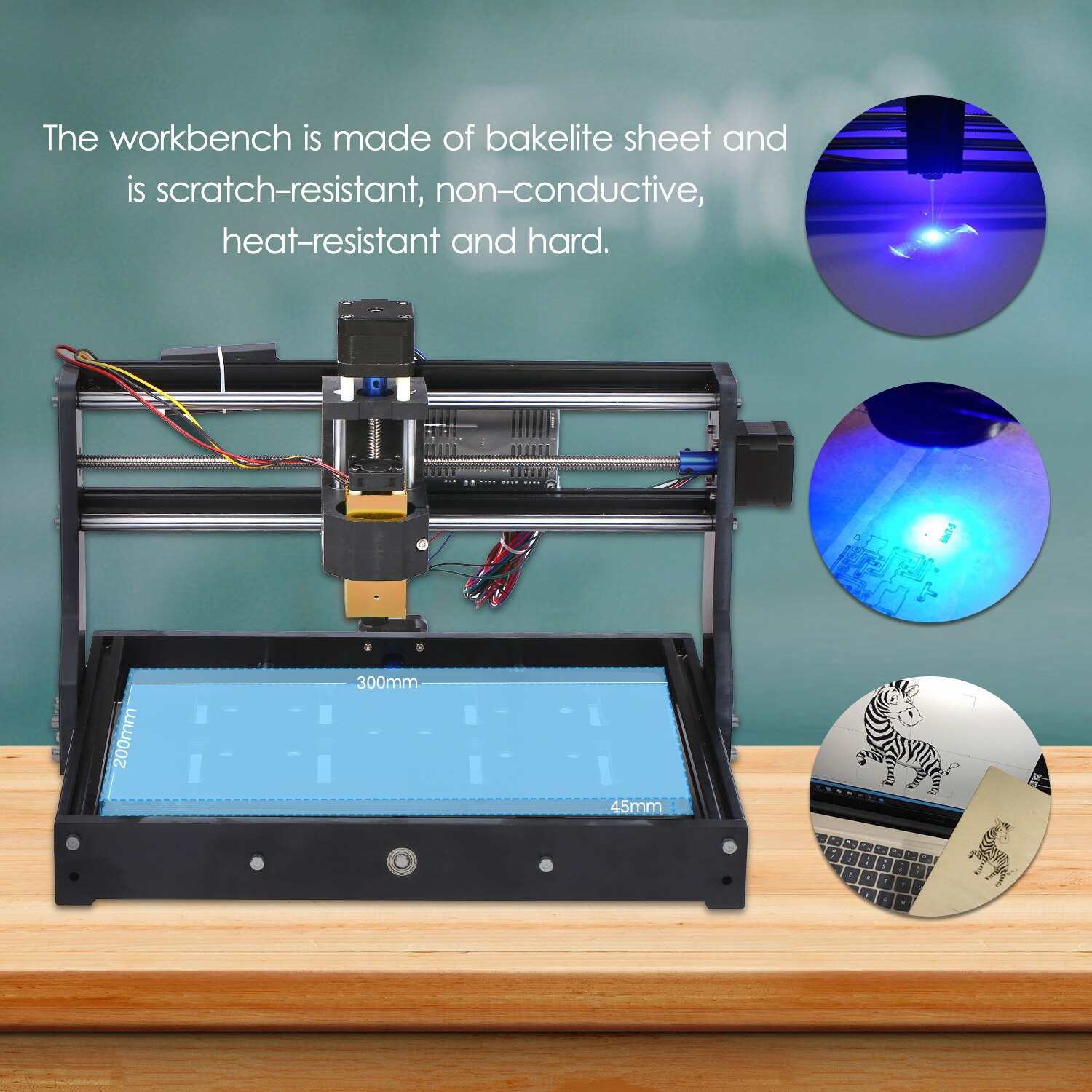

300 x 200 x 45mm large working area, and the work bench is made of bakelite plate which features anti-scratch, non-conducting, heat resisting, and high solidity.
Equipped with heat sink and fan for cooling, feel free to use for a long continuous hours.
Wide application: can be used for print, hand tools and industrial processing.

Note:
Assembly required.
This carving machine can apply to plastic, wood, acrylic, pvc, pcb, wood or the like material. Drill bit can not engrave hard metal, jade or other hard materials.
Materials that can’t be engraved: metals, glass, stone, ceramics, jewelry, silver, reflective material, translucent & transparent material.
Please wear laser goggles during using and avoid touching the laser directly with your eyes and skin!
Keep away from children when working.

Specifications:
Model: CNC3020 mini
Color: Black
Plug Type: EU / US(Optional)
Material: Aluminum Alloy+Plastic

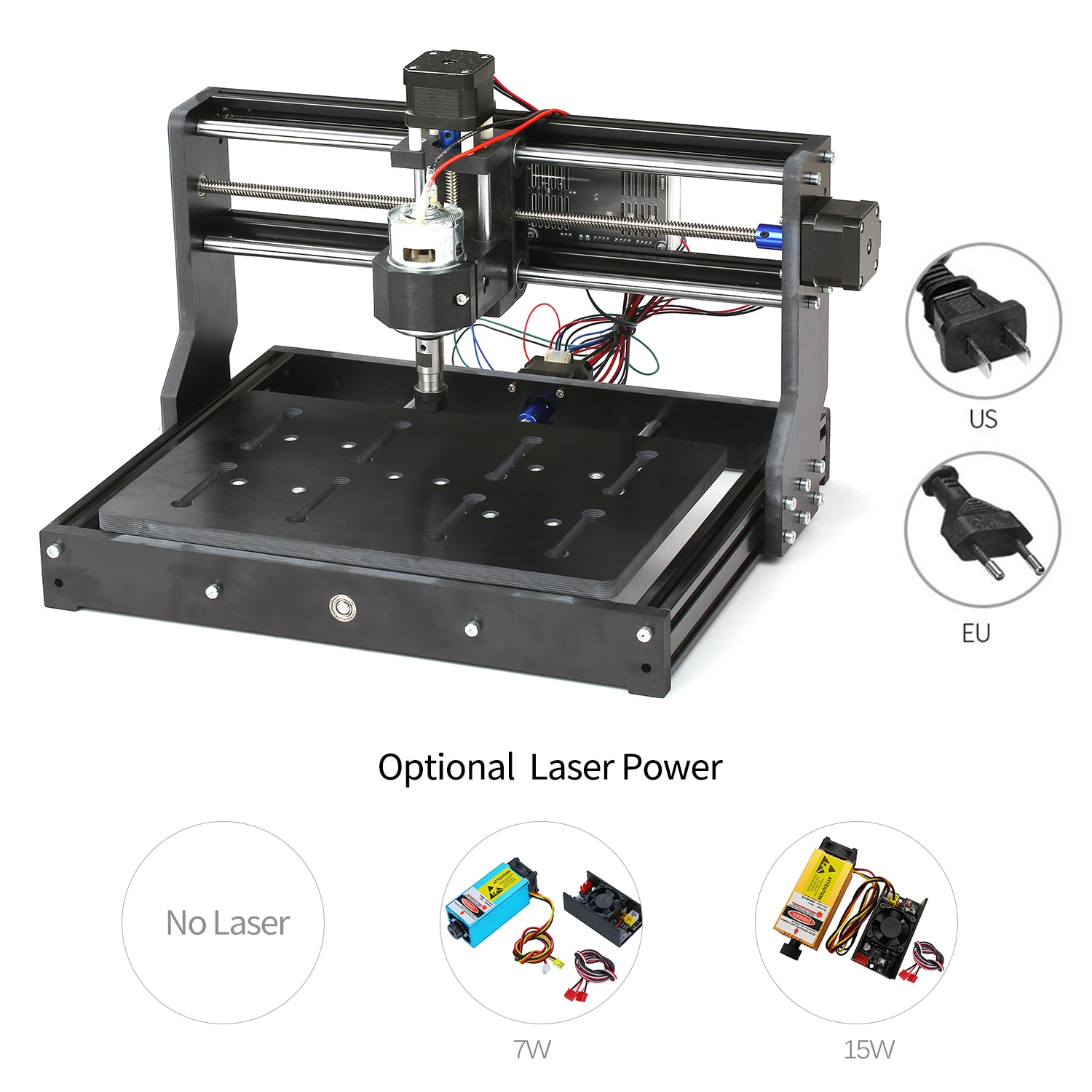

Laser Power: 7000mW
Wave Length: 12V, 450nm
Power Current: 110-240V AC
Power Output: 24V 5.6A
Supported OS: Windows XP / Win 7 / Win 8 / Win 10 (32/64)
Supported Formats: jpg / bmp / png
COM Port: Micro USB
Engraving Area: 30*30*4.5cm / 11.81*11.81*1.77in

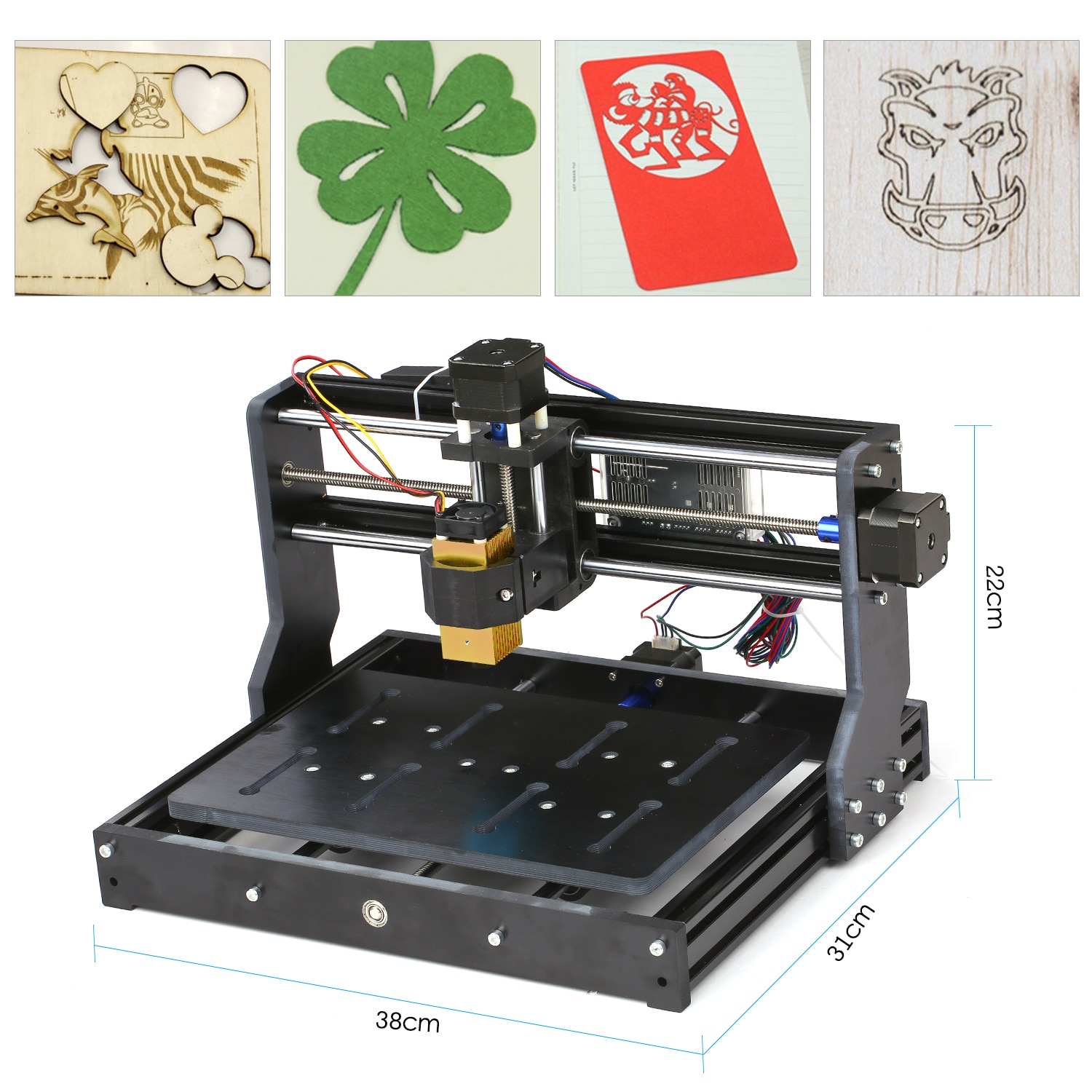

Frame Size: 38*31*22cm / 14.96*12.2*8.66in
Countertop Size: 30*20cm / 11.81*7.87in
Spindle Motor: model 775, 24V: 8000rpm
Spindle Chuck: ER11
Stepping Motor: 3.4cm(length), 1.33A, 12V, 0.25Nm(torque)
Drill: Tip 0.1mm, 20 degree, diameter 3.175mm (10pcs)
Software: GRBL Control
Laser Quick Replace: Support
Engrave Mode: Image Engraving, Text Carving, Scanning Carving, Contour Carving, Pixel Carving
Item Size: 38*31*22cm / 14.96*12.2*8.66in
Package Size: 34*24*16.5cm / 13.38*9.44*6.49in
Item Weight: 6800g / 239.86oz
Package Weight: 7200g / 253.97oz

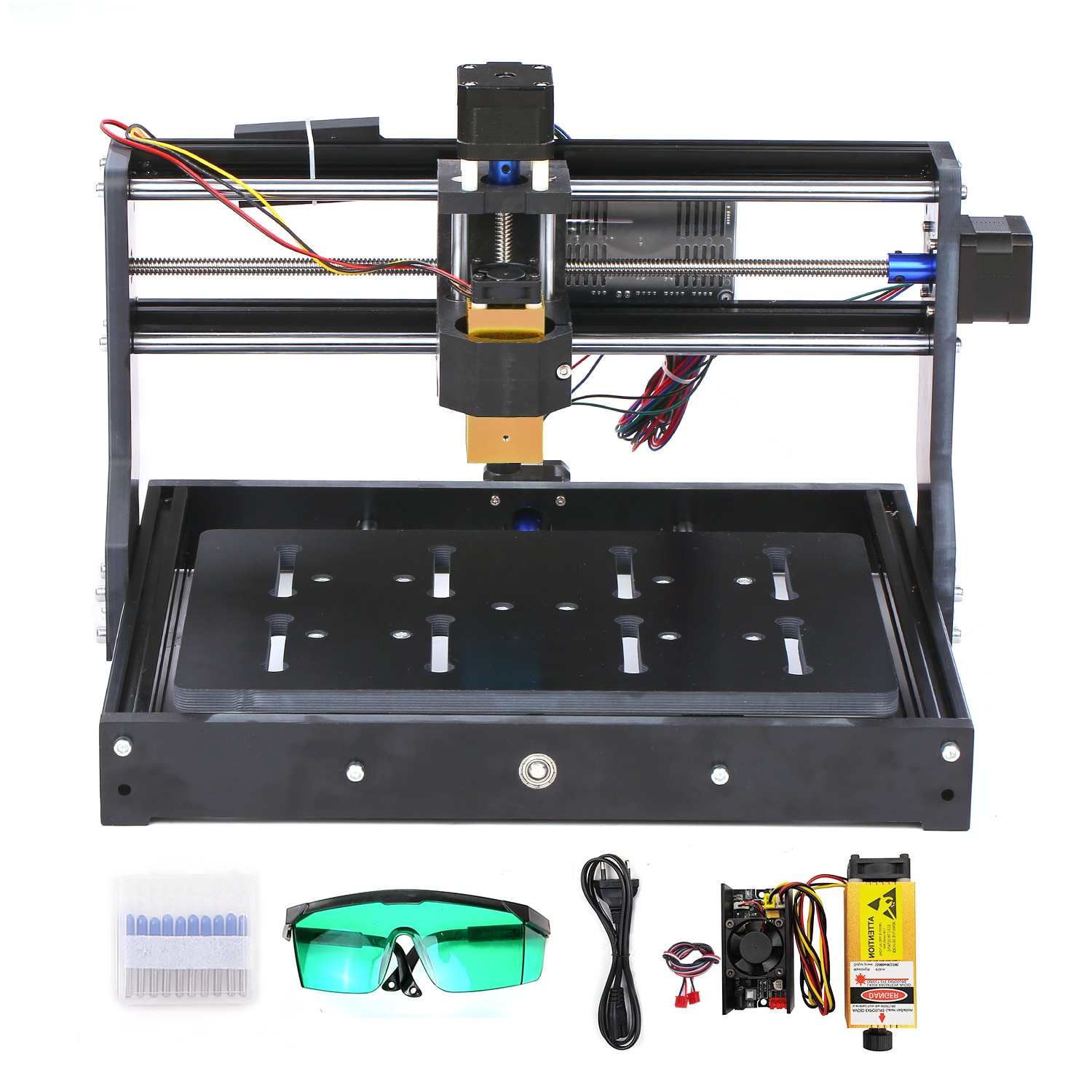

Package List:
1 * CNC Engraving Machine DIY Kit(Spindle/Stepmotor/Screws/Nuts/Metal Plate/Spring/Plastic Gasket)
1 * USB 2.0 Cable
1 * Adapter
2 * ER Wrench
4 * L-Type Wrench
10 * Drill Bits
