Description
- Origin: CN(Origin)
- Certification: CE
- Condition: New
- Model Number: CNC 3018Pro
- CNC or Not: CNC
- Frame size: 400 * 330 * 240mm
- Working area: 300 * 180 * 40mm
- Power: 24 V 5A
- Control software: GRBL control
- Material: aluminum bakelite injection parts
- System support: Windows XP Win 7 Win 8 Win10
- Laser: 0.5W 2.5W 3.5W 5.5W 15W 30W 40W
- Feature 1: laser engraver
- Feature 2: cnc engraving machine
- Feature 3: wood engraving machine
- feature 4: cnc 3 axis machine
- Feature 5: diy cnc milling machine
- Feature 6: engraving wood machine
- Feature 7: laser engraving machine
Product description:
Control software: GRBL control
Material: aluminum + bakelite + injection parts

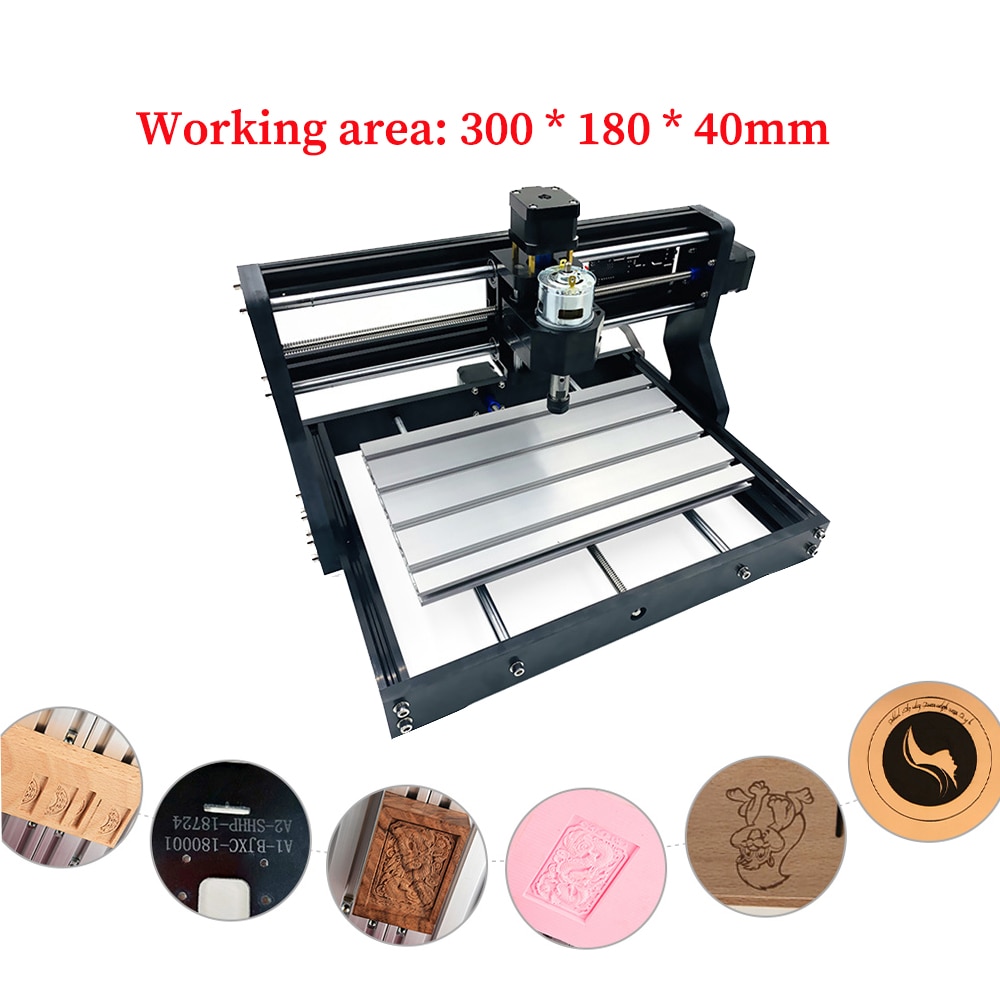

Working area: 300 * 180 * 40mm

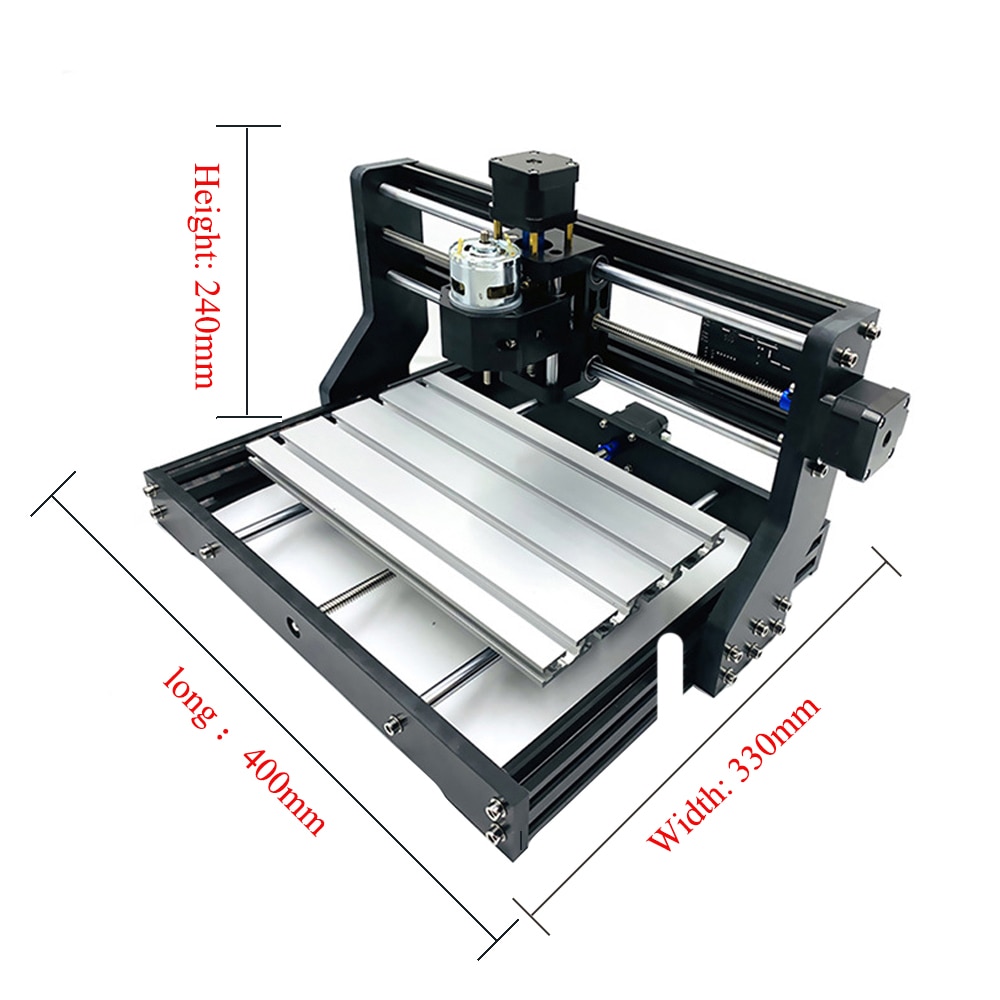

Frame size: 400 * 330 * 240mm
775 spindle motor: 24V 10000 revolutions
Stepper motor 1.3A 0.25N.m
Power: 24 V 5A
System support: Windows XP / Win 7 / Win 8 / Win10

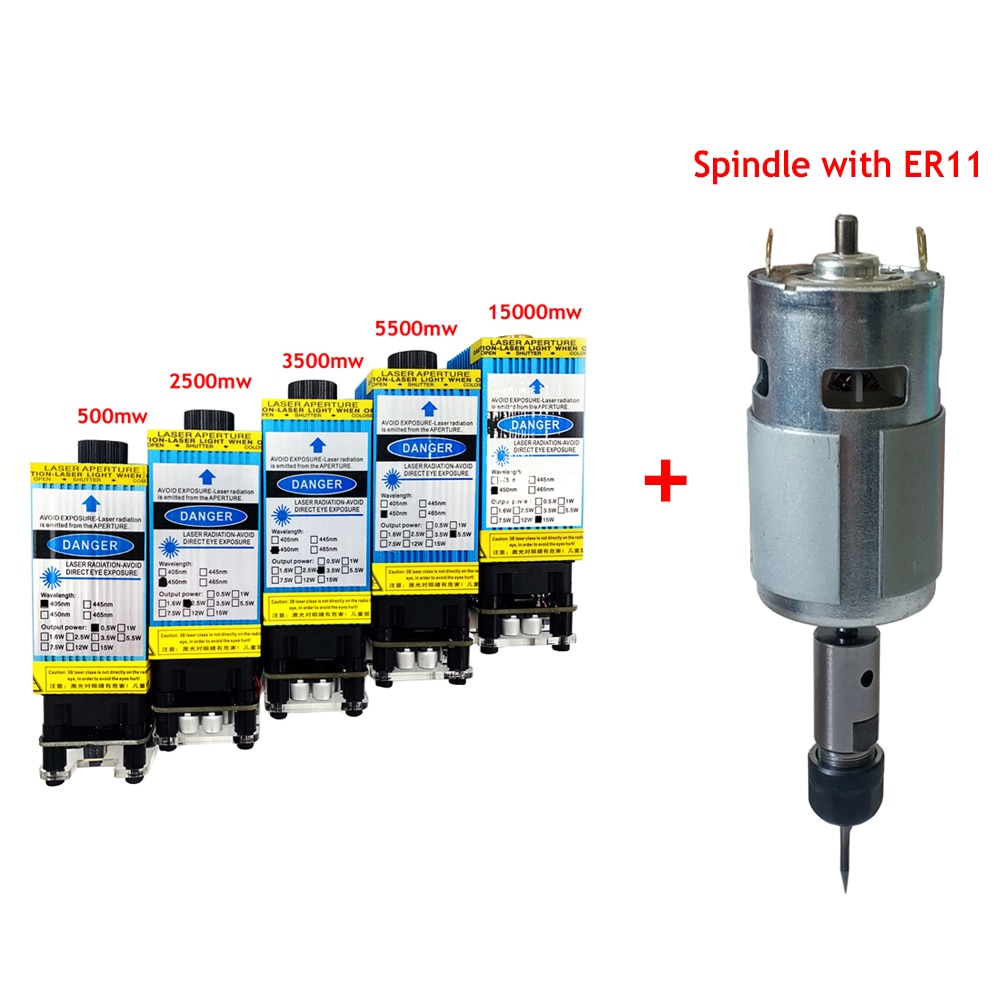

Laser : 500MW, 2500mw, 5500mw, 15000mw
Number of axes: X axis, double Y axis, Z axis
Package includes:
CNC3018 PRO + 1pcs ER11 + 4 set plates + 10pcs cutters + 1pcs laser glasses
Application:
Can be carved: MDF, balsa, paper, wood, horns, certain plastics, leather, plywood, foam, ceramics, stone, stainless steel. Rubber stamps, photosensitive seals, printing paper, sponge paper are waiting for flammable materials.
It can also be engraved with 201, 316 stainless steel, and some metals have been surface treated (for example: surface paint, anodizing, plating, etc.).
Impossible to sculpt: glass, reflective, transparent material.
Can cut: plastic, wood, acrylic, photovoltaic, leather, printing paper, non-woven fabric.
Friendly tip: 15000mw laser kit can be carved on stone, stainless steel surface and anodized colored aluminum alloy surface.
Feature:
1.New upgrade of body material!

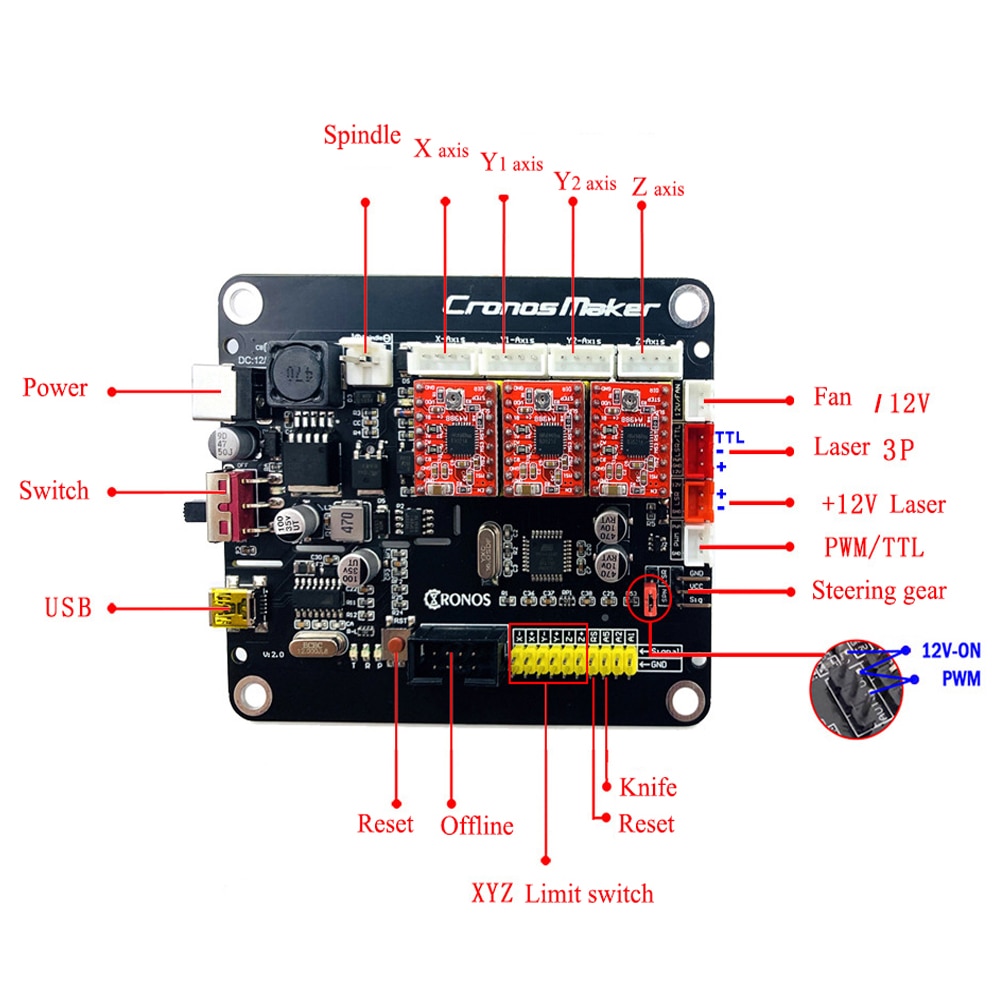

Fully upgraded, controllable motherboard, three-axis driver, dual Y-axis, comprehensive functions.
2.Black injection molded parts, professional shell protection, active fan cooling, no heat for long-term use. High accuracy.
3.Avoid stepper motor overcurrent protection damage, upgrade integrated stepper motor driver, 2A high current, high stability.
4.GRBL1.1f firmware, stable performance.
5.Support offline laser output 2P / 3P laser, support PWM / TTL signal control.
6.Power 0-100% adjustable! The spindle supports PWM power adjustable between 0-100%.
7.Laser direct image engraving, (supports offline) can work without connecting to a computer. No programming, no design, simple and convenient.
Please note:
The package sent by this product is an assembly kit. You need to DIY the machine yourself.
Please provide your email address. We will send software and learning materials.
Due to different batches, some accessories may be different from photos. Thank you for your understanding!
When you receive the package, carefully check all accessories of the laser engraving machine. This product cannot be returned after assembly! If you have any questions, please contact us immediately.
