3018Pro Laser Engraving Machine 3-Axis Milling Support Offline Engraving Laser Machine Wood Milling Laser Cutting Machine0.5-15W

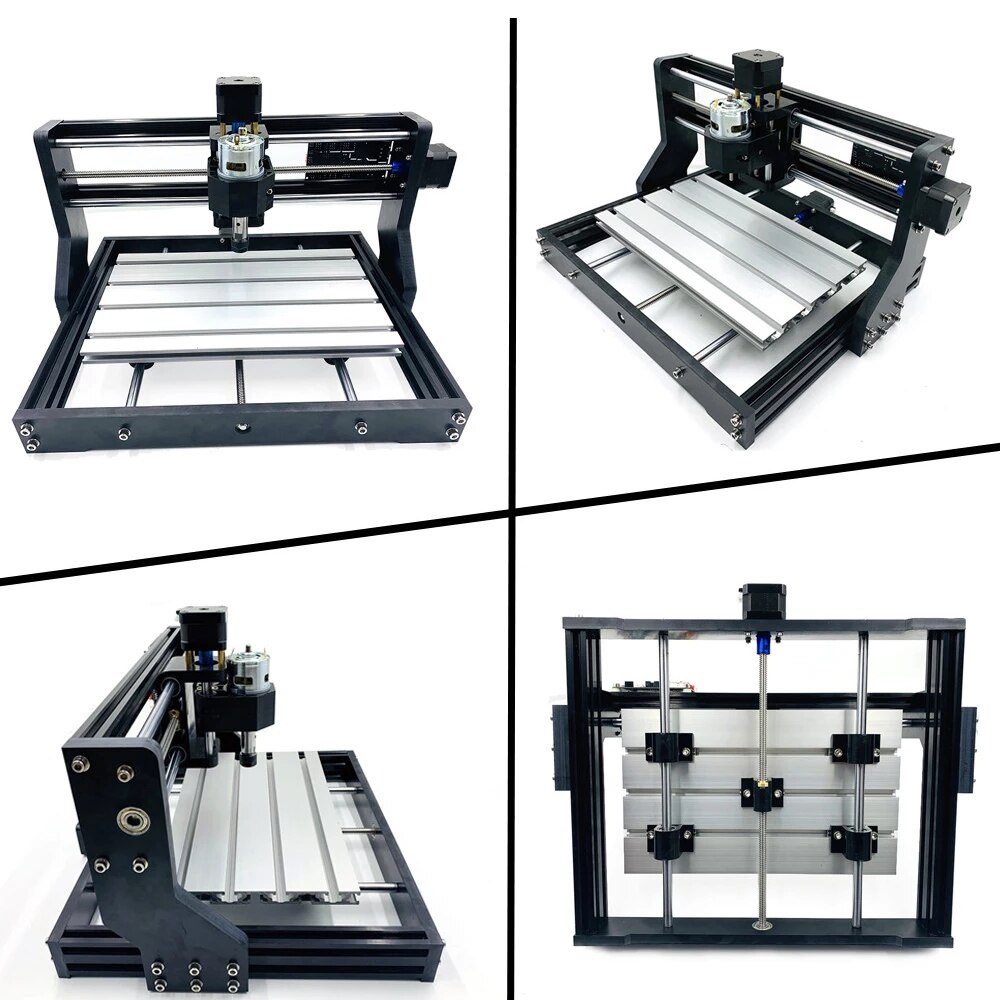

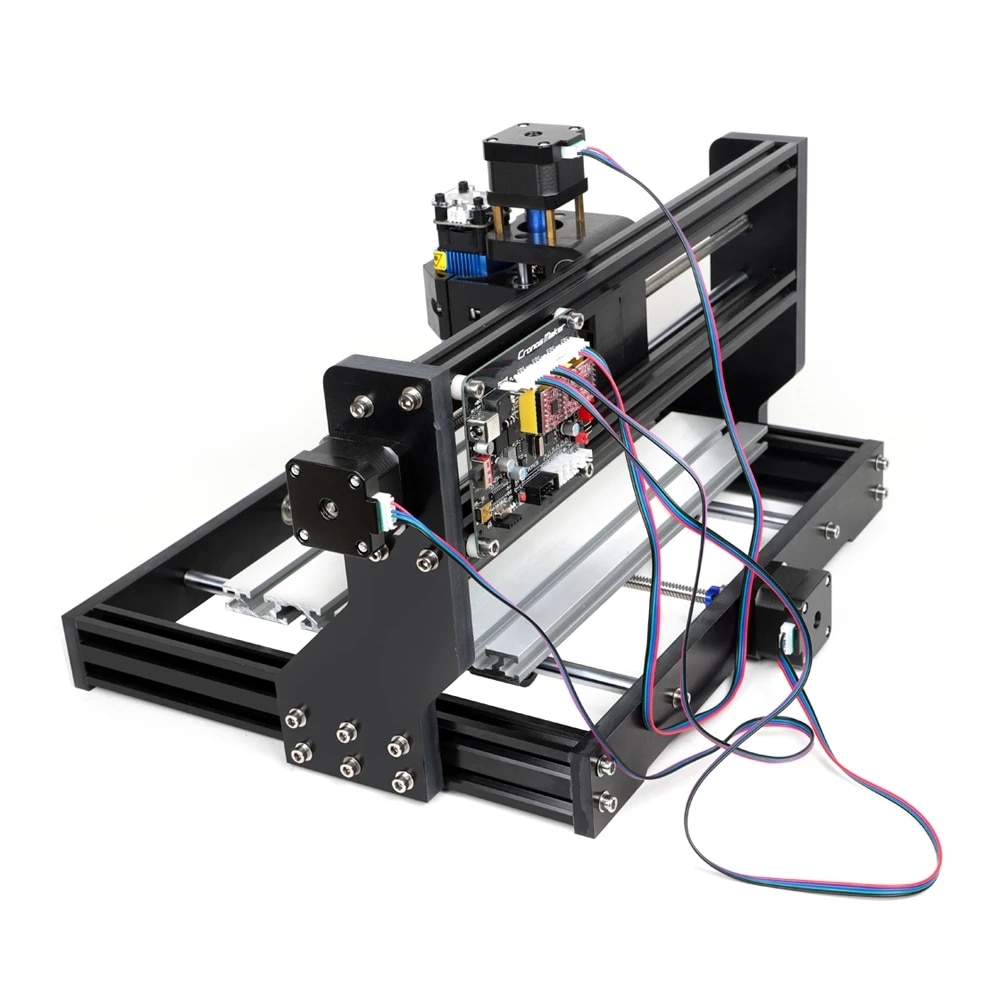

CNC 3018 Pro DIY Mini CNC Laser Engraving Machine
The package includes:
CNC3018 PRO + 1 pieces ER11 + 4 set plates + 10 pieces cutters
Package Size: 45cm x 25cm x 20cm
Weight: 8.5 kg

Application:
Can be carved: wood, plastic, paper, bamboo, horns, leather (such as wallets and bags),
Rubber stamps, photosensitive stamps, printing paper, sponge paper, etc.
Non-engravable: metal, jewelry, jade, transparent glass, ivory, transparent materials without color, etc.
Can cut: leather, printing paper, non-woven, light wood panel, etc.
Friendly tip: 15000mw laser kit can be carved on stone, stainless steel surface and anodized colored aluminum alloy surface.

Feature:
1. New upgrade of body material!

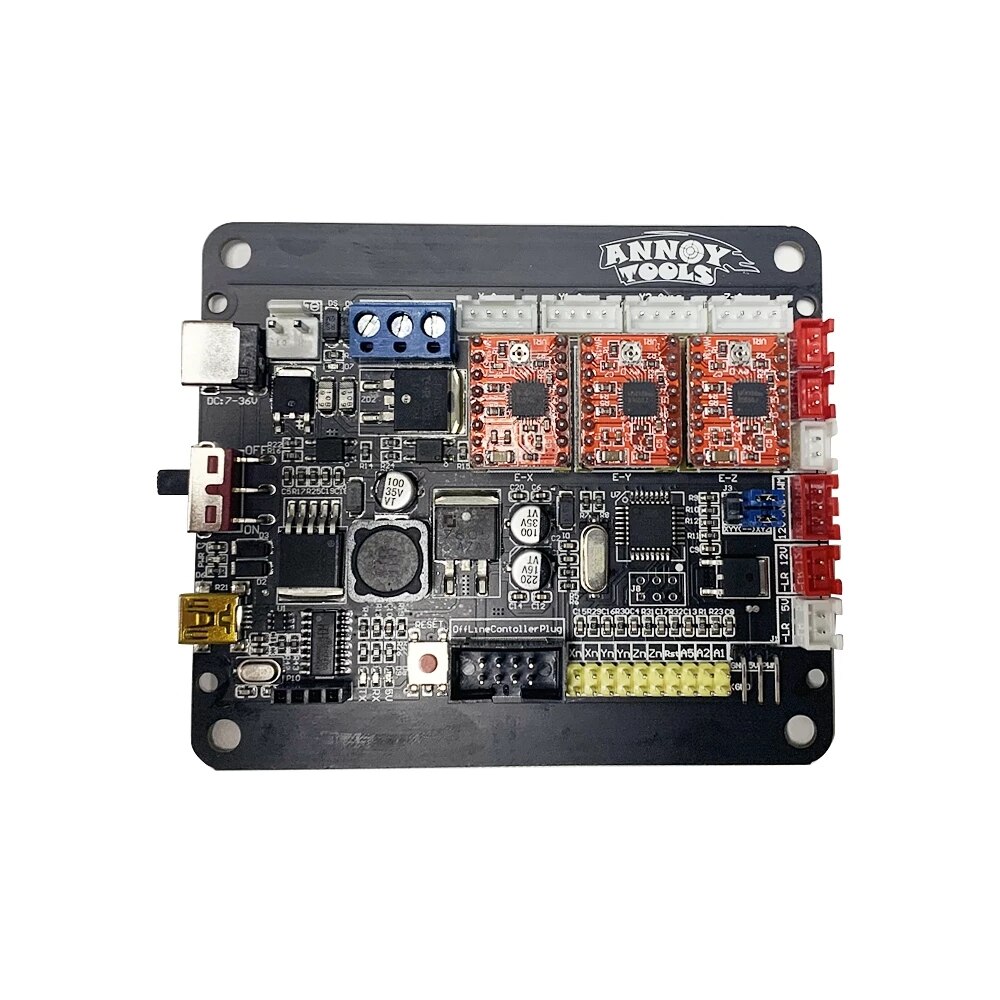

Fully upgraded and controllable motherboard, three-axis driver, dual Y-axis, full functions.
2. Black injection molded parts, professional shell protection, active fan cooling, no heat for long time use. High accuracy.
3. Avoid stepper motor overcurrent protection damage, upgrade built-in stepper motor driver, high current 2A, high stability.
4. GRBL1.1f firmware, stable performance.
5. Support 2P / 3P laser offline laser output, support PWM / TTL signal control.
6. Power 0-100% adjustable! The spindle supports PWM power adjustable between 0 and 100%.
7. Laser direct image engraving (supports offline) can work without connecting to a computer. No programming, no design, simple and practical.

Please note:
The package sent by this product is an assembly kit. You need to DIY the machine yourself.
Please provide your email address. We will send software didactic CDs and learning materials (including Chinese and English software).
Due to different batches, some accessories may be different from the pictures. Thank you for your understanding!

Parameter Description:
Control software: GRBL control
Material: aluminum + bakelite + injection parts
Working area: 300 * 180 * 40mm
Frame size: 400 * 330 * 240mm

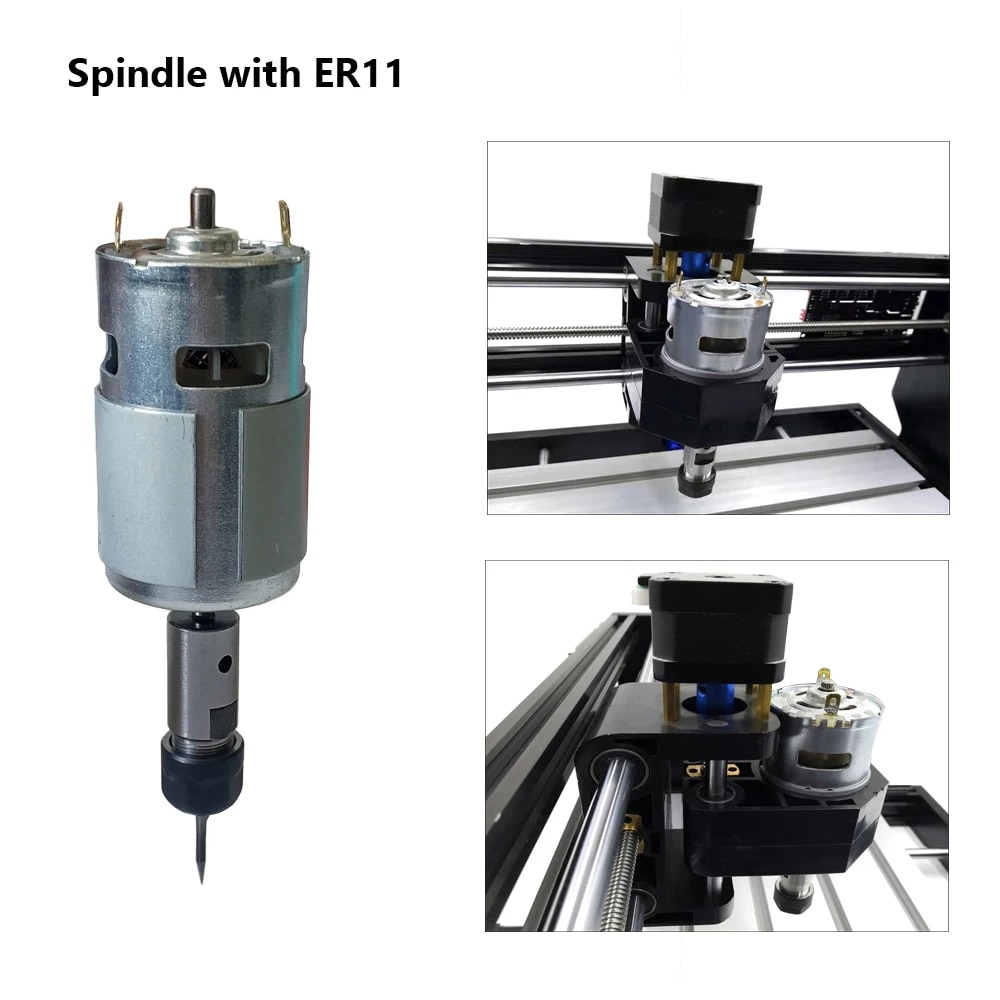

775 spindle motor: 24 V 10,000 revolutions
Stepper motor 1.3A 0.25N.m
Power: 24V 5A
System support: Windows XP / Win 7 / Win 8 / Win10

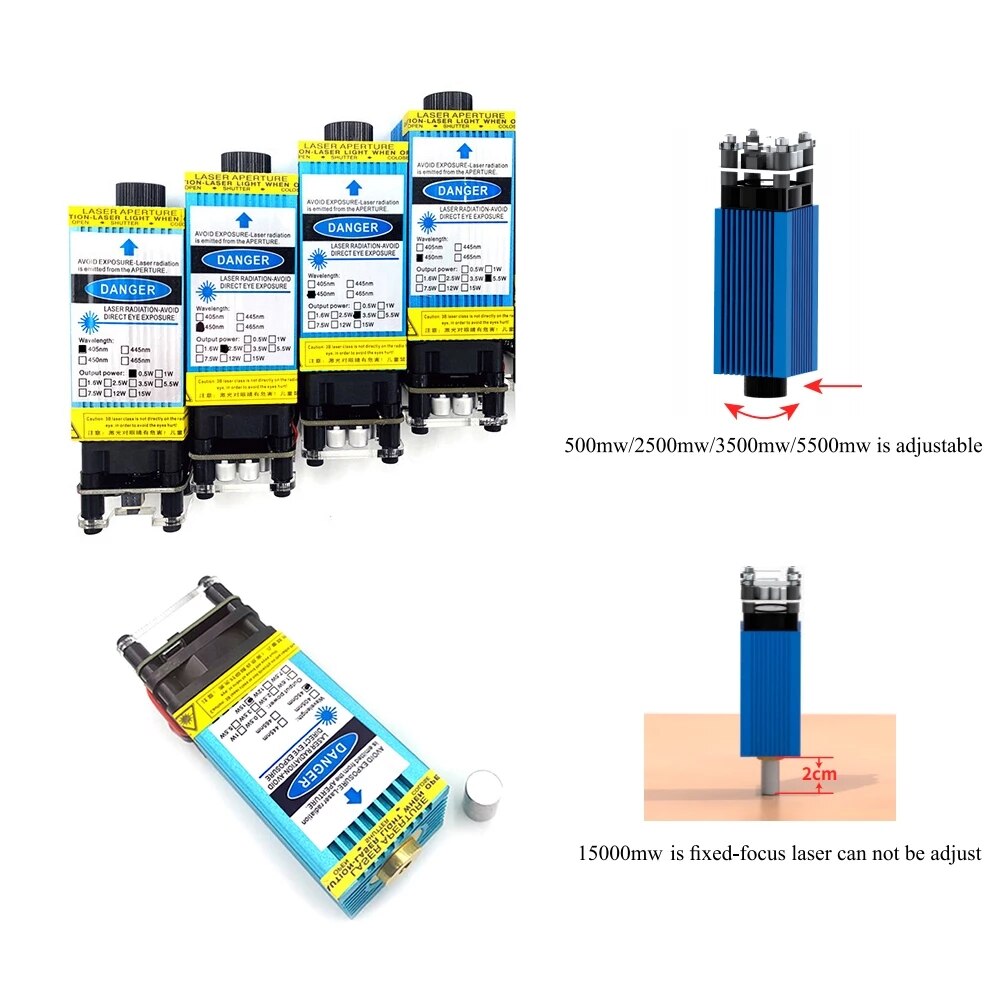

Laser: 500 MW, 2500 mw, 5500 mw, 15000 mw
Number of axes: X axis, dual Y axis, Z axis
