Description
- Model Number: 3018Pro Max
- Frame size: 400*330*240mm
- Working area: 300*180*40mm
- Software: GRBL Micro-Carving Butler
- output voltage: 110-240V
- Power supply: 24V 5A power
- Laser: 500mw 2500mw 3500mw 5500mw 15000mw
- material: aluminum bakelite
- Spindle speed: 10000 rpm
- Power type: AC power
- Application: wood plastic leather PVC etc
- Support system: Windows XP Win 7 Win 8 Win10
- feature 2: CNC woodworking engraving machine
- feature 1: MINI laser engraving machine
- feature 4: Laser Engraver
- feature 3: CNC Laser Engraver
- feature 5: CNC Drill engraving
- feature 6: CNC 3 axis engraving machine
- feature 8: 3Axis pcb Wood Router Machine
- feature 7: Laser Engraving
- feature 9: Desktop Laser Engraving Printer
- Condition: New
- Origin: CN(Origin)
- CNC or Not: CNC
- Model Number: 3018Pro Max
3018 Pro Max Laser Engraving Machine Power 0.5W-15W 3axis CNC Router DIY MINI Woodworking Laser Engraver With Offline Controller
Note: Since the machine is assembled by itself, it cannot be sold for a second time after assembly. If the hands-on ability is not good, please do not place an order. Please return before installation. If you assemble the machine, no return service is provided. Please understand
Product description:

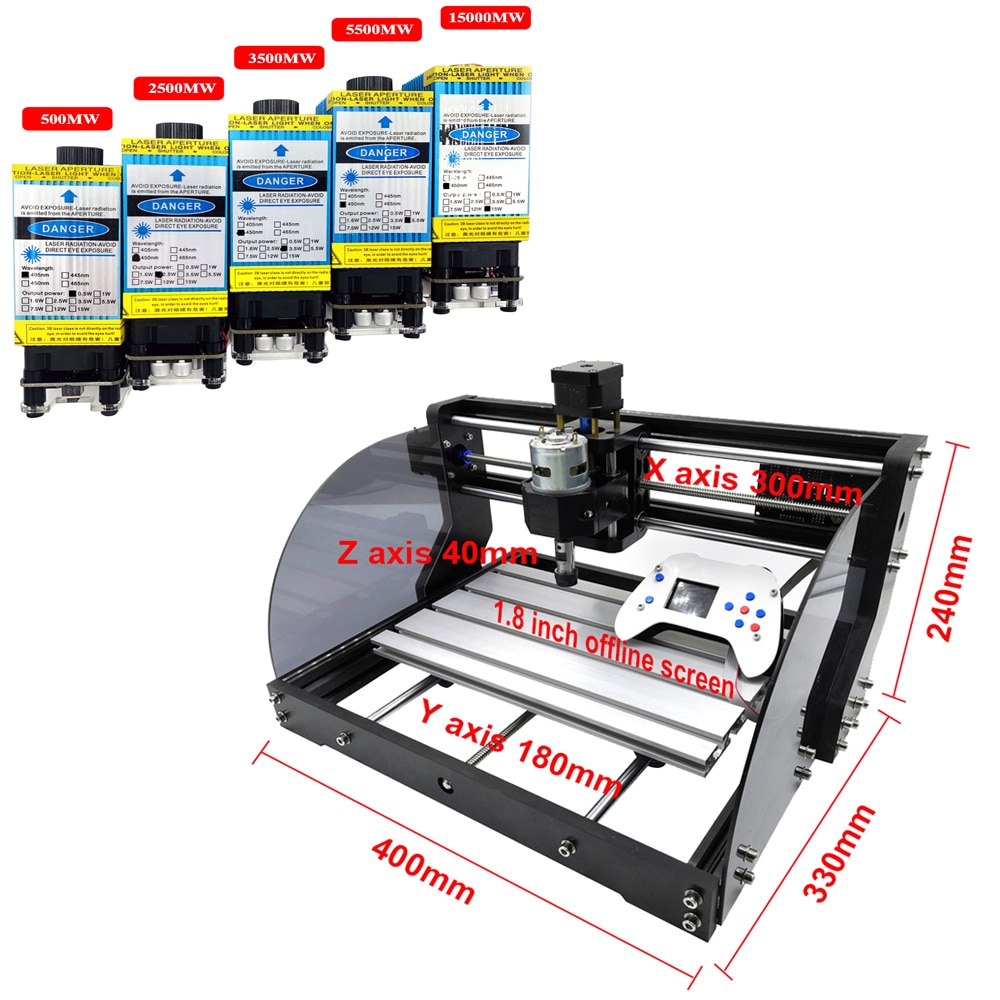

Frame size:400 * 330 * 240mm

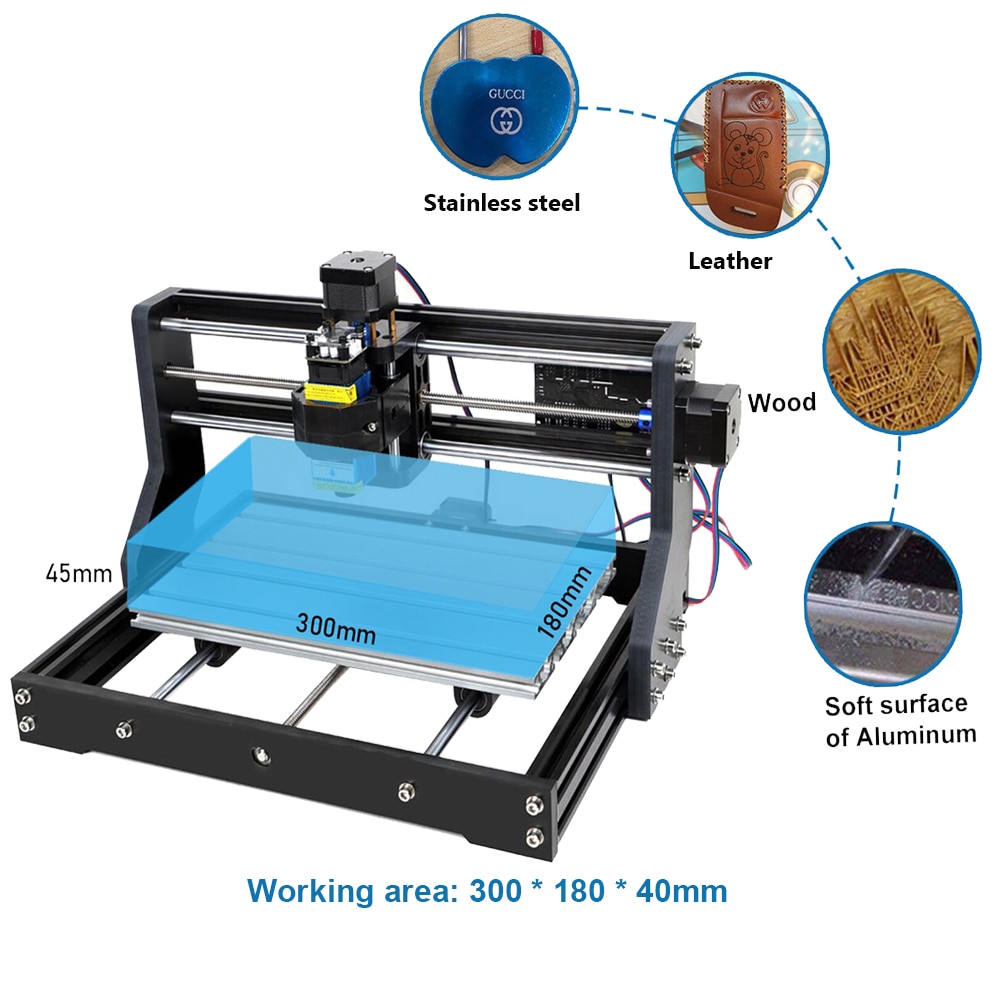

Working area:300 * 180 * 40mm
Spindle:775 spindle motor 24V:10000r / min, support PWM, 0-100% adjustable
Softwear:GRBL control systems,GRBL controller, LiteFire.
Support system:Windows XP / Win 7 / Win 8 / Win10 Home
Stepper motor:Fuselage length 34MM,Current 1.33A, 12v.Torque 0.25N/M
Power type:AC power
Material:Aluminum + Bakelite
Power:24V 5A
Output voltage:110V-240V
Plug type:EU US AU UK
Chuck specifications:ER11 3.175MM (can match 0-7mm)
Laser:500mw,2500mw,3500mw,550mw,550mw,15000mw .(15000mw Can engrave on stainless steel and about 3mm wooden materials)
Feature:
1. GRBL1.1f firmware, stable performance
2. The control board is newly upgraded,with offline controller. The whole process of offline engraving, offline knife setting and engraving.
3. support 2P / 3P laser, support PWM / TTL signal control, power 0-100% adjustable!
4. Spindle supports PWM power 0-100% adjustable
5. Stepper motor overcurrent protection to avoid damage, upgrade DRV8825 driver.
6,.Laser direct image engraving, no programming, no design, simple and convenient.
Application:
Can be carved: MDF, balsa, paper, wood, fabric, plastic, leather, plywood, foam, anodized aluminum, ceramic, stone, stainless steel.
Unable to engrav: metal, glass, PCB, reflective, transparent material.
The 15000mw laser kit can be carved on stone, stainless steel surfaces and anodized colored aluminum alloy surfaces.
Can cut: plastic, wood, acrylic, photovoltaic, leather, printing paper, non-woven fabric.
Package Included:
CNC 3018 PRO Max + 1pcs ER11 + 4 set plates + 10pcs cutters + 1pcs 4G U Disk + 1pcs off-ine controller
CNC 3018 PRO Max + 1pcs ER11 + 4 set plates + 10pcs cutters + 1pcs 4G U Disk + 1pcs off-ine controller + 1pcs Laser module
Package size:45cm × 25cm × 20cm;Weight: 9 kg
Please note: Due to the larger product size, this unit is provided as a kit. You need to assemble it yourself. Includes all tools and parts in the kit. Please provide an email address. We will send the assembly video of the machine.
Follow the tutorial to assemble. If you have any questions, please feel free to contact us. thank you for understanding!

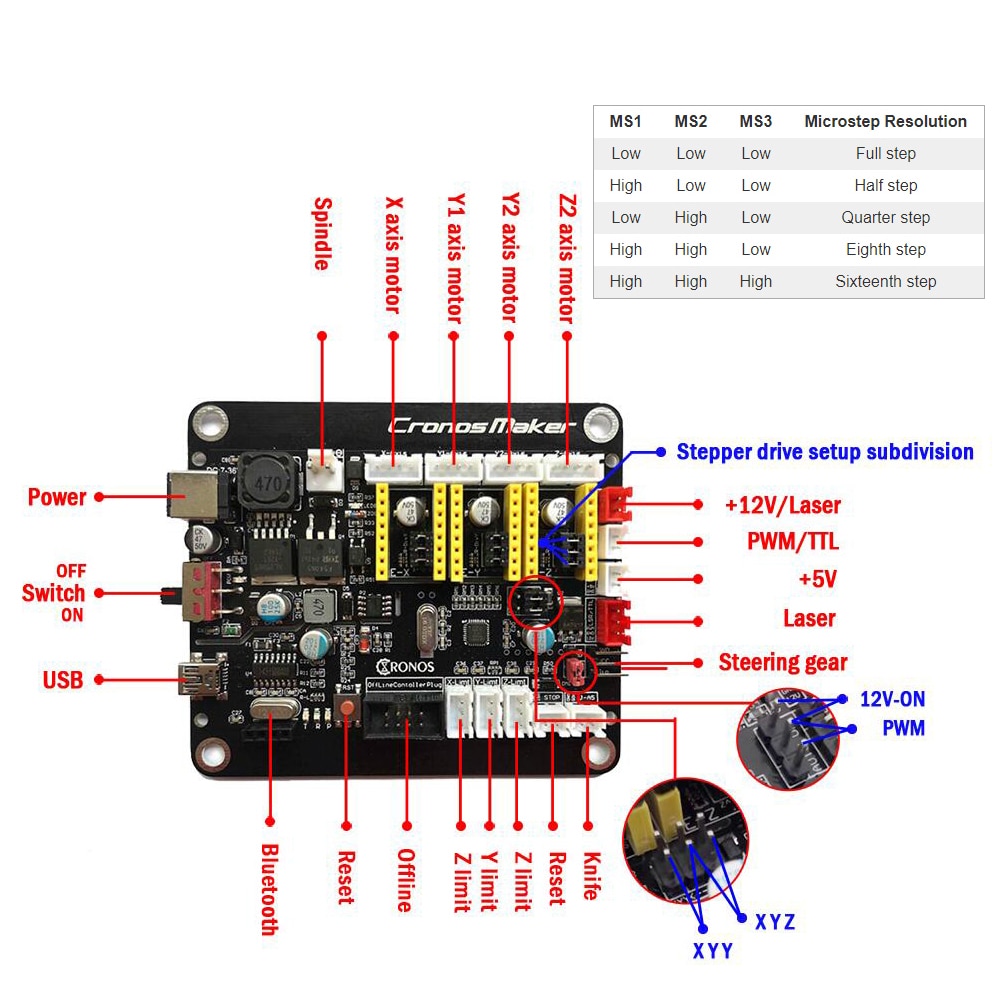

High precision circuit board, X, Y, Z axis control. Stable performance, can work offline during the whole process.

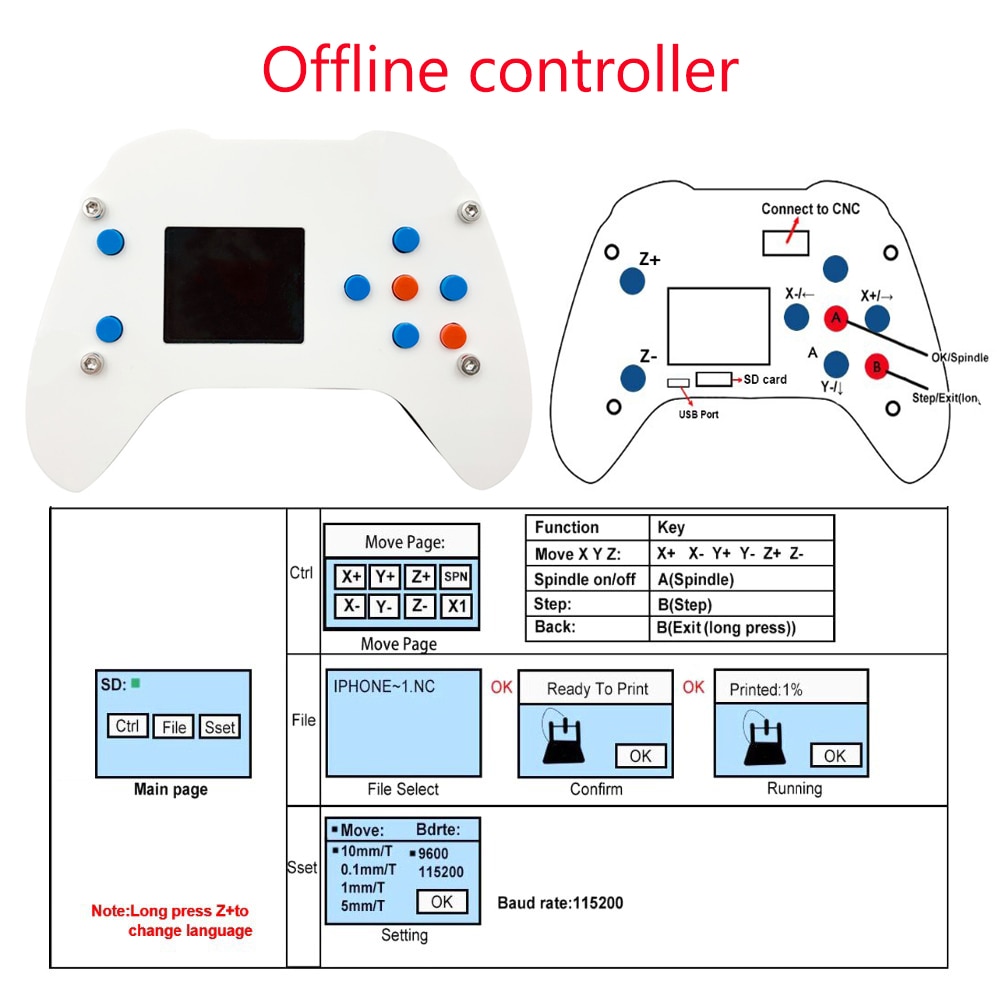

8C new offline screen. Simple operation and easy control.Upgraded laser, support PWM / TTL signal control, power adjustable from 0-100%
Upgraded laser, support PWM / TTL signal control, power adjustable from 0-100%.

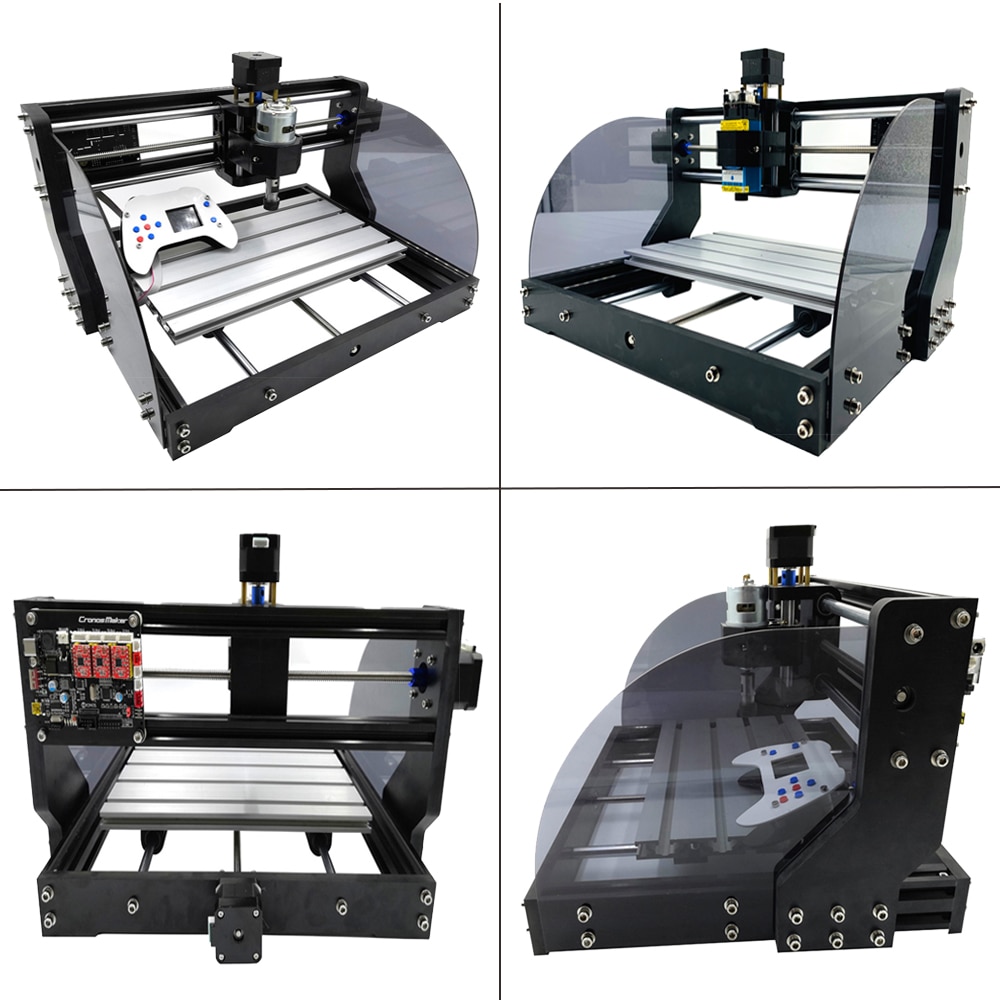

Aluminum alloy workbench, thickened and thickened, laser baffle, simple structure, compact design, easy to adjust limit baffle structure for laser testing
