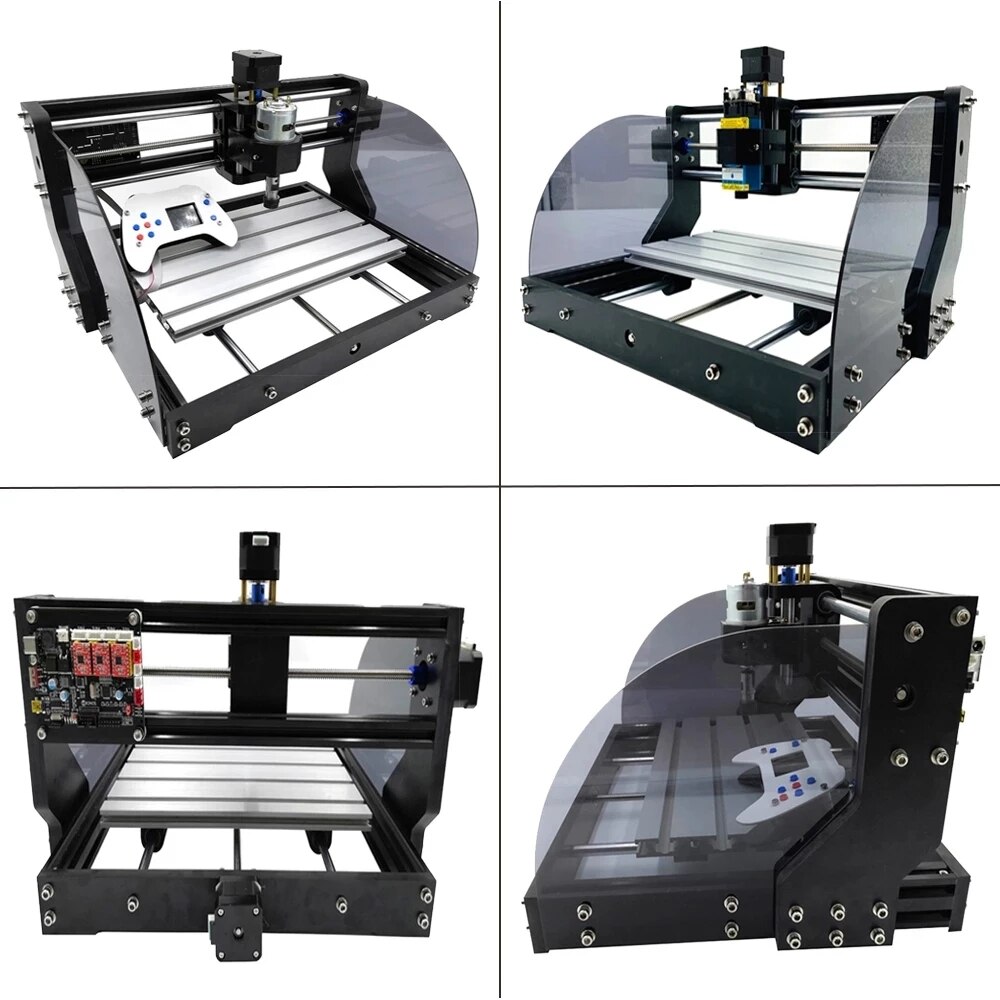

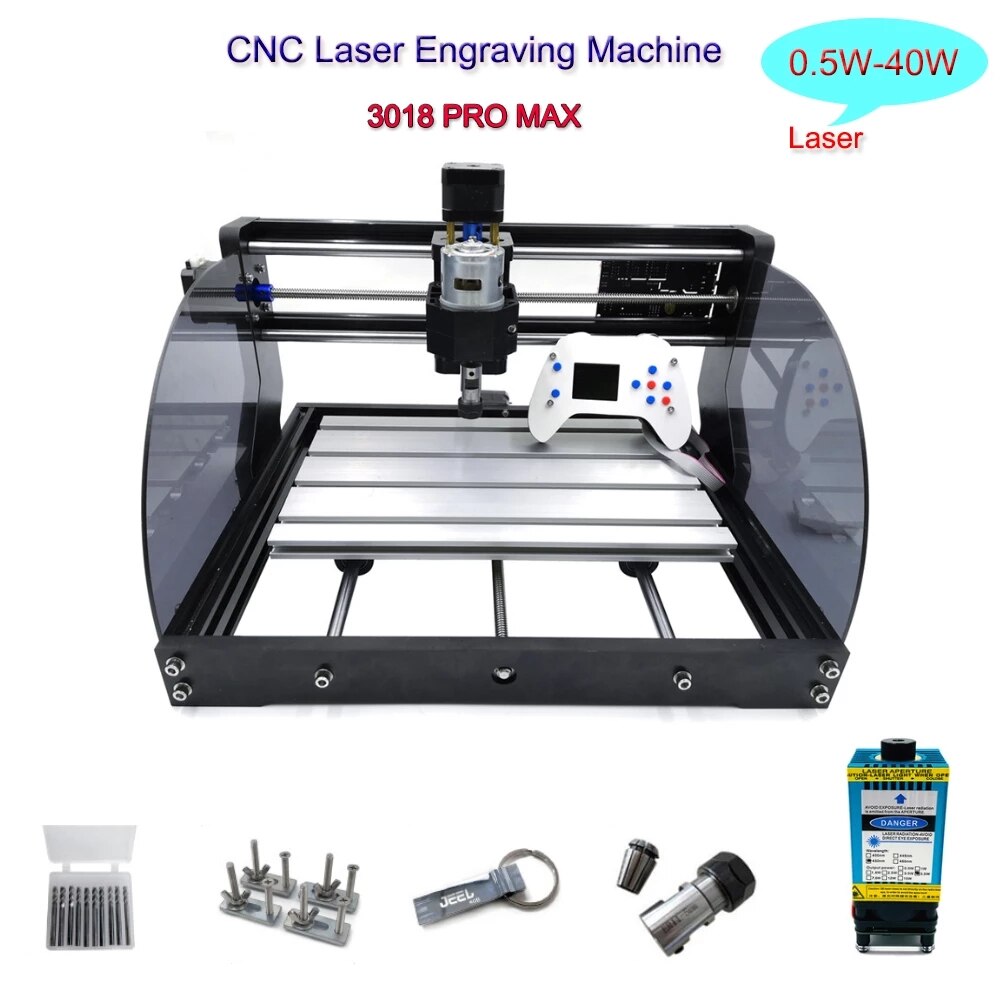

3018 Pro Max Laser Engraving Machine CNC 3-Axis Milling DIY Woodworking Laser Engraving Machine With Offline Controller 0.5W-15W

Product description:
Input: 100-240V 50-60Hz
Output: 12V 5A
Material: Aluminum + plastic
Softwear: GRBL control
Working area: 300 * 180 * 40mm
Chuck size: ER11 3.175mm

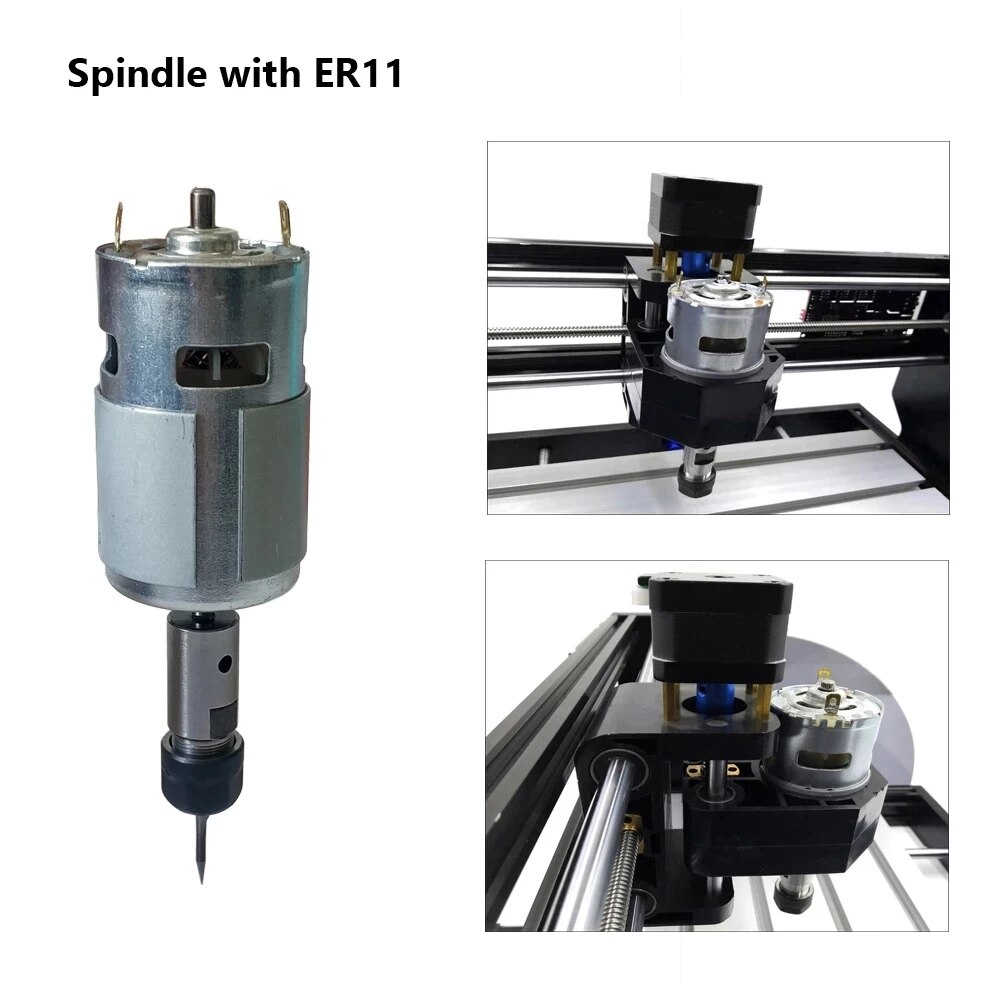

Spindle: 775 spindle motor 24V 10000r/min

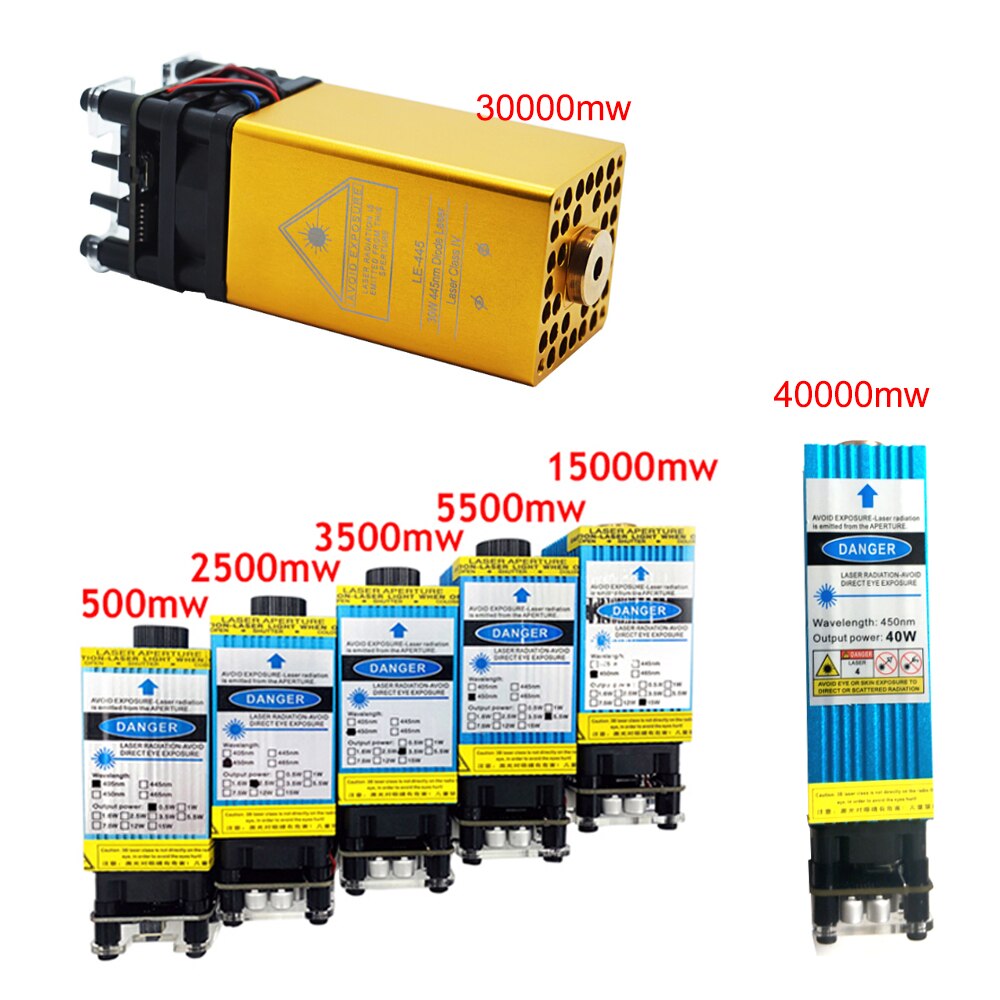

Laser power: 500mw, 2500mw, 3500mw, 5550mw, 15000mw,30000mw, 40000mw
Support system: Windows XP / Win 7 / Win 8 / Win10

Feature:
1. GRBL1.1f firmware, stable performance

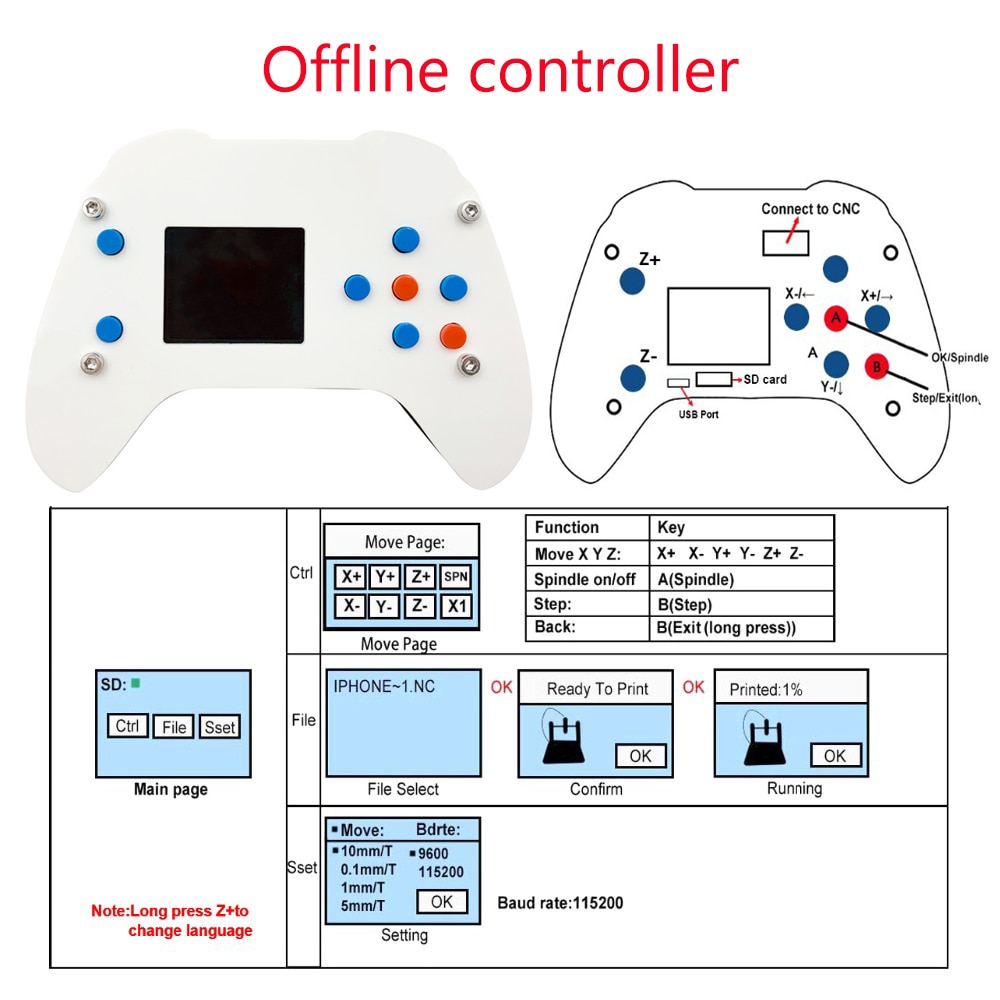

2. The control board is newly upgraded，with offline controller. The whole process of offline engraving, offline knife setting and engraving.
3. Support 2P / 3P laser, support PWM / TTL signal control, power 0-100% adjustable!
4. Spindle supports PWM power 0-100% adjustable
5. Stepper motor overcurrent protection to avoid damage, upgrade DRV8825 driver.
6. Laser direct image engraving, no programming, no design, simple and convenient.

Application:
Can engraving: Wood, plastic, acrylic, leather, etc.

Friendly reminder: only 15000mw laser can engraving stainless steel surface, non-ferrous aluminum surface, and some surface-treated metal (surface paint, anodizing, plating), but the carving effect is not as good as wood.

Please note:
The package sent by this product is an assembly kit. You need to DIY the machine yourself.

When you receive the package, carefully check all accessories of the laser engraving machine. This product cannot be returned after assembly! If you have any questions, please contact us immediately
