3018 PRO BM Laser Engraver Wood CNC Router Machine GRBL ER11 DIY Engraving Machine for Wood PCB PVC Mini 30*18 Engraver

$116.28 – $300.49

SKU: 4000038685507 Category:

Description

  • Brand Name: MASTER JIANG
  • Origin: CN(Origin)
  • Certification: CE
  • Condition: New
  • Model Number: 3018/3018 Pro BM
  • CNC or Not: CNC
  • Is Smart Device: NO

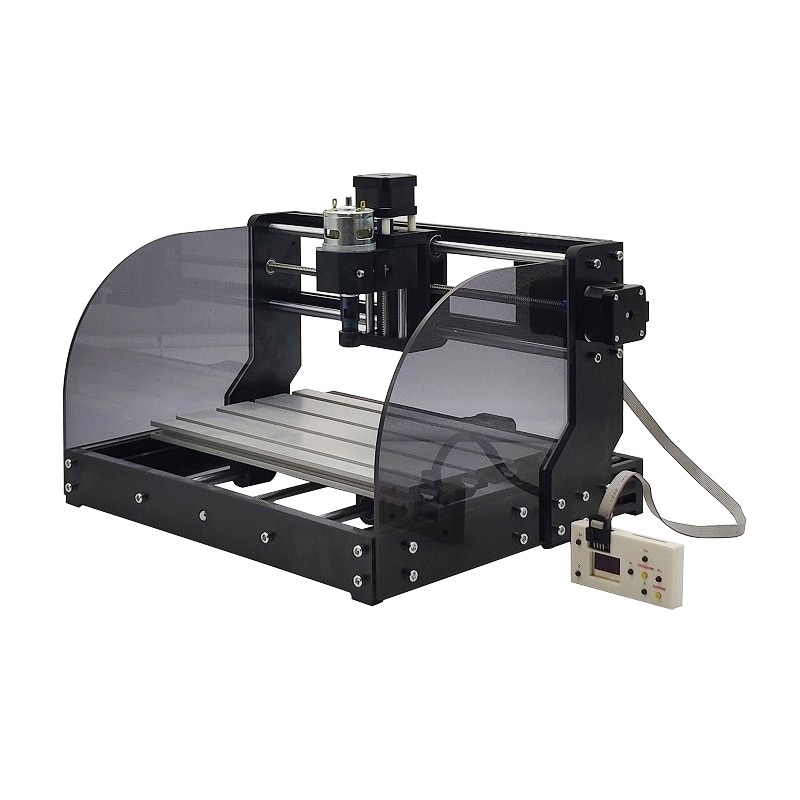

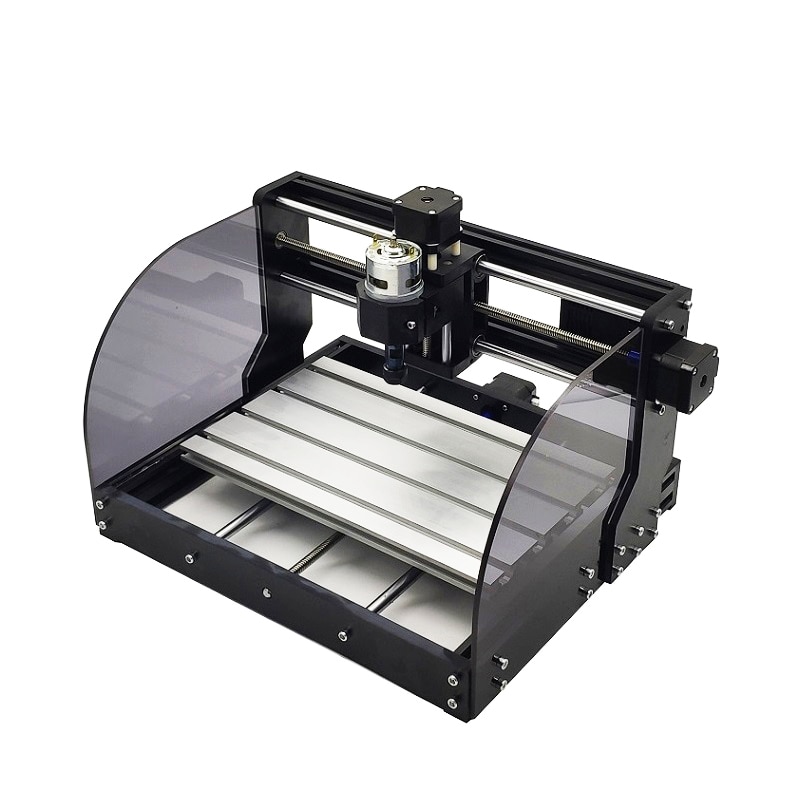

New CNC GRBL1.1 3018 Pro-BM Engraving Machine 3 Axis pcb Milling machine DIY Wood Router laser engraving can work offline Upgrade 3018 pro

Feature:

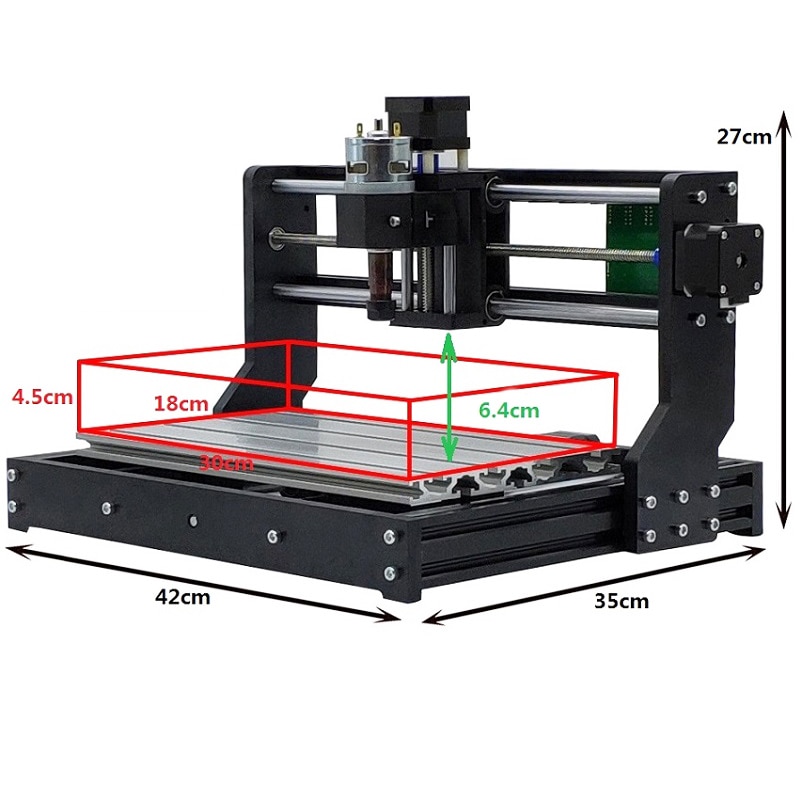

Working Area: 300 x 180 x 45 mm (about 11.81 x 7.08 x 1.77 inch)
Mesa: 300 x 180 mm (about 11.81 x 7.08 inch)
Frame: 420 x 350 x 270 mm (about 16.53 x 13.78 x 10.63 inch)
Material: Nylon PA6 + Aluminum profile
Machinable thickness: 45mm (height 64mm)
Stepping Motor: 3 x 42 stepper motors

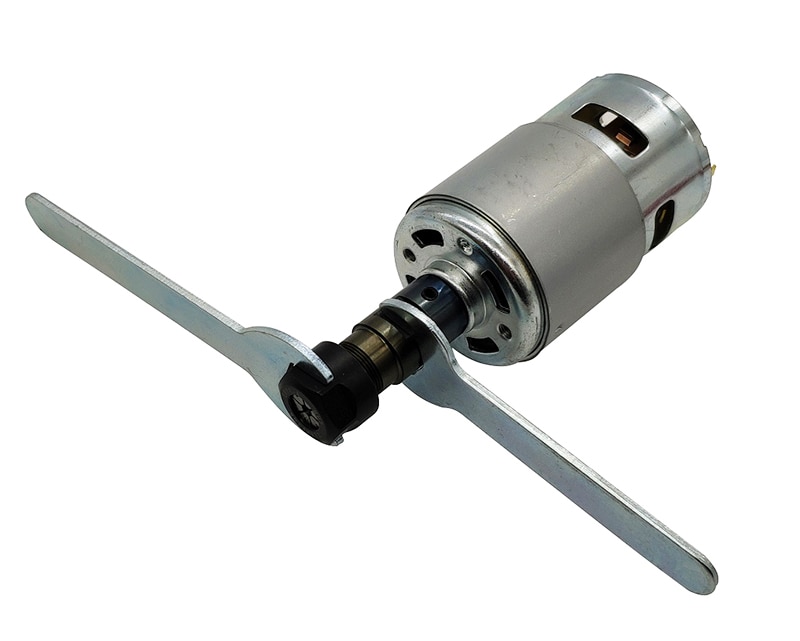

Spindle: 775 spindle motor (12-36V); 24V: 10000 r/min
Collect: ER11 (default 3.175mm)
Connection: PC-USB connection (Windows XP/ Win 7/Win 8 / Win 10 / Offlineline )
Power Supply: 24VDC power adapter (110-240VAC input voltage)
Screw: T8 T-screw, lead 4 mm

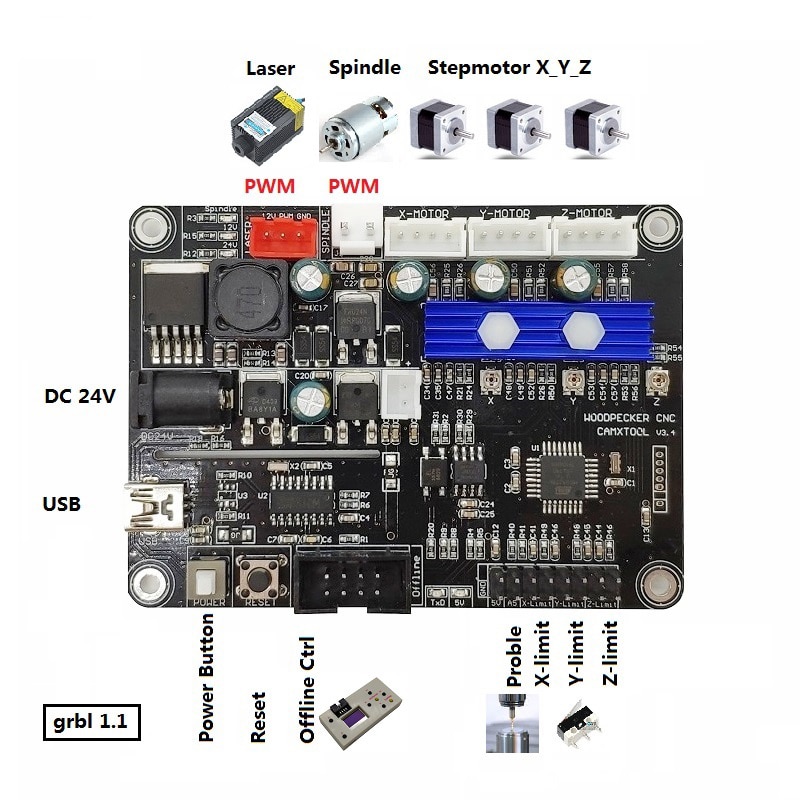

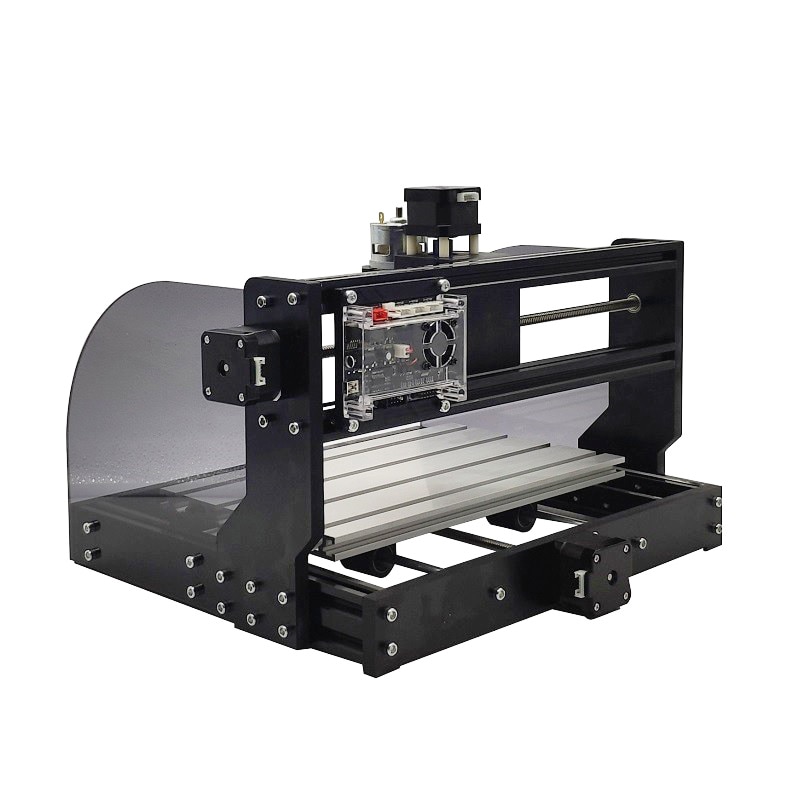

Control Board: upgrade version with shell and fan, better for dust-proof, cooling and extending engraving time and service life, GRBL1.1f firmware, support offline working

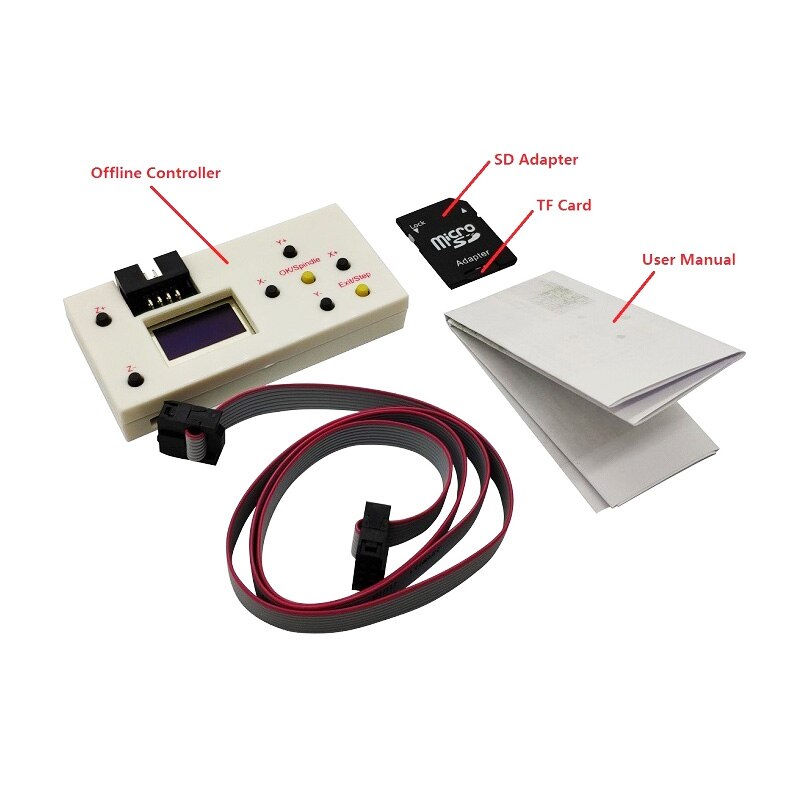

Offline Controller (Options): 1 Inch LCD, support gcode, txt, tap, nc, ncc, cnc and other formats processing files, with 1GB micro SD card (with TF)
Using with 775 spindle motor (cutters):
Design Software: CAM
Control software: GRBL (GRBLcontrol/Candle)
File format: G code (gcode/txt/nc/ncc/tap/…)
Spindle power: 120W (24V)
Spindle speed: 10000rpm
Processing method: relief / drilling / cutting
Machinable material: wood / plastic / PCB / acrylic / plywood /…
Using with Laser:
Design software: photo editing software (Photoshop/AI/…)
Control software: LaserGRBL
File format: jpg/bmp/png/Gcode/…

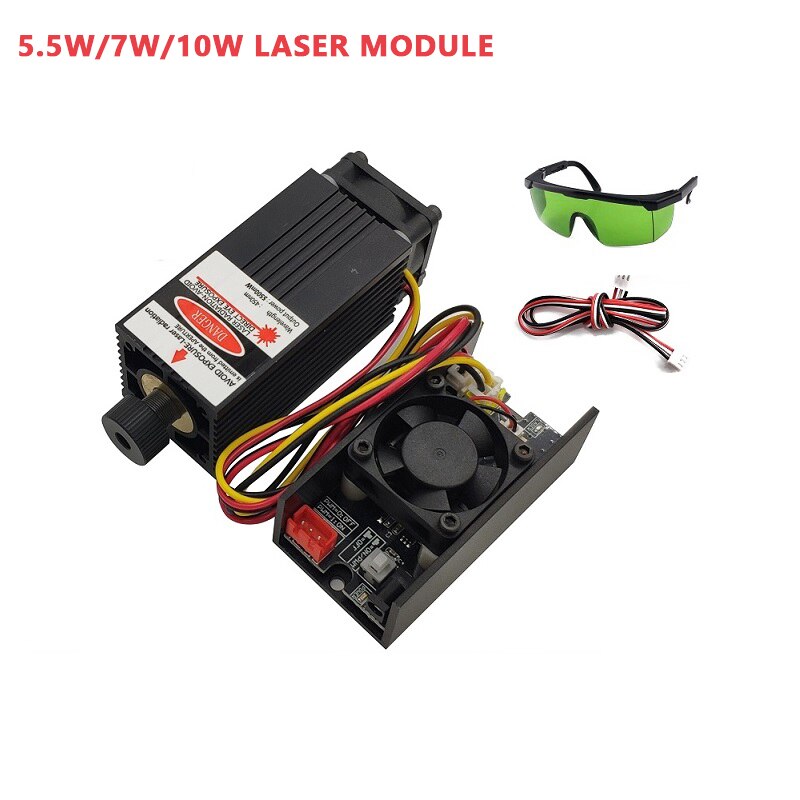

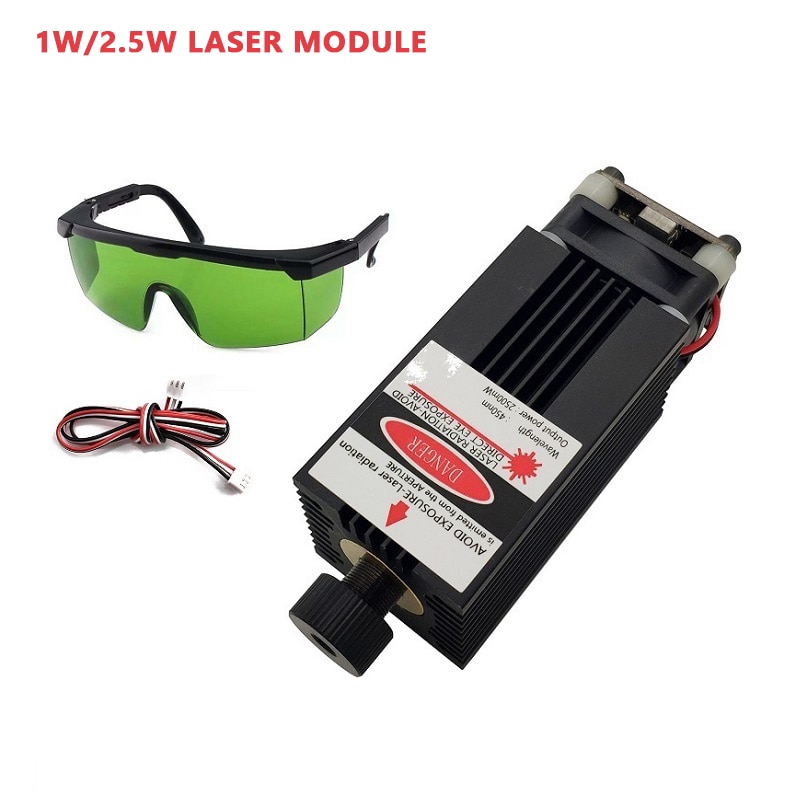

Laser power (optional): 1W/2.5W/5.5W/7W/10W/15W (10W/15W: can carve Non-ferrous metals such as aluminum, titanium alloy and cut 3-5mm thick wooden materials)
Processing method: printing / grayscale / cutting
Processing material: wood / plastic / paper / leather / bone / shell / stone /…

If you need Z-Probe with machine together, please click the photo below:

The advantages of 3018 Pro-BM(compare with 3018 Pro):

1. Addlaser protection boardson both sides to make laser testing more convenient.

2.DRV8852drivers andGRBL1.1ffirmware of control boardV3.4, stable performance, stepper motor overcurrent protection to avoid damage.

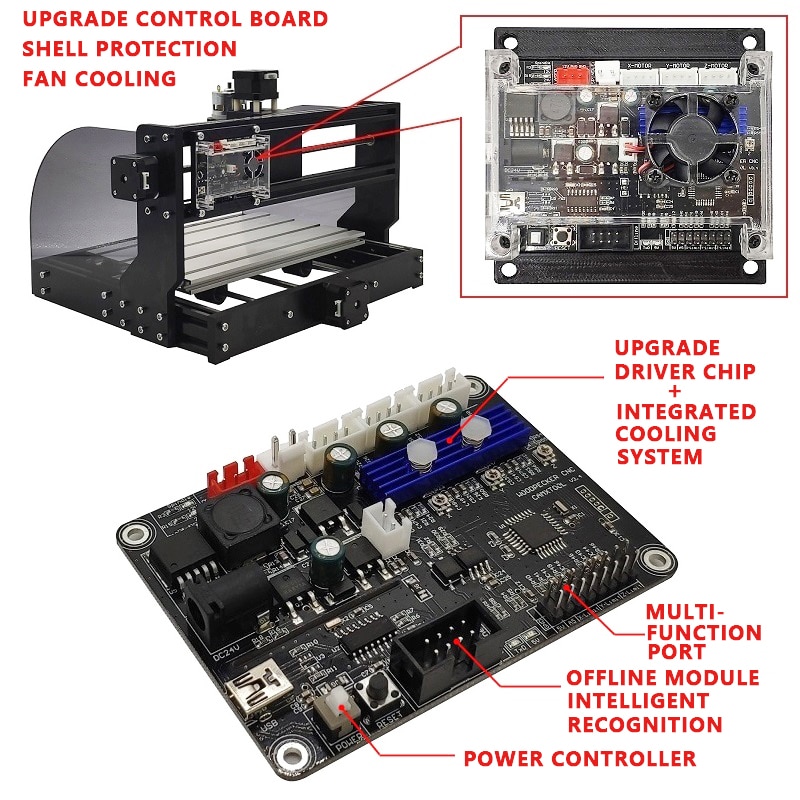

3. The upgraded control board withshellandfan, better for dust-proof and cooling, engraving time and service life will be extended.

4. Laser directly imported into the picture engraving,no need to programm,no need to design, simple and convenient.


Package Introduction:

Package 1: 1 x3018 Pro-BM Engraving Machine

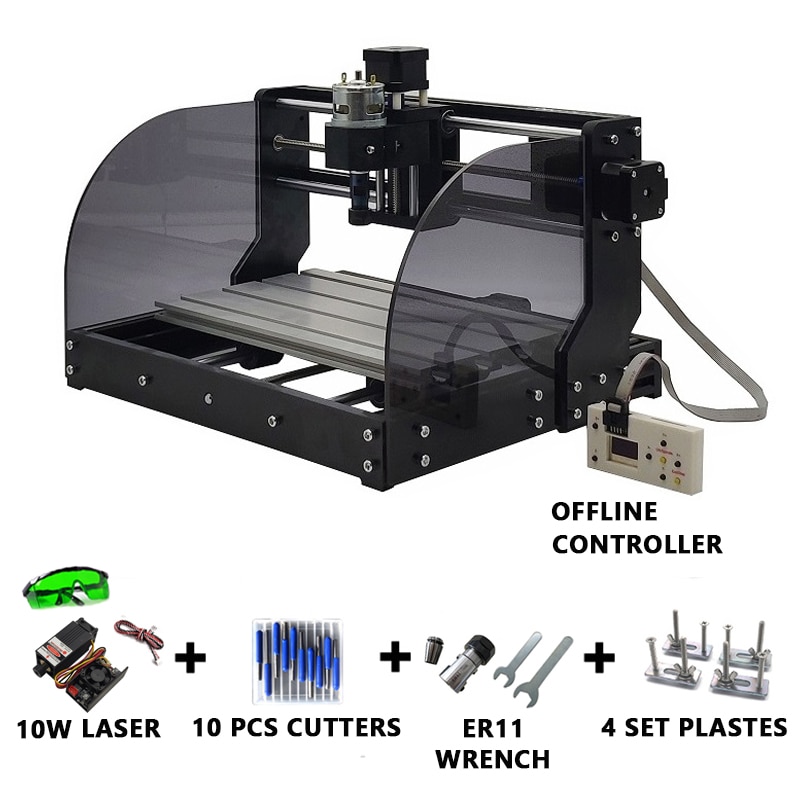

Package 2: 1 x3018 Pro-BM Engraving Machine+Offline Controller (with 1GB SD Card)

Package 3: 1 x3018 Pro-BM Engraving Machine+1000mw Laser Module kit

Package 4: 1 x3018 Pro-BM Engraving Machine+2500mw Laser Module kit

Package 5: 1 x3018 Pro-BM Engraving Machine+5500mw Laser Module kit

Package 6: 1 x3018 Pro-BM Engraving Machine+7000mw Laser Module kit

Package 7: 1 x3018 Pro-BM Engraving Machine+10000mw Laser Module kit

Package 8: 1 x3018 Pro-BM Engraving Machine+15000mw Laser Module kit

Note:

1. We offer US/EU power supply for the machine and can add UK/AU/other form power adapter, if you need, please leave us message!

2. If you need English manuals and Softwares in E-version, please contact us!

3. If you’d like to purchase 3018 Pro-BM with laser with offline controllertogether (for saving shipping cost), please click the photo:

If you need Z-Probe with machine together, please click the photo below:
