Sale!

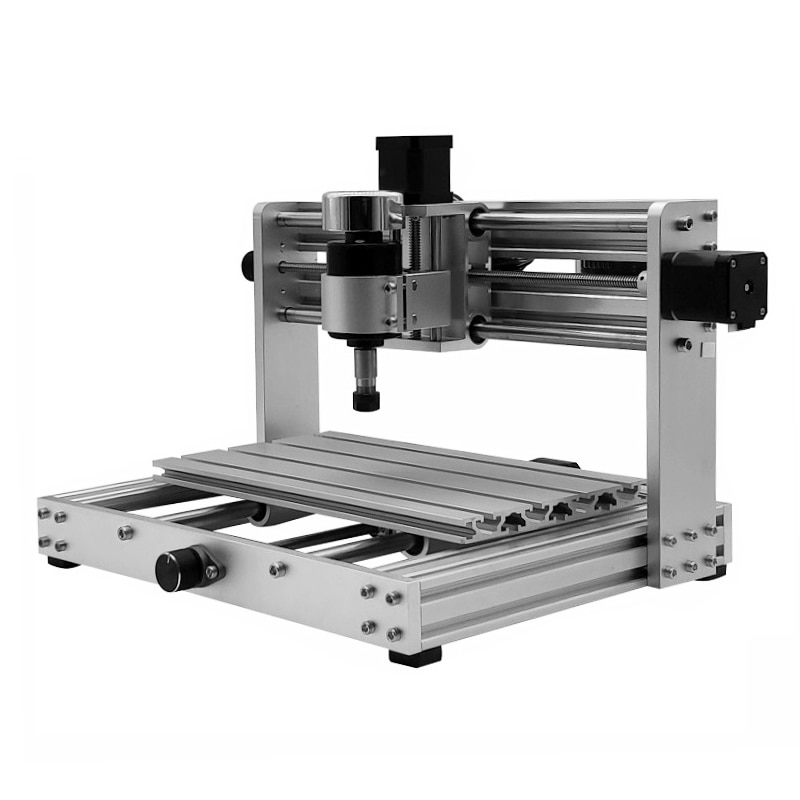

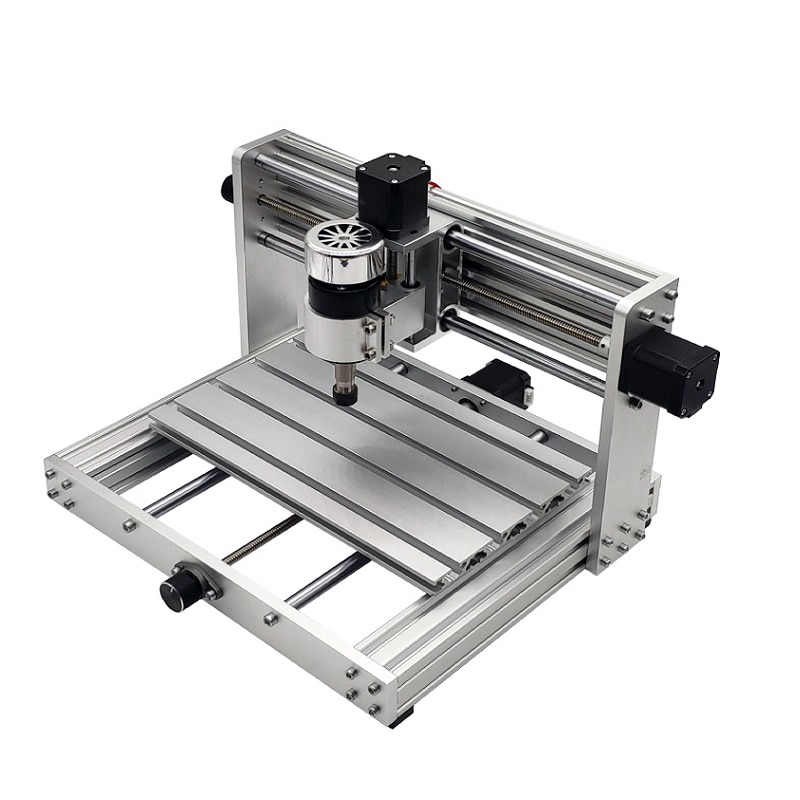

3018 Max Metal CNC GRBL control with 200W Spindle,3 Axis pcb Milling machine, metal body,Diy Wood Router support laser engraving

$189.00 – $395.52

SKU: 4000291452436 Category:

Description

  • Brand Name: MASTER JIANG
  • Origin: CN(Origin)
  • Certification: CE
  • Condition: New
  • Model Number: 3018 Max Metal
  • CNC or Not: CNC
  • Is Smart Device: NO

New CNC GRBL1.1 3018 Max Metal Engraving Machine 3 Axis pcb Milling machine DIY Wood Router laser engraving can work offline, all Metal Body



About Warehouse in RU/EU: Fast Shipping! No Customs Taxes!

Ships From Russian Federation: Russian Federation

Ships From Spain(EU):

Austria, Belgium, Bulgaria, Croatia, Czech Republic,

Denmark, Estonia, Finland, France, Germany,

Hungary, Ireland, Italy, Latvia, Lithuania,

Luxembourg, Monaco, Netherlands, Poland,

Portugal(no service for islands in specify zip codes),

Romania, Slovakia, Slovenia,

Spain(no service for islands in specify zip codes),

Sweden

Feature:

Working Area: 300 x 180 x 40 mm (about 11.81 x 7.08 x 1.57 inch)
Mesa: 300 x 180 mm (about 11.81 x 7.08 inch)
Frame: 360 x 310 x 225 mm (about 14.17 x 12.20 x 8.85 inch)
Material: All Aluminum profile body (10mm Aluminum Plate, 40×40 Aluminum profile)
Stepping Motor: 3 x 42 stepper motors (1.3A, 0.25Nm)
Spindle: 200W 52mm air cooling spindle, 12000rpm (rated power 200W, max. power 300W)
Collect: ER11 (default 3.175mm)
Connection: PC-USB connection (Windows XP/ Win 7/Win 8 / Win 10 / Offlineline )
Power Supply: 24VDC 10A power adapter (110-240VAC input voltage)

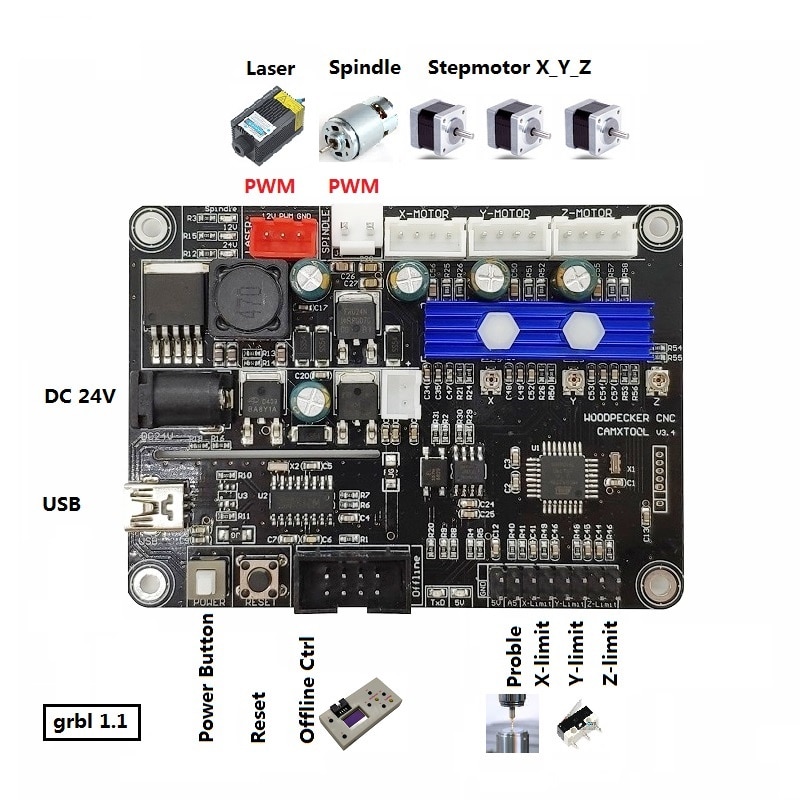

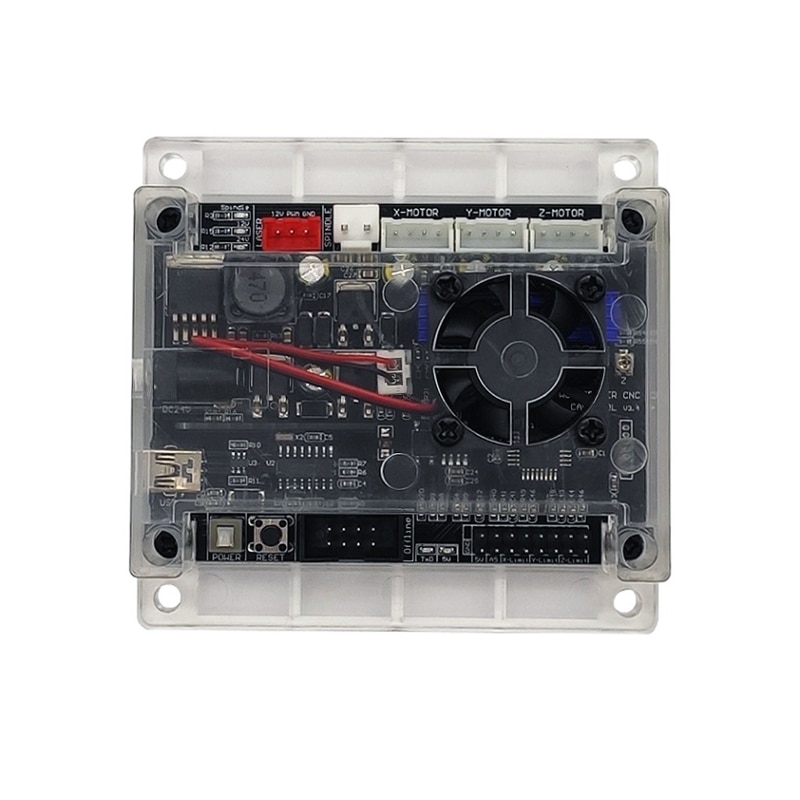

Control Board: upgrade version with shell and fan, better for dust-proof, cooling and extending engraving time and service life, GRBL1.1f firmware, support offline working

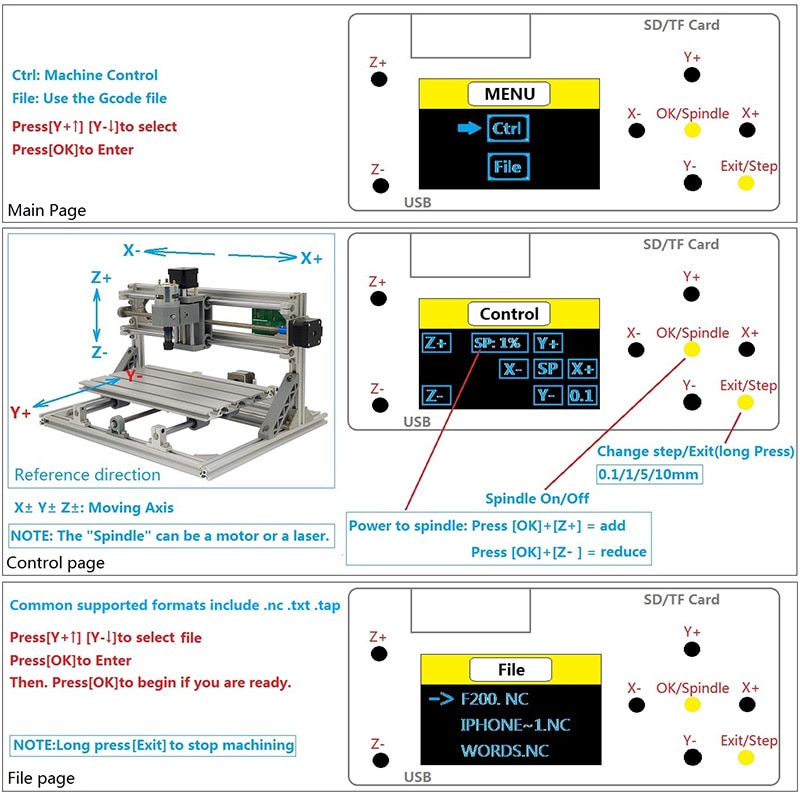

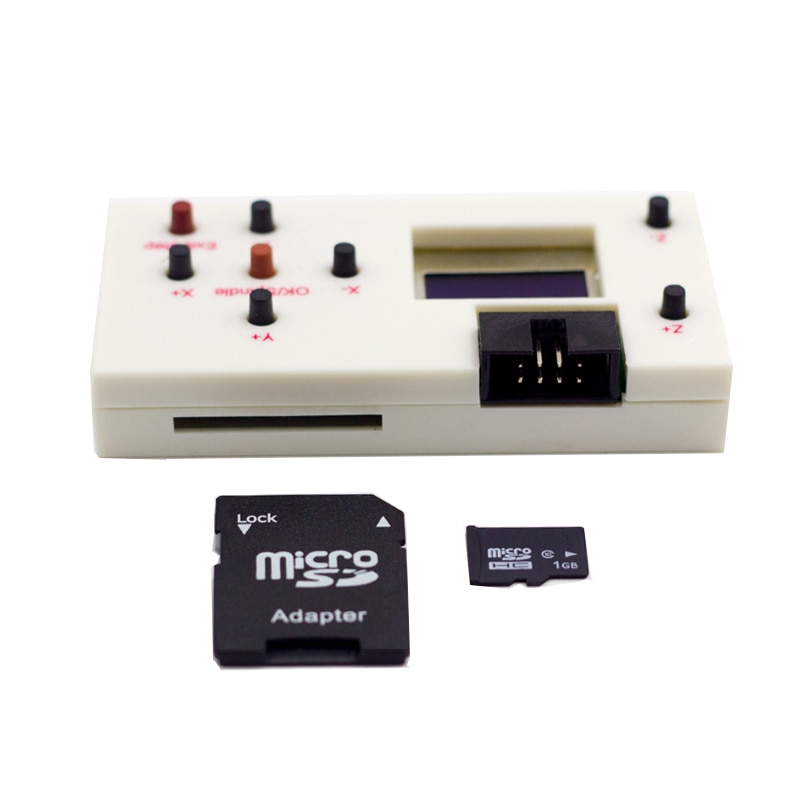

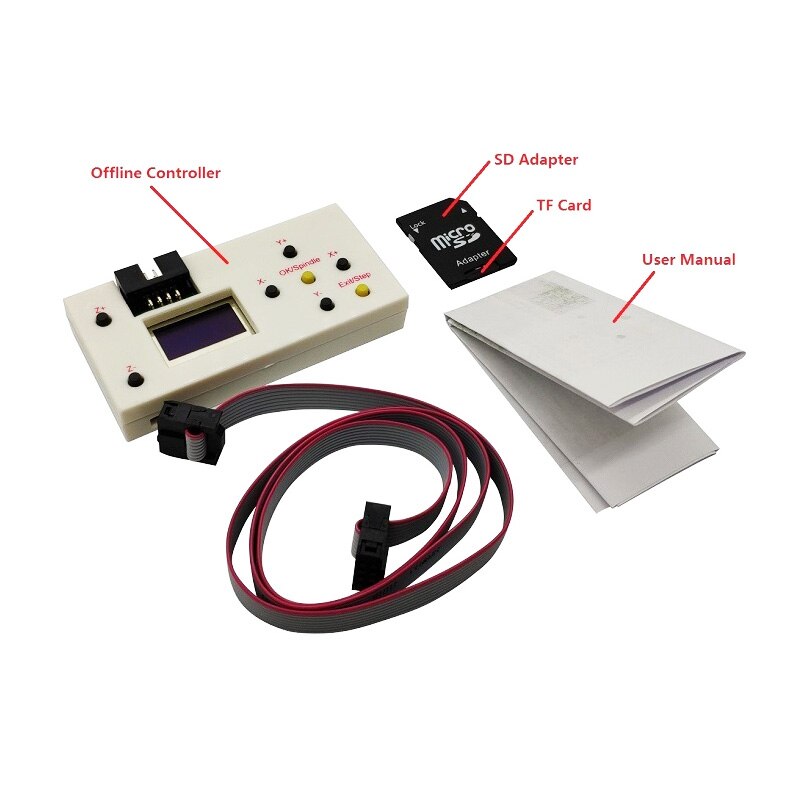

Offline Controller (Options): 1 Inch LCD, support gcode, txt, tap, nc, ncc, cnc and other formats processing files, with 1GB micro SD card (with TF)

Using with spindle motor (cutters):
Design Software: CAM

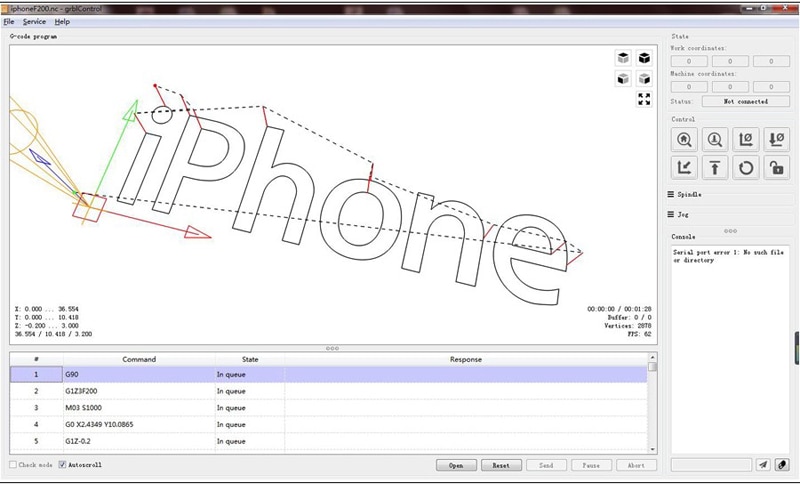

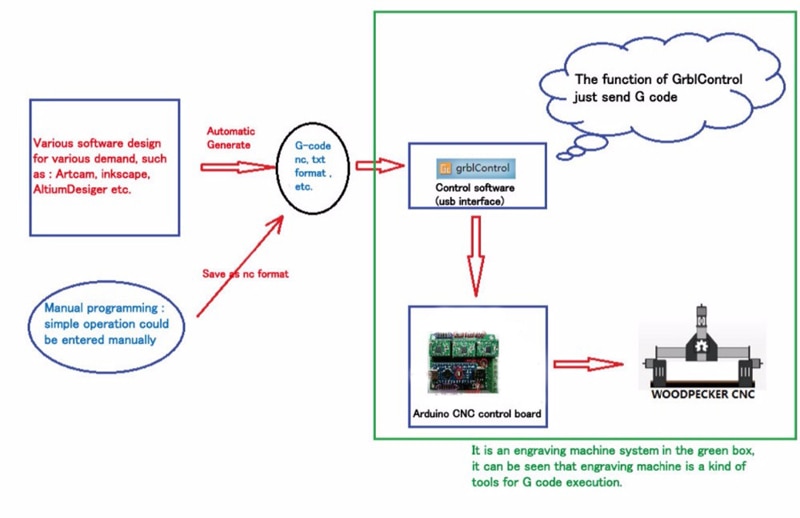

Control software: GRBL (GRBLcontrol/Candle)
File format: G code (gcode/txt/nc/ncc/tap/…)
Spindle power: 200W
Spindle speed: 12000rpm
Processing method: relief / drilling / cutting
Machinable material: wood / plastic / PCB / acrylic / plywood /…

Using with Laser:
Design software: photo editing software (Photoshop/AI/…)
Control software: LaserGRBL
File format: jpg/bmp/png/Gcode/…

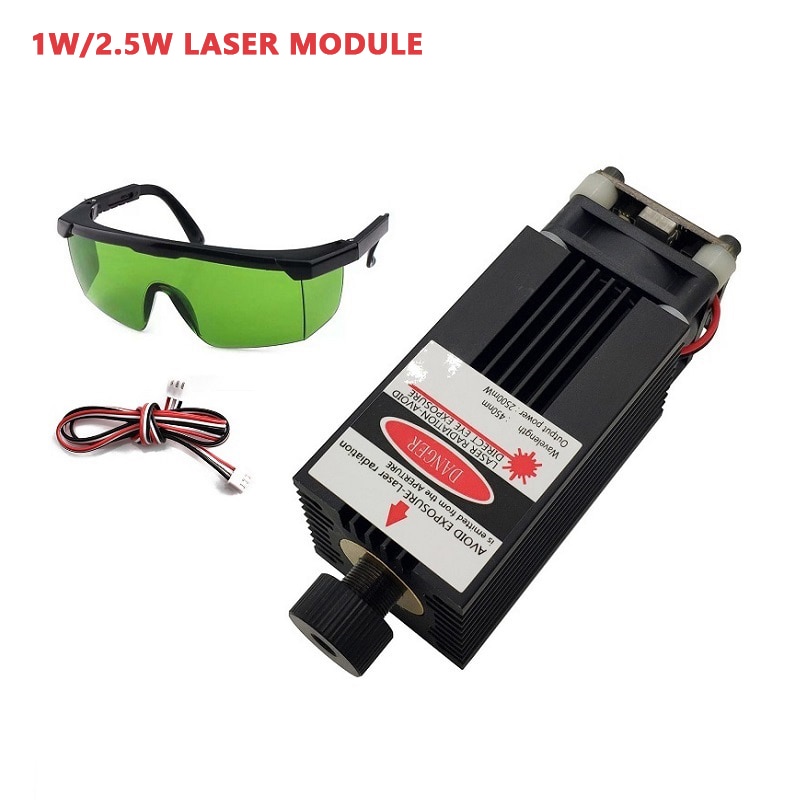

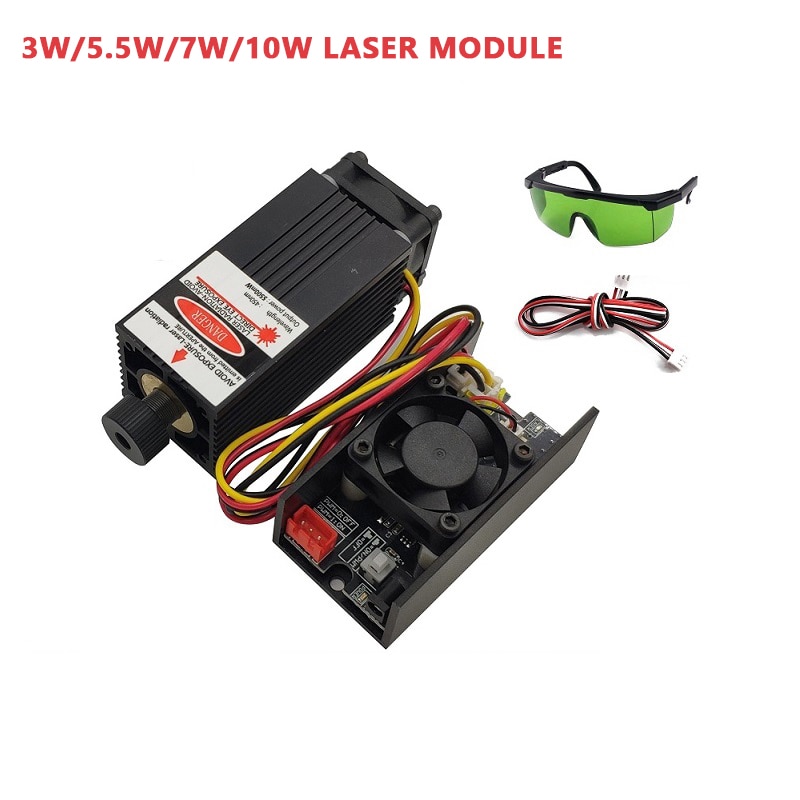

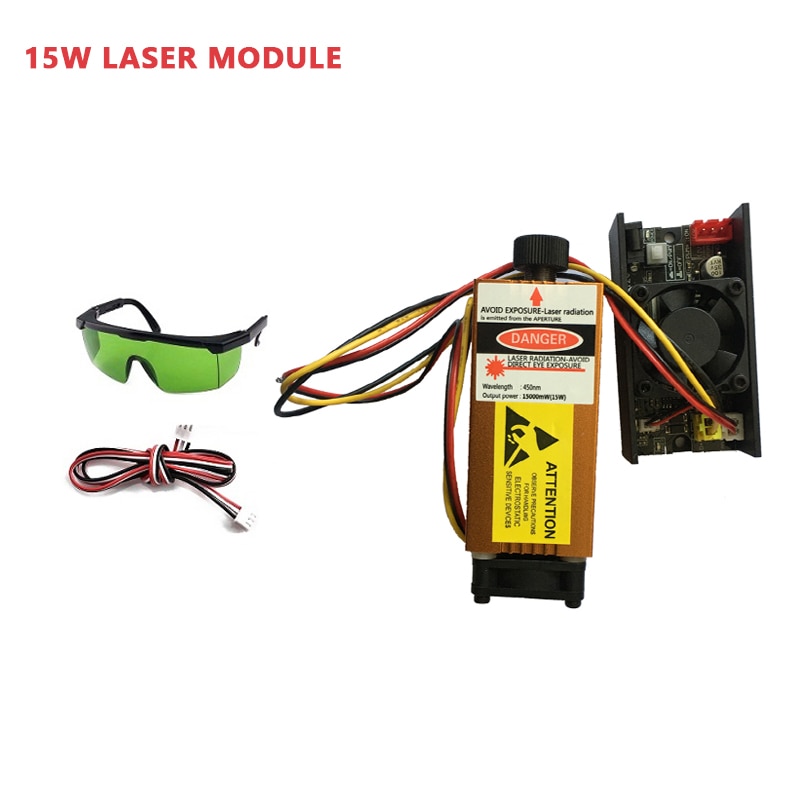

Laser power (optional):1W/2.5W/3W/5.5W/7W/10W/15W(7W/10W/15W: can carve Non-ferrous metals such as stainless steel, anodized aluminum, titanium alloy and cut 3-5mm thick wooden materials)
Processing method: printing / grayscale / cutting
Processing material: wood / plastic / paper / leather / bone / shell / stone /…
All laser cannot cut plywood

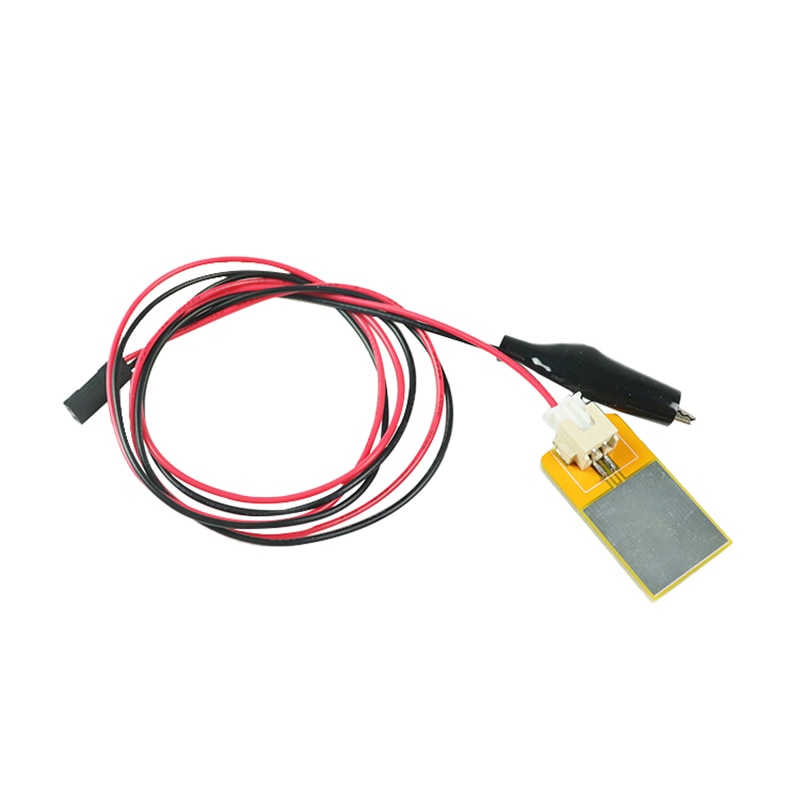

If you need Z-Probe with machine together, please click the photo below:

Adavantages of 3018 Max:

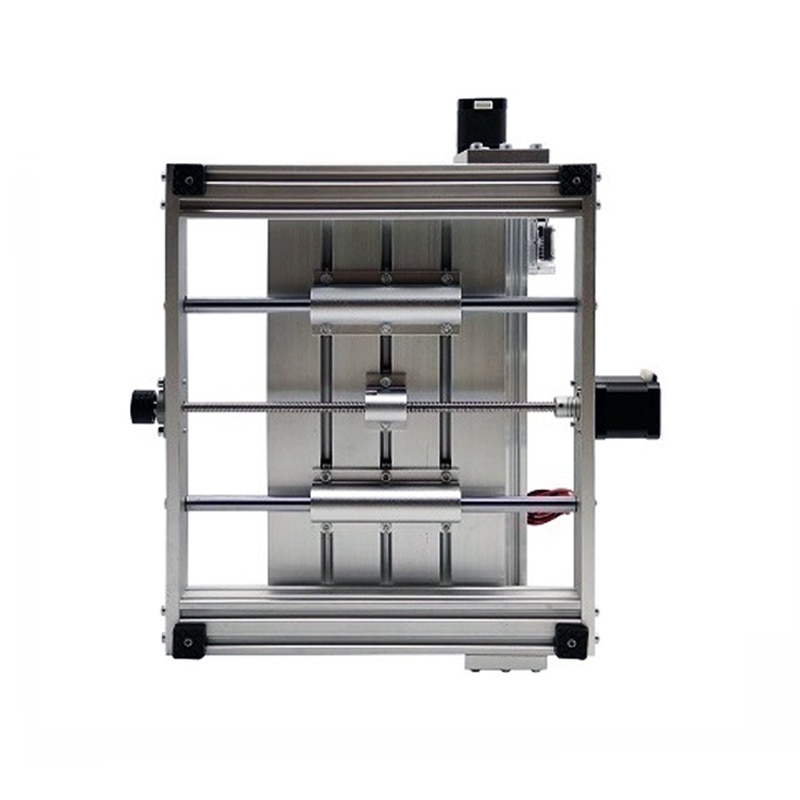

1. All-aluminum alloy body, the frame is composed of4040 aluminum profileand10mm thick aluminum plate. The X, Y and Z parts are all produced by CNC machining center, integrated molding, non-splicing, stable structure and high precision.
2. Industrial-grade high-power power supply, rated power 240W, maximum power 250W.
3. It adopts 52mm diameter professional air-cooled spindle with rated power of200Wand maximum power up to 300W.

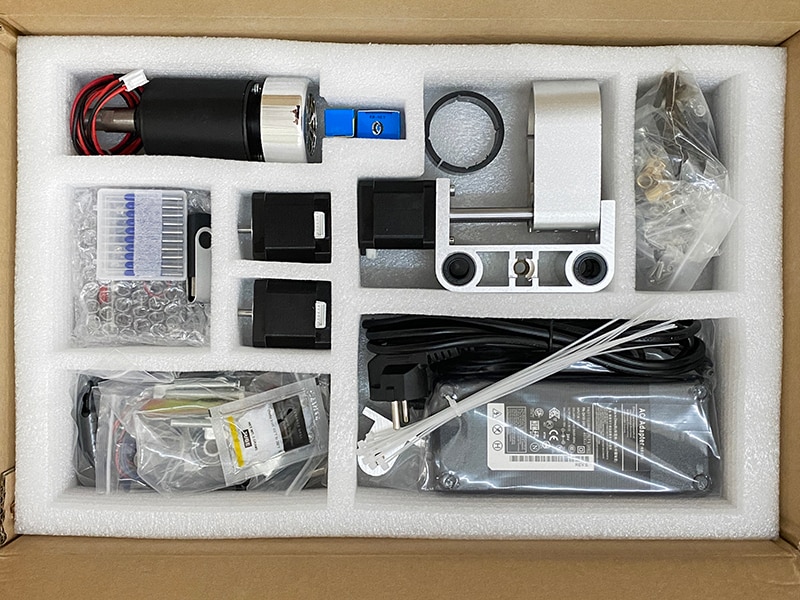

Package Introduction:

Package 1:1 x3018MaxEngraving Machine+Offline Controller (with 1GB SD Card)

Package2:1 x3018 Max Engraving Machine+1000mw Laser Module kit+Offline Controller (with 1GB SD Card)

Package 3:1 x3018 Max Engraving Machine+2500mw Laser Module kit+Offline Controller (with 1GB SD Card)

Package 4:1 x3018 Max Engraving Machine+3000mw Laser Module kit+Offline Controller (with 1GB SD Card)

Package 5:1 x3018 Max Engraving Machine+5500mw Laser Module kit+Offline Controller (with 1GB SD Card)

Package 6:1 x3018 Max Engraving Machine+7000mw Laser Module kit+Offline Controller (with 1GB SD Card)

Package 7:1 x3018 Max Engraving Machine+10000mw Laser Module kit+Offline Controller (with 1GB SD Card)

Package 8:1 x3018 Max Engraving Machine+15000mw Laser Module kit+Offline Controller (with 1GB SD Card)

Note:

1. We offer US/EU power supply for the machine and can add UK/AU/other form power adapter, if you need, please leave us message!

2. If you need English manuals and Softwares in E-version, please contact us!

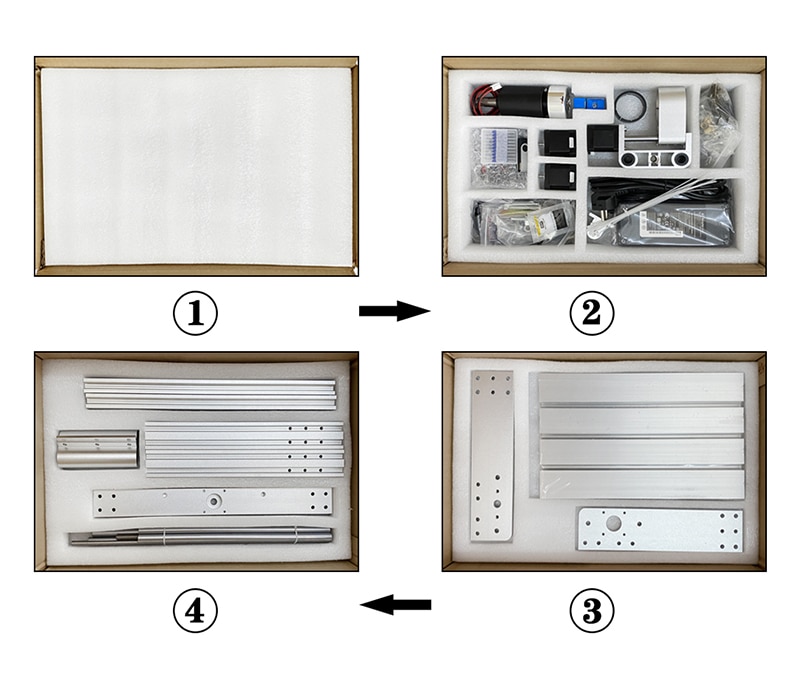

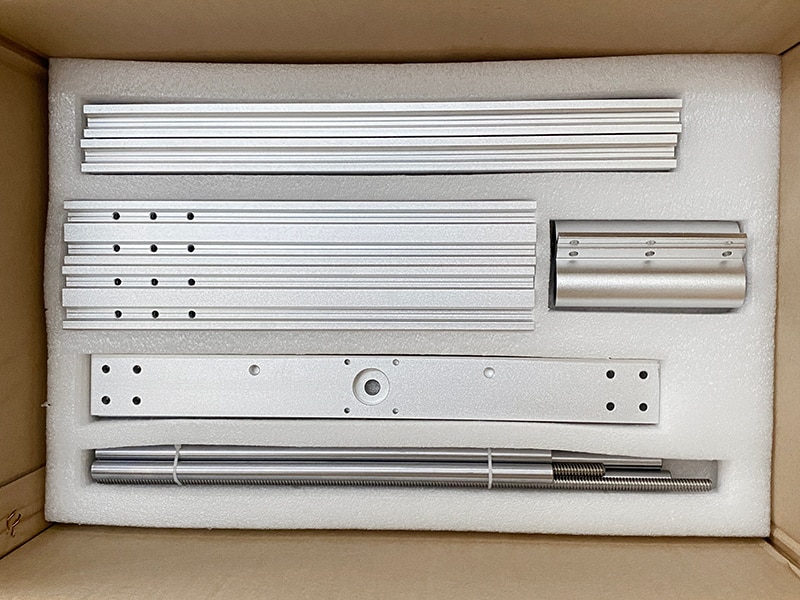

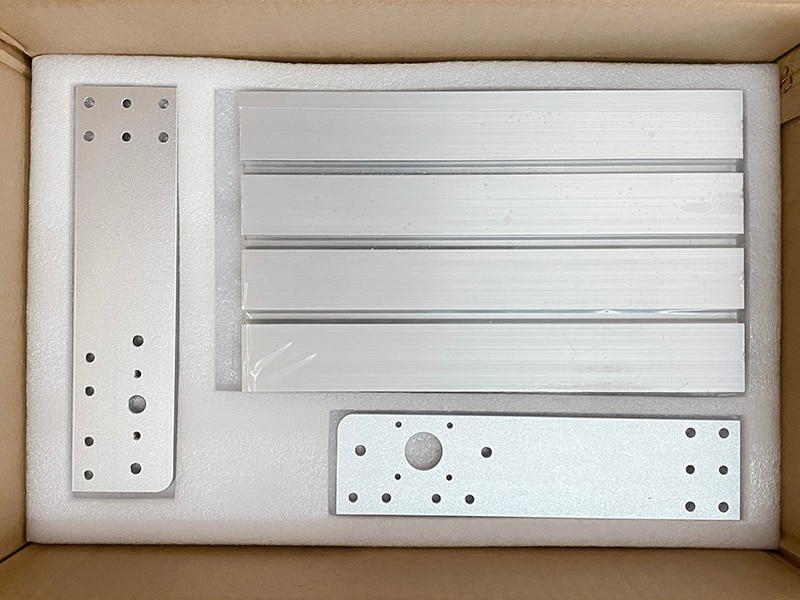

Package

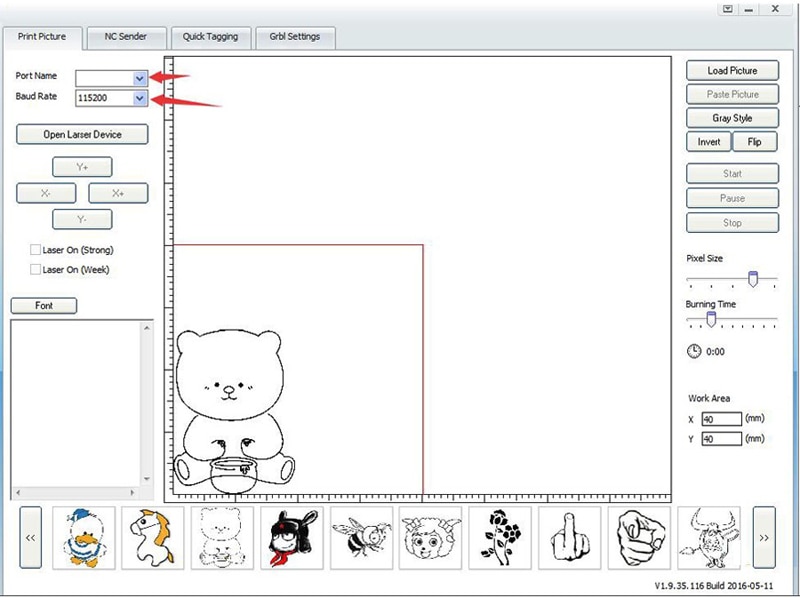

Laser Software

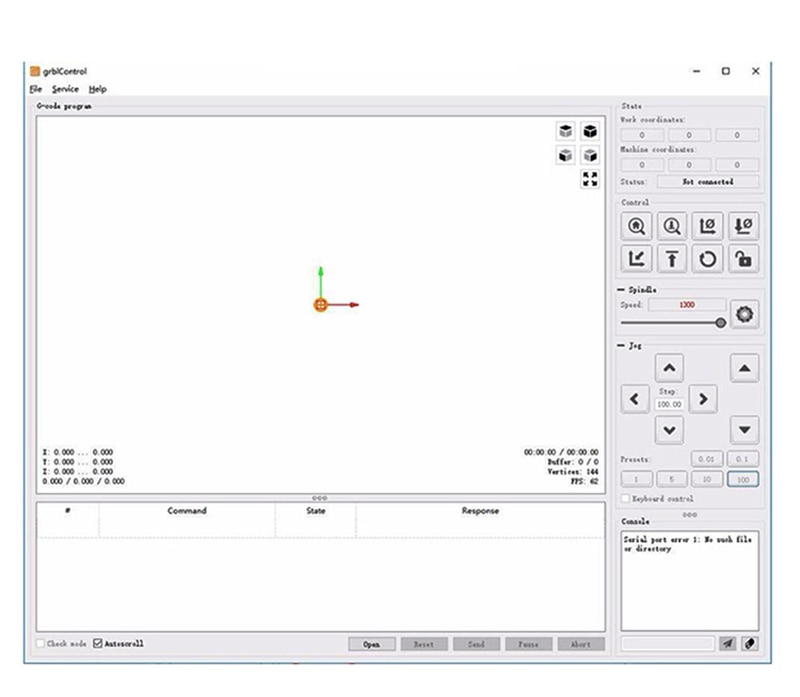

GRBL Software




1. We accept Alipay, West Union, Paypal. All major credit cards through secure payment processor ESCROW.


2. Payment must be made within 2 days of order.


3. If you can’t checkout immediately after auction close, please wait for a fewminutesand payments must be completed within 2 days.






1. Defective or wrong item. We will be offered replacement or refund afteroffer receive the pictures to prove it.


2. If you want to replacement, you need to pay sectional shipping fees of re-send.


3. If you want to partial refund, we will refund to you by paypal, thank you.






1. We’ll ship out the item within 3 days after payment verified.


2. The address we will ship the item is derived from information. Buyer shouldmake sure that the shipping address is corrcect.


3. Please contact us if you didn’t receive your goods, we will try our best to solvethe problems.




The countries we can send to, if you choose

Ships From Russian Federation: Russian Federation

Ships From Spain: Austria, Belgium, Bulgaria, Croatia, Czech Republic, Denmark, Estonia, Finland, France, Germany, Hungary, Ireland, Italy, Latvia, Lithuania, Luxembourg, Monaco, Netherlands, Poland, Portugal(no service for islands in specify zip codes), Romania, Slovakia, Slovenia, Spain(no service for islands in specify zip codes), Sweden




After receiving and checking your orders, we will send you Ali-message about shipping information confirmation, please pay highly attention to Ali-message and offer us reply there!

For the parcels to 27 countries of European Union:

If from Spain Warehouse: buyer only needs to pay VAT through Aliexpress, no more import customs taxes fee, no matter the value of products.

If from China Warehouse:

if products’ price is not over 150EUR, only needs to pay VAT through Aliexpress (if you have VAT No./EORI No., please kindly leave u Ali message about it);

if products’ price is over 150EUR, buyer has to process the import clearance event and pay for total taxes fee(VAT+import customs taxes) in person and please offer us Email address and VAT/EORI No. if buyer has (French and Italian buyers must provide it).





For the parcels to Norway:

Total customs taxes = VAT + import customs taxes fee

If products’ price is no more than 3000NOK, buyer will pay only VAT through Aliexpress, if it’s convenient, please kindly send us one snapshot of your order with VAT info via Ali-message, we’ll add VOEC No. in order to avoid the second charge for taxes from your customs.

If products’ price is more than 3000NOK, is still taxed by the customs at the time of import.

Our goal is 5 stars, if you have any problems about the items or services, please feel free to contact us, we will try our best to help you and makeyou satisfied, thank you!
