Description
- Origin: CN(Origin)
- Certification: NONE
- Condition: New

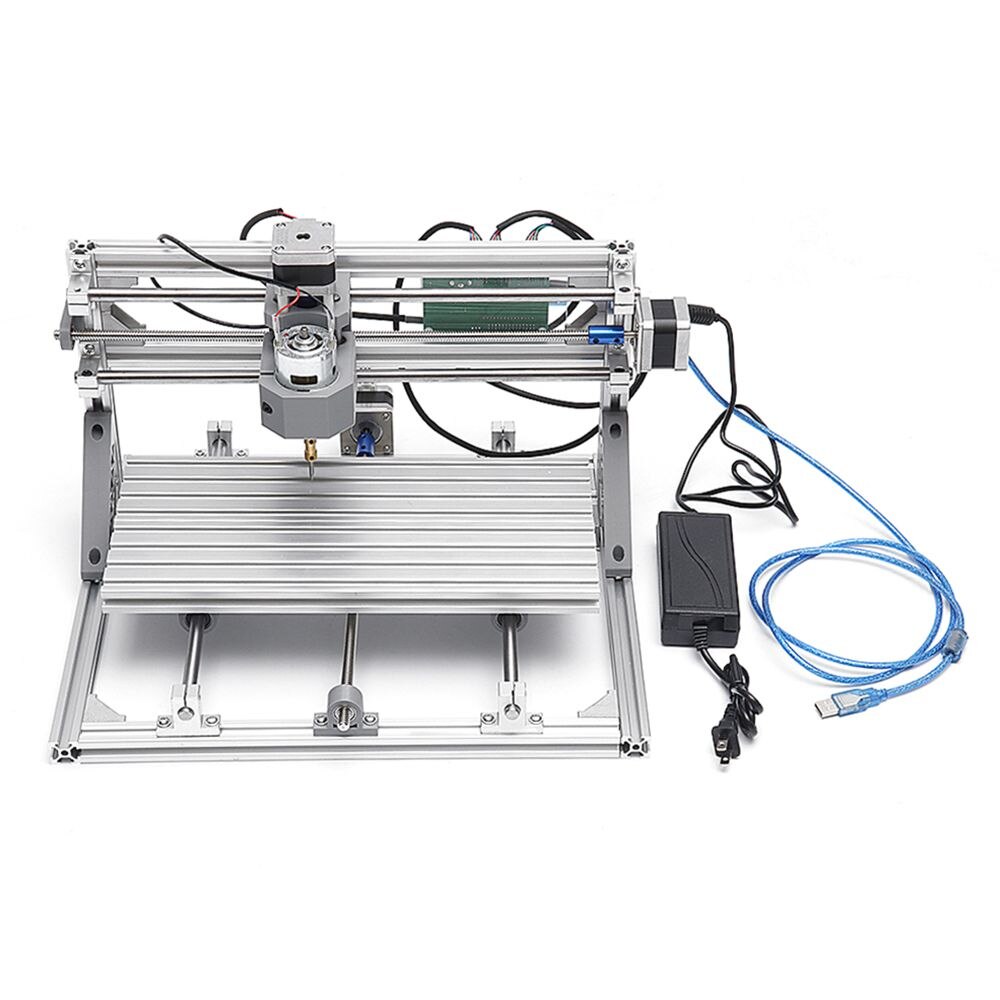

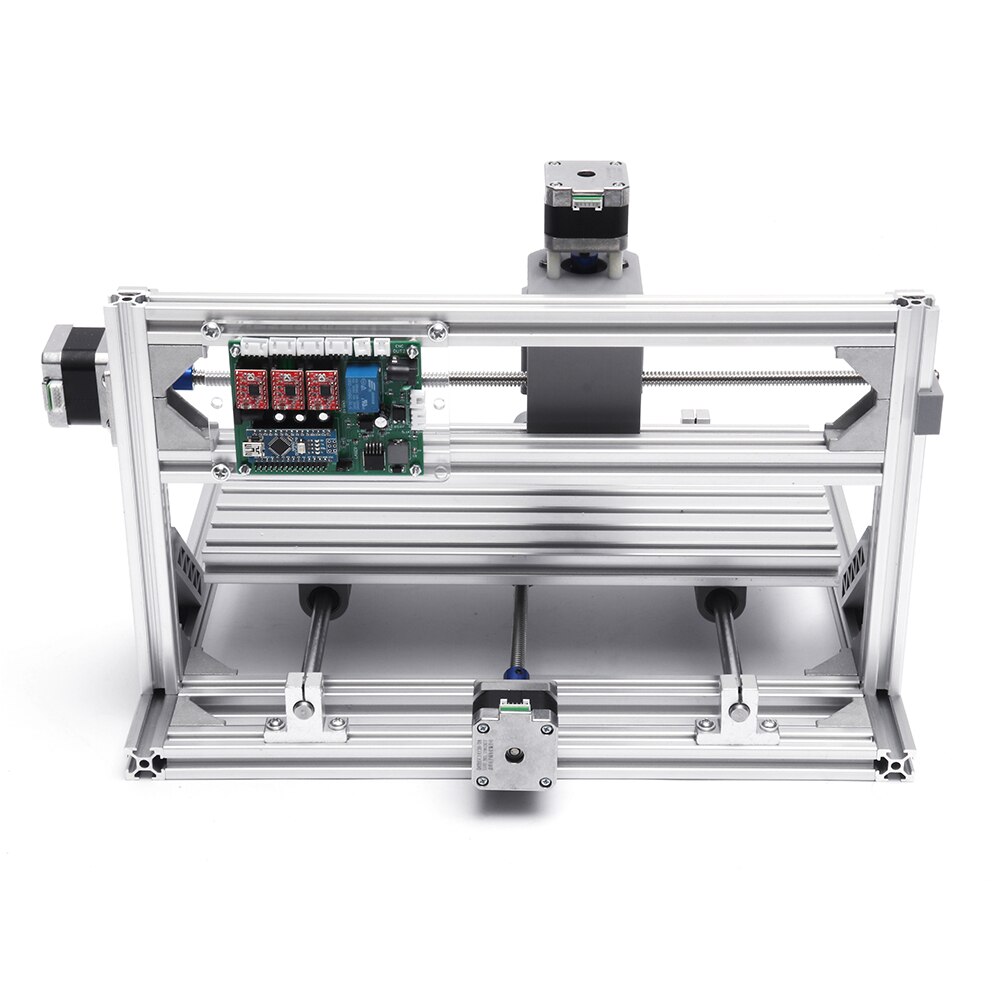

- Model Number: Mini CNC 3018 3 Axis(With 2500mW Laser Module)
- CNC or Not: CNC
- Frame Material: Aluminum
- Power Supply: DC 24V 5.6A
- Laser Module: 2500mW
- Working Area: Approx. 340x160x20mm
- Machine Size: Approx. 400x330x240mm
- Control Software: GRBL
- Support OS: Windows XP, Win7, Win8, Win10
Specification:
Model: Mini CNC 3018 3 Axis–(With 2500mW Laser Module)
Frame Material: Aluminum
Power Supply: DC 24V 5.6A
Laser Module: 2500mW
Working Area: Approx. 340x160x20mm
Machine Size: Approx. 400x330x240mm
Control Software: GRBL
Stepping Motor: 42 stepper motor, voltage: 12V, phase current 1.3A, torque 0.25N.m

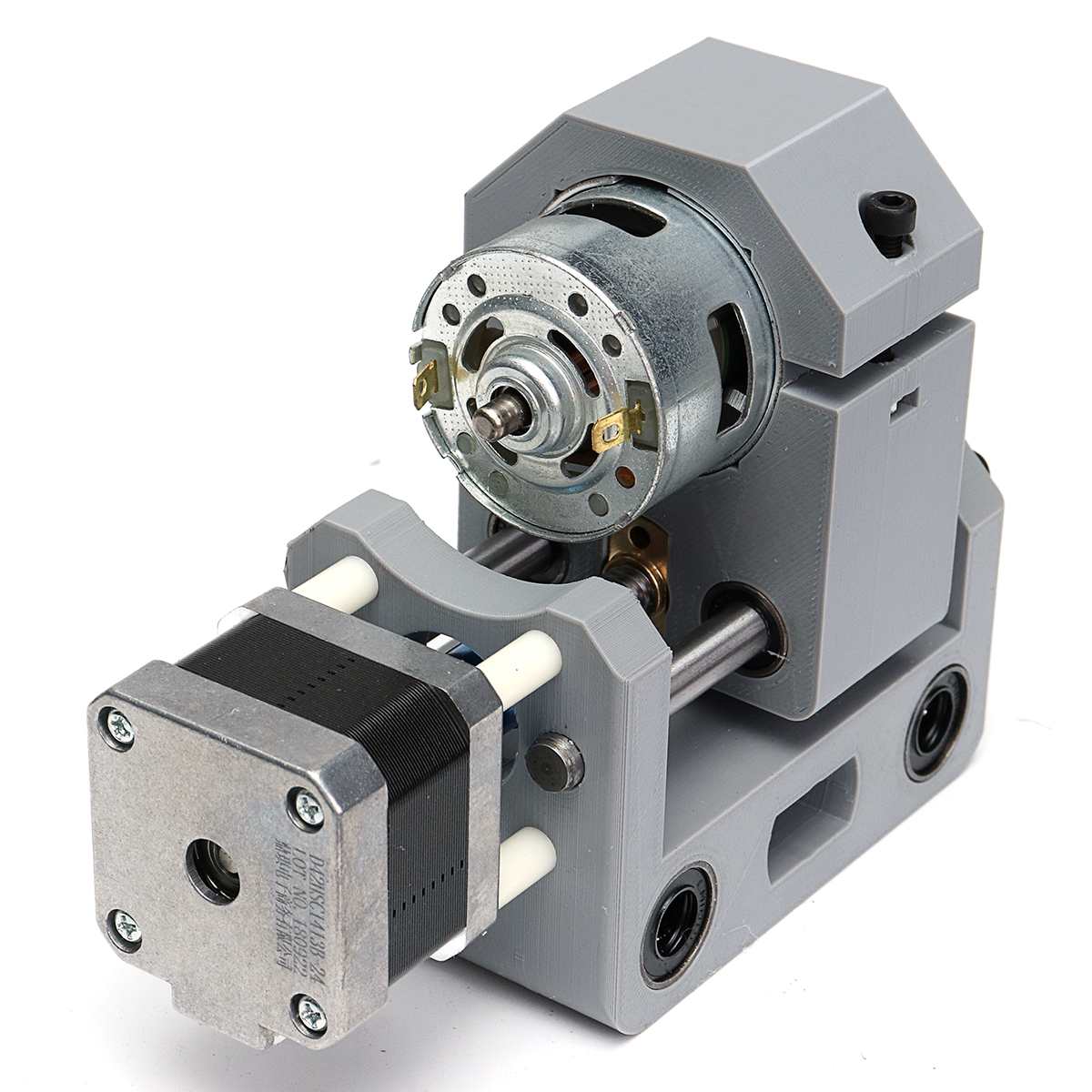

Spindle Motor: 775 spindle motor (12-36V) 24V: 7000r/min, 36V: 9000r/min
Support OS: Windows XP, Win7, Win8, Win10
Net Weight: 7.5KG
Features:
– Assembly requires a certain mechanical skill. All assembly components are included.
– Engraving Materials: The machine can carve wood, plastic, acrylic, PCB, or the like materials.
– Can Not Engrave: Hard metal (such as brass, steel, iron, etc), jade and other very hard texture items.
Note:
1. Instructions & Software: Assembly instructions, control software and further information please CLICK HERE
2. This item contains both the spindle motor and laser module. More complete and ready to use.
Package Included:

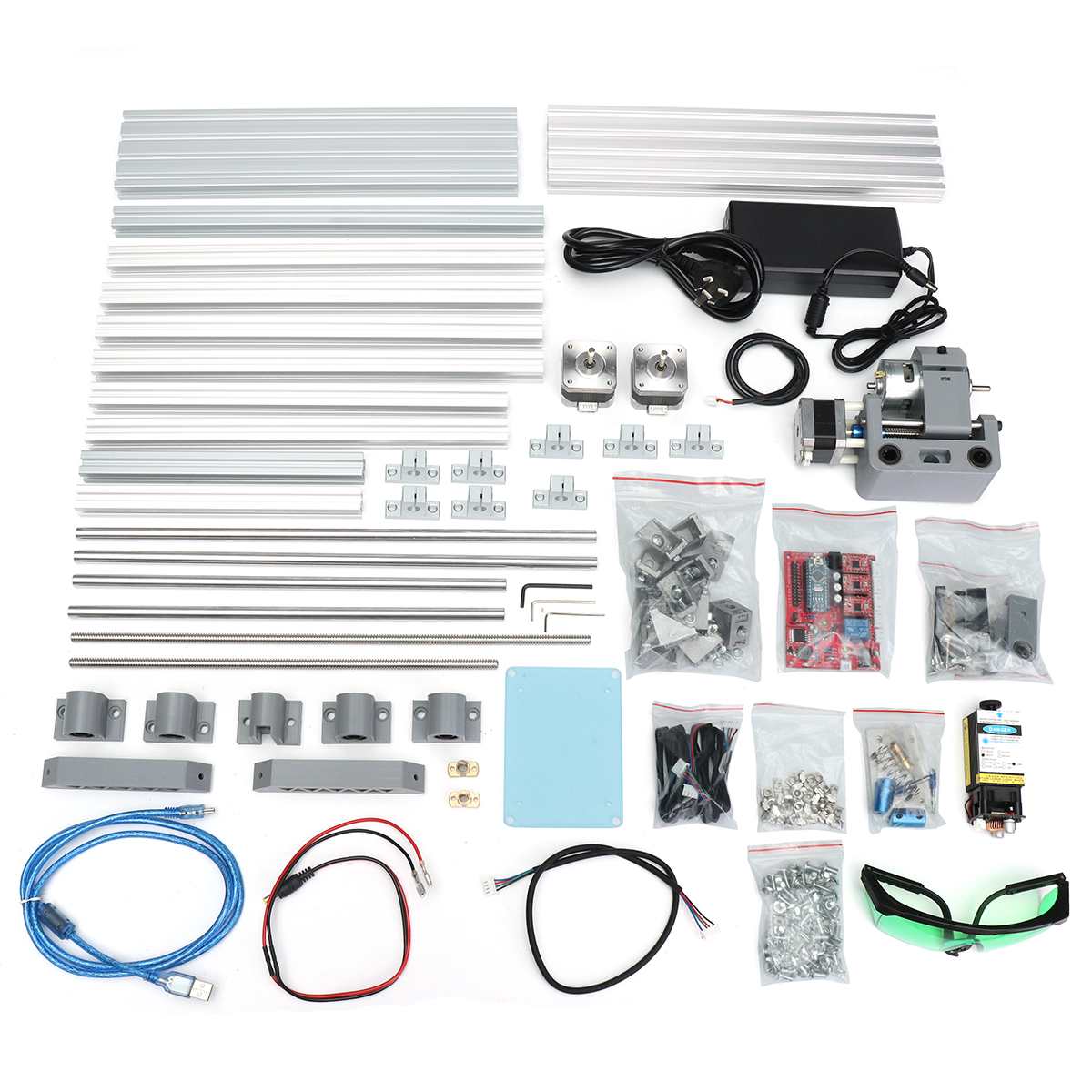

1 x Wood Engraving Machine Full Set (Unassembled Delivery)

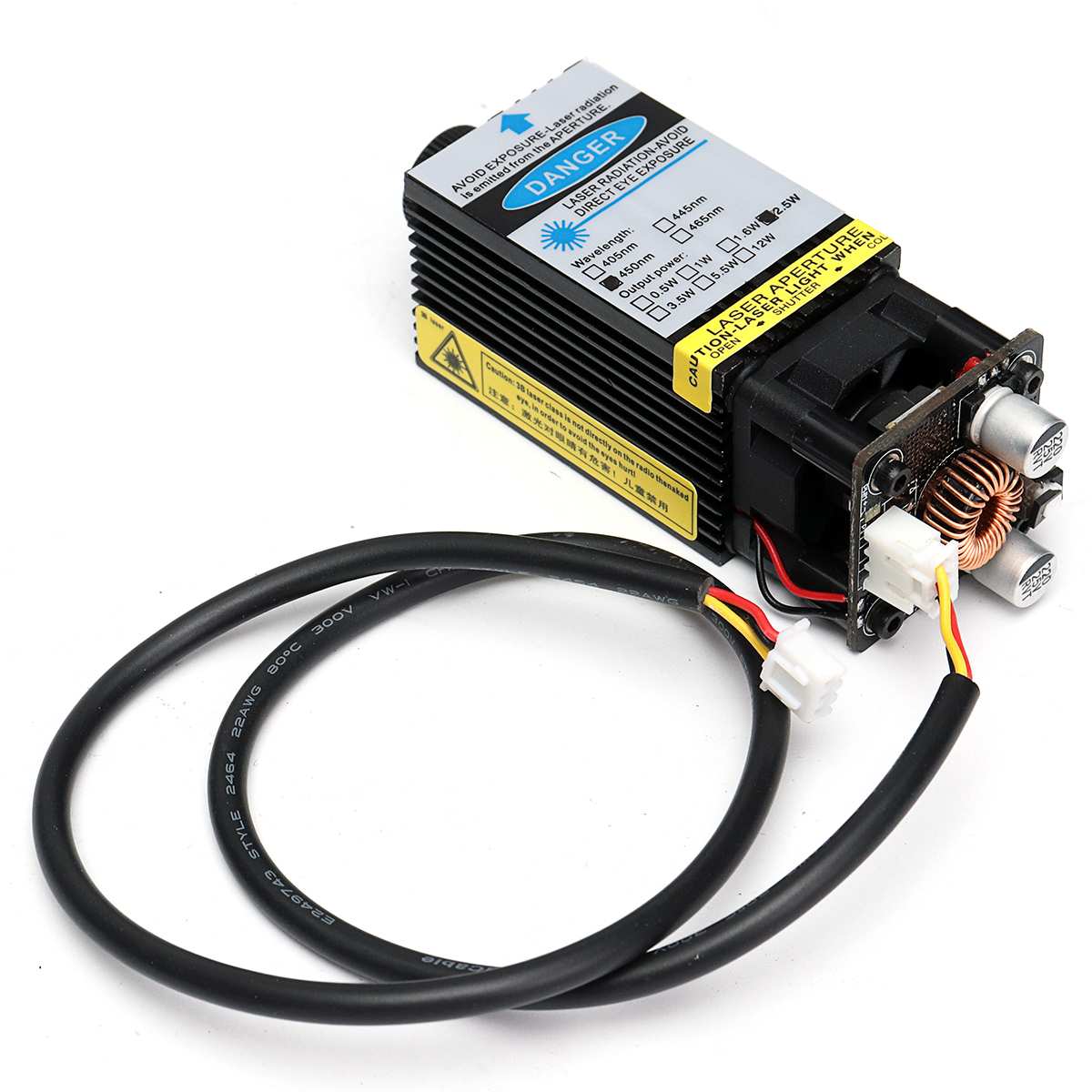

1 x 2500mW Laser Module
(Comes with power adapter plug according to your country)
