Description
- Brand Name: ACCTEK
- Origin: CN(Origin)
- Certification: CE
- Condition: New
- Model Number: AKJ1530FBC
- CNC or Not: CNC
- Product name: Enclosed Table Fiber Laser Cutting Machine
- Key words: 1000W Fiber Laser Machine 1530
- MOQ: 1 set
- Laser Type: FIBER LASER
- Cooling Mode: WATER COOLING
- Engraving Area: 1500mm*3000mm
- Driving System: X axis Yaskawa 850w, Y axis Yaskawa 1800w, Z axis Pansonic 400w
- Control system: Cypcut
- Laser haed: Raytools brand cutting head
- Graphic Format Supported: AI, PLT, DXF, BMP, Dst, Dwg, LAS, DXP

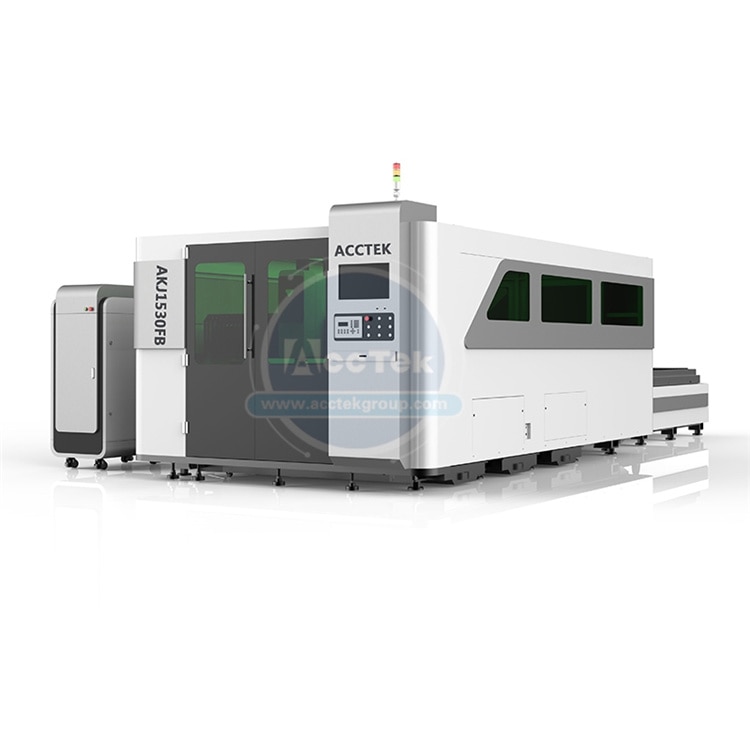

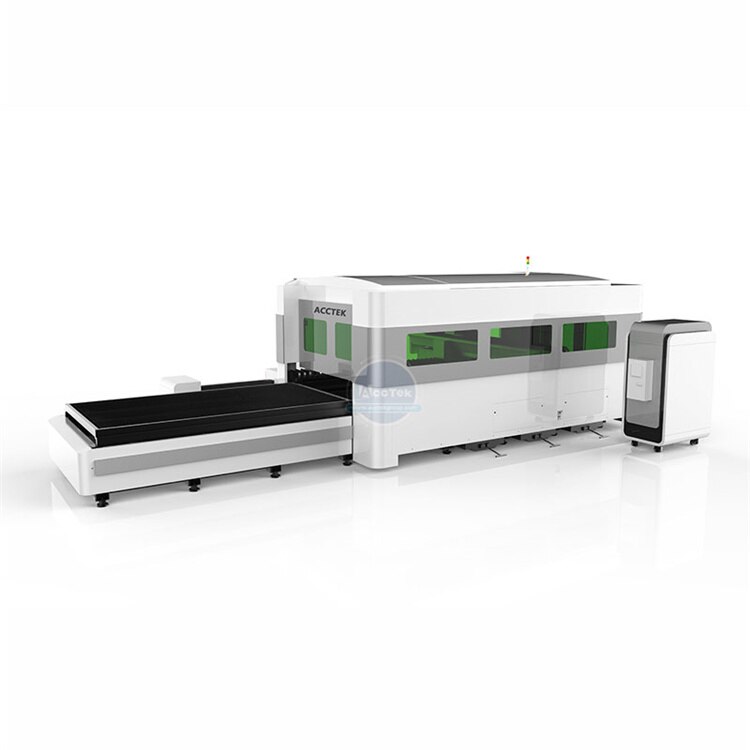

3015 Size 1mm Thick Fiber Laser Cutting Machine Fiber Laser Cutting Machine with 1000W Laser
Main features:
1) Low cost and the power consumption is 0.5-1.5kw/h; Customer can cut all kinds of metal sheets by blowing air;
2) High-performance. Imported the original packaged fiber laser, with stable performance and the lifespan is over 100,000 hours;
3). High speed and efficiency, the speed of cutting metal sheets close to tens of meters;
4) The laser maintenance free;
5) The cutting edge looks perfect and the appearance is smooth and beautiful;
6) Imported the transmission mechanism and servo motor, and high cutting accuracy;
7) Dedicated software enables graphic or text to be instantly designed or processed. Flexible and easy operation.
Application:
Used for cutting a variety of metal plates, pipes (add pipe cutting device), mainly used in stainless steel, carbon steel,
galvanized sheet, electrolytic plate, brass, aluminum, various alloy plate, rare metal and other metal materials.
|
Working area
|
1500*3000mm
|
|
Whole structure
|
Heavy duty full enclosure
|
|
Control system
|
Cypcut controller
|
|
Guide rails
|
Taiwan HIWIN linear guide rail
|
|
Transmission
|
Rack and pinion transmission
|
|
Electronic Components
|
French Schneider
|
|
Max cutting speed
|
Depend on power and materials
|
|
Repeat positioning accuracy
|
±0.01mm
|
|
Maximum Acceleration
|
0.5G
|
|
Min line width
|
0.1mm
|
|
Power Requirements
|
220V/380V, 50/60Hz
|
|
Cooling Way
|
Water Cooling
|
|
Machine Operating temperature
|
0 ℃ -40 ℃
|
|
Graphic Format Supported
|
AI, BMP, DST, DXF, DXP, PLT
|

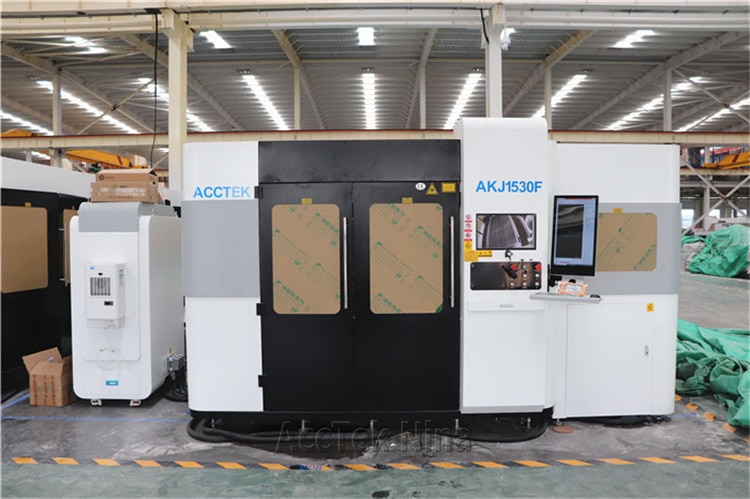

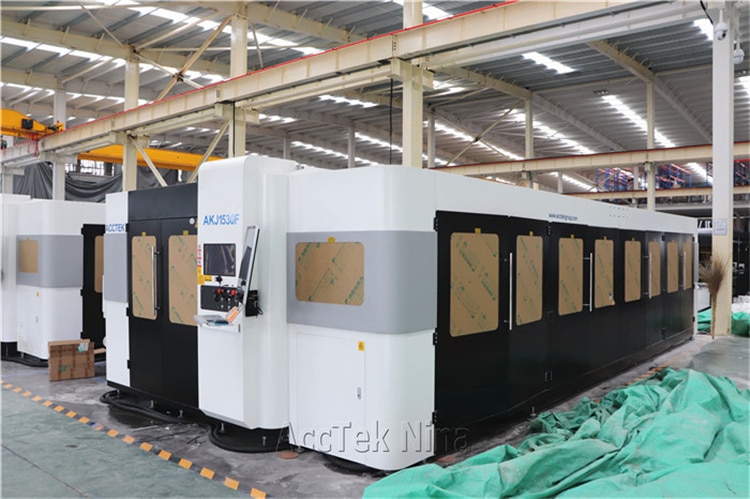

Details of fiber laser cutting machine:
Samples:
After sale Service :
1. 24 months guarantee of the whole machine, including fiber lase generator.
2. Main parts(excluding the consumables) shall be changed free of charge if there is any problem during the warranty period.
3. Lifetime maintenance free of charge.
4. We will provide the consumable parts at a factory price when you need replacement.
5. Machine has been adjusted before delivery.
6. Our technician can be sent to your company to install or calibrate if necessary.
About us:
FAQ:
Q1. Before send me an inquiry on our cnc laser, it is better for you to provide me the following information:
1) Your metal or non-metal material size. Because in our factory, we have different models according to working area.
2) Your materials.
Metal/Acrylic/Plywood/MDF, etc?
3)You want to engrave or cut?
If cut,could you tell me your cutting thickness? Because different cutting thickness need different laser tube power and laser power supplier.
Q2. If we don't know how to use the machine, can you teach us?
Yes. We will send you manual and guide video in English, it can teach you how to operate the machine. If you still can not learn how to use it, we can help you by "Teamviewer" online help software. Or we can talk by phone,email or skype.
Q3. How long is the delivery time?
For standard machines, it would be 10-15 days; For non-standard machines and customized machines according to client's specific requirements, it would be 15 to 20 days.
Q4. Quality Control:
The whole production procedure will be under regular inspection and strict quality control. The complete machine will be tested to make sure they can work very well before being out of factory. Our machine passed CE Certificate, meet European and American standard, already exported to more than 100 Countries.
Q5. Do you arrange shipment for the machines?
Yes. For CIF or DDU DAp price,we will arrange shipment for you. For EXW price, clients need to arrange shipment by themselves or their agents.
