Description
300W 915nm High Power Fiber Coupled Laser Diode with Jenoptik Germany Chip
- Applicable Industries:Manufacturing Plant, Machinery Repair Shops
- Wavelength:915nm
- Power:300w
- working mode:CW
- Cooling: Conduction Cooled
- Laser Chip:Jenoptik
- Application1:Pumping
- Application2:Laser Marking,Engraving
- Application3:Scientific Research
- After Warranty Service:Spare parts
300W 915nm High Power Fiber Coupled Diode Laser with Germany Laser Chips
with 200um/0.22NA/1.5m/Bare End
Laser chip from Jenoptik Germany.
Laser shell and substrate from Tecnisco Japan

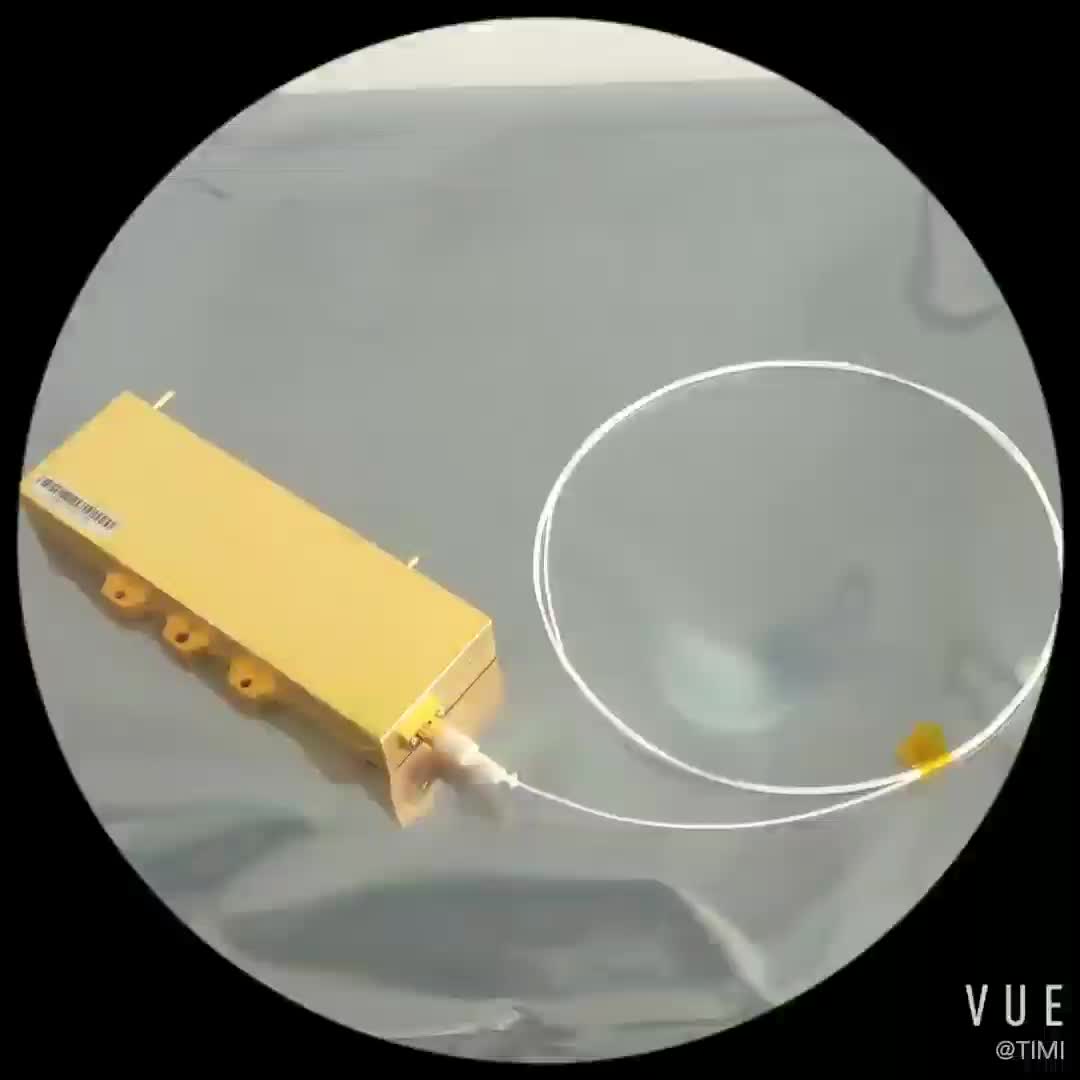

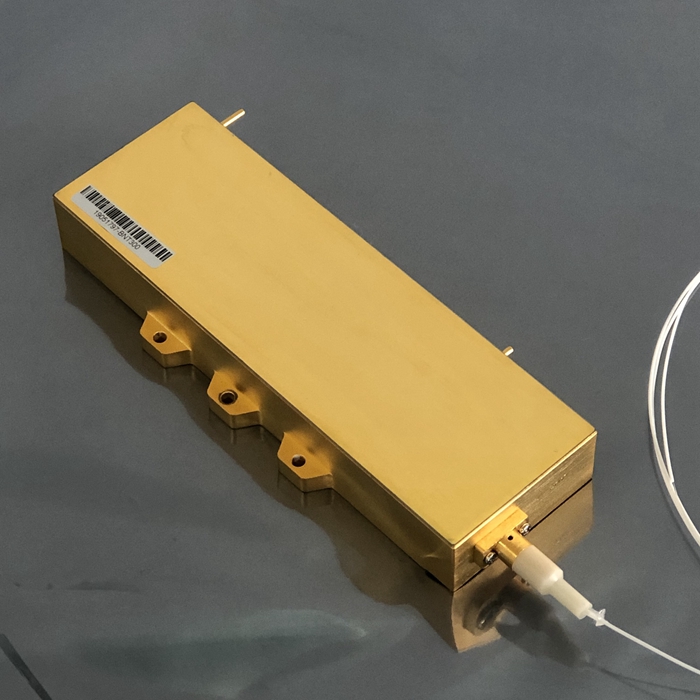

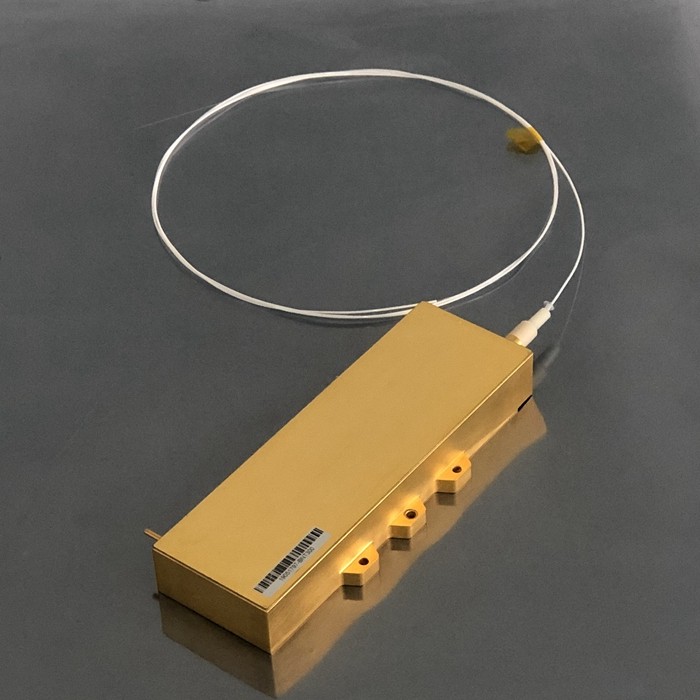

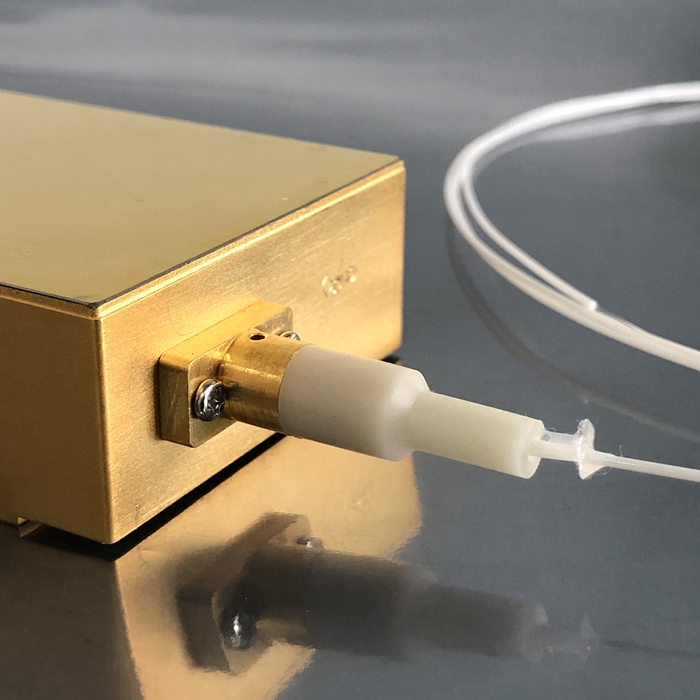

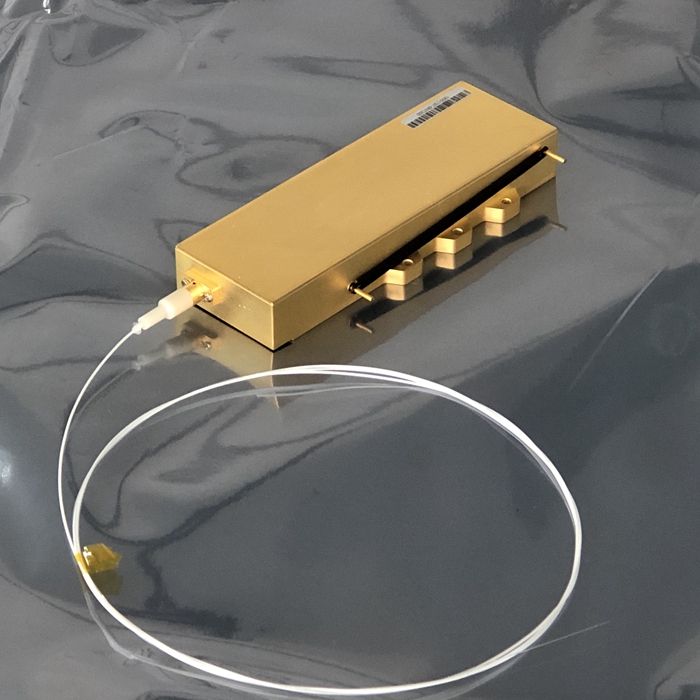

Products Show
Specification
|
Optical
|
|
|
Center Wavelength
|
915nm
|
|
Wavelength Tolerance
|
±10nm
|
|
Output Power
|
300W
|
|
Spectral Width FWHM
|
6nm
|
|
>90% Power
|
0.16NA
|
|
Slope Efficiency
|
26.8W/A
|
|
Fiber
|
|
|
Fiber Bend Radius
|
>30mm
|
|
Fiber Core/Cladding/Buffer Diameter
|
200um/220um/320um
|
|
Fiber Numerical Aperture
|
0.22NA
|
|
Fiber Length
|
1.5m
|
|
Fiber Connector
|
Bare
|
|
Electrical
|
|
|
Operating Current Iop
|
13A
|
|
Threshold Current Ith
|
0.8A
|
|
Operating Voltage Vop
|
49V
|
|
Power Conversion Efficiency
|
45%
|
|
Thermal
|
|
|
Operating Temperature (Non-Condensing)
|
15~35
|
|
Storage Temperature (Non-Condensing)
|
-20-55
|
|
Wavelength Temperature Coefficient
|
~0.35nm/C
|

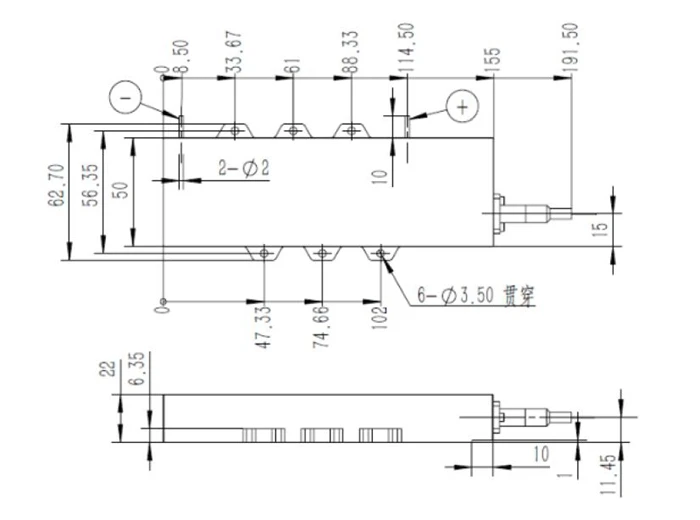

Drawing
