Description
- Brand Name: NoEnName_Null
- Origin: CN(Origin)
- Certification: CE
- Condition: New
- Model Number: CNC 3018 plus
- CNC or Not: CNC
- Is Smart Device: No
- XYZ three-axis actual stroke: 300*180*60mm
- Aluminum Table Size: 300*180mm
- Material: Aluminum
- Stepper motor: Nema17*3(Optional)
- Screw: T8 stainless steel screw
- Spindle hole diameter: 52mm

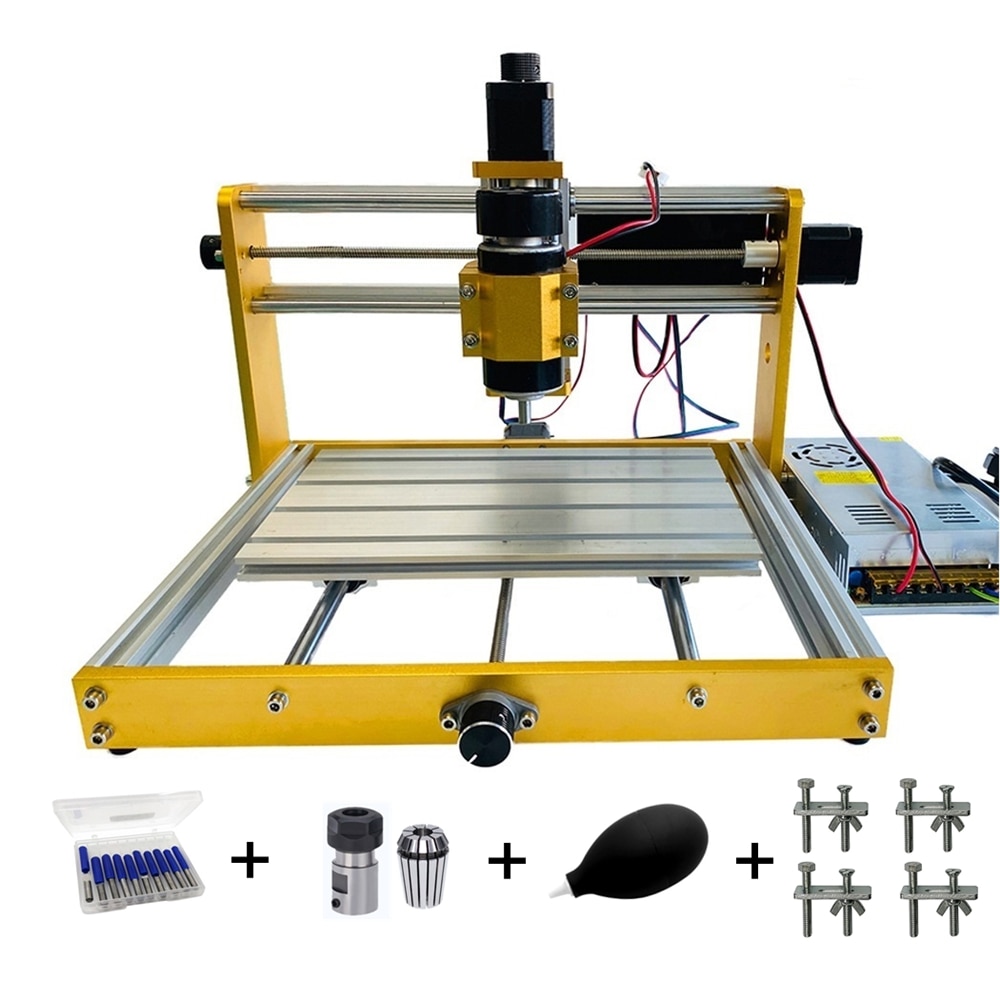

Aluminum 3018 CNC Router Laser Engraving Cutting Machine 300W 500W Spindle Motor with 5.5W 15W 30W Laser Optional
Parameter
XYZ three-axis actual stroke 300*180*60mm
Aluminum Table Size 300*180mm
Material: Aluminum
Stepper motor: Nema17 Stepper*3
Screw: T8 stainless steel screw, lead 8MM, POM anti-backlash nut
Spindle hole diameter: 52mm
Laser module diameter:40mm
Control software: GRBL Control
Spindle: 300W/500W Optional
Laser: 5.5W/15W/30W Optional
Power Supply: 24V 5A
Supported System: Windows XP/ Win 7/ Win 8/ Win10
Feature
1.Foot pads installed at four corners of the machine
2.Screws are equipped with gaskets to protect the machine more
3.Both screws are equipped with knobs, size 8mm
4.Horizontal screw seat, inner diameter 8
5.Full metal oxidation sandblasting
6.12mm optical axis, stable and durable
7.Z axis can be raised and lowered as a whole
PS: Equipped with baffle and emergency stop switch hole
Application
For Desktop CNC & Laser works
Packing list
300W / 500W Spindle Kit:
Multi-Kits Packing List:
|
ZH1045 |
3018 Plus Laser Machine+ 300w |
1 |
|
|
12V Laser mould 5.5W(5500MW)-Diameter 40MM |
1 |
|
|
|
|
|
ZH1046 |
3018 Plus Laser Machine+ 300w |
1 |
|
|
12V Laser mould 15W(15000MW)-Diameter 40MM |
1 |
|
|
10X10CM Lift Platform |
1 |
|
|
GRBL Control Offline Handle |
1 |
|
|
|
|
|
ZH1047 |
3018 Plus Laser Machine+ 300w |
1 |
|
|
12V Laser mould 30W(30000MW)-Diameter 40MM |
1 |
|
|
10X10CM Lift Platform |
1 |
|
|
GRBL Control Offline Handle |
1 |
|
|
|
|
|
ZH1048 |
3018 Plus Laser Machine+ 500w |
1 |
|
|
12V Laser mould 5.5W(5500MW)-Diameter 40MM |
1 |
|
|
|
|
|
ZH1049 |
3018 Plus Laser Machine+ 500w |
1 |
|
|
12V Laser mould 15W(15000MW)-Diameter 40MM |
1 |
|
|
10X10CM Lift Platform |
1 |
|
|
GRBL Control Offline Handle |
1 |
|
|
|
|
|
ZH1050 |
3018 Plus Laser Machine+ 500w |
1 |
|
|
12V Laser mould 30W(30000MW)-Diameter 40MM |
1 |
|
|
110X10CM Lift Platform |
1 |
|
|
GRBL Control Offline Handle |
1 |
