Description
- Origin: CN(Origin)
- Application: General Purpose
- Package Type: Through Hole
- Rated Voltage: 50V
- is_customized: Yes
- Model Number: Ceramic capacitor 2PF-0.1UF
- Structure: Fixed Capacitor
- Type: Ceramic Capacitor
- Color: Yellow
- Operating Temperature: -25℃-85℃
- Model:: Porcelain Capacitor Pack
- Series:: Porcelain Nominal
- Capacity:: 300 PCS capacitors
- Tolerance:: 10 %
- Rated voltage:: 50 V
- Dielectric material:: ceramic work
- Temperature range:: -25℃-85℃
- Grade:: high
- Lead type:: same direction
- Lead spacing:: 5 mm
- Size:: 5 mm
- Thickness:: 5 mm
- Height-Installation (Maximum):: 104
- Installation type:: plug-in
- Package/Shell:: In-line
- Package type:: in-line
- Capacity: 2PF
- Capacity: 3PF
- Capacity: 5PF
- Capacity: 10PF
- Capacity: 15PF
- Capacity: 22PF
- Capacity: 30PF
- Capacity: 33PF
- Capacity: 47PF
- Capacity: 68PF
- Capacity: 75PF
- Capacity: 82PF
- Capacity: 100PF
- Capacity: 150PF
- Capacity: 220PF
- Capacity: 330PF
- Capacity: 470PF
- Capacity: 680PF
- Capacity: 1NF
- Capacity: 1.5NF
- Capacity: 2.2NF
- Capacity: 3.3NF
- Capacity: 4.7NF
- Capacity: 6.8NF
- Capacity: 10NF
- Capacity: 15NF
- Capacity: 22NF
- Capacity: 47NF
- Capacity: 68NF
- Capacity: 100NF
300 Pcs/batch Ceramic Capacitor Bank 30 *10 PCS Capacitor Bank 2PF-0.1UF 2PF 3PF 680PF 1NF 1.5NF 68NF 100NF 400V Capacitor Bank
parameter:
Model: Porcelain Capacitor Pack
Series: Nominal tiles
Capacity: 300 ceramic capacitors
Tolerance: 10 (%)
Rated voltage: 50 (V)
Dielectric material: ceramic work
Temperature range: -25℃-85℃
Grade: high
Lead type: same direction
Lead spacing: 5mm
Size: 5 (mm)
Thickness: 5 (mm)
Height-installation (maximum): 104
Installation type: plug-in
Encapsulation/Shell: In-line
Item No.: 300 tiles
Package type: in-line

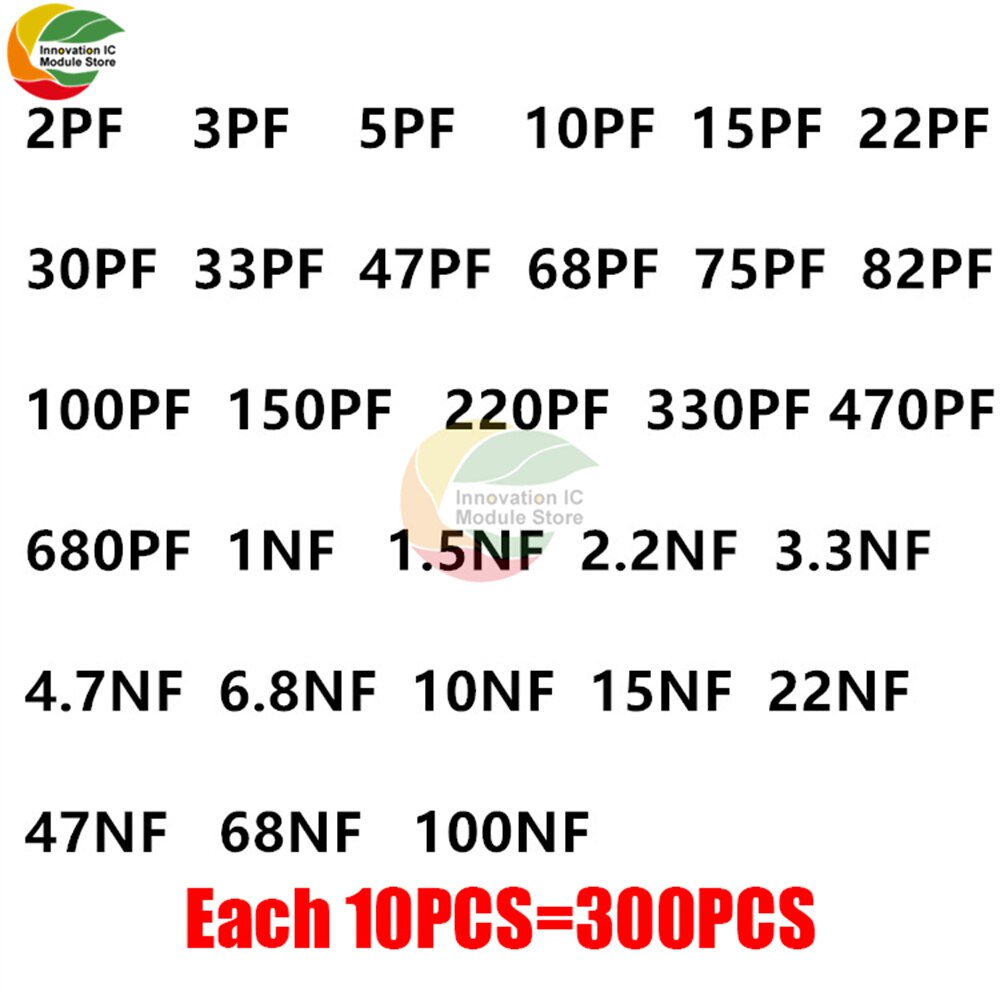

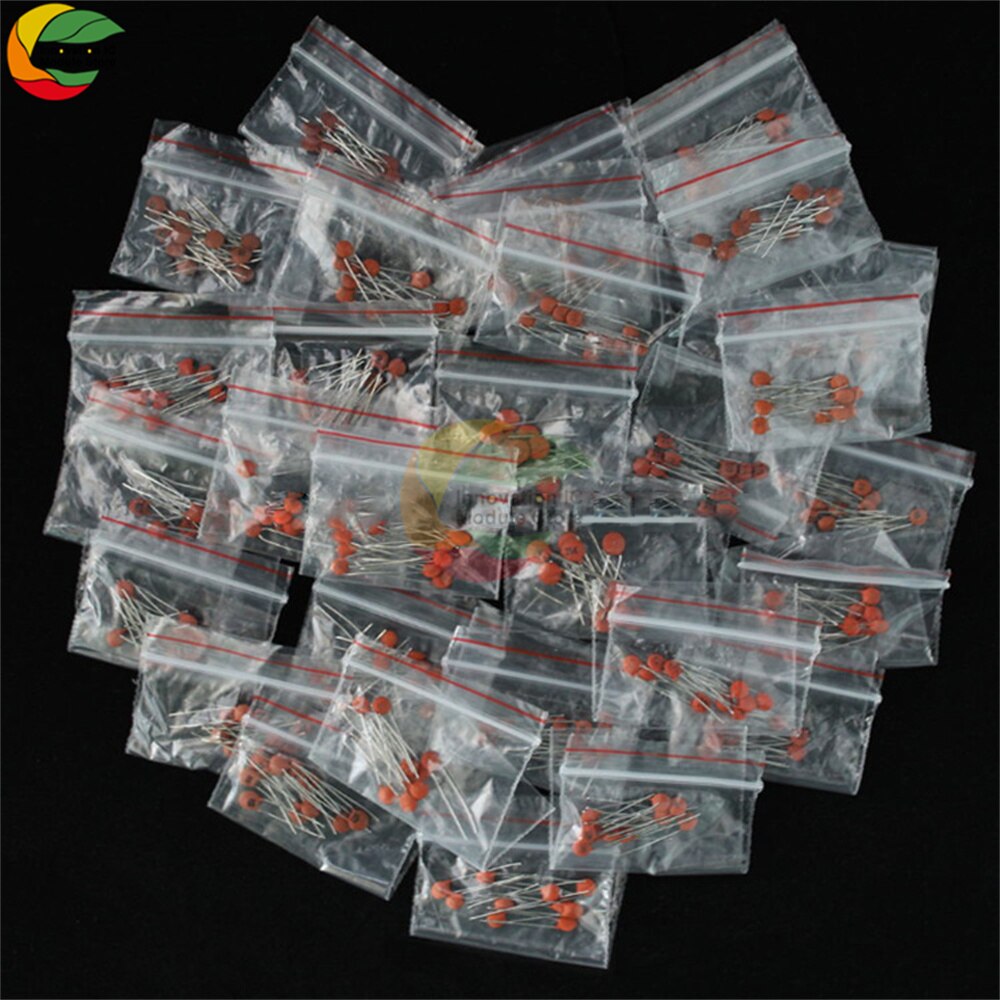

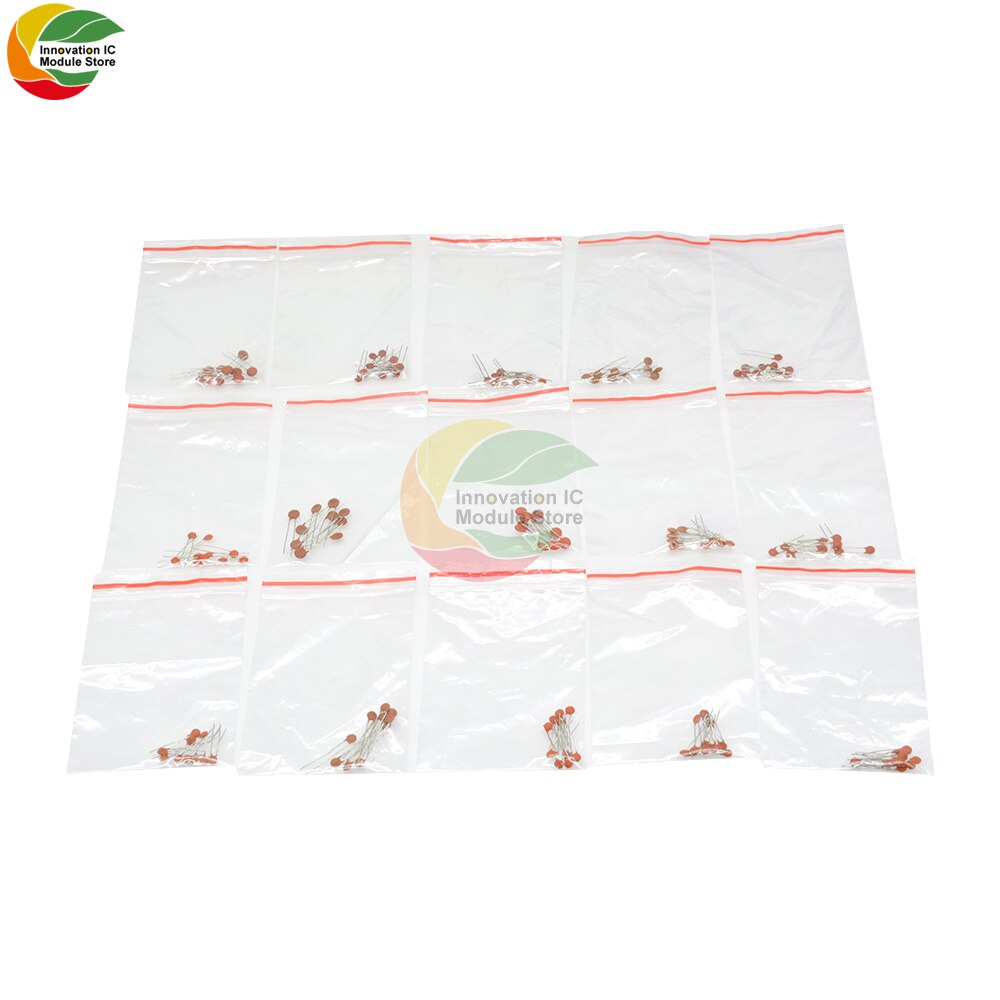

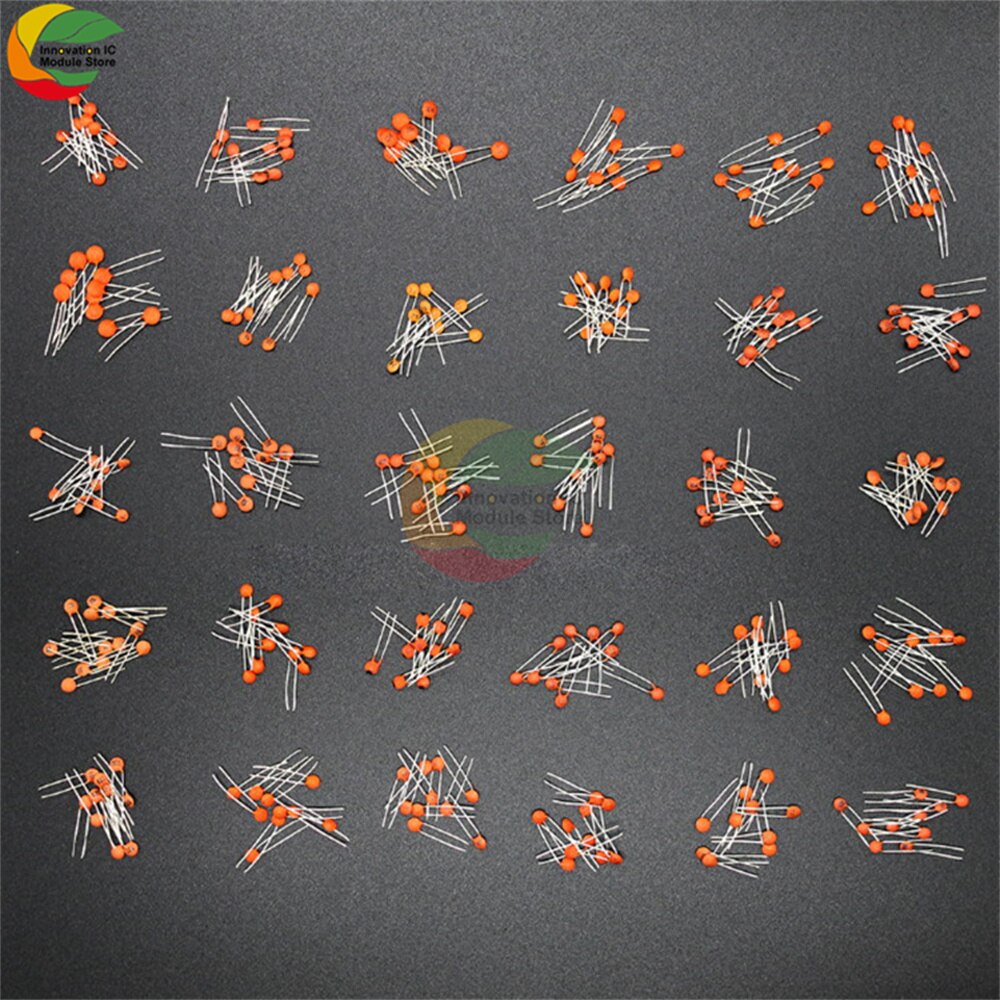

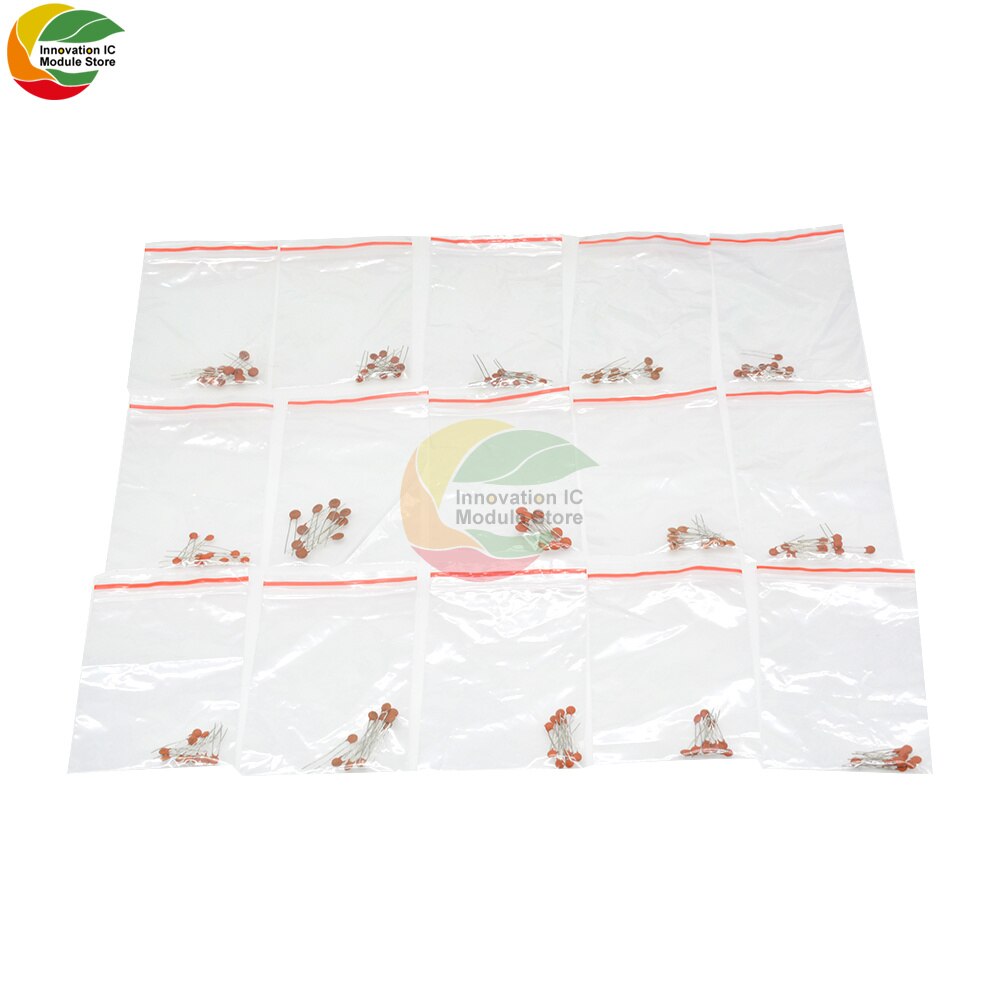

Packing specific parameters and quantity：
2PF 3PF 5PF 10PF 15PF 22PF
30PF 33PF 47PF 68PF 75PF 82PF
100PF 150PF 220PF 330PF 470PF 680PF
1NF 1.5NF 2.2NF 3.3NF 4.7NF 6.8NF
10NF 15NF 22NF 47NF 68NF 100NF
30 kinds of 10 each

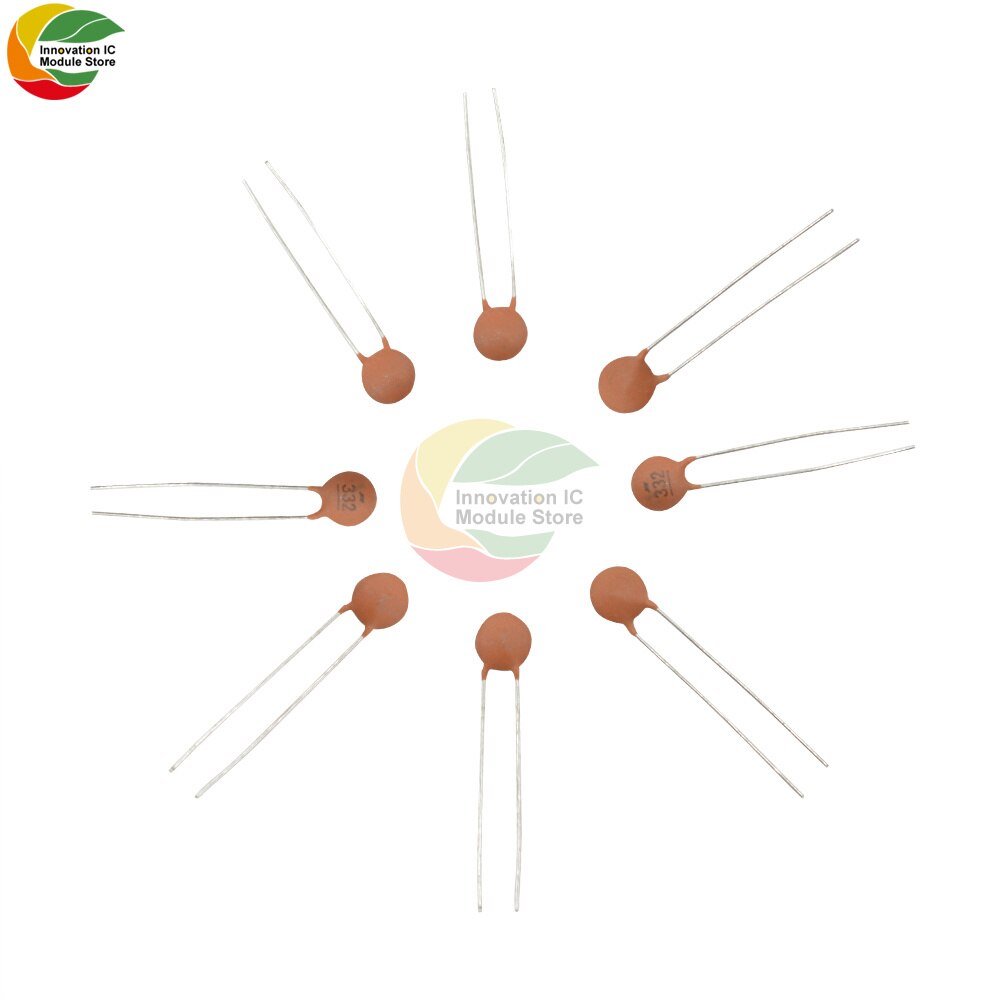

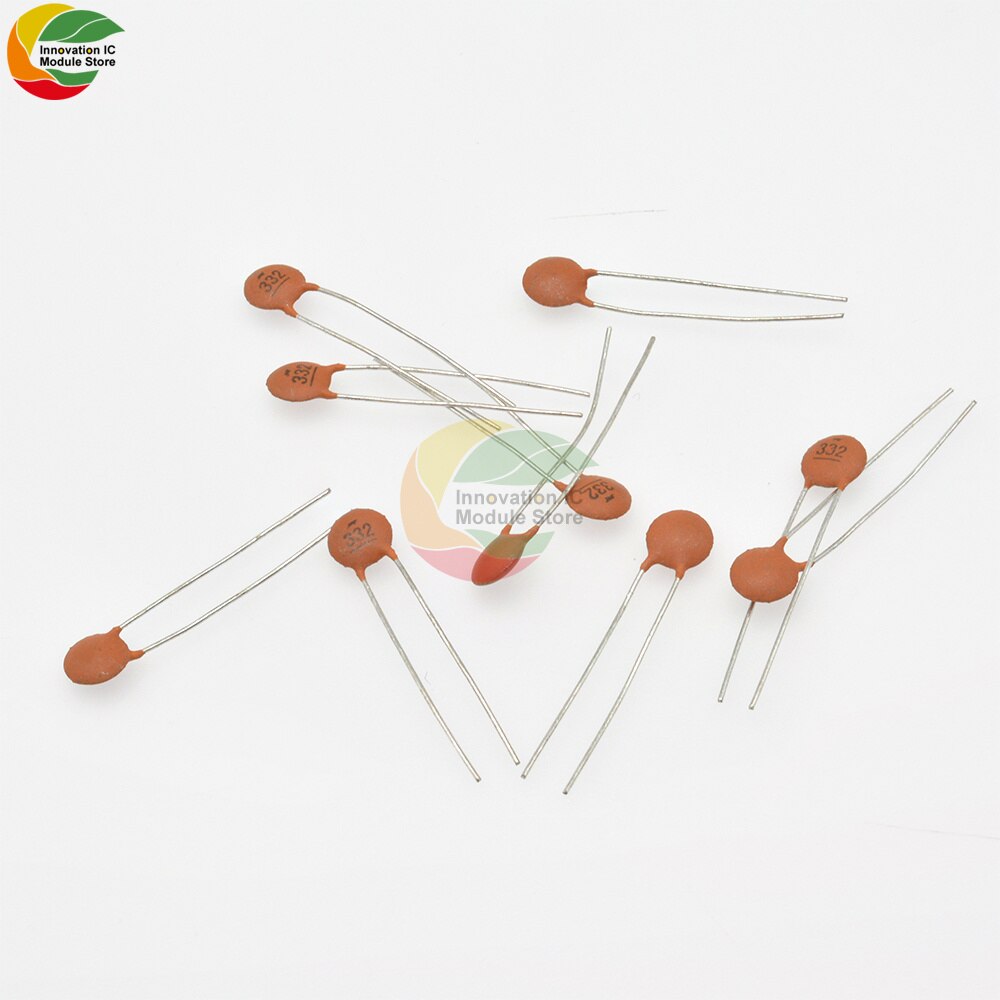

Characteristic description:
A ceramic capacitor is a capacitor that uses a ceramic material as a medium, coats a metal film on the ceramic surface, and then sinters at a high temperature as an electrode. It is usually used in high-stability oscillating circuits as loops, bypass capacitors and padding capacitors.
MLCC (Class 1)-miniaturization, high frequency, ultra-low loss, low ESR, high stability, high withstand voltage, high insulation, high reliability, non-polarity, low capacitance, low cost, high temperature resistance, mainly used in high Frequency circuit.
MLCC (Class 2)-miniaturization, high specific volume, medium and high voltage, non-polarity, high reliability, high temperature resistance, low ESR, low cost, mainly used in medium and low frequency circuits for direct isolation, coupling, bypass and filtering, etc. Capacitors are used. [1]
High-voltage ceramic capacitors are circular plate capacitors with ceramic materials as the medium. In “ceramic” capacitors, generally DC50v or less is called low voltage, DC100V~500V is medium and high voltage, DC1000v~6000v and DC are high voltage, and safety Y capacitors are also high voltage. Above DC6000v is ultra-high voltage.
Advantages: stable, good insulation, high voltage resistance
Disadvantages: relatively small capacity
Value Capacitance:
10 * 2pF
10 * 3pF
10 * 5pF
10 * 10pF
10 * 15pF
10 * 22pF
10 * 30pF
10 * 33pF
10 * 47pF
10 * 68pF
10 * 75pF
10 * 82pF
10 * 100pF
10 * 150PF
10 * 220PF
10 * 330PF
10 * 470PF
10 * 680PF
10 * 1NF
10 * 1.5NF
10 * 2.2NF
10 * 3.3NF
10 * 4.7NF
10 * 6.8NF
10 * 10NF
10 * 15NF
10 * 22NF
10 * 47NF
10 * 68NF
10 * 100NF
