Description
- Brand Name: JIN ZHI YIN
- Origin: CN(Origin)
- Certification: CE
- Condition: New
- Model Number: Cabinet type
- CNC or Not: CNC
- Is Smart Device: YES
- Power: 20w/30w/50w

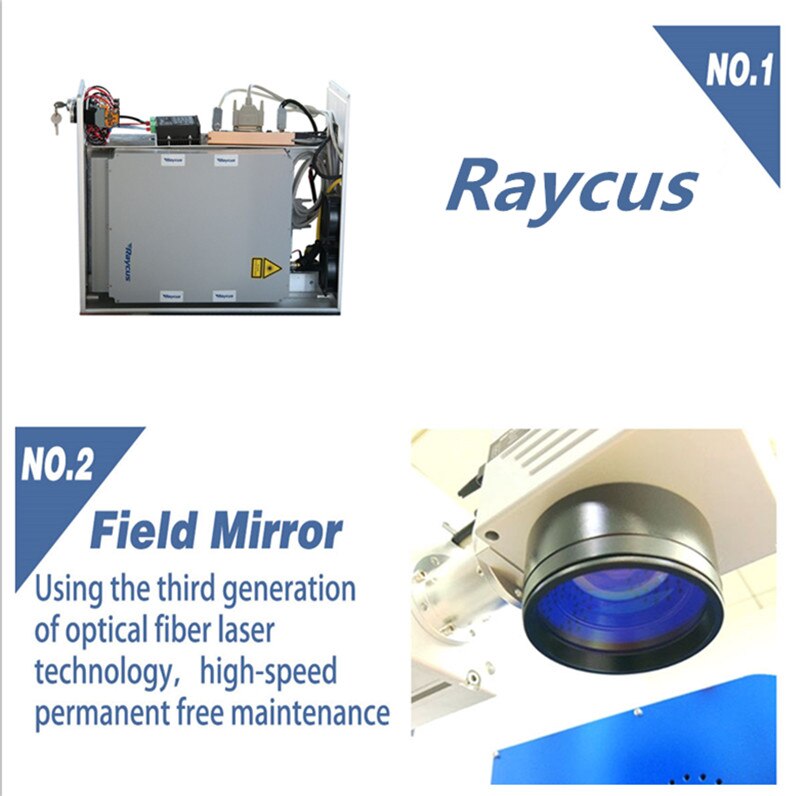

- laser brand: raycus
- marking area: 110x110mm
- optional marking area: 110×110/150×150/200x200mm
- marking speed: 7000mm/s
- marking depth: ≤0.5mm
- cooling mode: Air cooling–Built-in
- power input: 220V / 50HZ / single phase or 110V / 60HZ / single phase
- power support: <400W

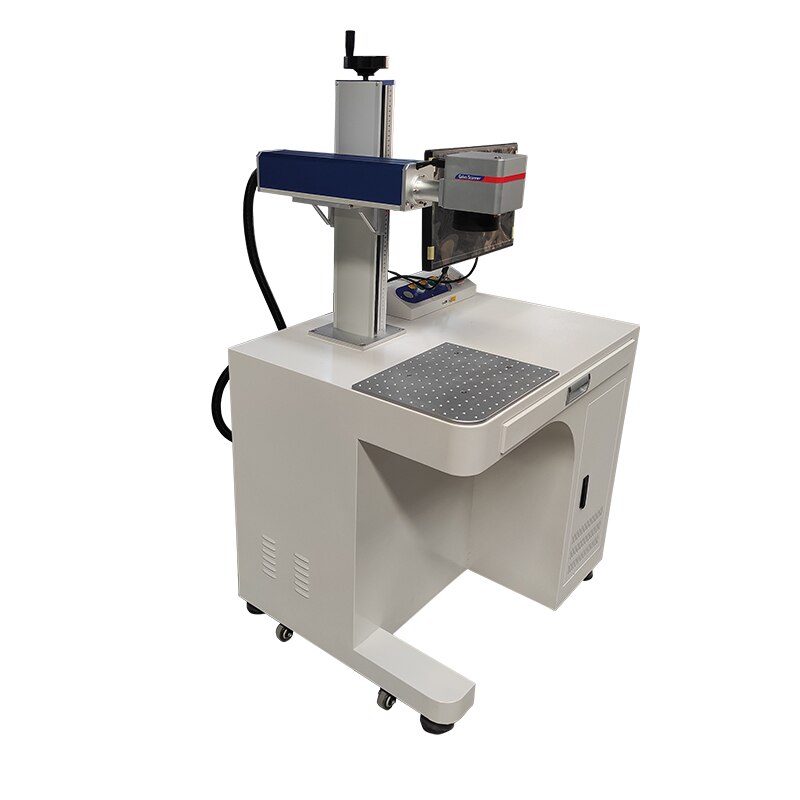

3 year warranty cabinet fiber laser marking machine 20w 30w 50w raycus laser source with computer
Cabinet fiber laser marking machine is a high energy, high precision laser beam on the surface of objects, non-contact, rapid carving of permanent text, patterns of equipment, this type of laser marking machine, with the characteristics of super energy saving, lifetime maintenance free, no loss, simple operation, fine marking effect and so on, this model uses domestic high quality laser.
|
Type |
TS-2020 |
|
Power |
20W |
|
Laser Brand |
Raycus |
|
Optional Marking Area |
110mm*110mm/150mm*150mm/200mm*200mm |
|
Marking Depth |
≤0.5mm |
|
Marking Speed |
7000mm/s |
|
Minimum Line Width |
0.012mm |
|
Minimum Character |
0.15mm |
|
Repeated Precision |
±0.003mm |
|
Life-span of Fiber Laser Module |
100 000hours |
|
Beam Quality |
M2 <1.5 |
|
Focus Spot Diameter |
<0.01mm |
|
Output Power of Laser |
10%~100% continuously to be adjusted |
|
System Operation Environment |
Windows XP / W7–32/64bits / W8–32/64bits |
|
Cooling Mode |
Air cooling–Built-in |
|
Temperature of Operation Environment |
15℃~35℃ |
|
Power Input |
220V / 50HZ / single phase or 110V / 60HZ / single phase |
|
Power Requirement |
<400W |
|
Communication Interface |
USB |
|
Package Dimension |
870mm x770mm x1100mm |
|
Gross weight |
105KG |
|
Optional (Not free of charge) |
Rotary Device, Moving Table, other customized Automation |
Product Sample
Company Information
Jinan Gold Mark CNC Machinery Co., Ltd. is a high-tech industry enterprise specialized in researching, manufacturing and selling the machines as follows: Laser Engraver, Fiber Laser Marking Machine, CNC Router. The products have been widely used in advertisement board, crafts and molding, architecture, seal, label, woodcutting and engraving, stonework decoration, leather cutting, garment industries, and so on. On the base of absorbing the international advanced technology, we provide the clients the most advanced production and perfect after-sale service. In recently years, our products have been sold not only in China, but also as far as Southeast Asia, Middle east, Europe, South America and other overseas Markets.
Packaging & Shipping
Raycus 30W Fiber Laser Marking Machine 110*110mm Metal Engrave portable machine mini laser stamp engraving machine STANDARD PLYWOOD CASE FOR EXPORT
Our Services
FAQ
Q1. How to get the most suitable machine and best price
Please tell us the material you want to engrave or cut? Max size and thickness?
Q2. If we don’t know how to use the machine,can you teach us?
Yes, we will, English manual and video will come along with the machine. You also can contact our service team if you need any help during use our machines.
Q3.How about your after-sales service?
we offer you 24 hours service by phone, Skype or Whatsapp.
Q4. Quality Control:
The whole production procedure will be under regular inspection and strict quality control. The complete machine will be tested to make sure they can work very well before being out of factory. Our machine passed CE Certificate, meet European and American standard, were exported to more than 100 Countries.
Q5. How we pay you?
A. Consult us about this product on line or by e-mail. B. Negotiate and confirm the final price , shipping , payment methods and other terms. C. Send you the proforma invoice and confirm your order. D. Make the payment according to the method put on proforma invoice. E. We prepare for your order in terms of the proforma invoice after confirming your full payment. And 100% quality check before shipping. F.Send your order by air or by sea.
