3-Axis Joystick Potentiometer R300B-M2 5K 3D Security Yuntai Control Ball Machine Keyboard Monitor Joystick

  • Home
  • 3-Axis Joystick Potentiometer R300B-M2 5K 3D Security Yuntai Control Ball Machine Keyboard Monitor Joystick
Sale!

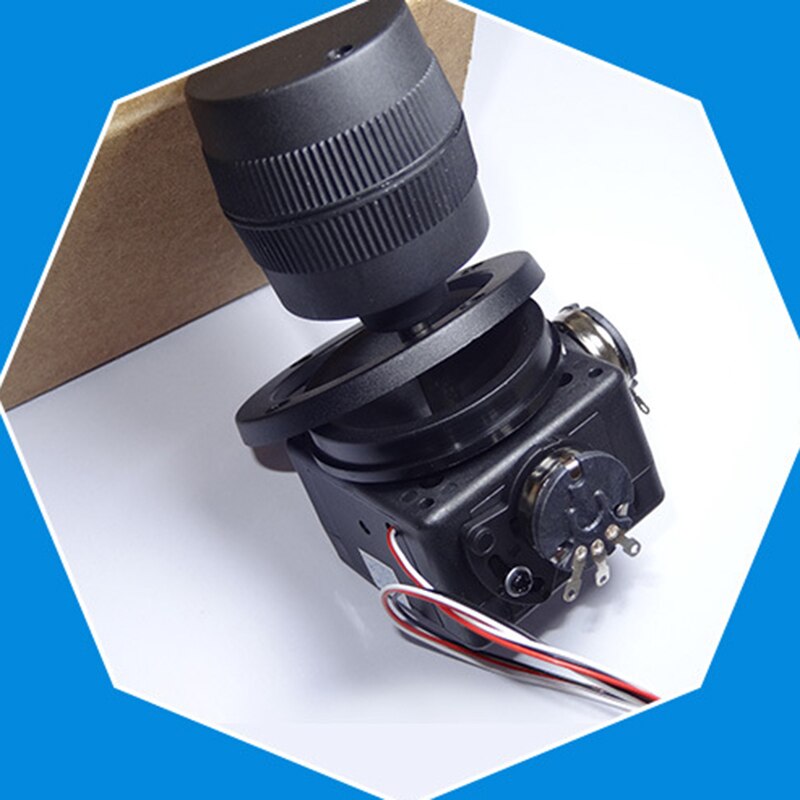

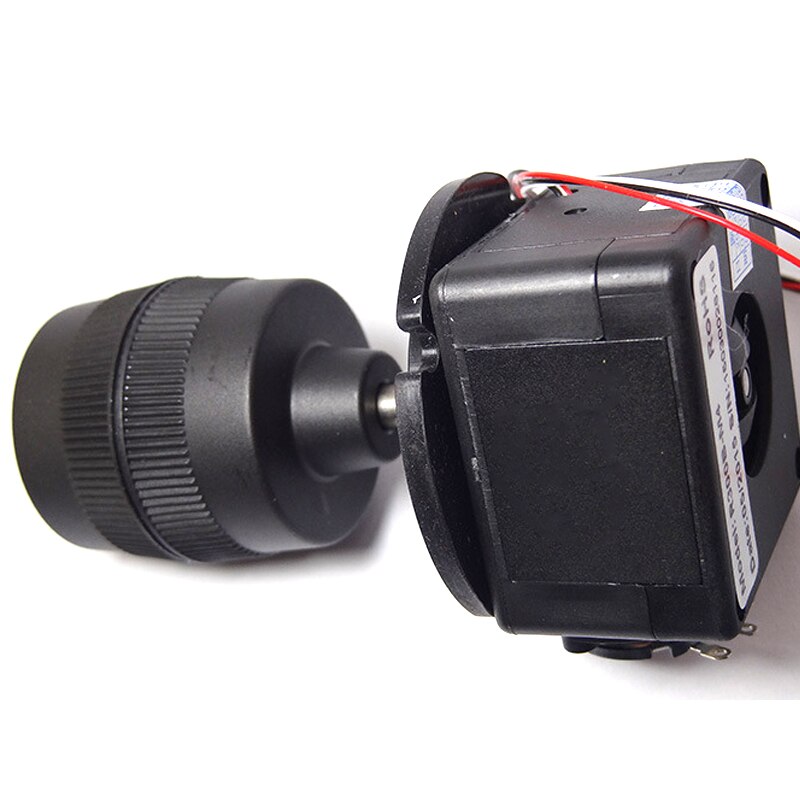

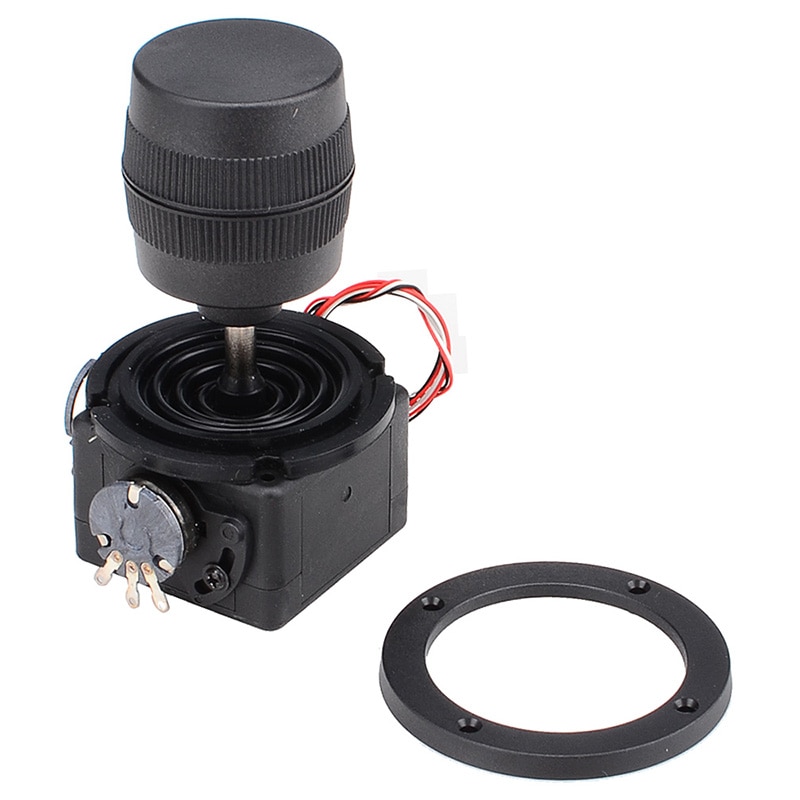

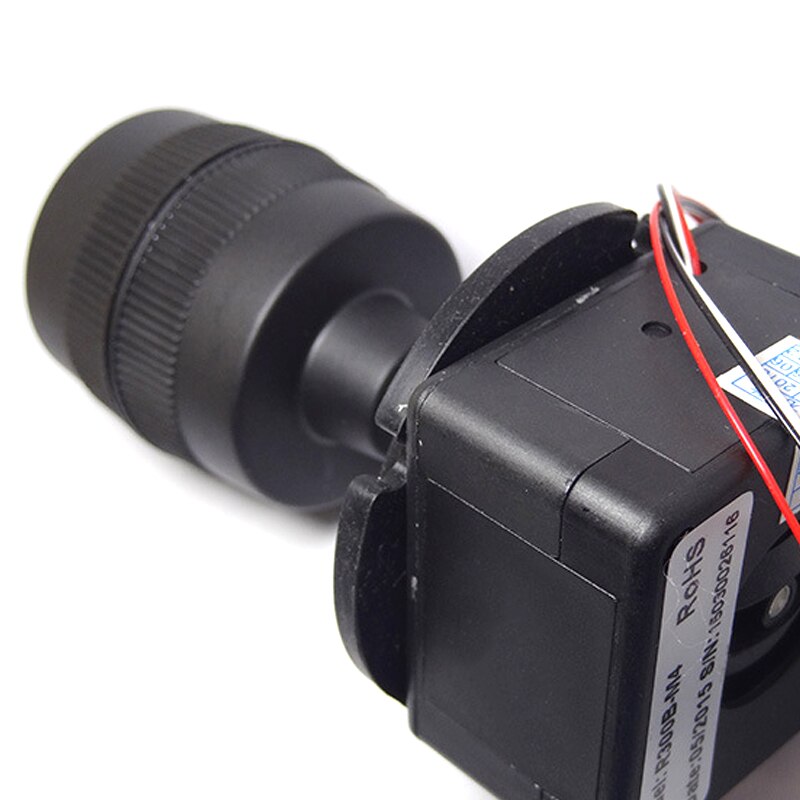

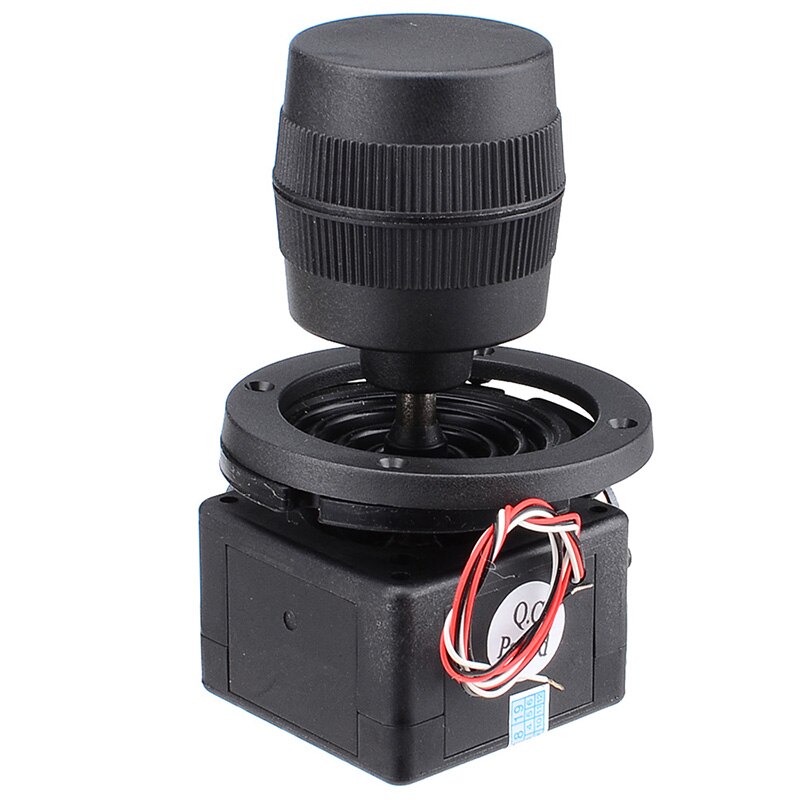

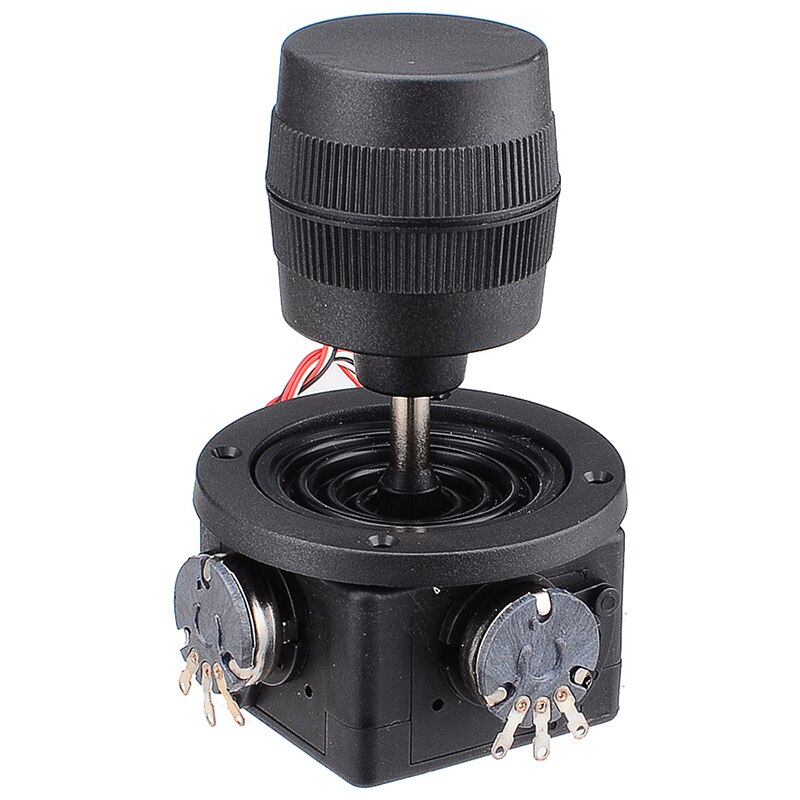

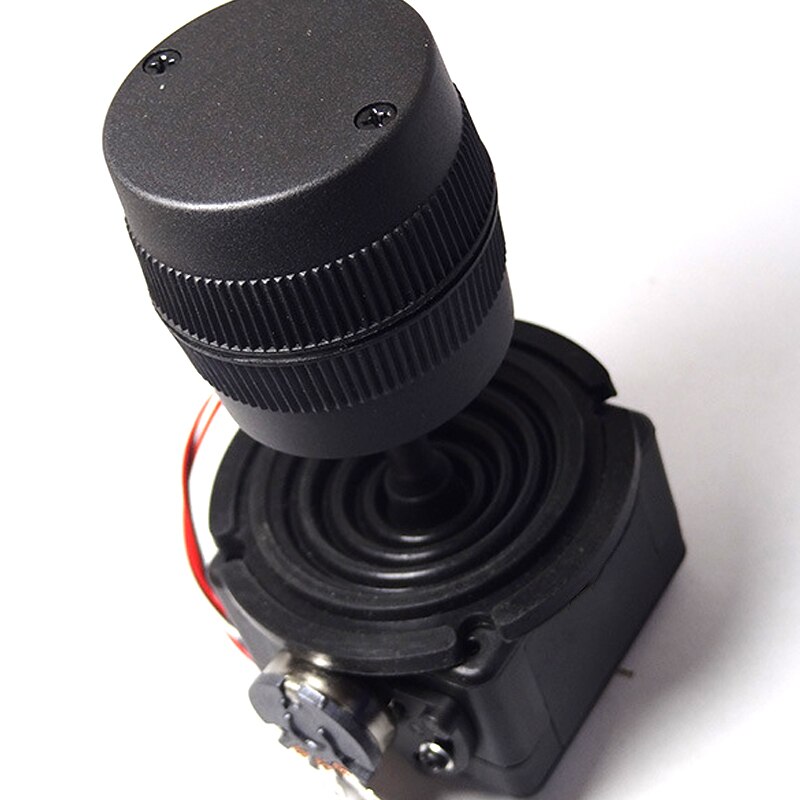

3-Axis Joystick Potentiometer R300B-M2 5K 3D Security Yuntai Control Ball Machine Keyboard Monitor Joystick

$13.66

3000 in stock

SKU: 4001242432860 Category:

Description

  • Brand Name: MESTEK
  • Certification: None
  • DIY Supplies: ELECTRICAL
  • Origin: CN(Origin)

<br />

body {
font-size: 75%;
color: #000;
font-family: Open Sans,Arial,Helvetica,sans-senif,SimSun,”宋体”;
line-height: 1.3;
}
dl {
margin: 0px;
width: 480px;
float: left;
}
dt {
width: 100px;
height: 15px;
float: left;
}
dd {
width: 240px;
height: 15px;
float: left;
}
dl dt {
margin: 0px;
line-height: 22px;
color: #474747;
font-size: 14px;
font-family: tahoma;
}
#product-desc {
width: 100%;
height: 209px;
}
#description {
width: 100%;
height: 50%;
}
#details {
width: 100%;
height: 50%;
}
.ui-box-title {
height: 30px;
font-size: 15px;
font-family: tahoma;
font-weight: bold;
background-color: #ddd;
text-anchor: inherit;
padding-top: 8px;
margin: 0px;
}
.ui-box-body {
margin: 0px;
}
#tbspecifics {
border-right: 1px solid black;
border-bottom: 1px solid black;
}
#tbspecifics tr {
height: 30px;
}
#tbspecifics td {
width: 100px;
border-left: 1px solid black;
border-top: 1px solid black;
}

Flexible handling
Small resetting error
Long life-time
Technical Index:
Resistance value: 5KΩ
Resistance tolerance: ±20%
Independent linear tolerances: ±1%
Resolution: Infinity
Resistance temperature coefficient: ±400 ppm/°c
Output Smoothing: 0.5%
X and Y axis electric rotation: ±250-300
Z-Axis Electric corner: ±450
Insulation Resistance: mω@ vdc,60sec.
Operating torque: X and Y axis 440gf,z shaft 880GF
Error rate of Reset: ±1%
Expected Rotary service life: 500,000 times
Operating temperature: -10°c to 80°c
size:84*50mm
Material:plastic
colour:black
Package Contents:
1 * joystick potentiometer
Only the above package content, other products are not included.
Note: Light shooting and different displays may cause the color of the item in the picture a little different from the real thing. The measurement allowed error is +/- 1-3cm.
