Description
- Type: single circle
- Uses: dedicated
- Resistance adjustment method: rotary
- Resistance change mode: X type (linear type)
- Nominal resistance: 5k
- Brand Name: FGHGF
- Certification: None
- DIY Supplies: ELECTRICAL
- Origin: CN(Origin)

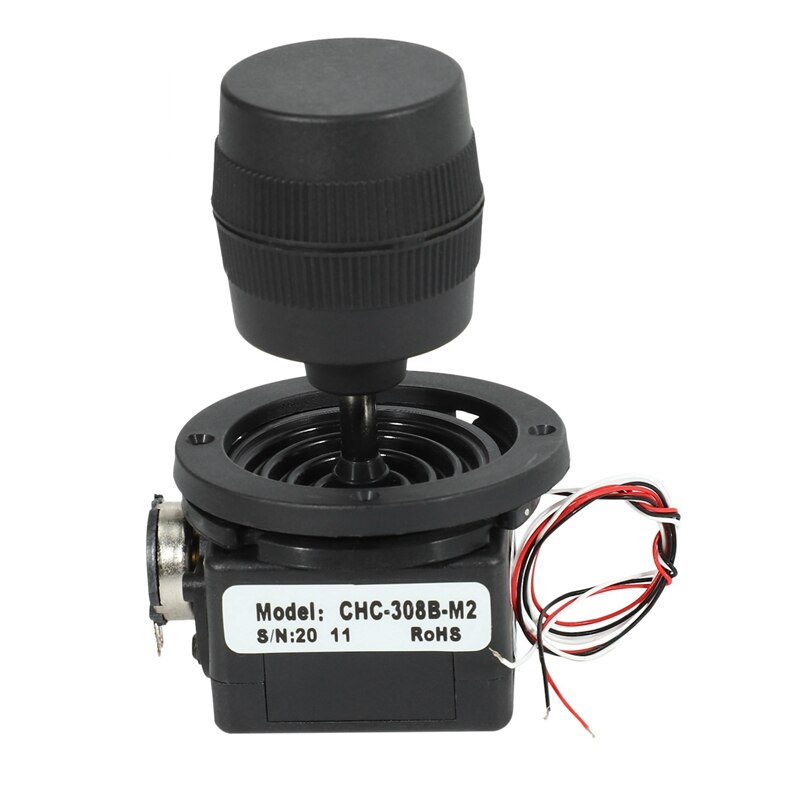

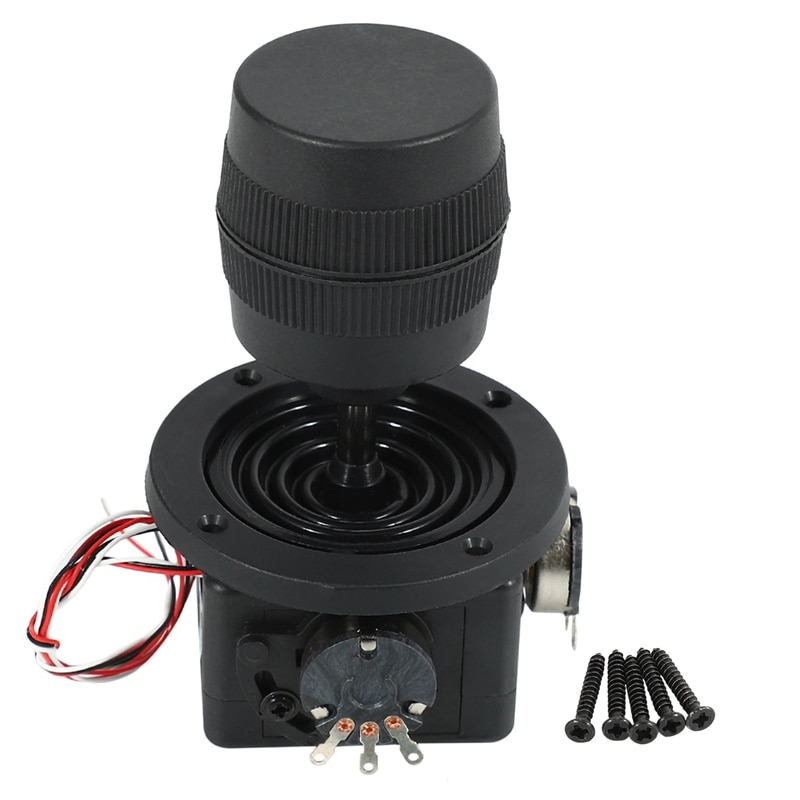

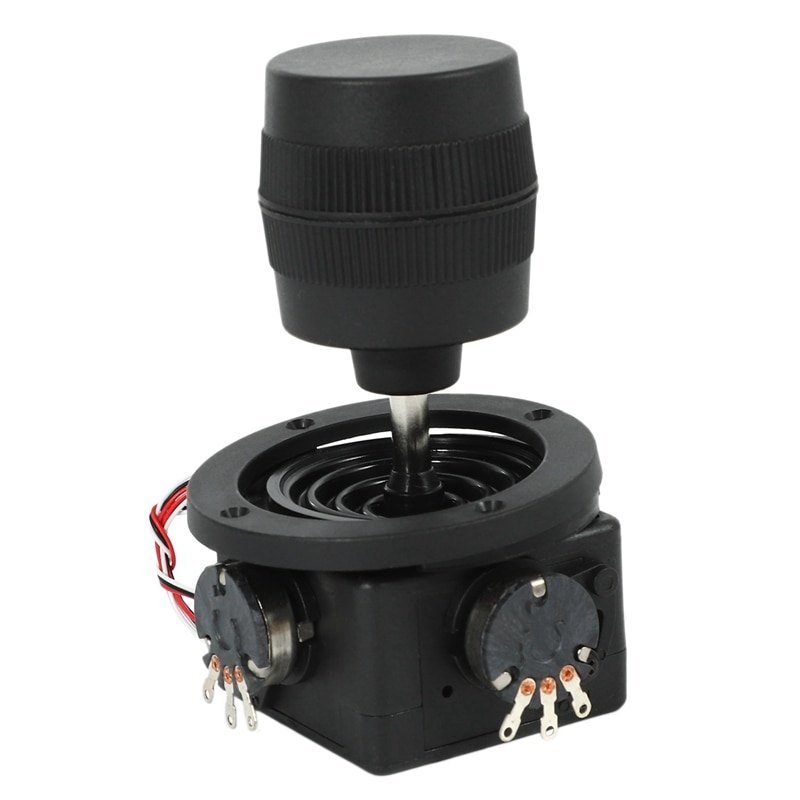

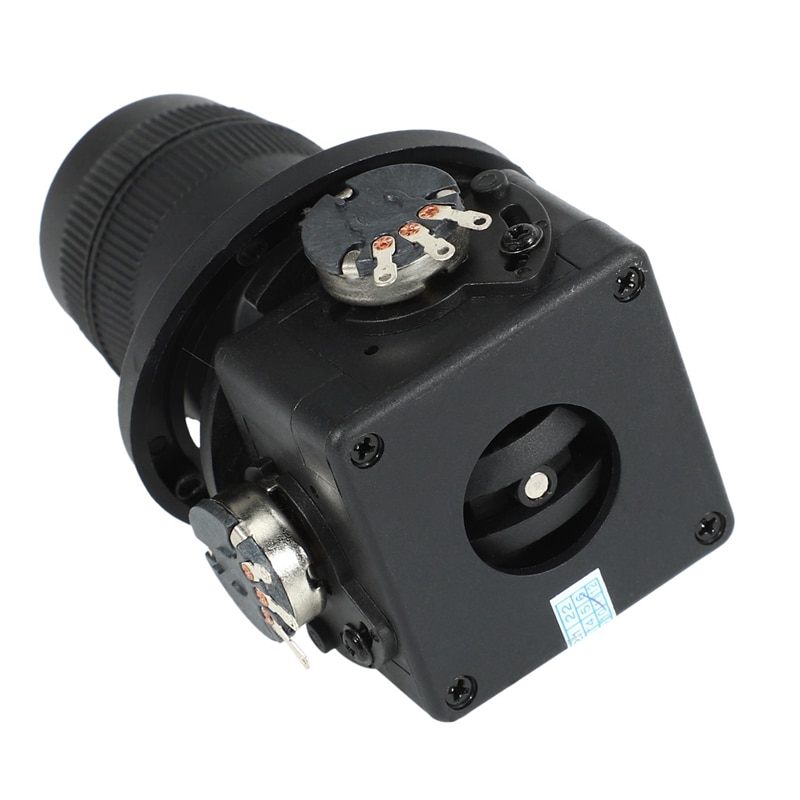

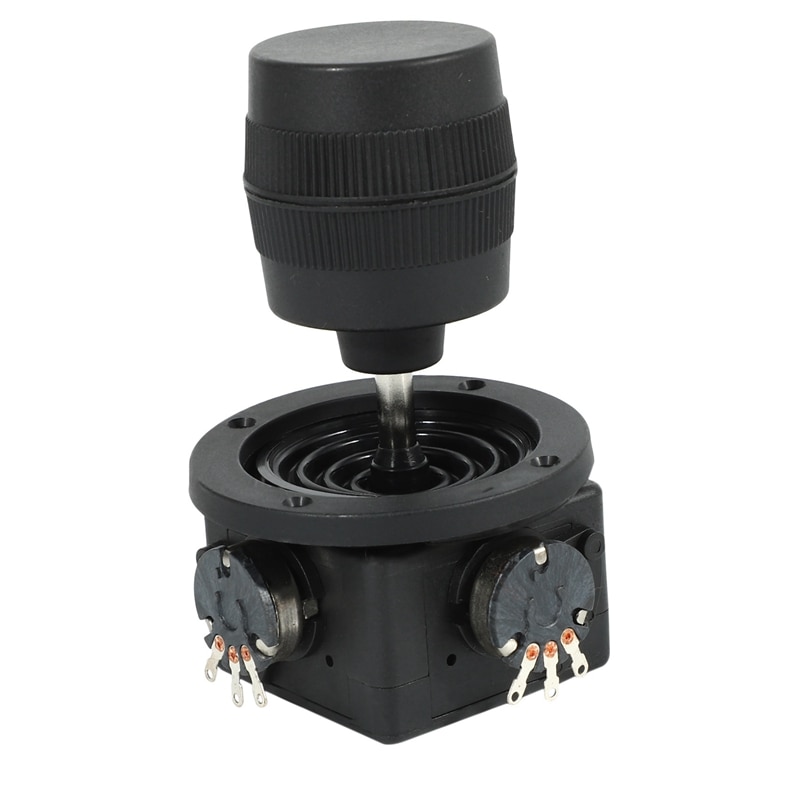

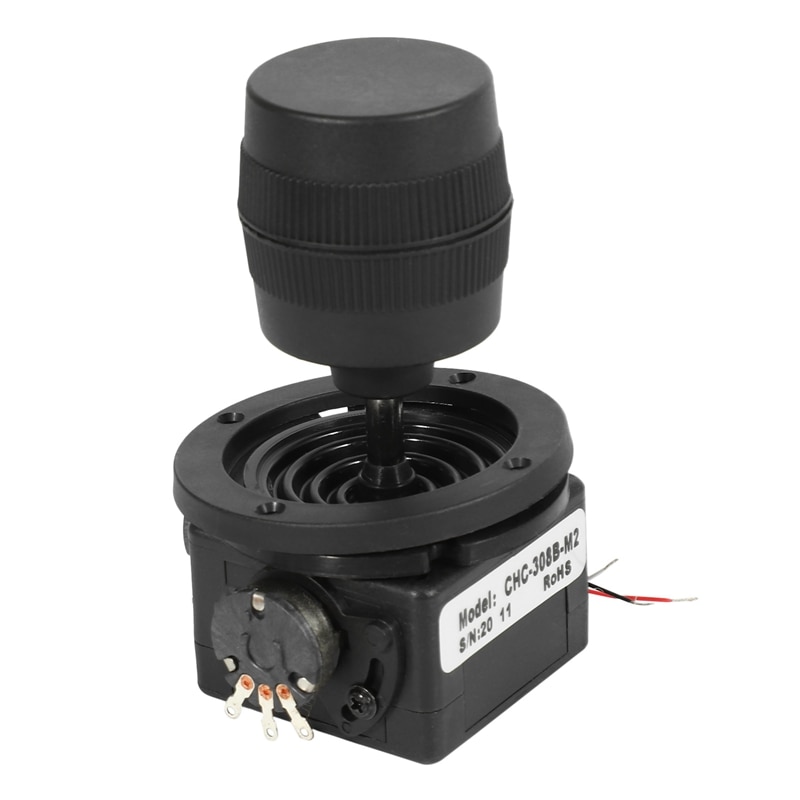

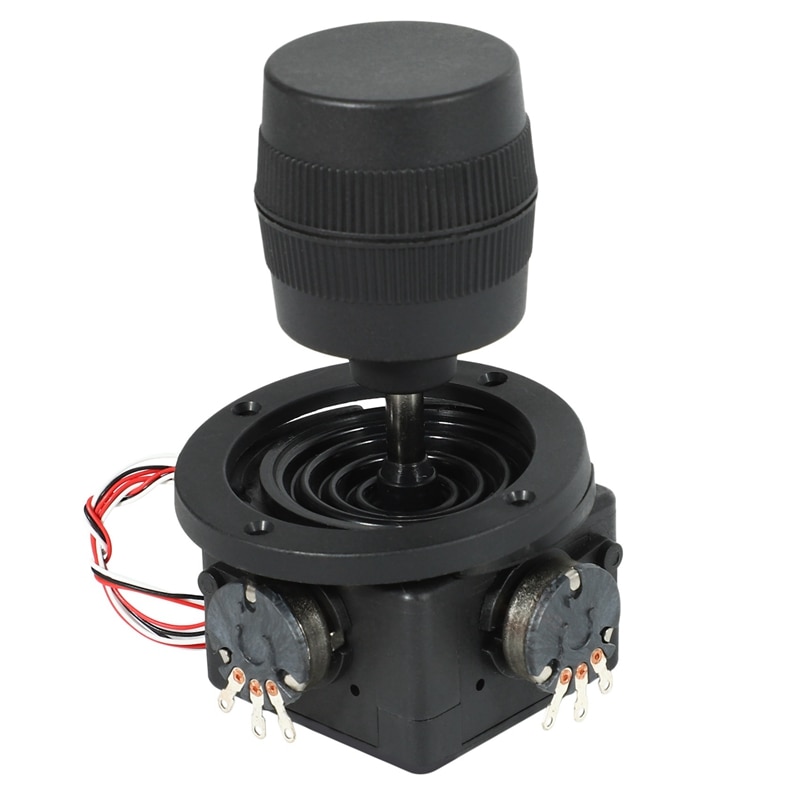

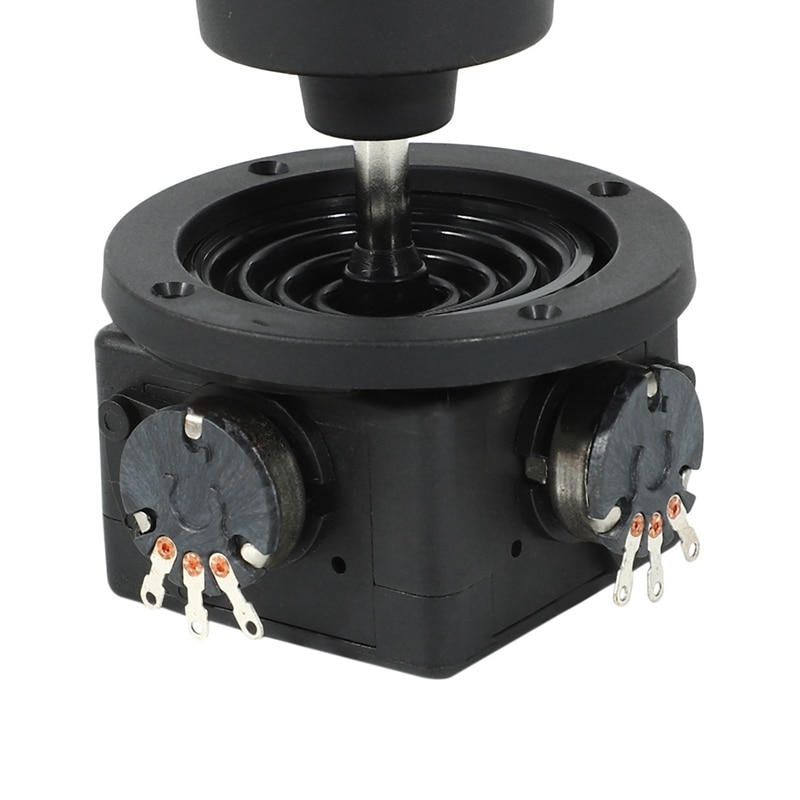

3-Axis Joystick Potentiometer R300B-M2 5K 3D Security Yuntai Control Ball Machine Keyboard Monitor Joystick
Flexible handling
Small resetting error
Long life-time
Technical Index:
Resistance value: 5KΩ
Resistance tolerance: ±20%
Independent linear tolerances: ±1%
Resolution: Infinity
Resistance temperature coefficient: ±400 ppm/°c
Output Smoothing: 0.5%
X and Y axis electric rotation: ±250-300
Z-Axis Electric corner: ±450
Insulation Resistance: mω@ vdc,60sec.
Operating torque: X and Y axis 440gf,z shaft 880GF
Error rate of Reset: ±1%
Expected Rotary service life: 500,000 times
Operating temperature: -10°c to 80°c
size:84*50mm
Material:plastic
colour:black
Package Contents:
1 * joystick potentiometer
Only the above package content, other products are not included.
Note: Light shooting and different displays may cause the color of the item in the picture a little different from the real thing. The measurement allowed error is +/- 1-3cm.
Small resetting error
Long life-time
Technical Index:
Resistance value: 5KΩ
Resistance tolerance: ±20%
Independent linear tolerances: ±1%
Resolution: Infinity
Resistance temperature coefficient: ±400 ppm/°c
Output Smoothing: 0.5%
X and Y axis electric rotation: ±250-300
Z-Axis Electric corner: ±450
Insulation Resistance: mω@ vdc,60sec.
Operating torque: X and Y axis 440gf,z shaft 880GF
Error rate of Reset: ±1%
Expected Rotary service life: 500,000 times
Operating temperature: -10°c to 80°c
size:84*50mm
Material:plastic
colour:black
Package Contents:
1 * joystick potentiometer
Only the above package content, other products are not included.
Note: Light shooting and different displays may cause the color of the item in the picture a little different from the real thing. The measurement allowed error is +/- 1-3cm.
|
|
