Description:

This offline controller is designed for the use of Mini CNC router 1610/2418/3018 and even with more advanced function of tool set, limit switch supportive, Laser supportive; Offline and Bluetooth supportive.

Specification:

Firmware: GRBL 08, 09, 1.1 and so on

Input Voltage: DC 7V- 36V

Applicable CNC Router: 3 Axis CNC router 1610; 2418; 3018

Features:

1. Support GRBL and benbox firmware. Support CNC 3-axis laser engraving machine.

2. The stroke length isn’t limited to 30×18 and 24×18, it can be setting other length. Please set the stroke in the command.

For example

3018, please set the stroke in the command, 30cm length and 18cm width;

2418, please set the XY stroke in the command, length 24cm, width 18cm.

Function:

1: Manual control: manually adjust the position of XYZ three axes as the carving starting point, and manually open or close the spindle.

2: File engraving: the offline board can be connected to the grbl control board for engraving after saving the file, and there is no need to connect to the computer.

3: Storage files: the offline version is identified as USB mass storage device after connecting to the computer, which can directly access engraving files.

Instructions:

GRBL Off-line Controller

Press Z+ and Z- , the Z axis will move up and down.

Press X+ and X- , the X axis will move left and right.

Press Y+ and Y- , the Y axis will move Front and Back.

Press SPIN : Spindle on (Laser on ), Spindle off (laser off)

Press SMOD: return

Press Z+ for 5 seconds , change the Language to English.

SD Card: Included , you need a SD card reader to write into the root directory G-code files .

Notice:

The Laser Interface is 3 pin on this control board. Only support 42 stepper motor.

Package Included:

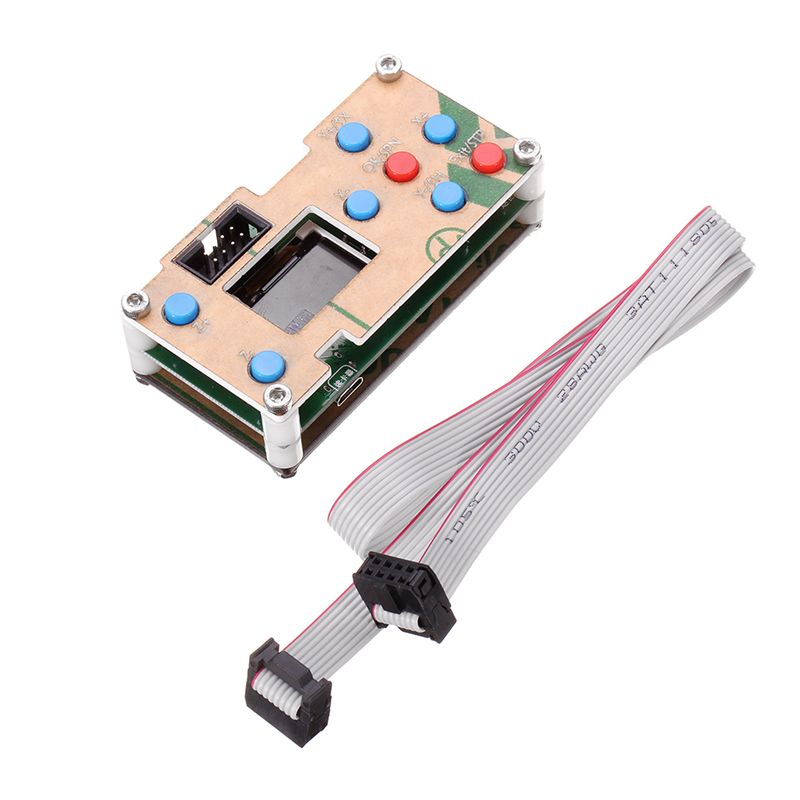

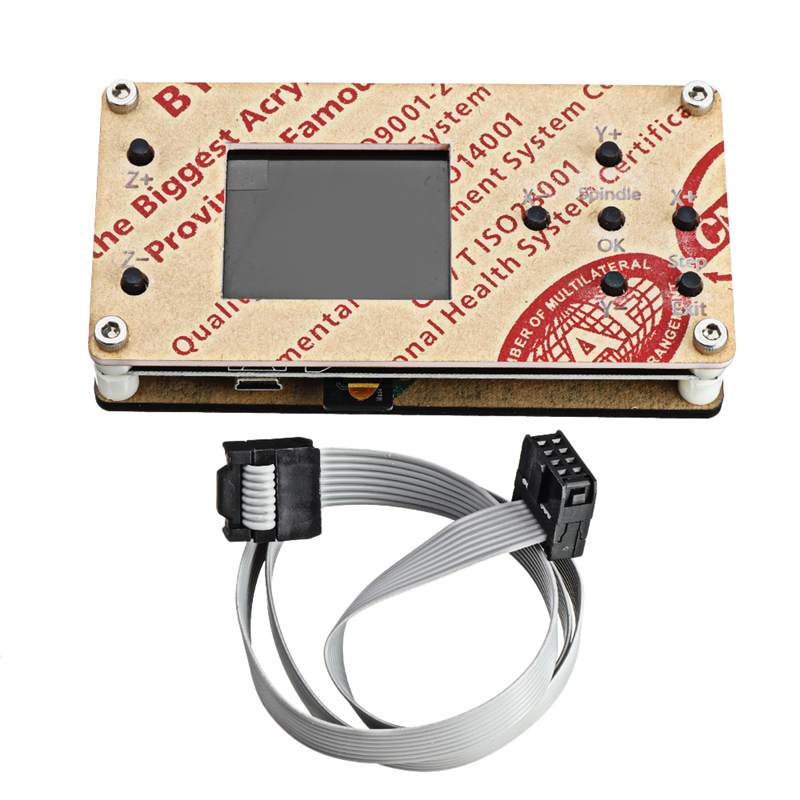

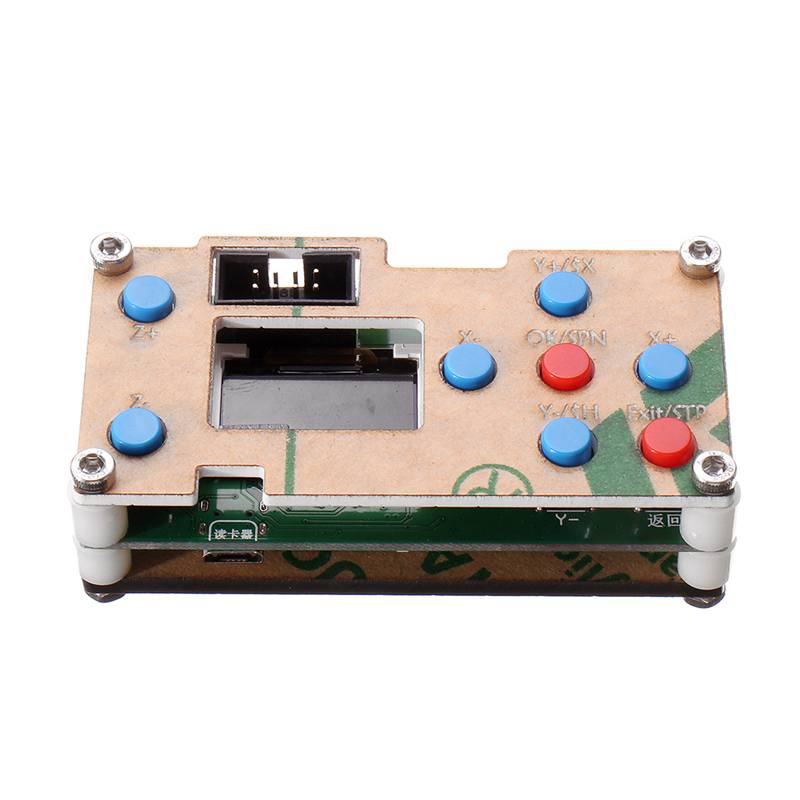

1 x LCD Screen GRBL Controller

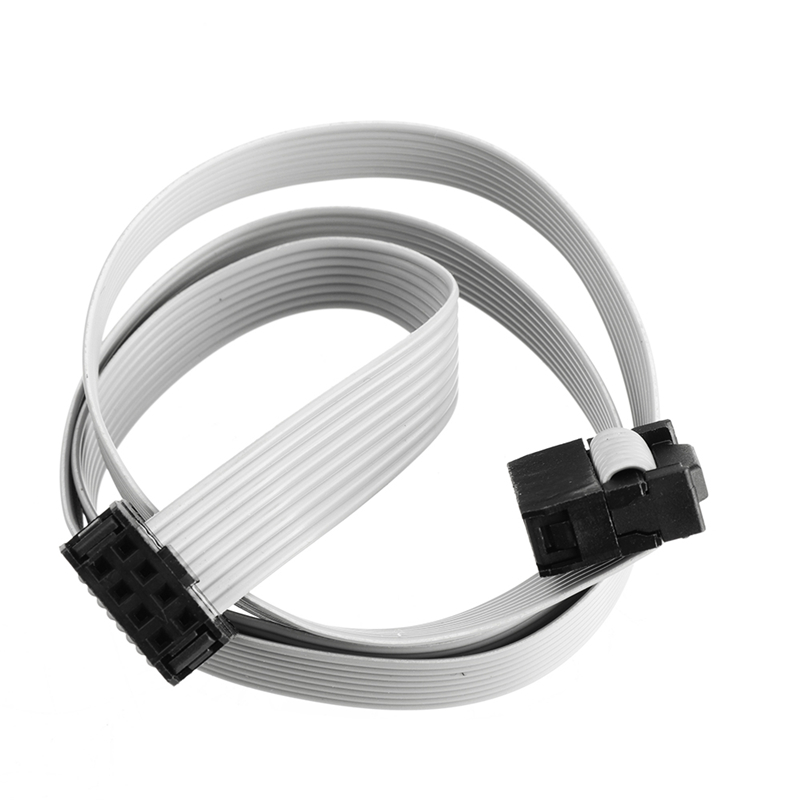

1 x Cable for Spindle Connection

1 x SD Card

More Details:

?
