Description
- Brand Name: laserland
- Certification: NONE
- Origin: CN(Origin)
3.5W 450nm 445mW Blue Laser Module f CNC Carving w/ 3500mW Nichia Laser Diode Focusable Lens f DIY Engraving Cutting Cutter TTL

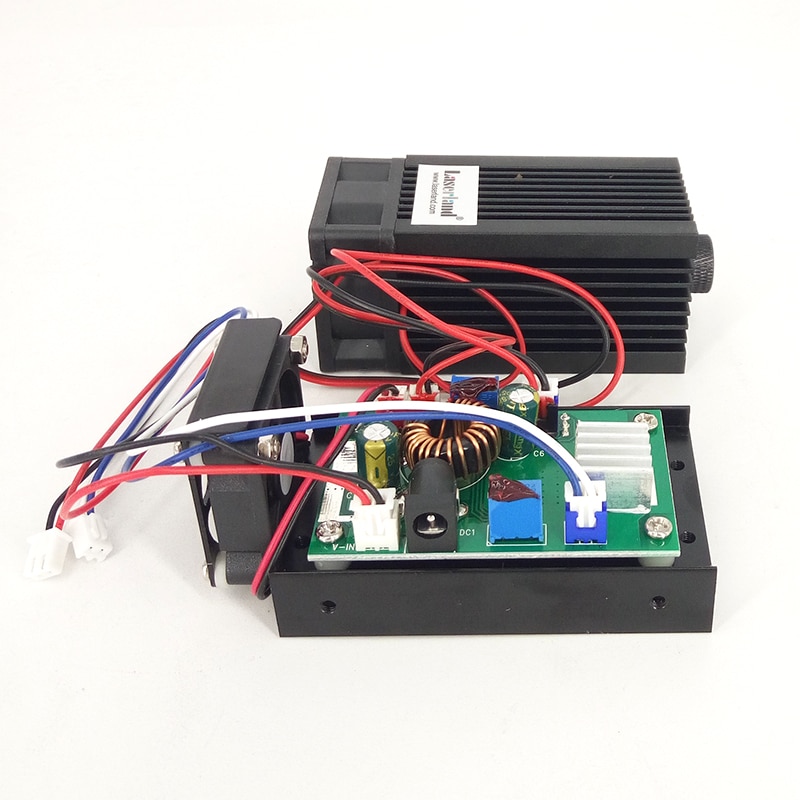

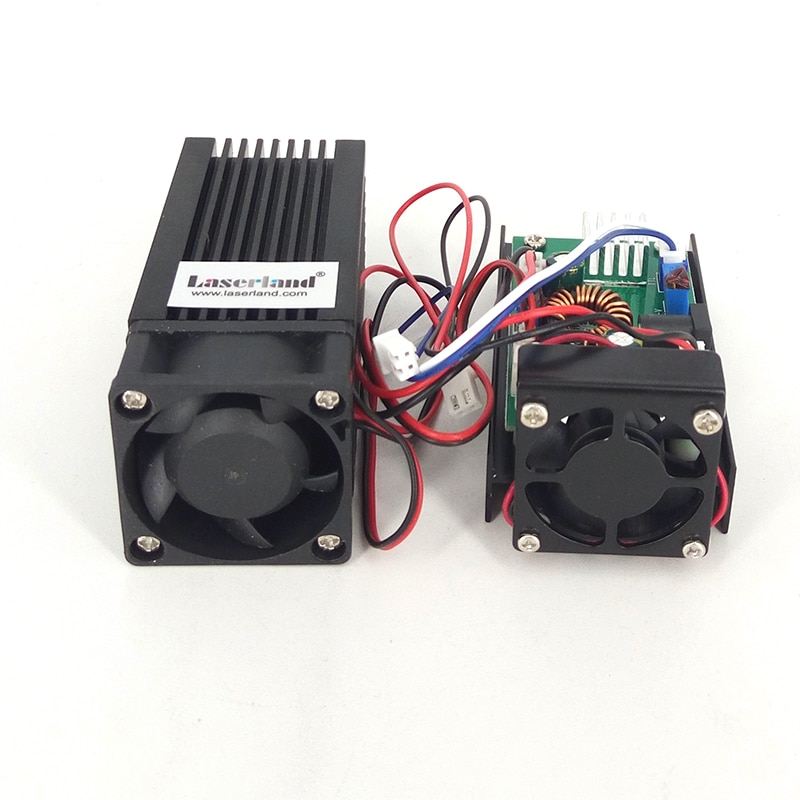

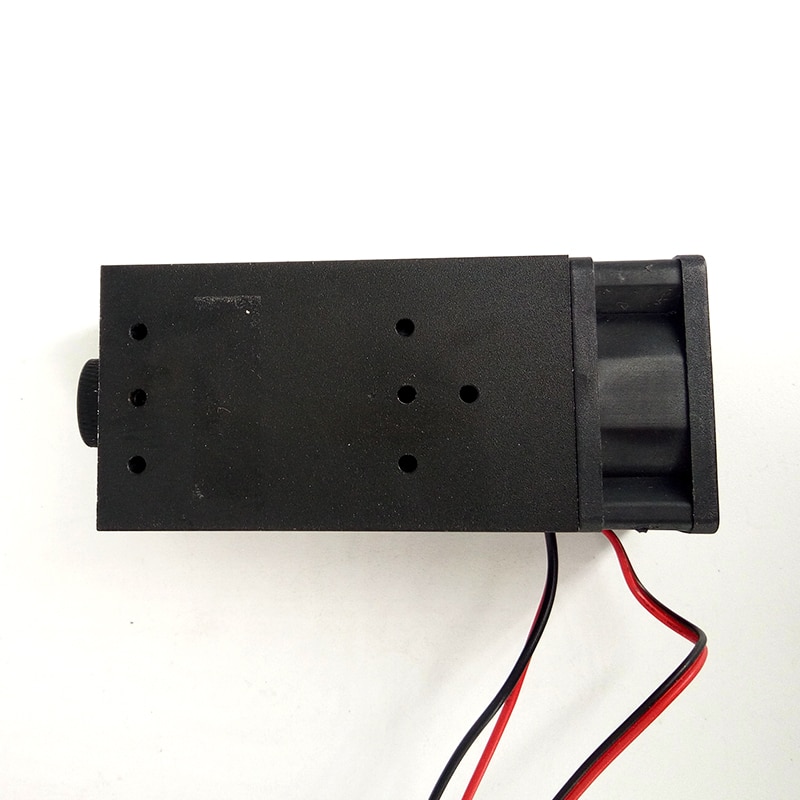

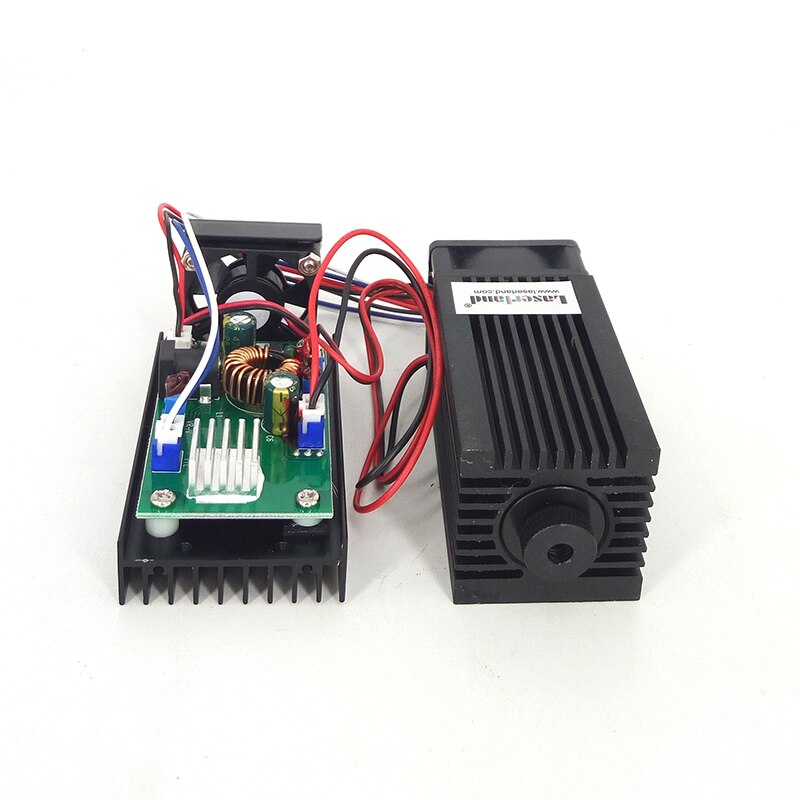

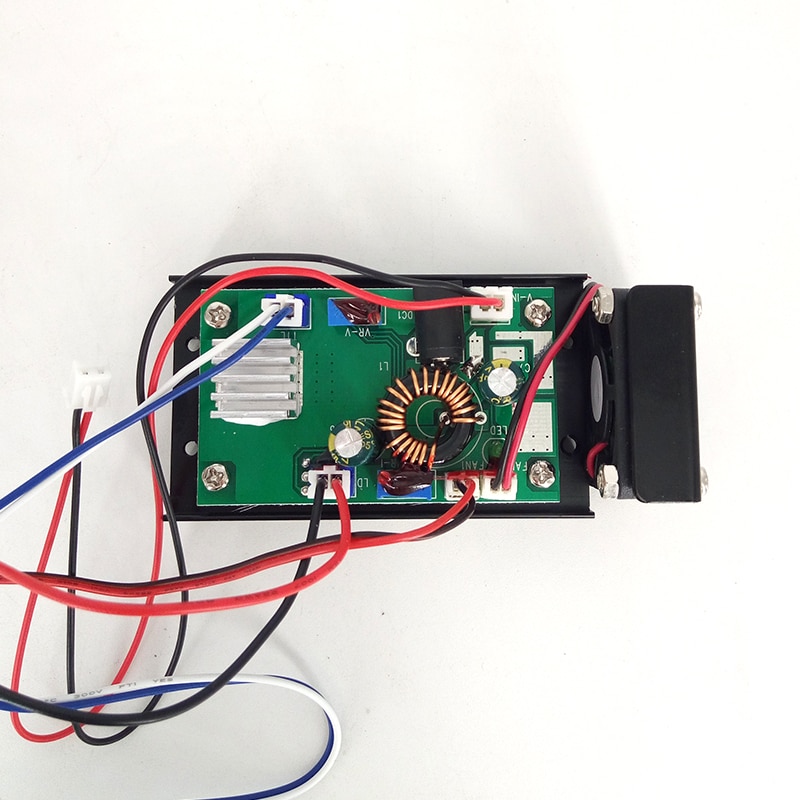

450nm 445mW Blue Laser Module for CNC Carving w/ 3500mW Nichia Laser Diode
Focusable Lens for DIY Engraving Cutting Cutter w/ TTL
Feature
3.5W High Power, True Power
Nichia 3.5W 3500mW Laser Diode Inside
Focusable Glass Lens,
AR Coated for Higher Transmittance
TTL Modulation: 0-5V 25KHZ
Small Size for Laser Engraver DIY and Industrial Application Use
Applicaitons: Wood Carving, Plastic PVC, Marking, Cloth, Soft Leather, PU etc.
Specification
Model 450MD-3.5W
Output Power 3.5mW (after the lens and driver consumption, we only mark it as 3w output on the sticker
Laser Diode: Nichia 450nm NDB7a75 3.5w
Wavelength 450nm
working voltage DC 12V
working current 1-3A
beam diameter 0.5-1.2mm
TTL 0-5V
Divergence 5mrad
Focusable Yes
Lens Glass
Dimensions 40*40*100mm
Working Life >5000 Hours
