Description
- Brand Name: QXHFITEBER
- Certification: NONE
- Origin: CN(Origin)
- Item Length: 1m
- Compatible: Ubiquiti
- Compatible: Mikrotik
- Compatible: Cisco
- Compatible: Arista
- Compatible: Juniper
- Compatible: HP
- Compatible: Dell
- Compatible: Finisar
- Compatible: H3C
- Compatible: Huawei
- Fiber Type: Multimode
- Connector Type: LC/UPC
- Size: 10*8*5mm
- Model Number: NVO-25-SR
- OEM: Yes
- Factory: Yes
- Certificate: CE,FCC,ISO,ROHS
- Wavelength: MM 850nm,SM(1310nm,1490nm,1550nm)
- Fiber Type: LC,SC
- Distance: 550M,2KM-120KM
- Transmission Rate: 155M,1.25G,2.5G,6G,10G,16G,25G,40G,100G

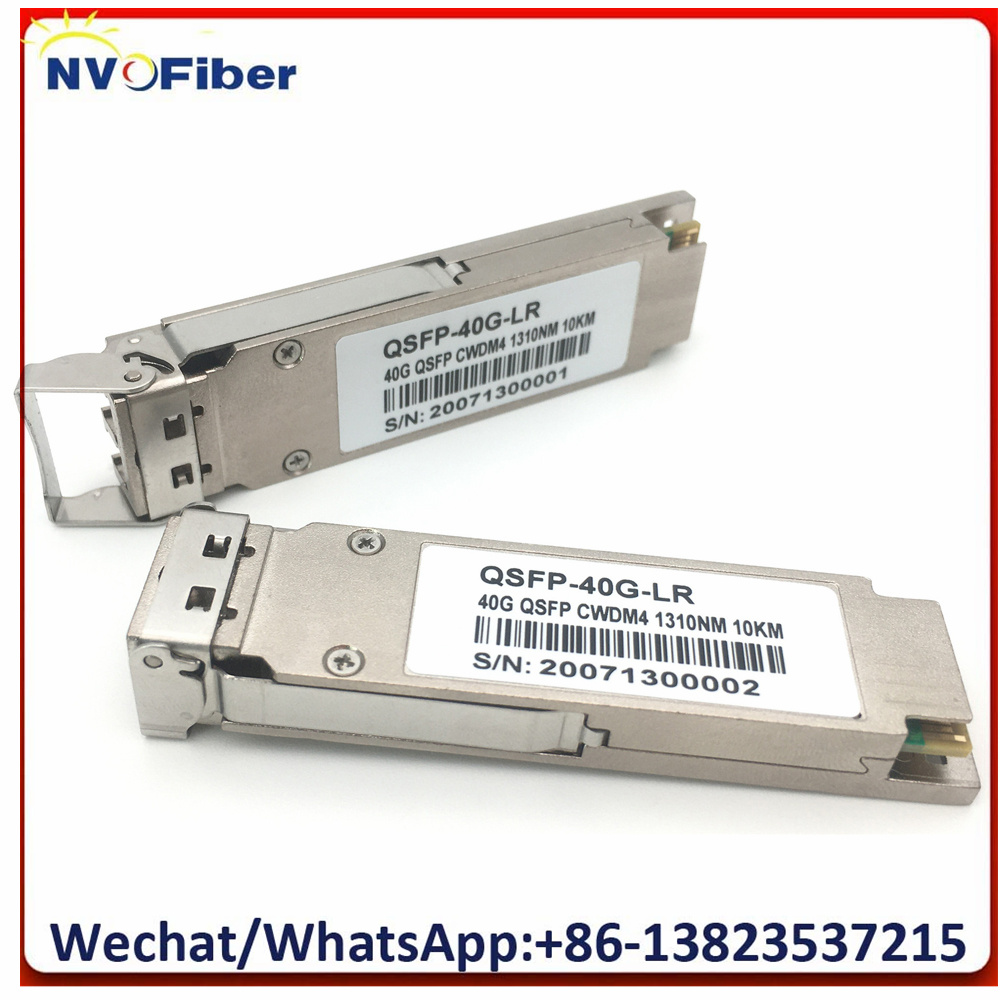

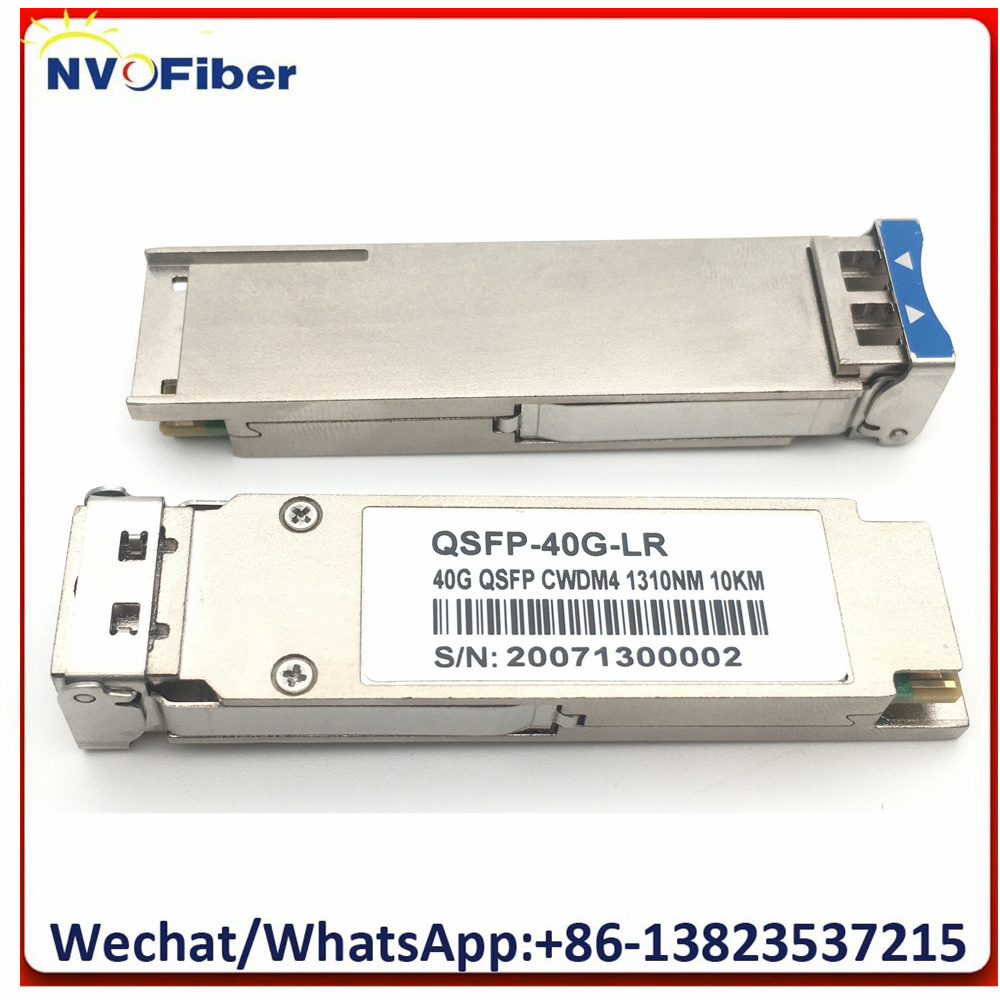

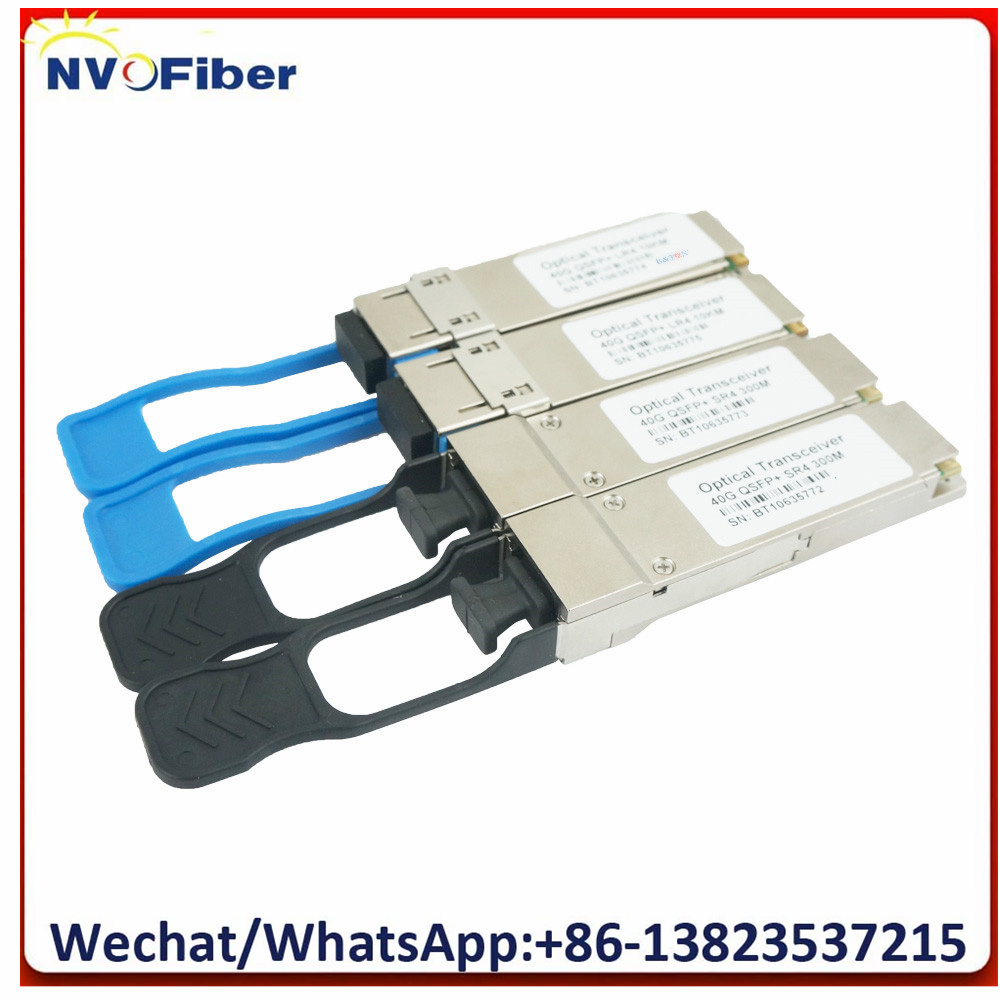

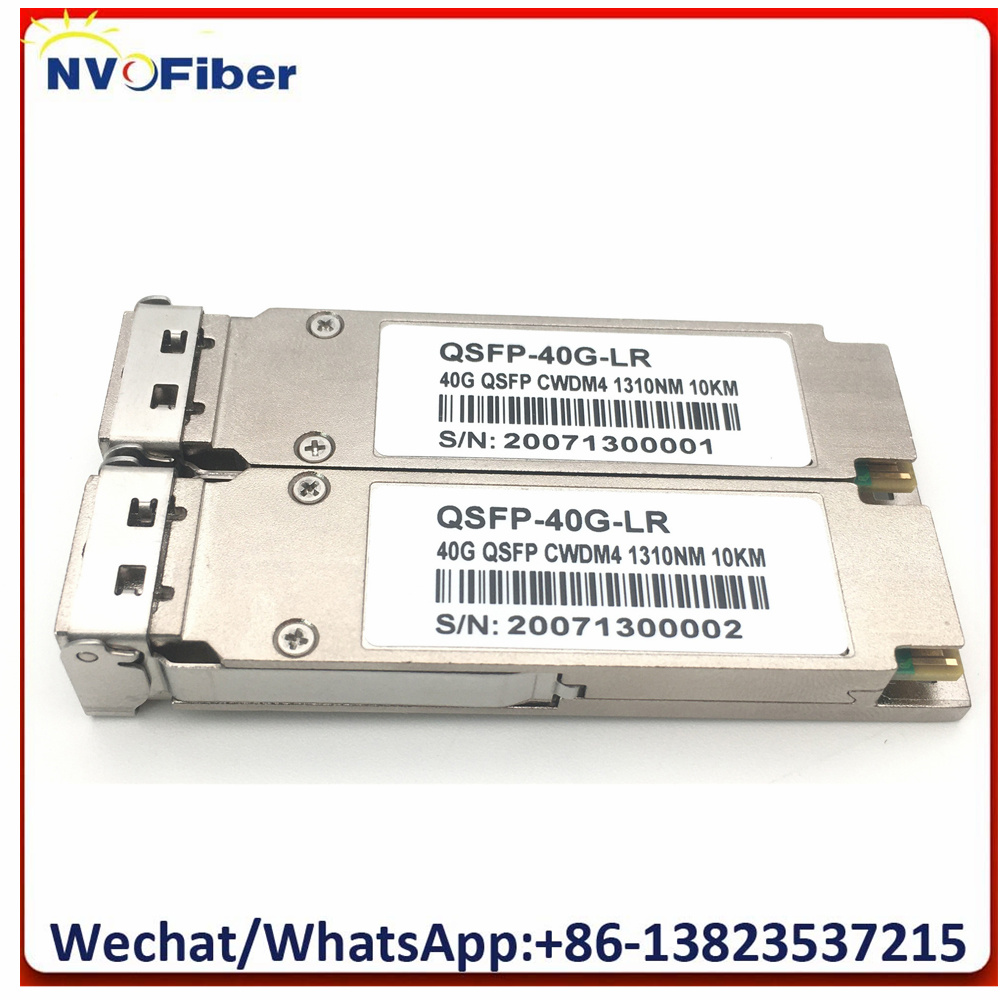

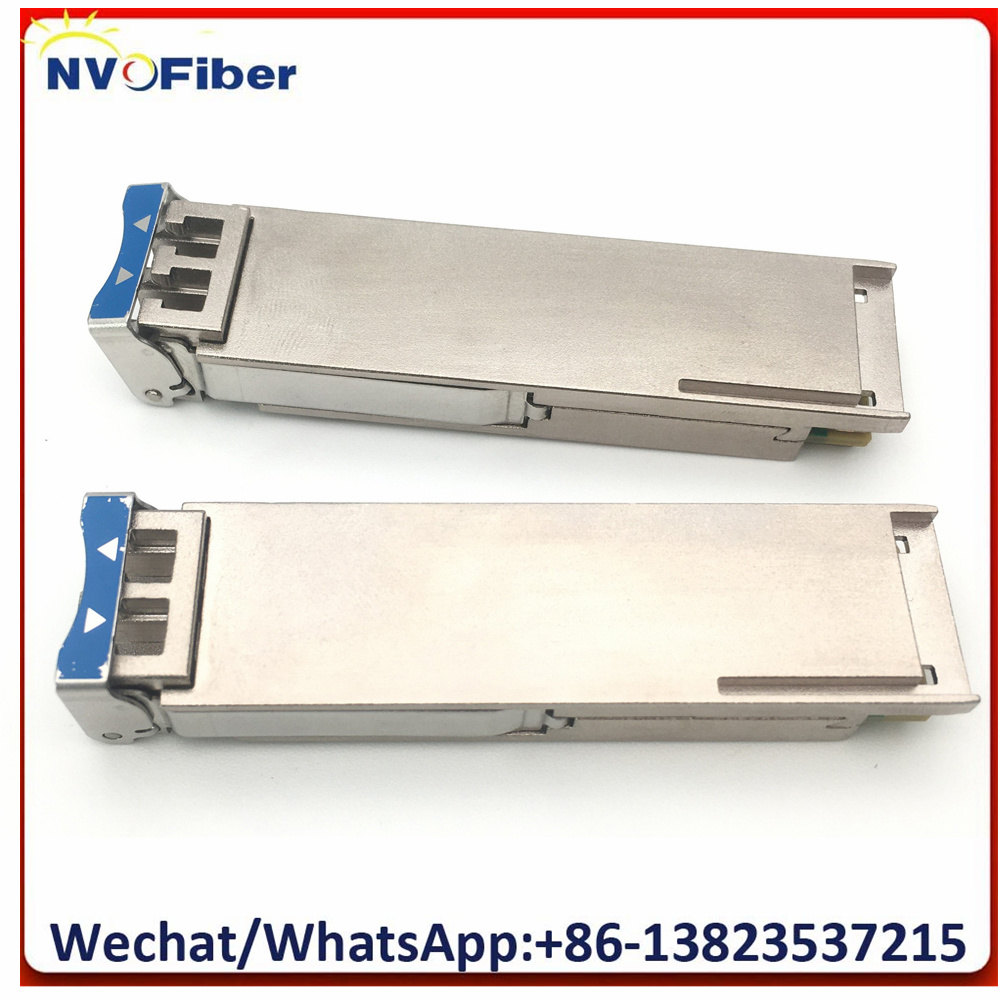

2Pcs/Lot! 40G QSFP+ LR4 LC SMF 10km DOM Optical Transceiver, 40G QSFP LR4 CWDM4 QSFP+ 40G LR4 LC 10KM MPO Module
What is Your Switch Mode?
Note：This listing is for Cisco Switch, if you need other compatibility please kindly leave the Switch’s Brand and Model, when you make an order!
Welcome to NVOC Factory Store.
40Gb/s QSFP+ Optical Transceiver Specs
Features:
●Supports 1.06 to 10.5Gb/s bit rates per Channel
●Four-Channel ,1×12 MPO receptacle
●Hot pluggable QSFP+ form factor
●VCSEL 850nm array Technology
●Applicable for 100m&300m on OM3 MMF,150m&400m on OM4 MMF.
●Built-in digital diagnostic functions
●Low power consumption, < 1.5W
●Unretimed XLPPI electrical interface
●Operating case temperature: -5°C to 80 °C Applications
●40GBASE-SR4 40G Ethernet
●Datacom/Telecom switch & router connections
●Data Aggregation and Backplane Applications
●Proprietary Protocol and Density Applications
●Infiniband transmission at 4CH SDR, DDR and QDR
●Other optical links
Product Descriptions
It is a Four-Channel, Pluggable, Parallel, Fiber-Optic QSFP+ Transceiver for 40 Gigabit Ethernet Applications. This transceiver is a high performance module for short-range multi-lane data communication and interconnects applications. It integrates four data lanes in each direction with 40 Gbps bandwidth.one version is Each lane can operate at 10.5Gbps up to100m using OM3 or 150m using OM4 Multimode fiber,another version is Each lane can operate at 10.5Gbps up to300m using OM3 or 400m using OM4 Multimode fiber These modules are designed to operate over multimode fiber systems using a nominal wavelength of 850nm. The electrical interface uses a 38 contact edge type connector. The optical interface uses an 12 fiber MTP (MPO) connector. This module incorporates proven circuit and VCSEL technology to provide reliable long life, high performance, and consistent service.
Company Brief
Shenzhen New Vision Optical Communication Co.,LTD. is one of the powerful and high-tech companies specialized in Optic fiber transmission, network communications equipment and the provision of fiber to the home (FTTH) products. All the products manufactured strictly carry out international and national relevant technical standards. ISO9001-2008 quality management system and ISO14001-2004 environment management system are implemented comprehensively. The products are widely used in telecommunication and electric power and optical fiber CATV and the transmission network of data optical fiber and optical fiber communication system and Security field of high-definition video.
Our major products are Communications Fiber cable, Power Fiber cable, FTTH fiber cable and Mobile fiber Cable; optic media converter, digital video optical transmission systems and Optical Transceiver Modules; HD HDMI / SDI video optical transceiver , optical transceiver modules, Ethernet fiber optic transceivers and fiber optic accessories.
Professional research ,design and production team,The concept of innovation and mutual benefit and win-win. The multiple OEM/ODM service is provided for famous brand of domestic and overseas. It is exported to America, Canada, Romania, Mexico, Argentina, Brazil, West Africa, Thailand, and Saudi Arabia
