Parameters

Model:KSS-151A
Output wavelength : 780nm / + 5nm
Output power : 3MW-5mW
Size : φ 5.6 mm TO18
Service life : > 6000 hours
Working voltage : 2Vdc
Working current : < 40mA Working temperature : - 10 ℃ ~ + 50 ℃ Storage temperature : - 40 ℃ ~ + 80 ℃ Features The laser diode is and precise and sensitive optical instrument. Before carrying on some laser DIY activities, please read about the technical information first and protect your eyes before laser ray. Be sure the operator has experience in optics DIY or testing. and Don't operate when the power is connected. Please ask us for the datesheet of the LD.

Package

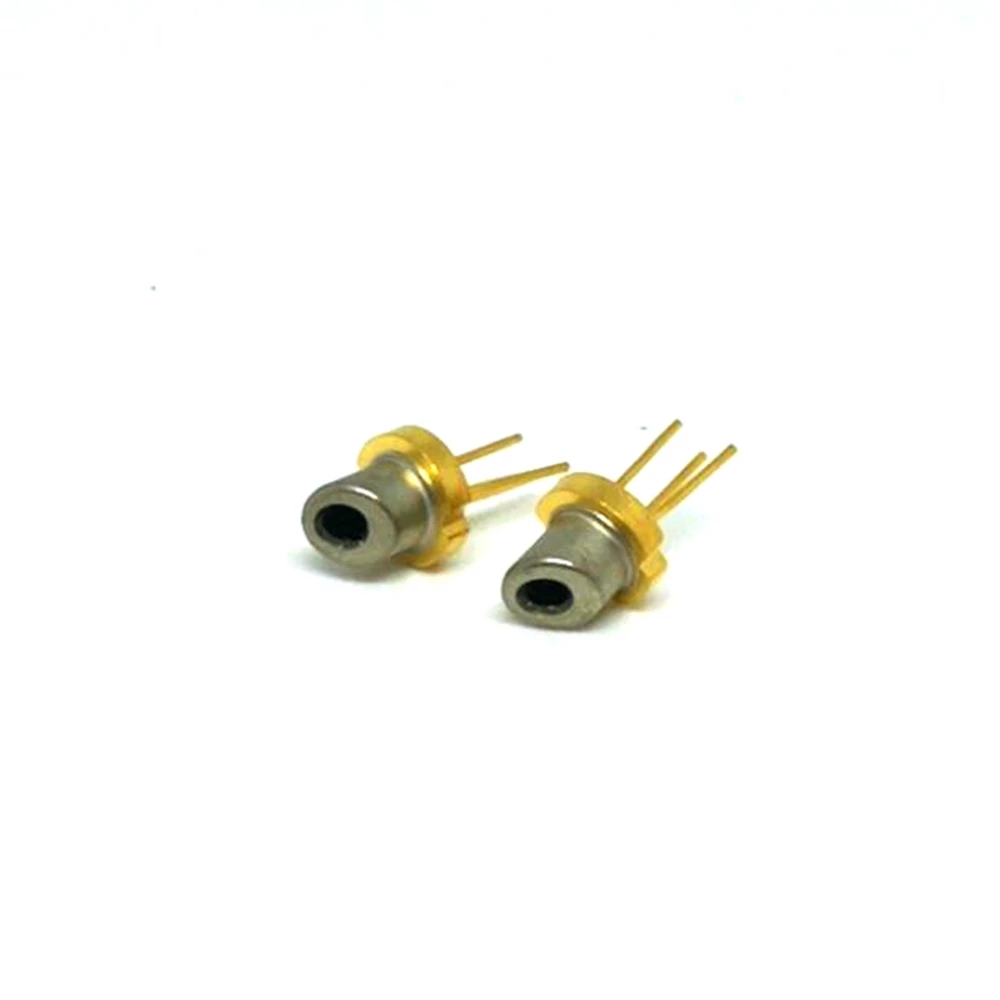

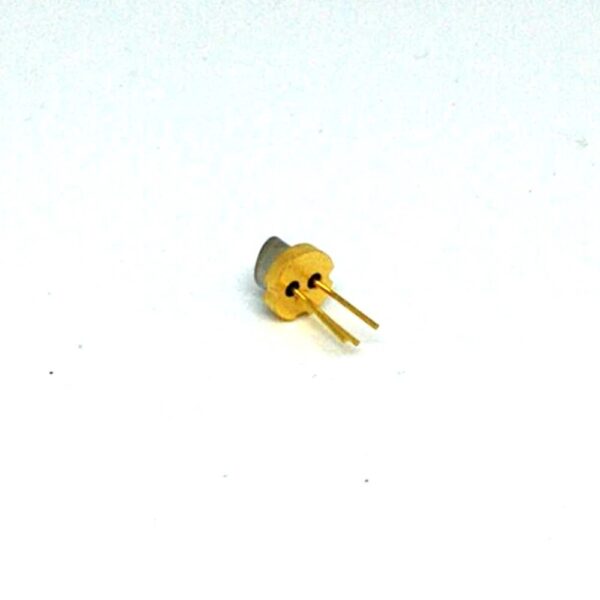

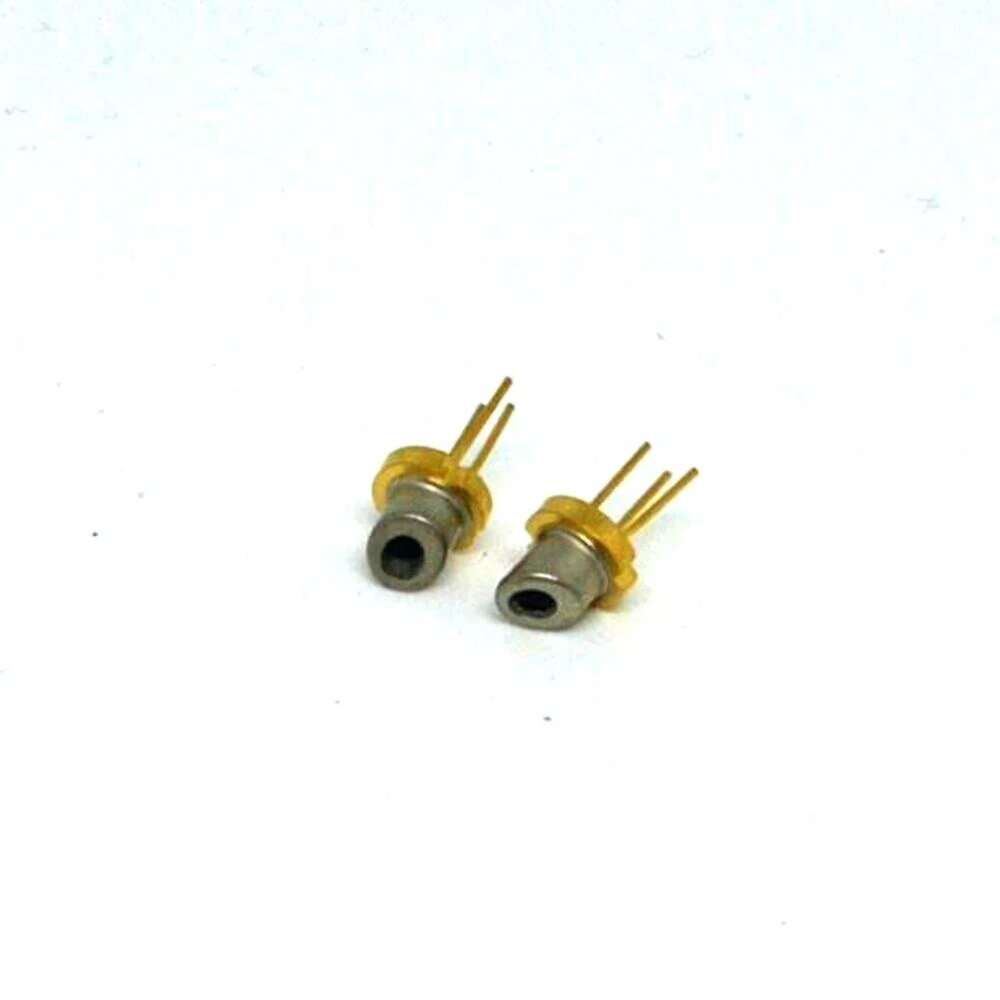

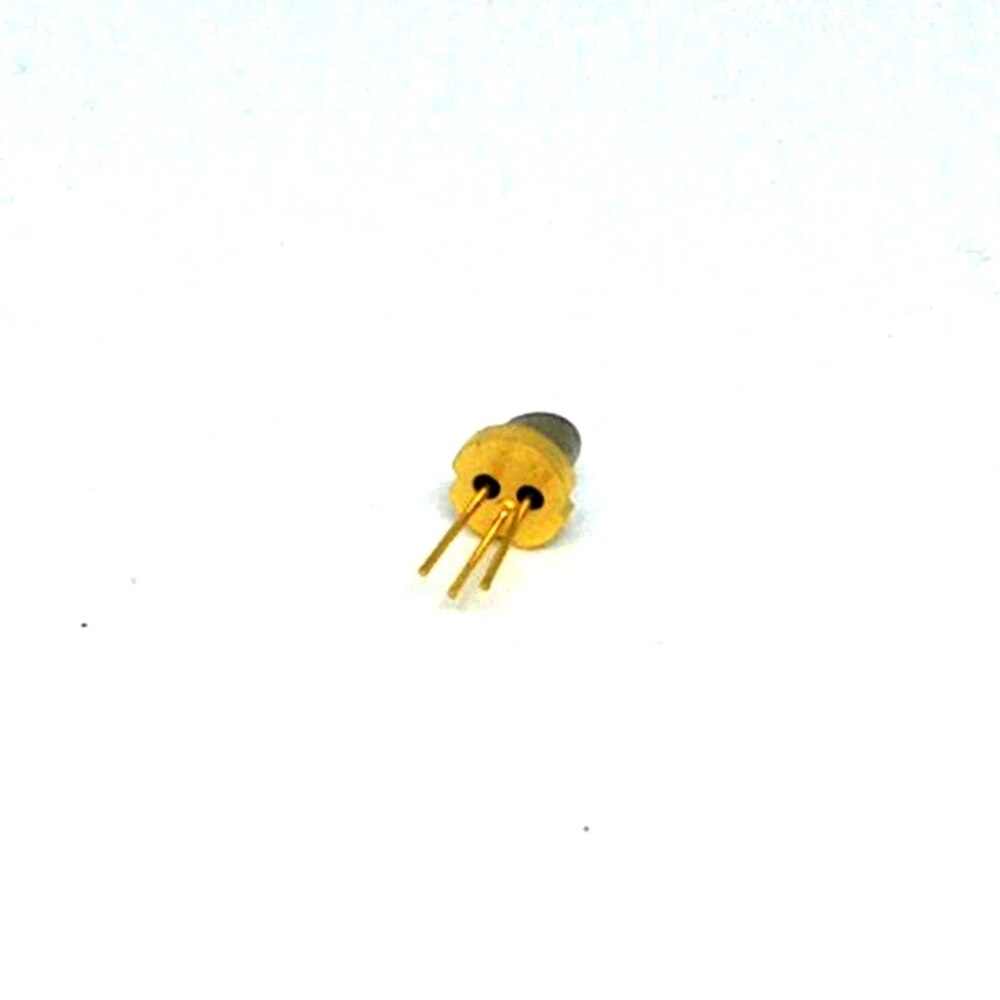

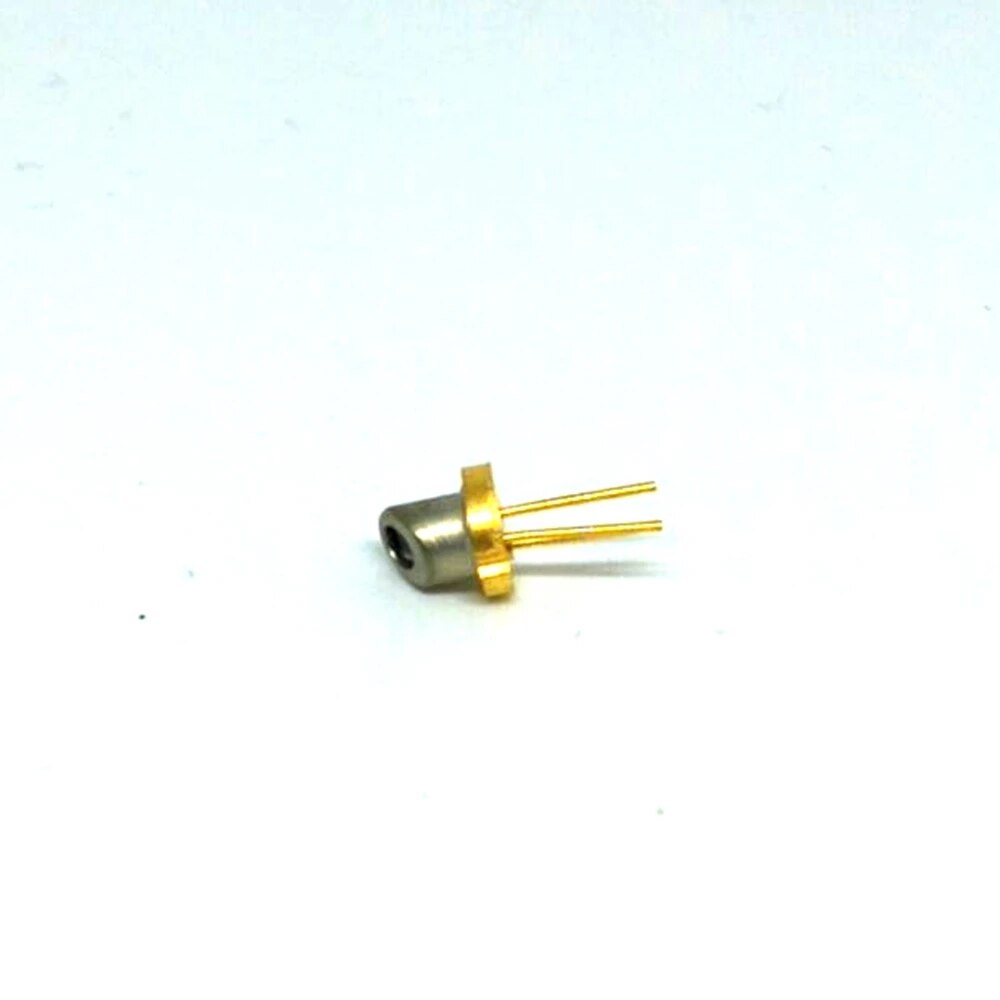

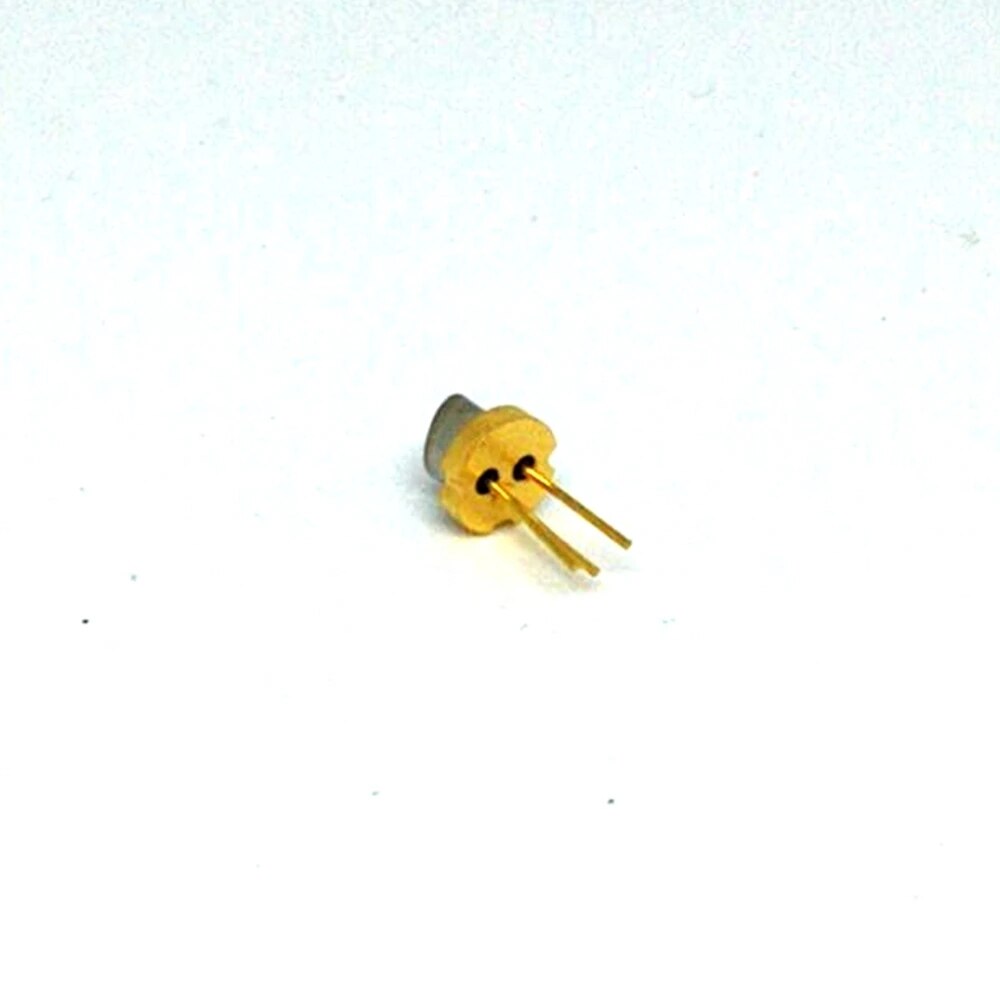

2pcs KSS-151A Sony New 780nm 3mW-5mW 5.6mm Infra-Red Laser Diode TO-18 Lazer LD
