2km waterproof laser range finder module measuring device

$298.00

99 in stock

SKU: 1005004271784195 Category:

Description

2km waterproof laser range finder module measuring device

  • Certification: CE
  • Warranty: 12 Months, 1 Year
  • Customized support: OEM, ODM
  • Model Number: DRM72000M
  • Size: 33x63x100mm/33x63x76mm
  • Wavelength: 905nm
  • Display: Built-in LCD Display
  • Magnification: 5.8 (6.8) x
  • Focus Mode: Eyepiece Focus in Manually
  • Power Supply: 3V
  • Interface: RS232
  • Weight: 72/56g
  • Certification: Intertek

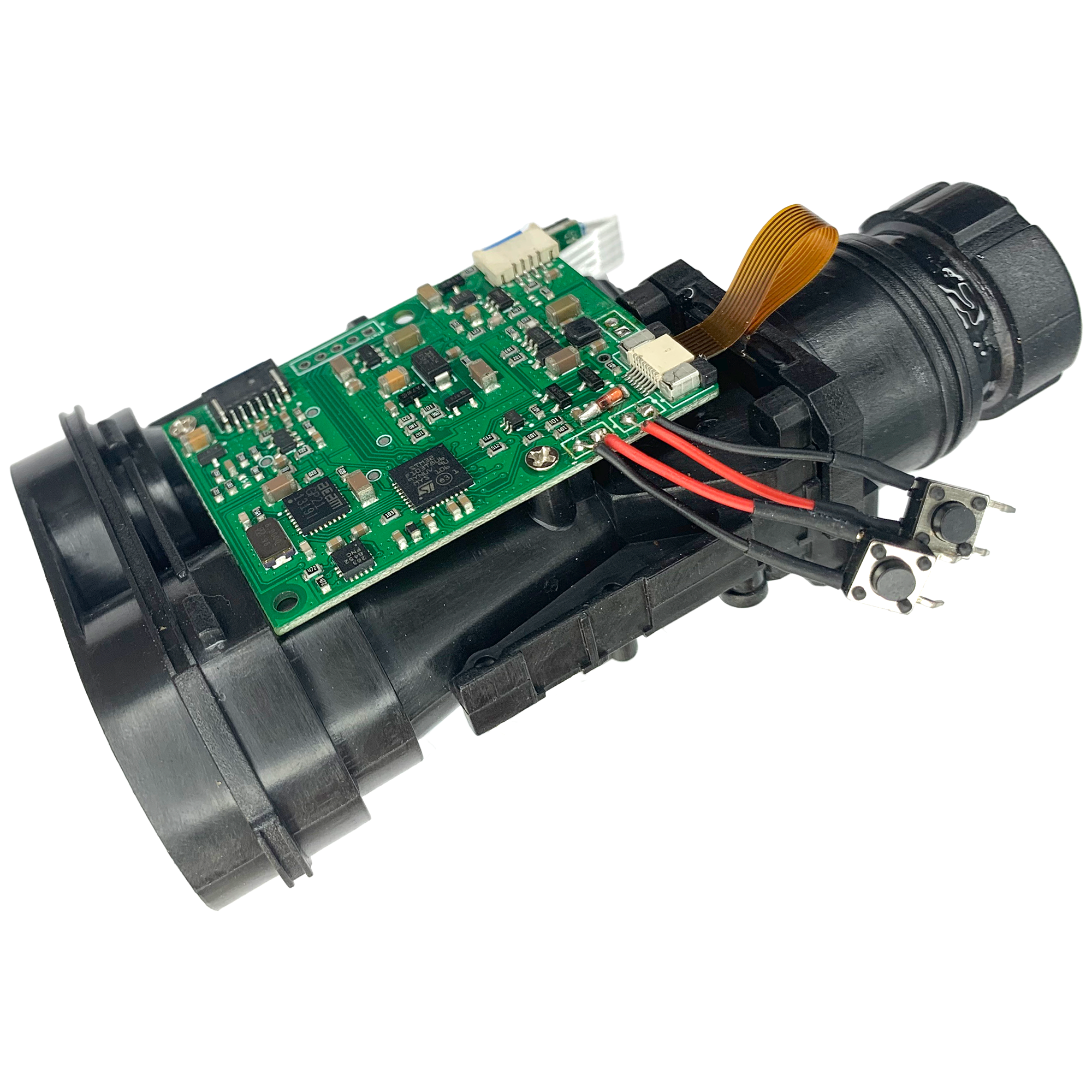

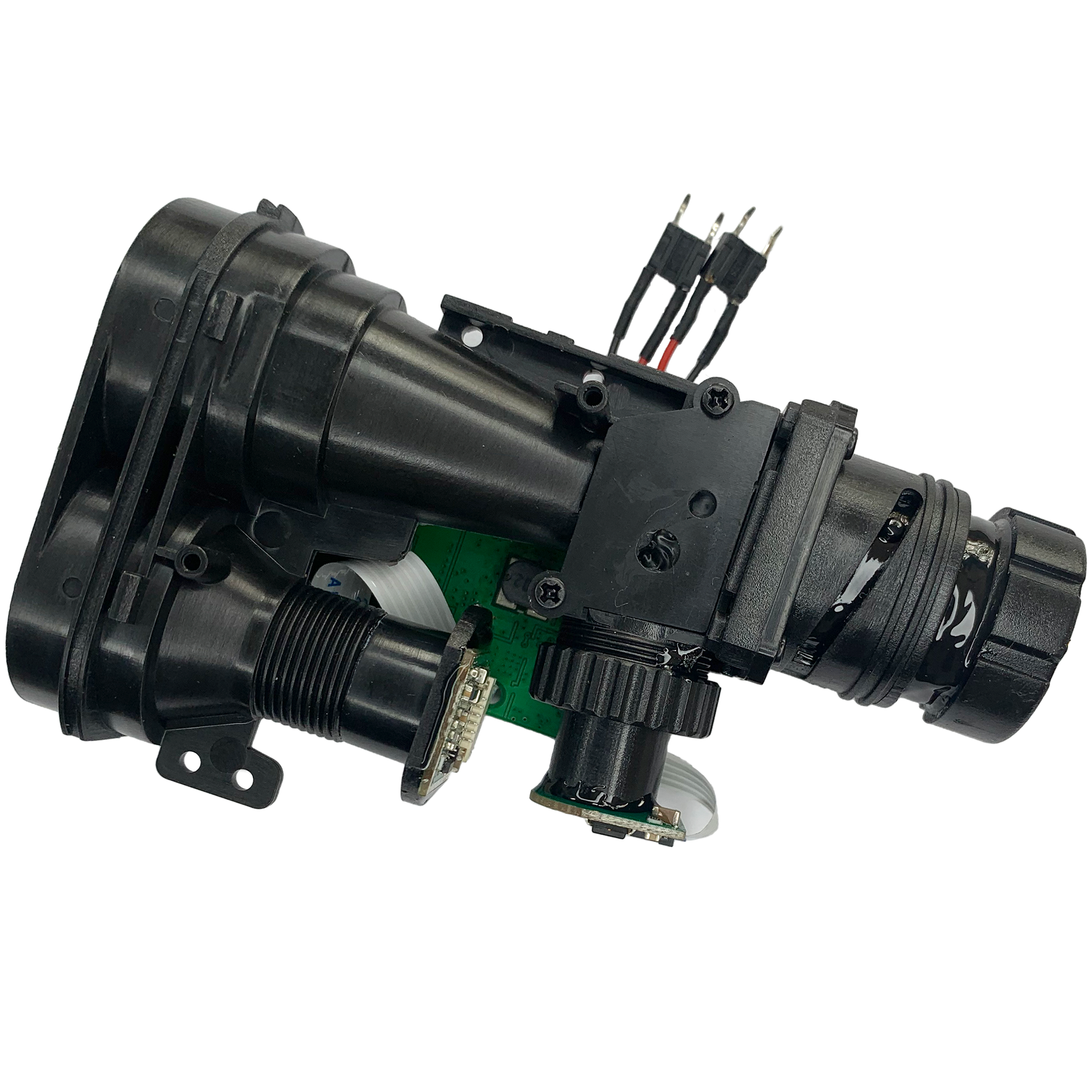

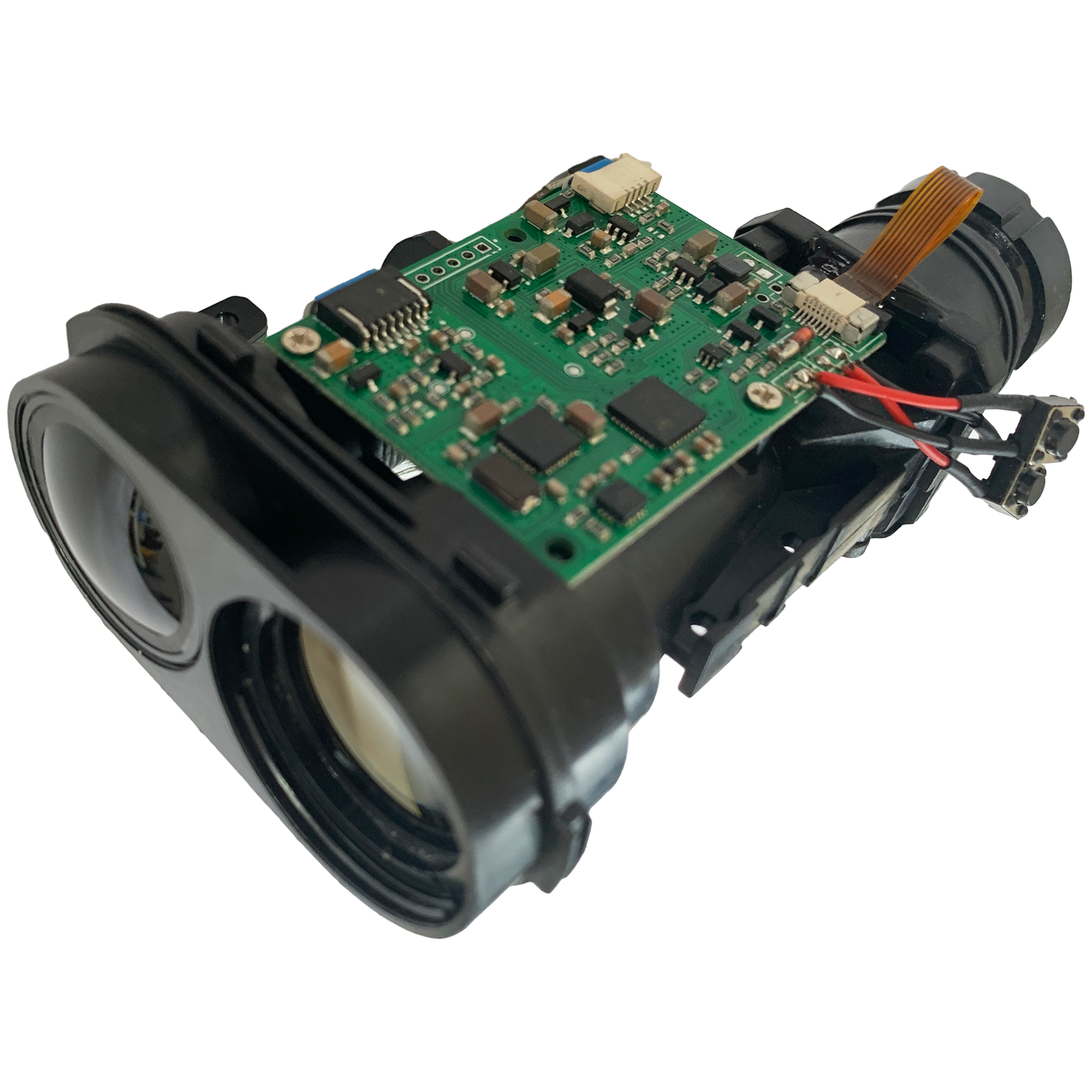

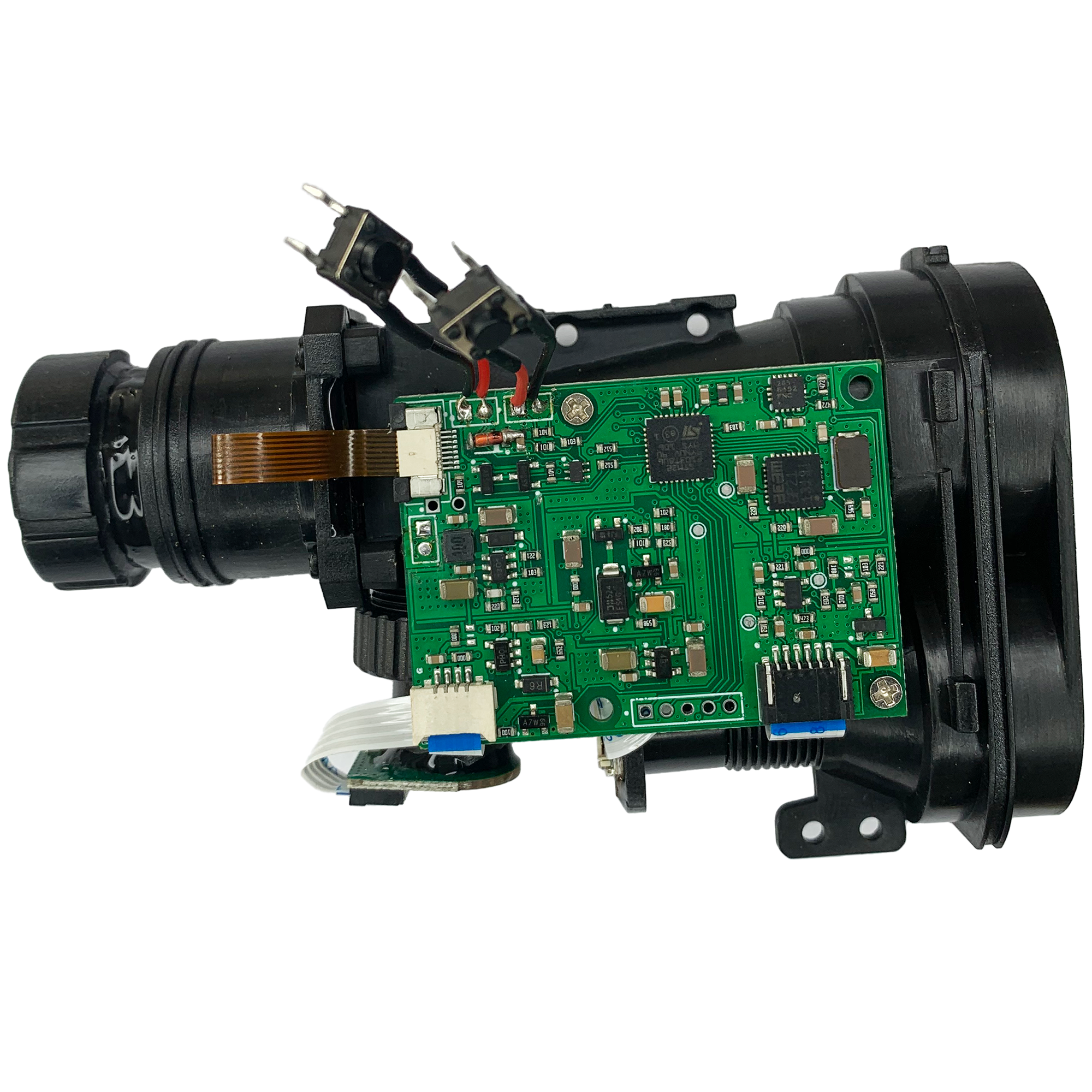

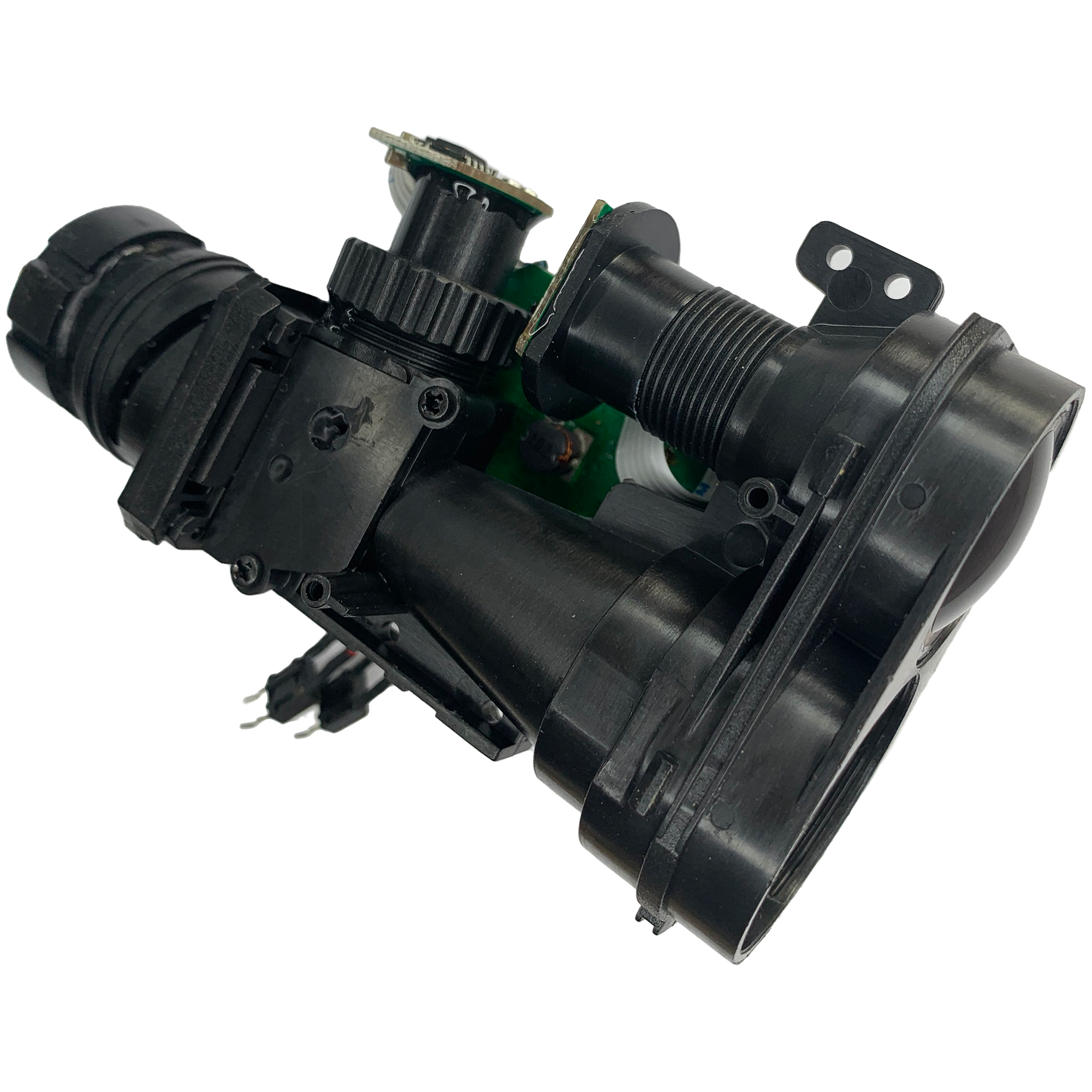

Products Appearance

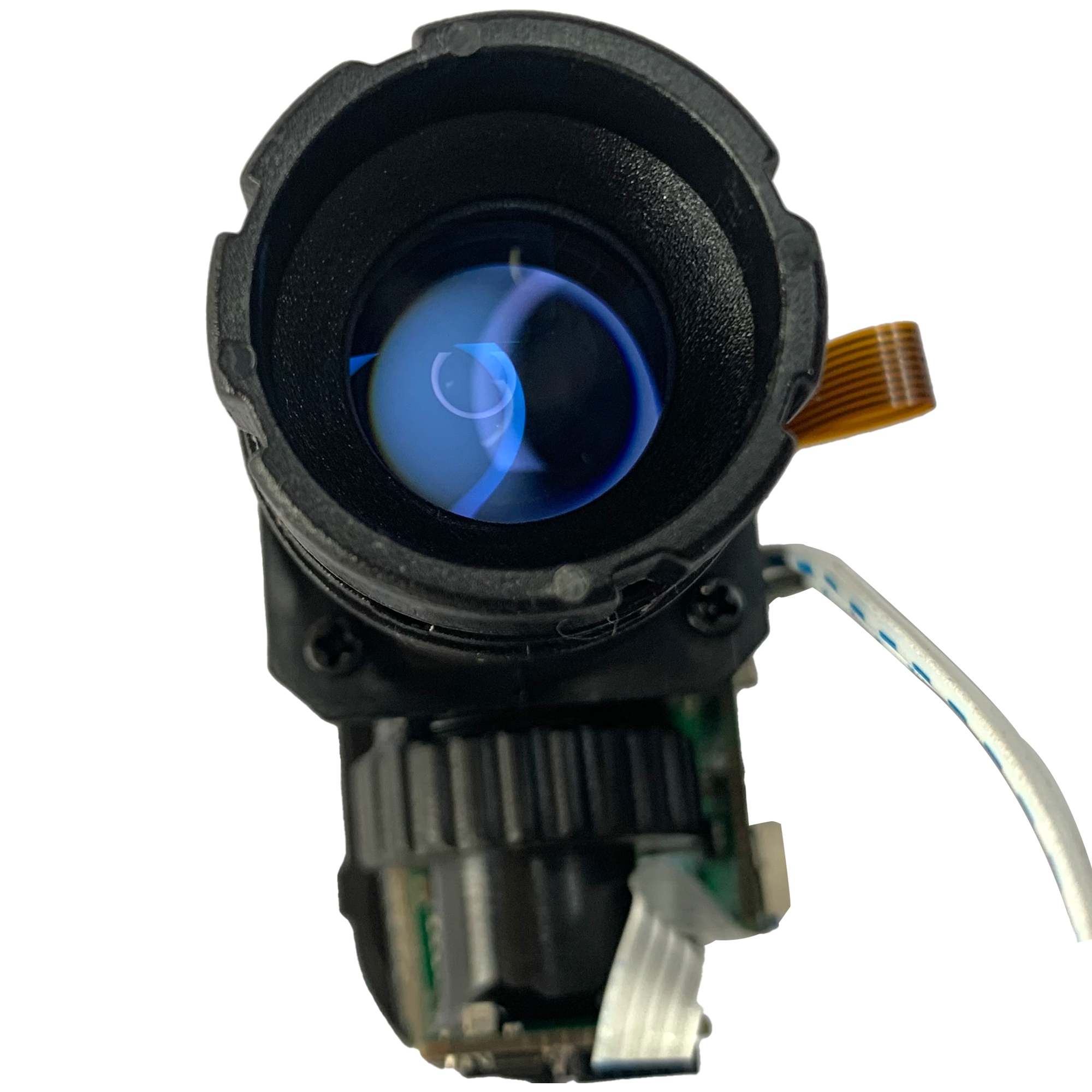

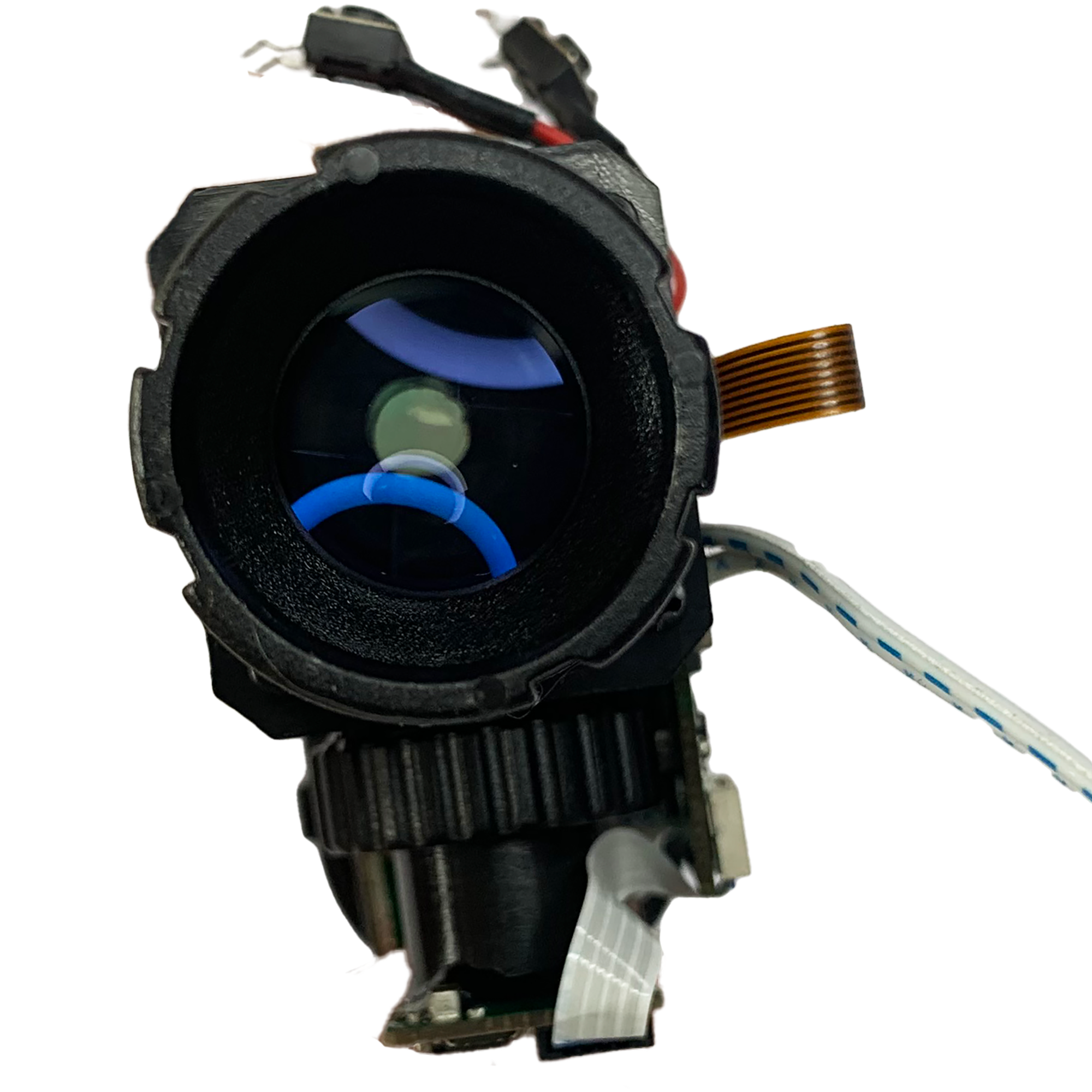

Front Back

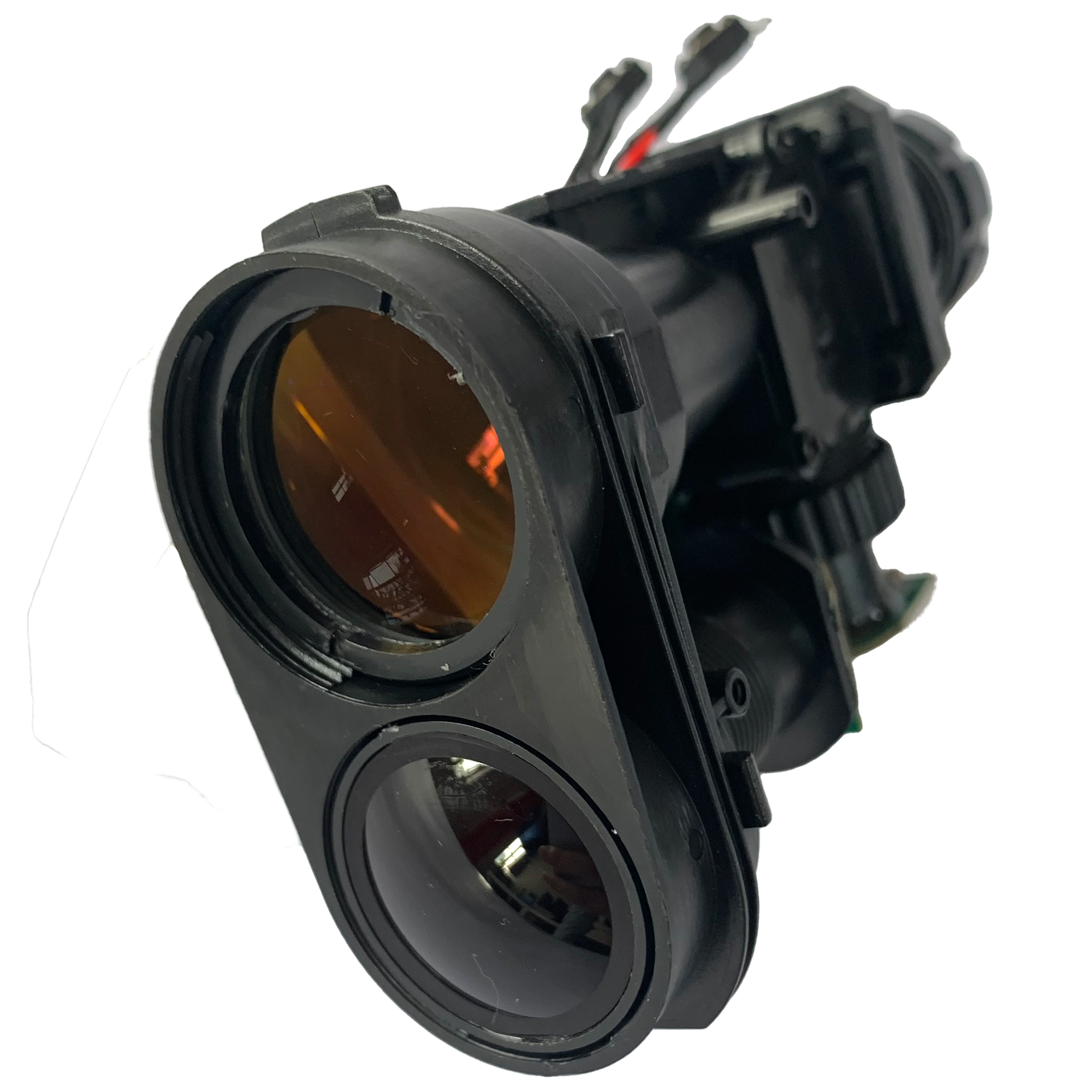

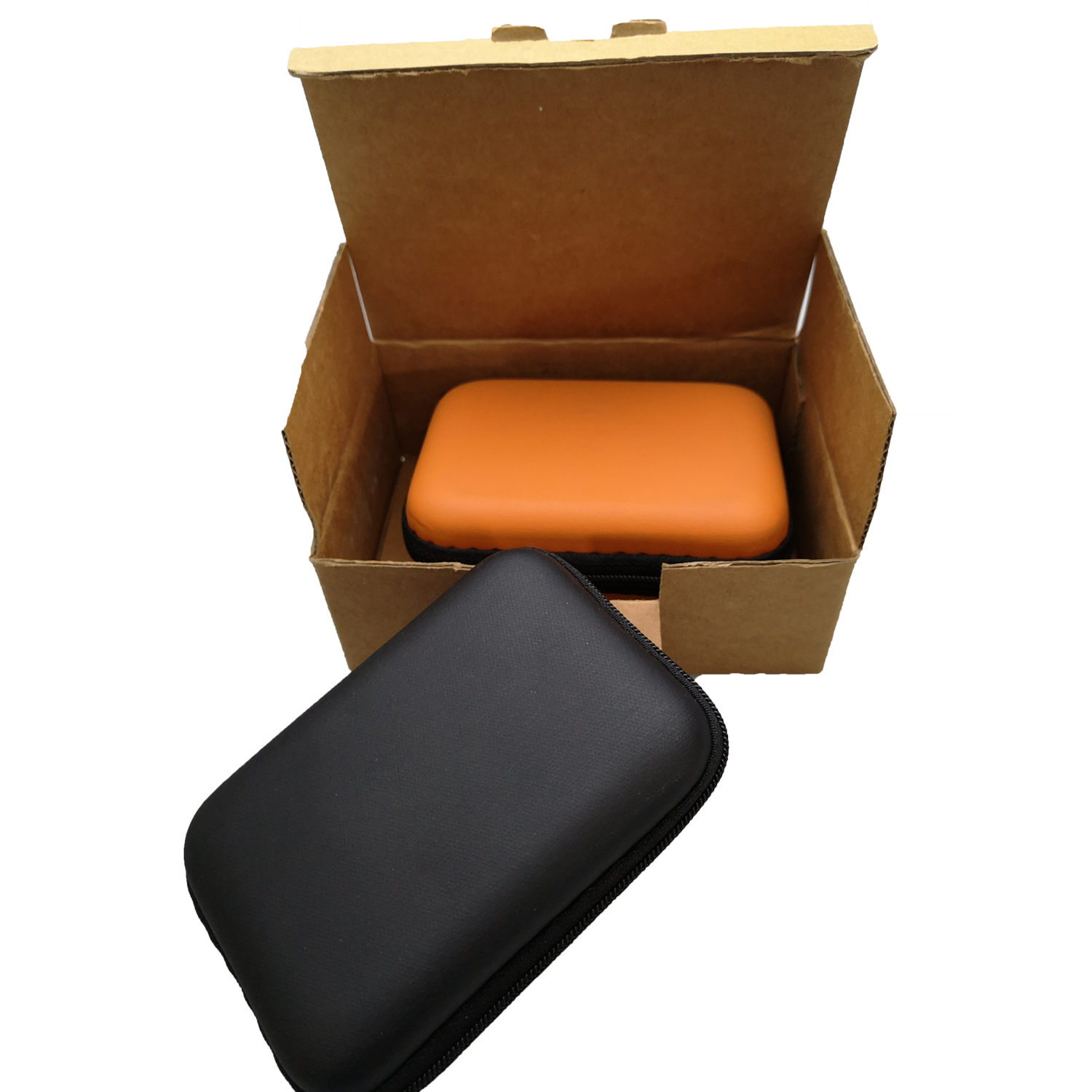

Objective Lens Package
Products Specification

 Products Specification

Technical Index: Details:
Wavelength:  905nm
Max Ranging Distance: 2000m
Ranging Method Semiconductor laser ranging (no harm to the human eye)
Ranging Error  ± 0.3m ± 0.1 %,resolution 0.1m
Ranging display mode Built-in LCD Display
Effective Objective Lens Diameter 20mm
Magnification 5.8 (6.8) x
Field of View 5.6 (4.95) x
Measuring Height and Angle ± 90 °
Objective Diameter 25mm
Outlet Diameter 3.8mm (4.1)
Exit Distance 12mm
Focus Mode Eyepiece Focus in Manually
Ranging of Vision 122m/1000m
Lens Coating Multi-layer Coating
Ranging Mode RAIN; RELF; >150; no display is standard mode.
Min Ranging Distance 1m
Distance Resolution 1m
Power Supply 3V
Working Temperature -10℃ ~ +50℃
Dimensions 33x63x100mm/33x63x76mm(with/without eyepiece)
Weight 72/56g(with/without eyepiece)
Function 7 Mode: Ranging, Speed, Angle, Parabola, Horizontal, Vertical, Continuous Measure.
Products Integrated

 Products Integrated

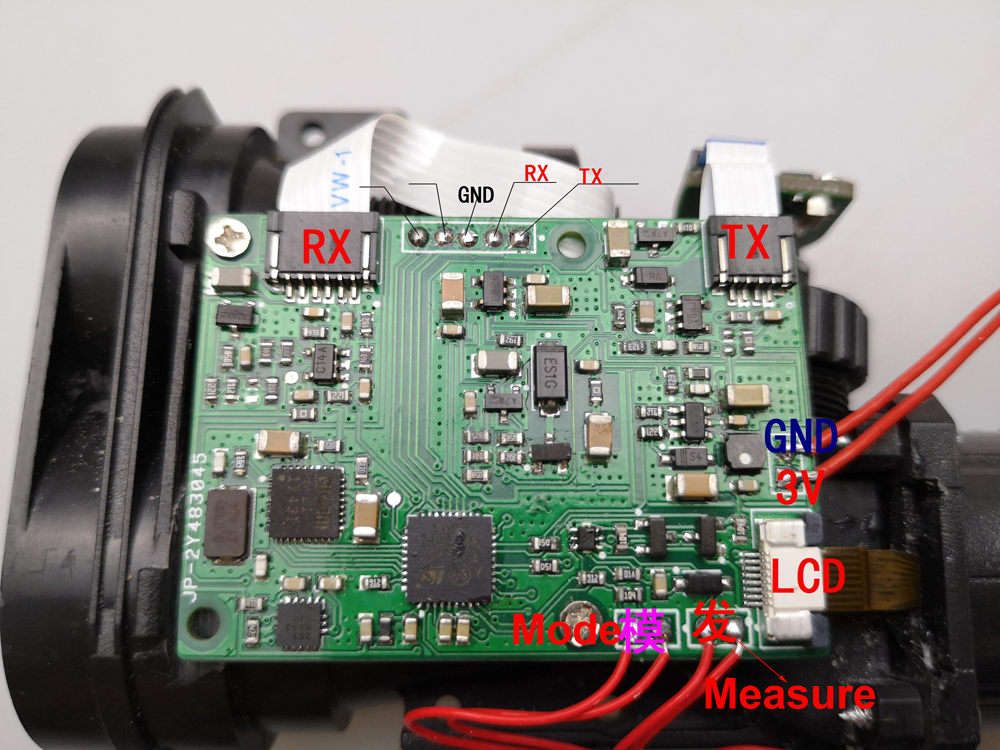

1.0 Module View

1. RX: Receiving Lens.

2. TX: Launching laser.

3. Mode: “MODE” Button, to select measuring mode.

4. Measure: Power and Transmitting.

5. Display: LCD.

6. Power Supply: DC 3V.

7. GND: Connect to ground.

8. Sight Adjustable Eyepiece.

9. Receiving Lens: Launch and Receiving.

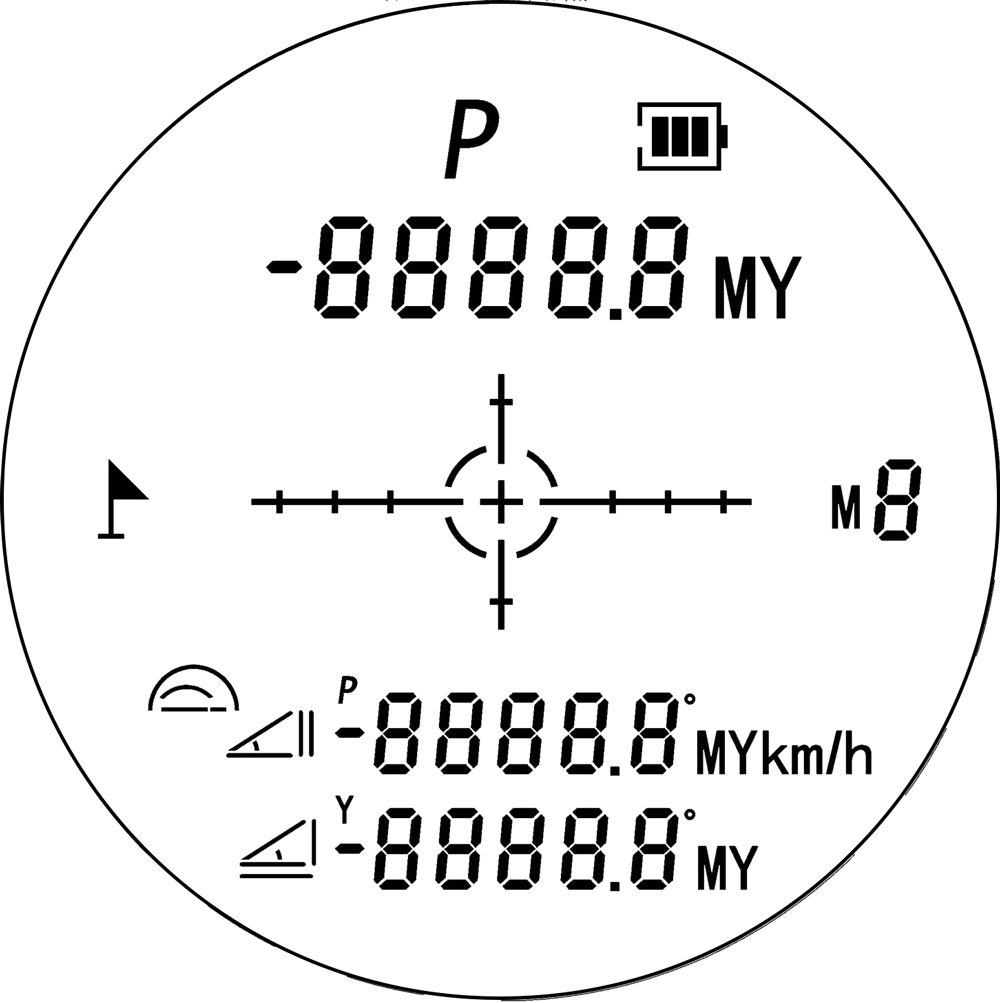

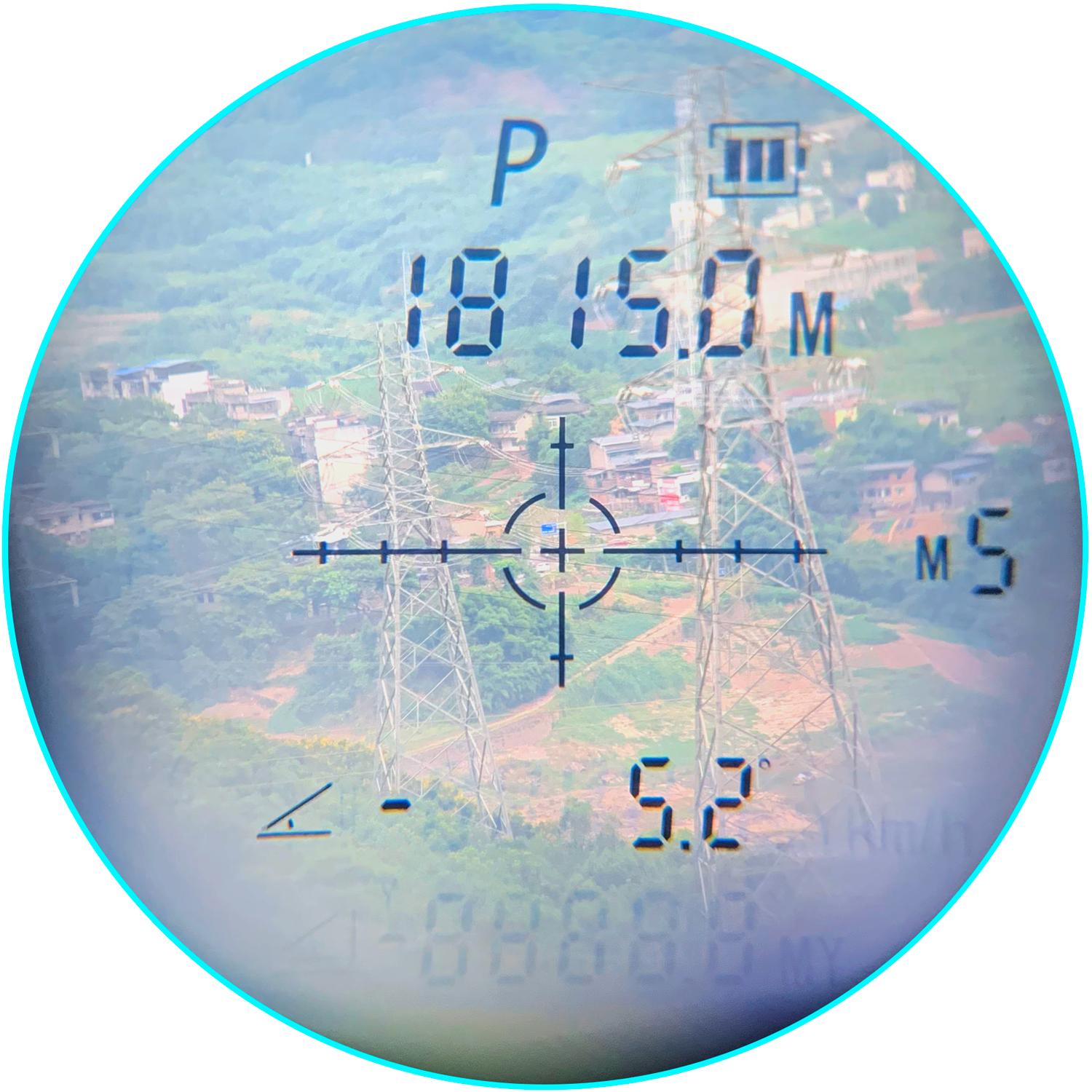

 2.0 Display

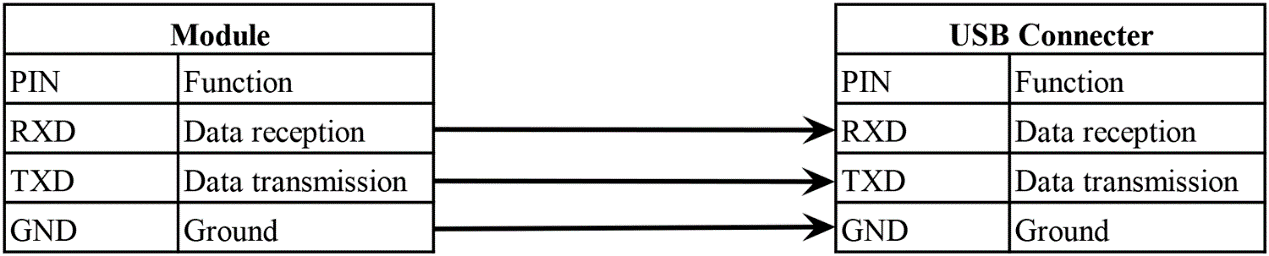

3.0 Connect Method

Module Connect  to PC

The instrument output is a serial port, uses a USB port to connect with the computer.

Serial communication: The baud rate is 115200bps, 1 stop bit, 8 data bits, no parity.

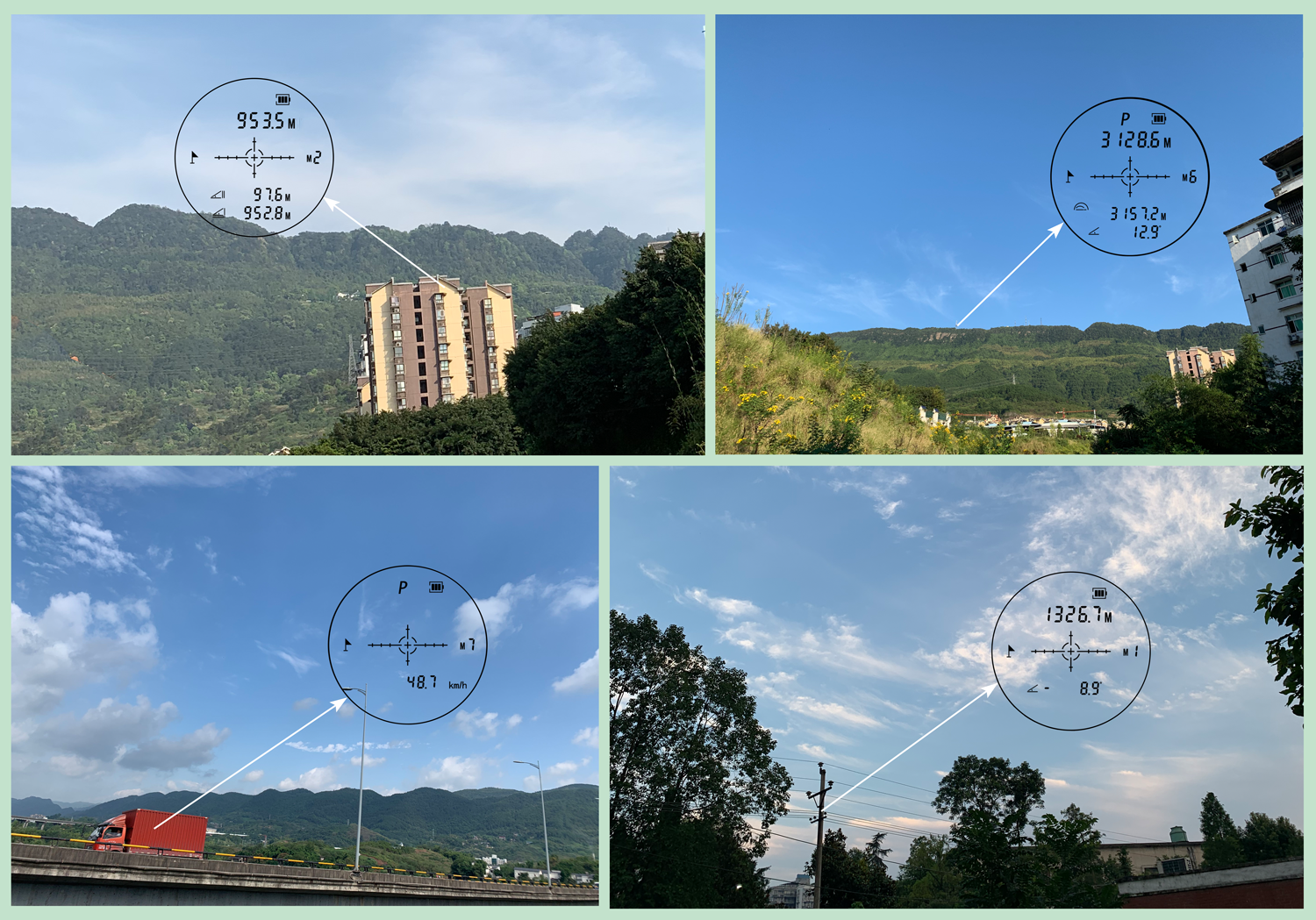

Products Application

Products Application

Applications:

Commerical: Terrain, Geophysics, Mining, Oil field, Ports, Railway stations, Airports, City buildings, Roads, Water conservancy project, Transmission line survey;

Shooting, Hunting, Golf, Tracking moving targets, Speed-measuring, Vehicle automatic control, Automobile safety alarm, Industrial control, Outdoor activity.

Military Grade: Military target measurement, Laser guidance, Laser pointer, Laser fire control system, Border Security, Law Enforcement, Patrol, Mission, Target Search, Maritime, Personal Security, Counter-terrorism, Search & Rescue.
