Description
2d image CMOS mini usb barcode scanner module to scan qr screen bar code

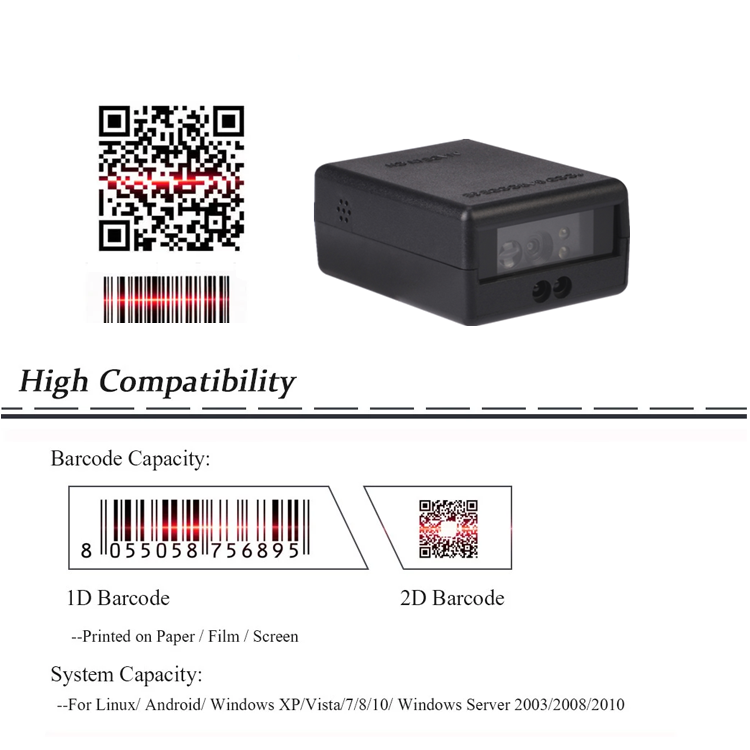

1,Can read 1d and 2d barcode.

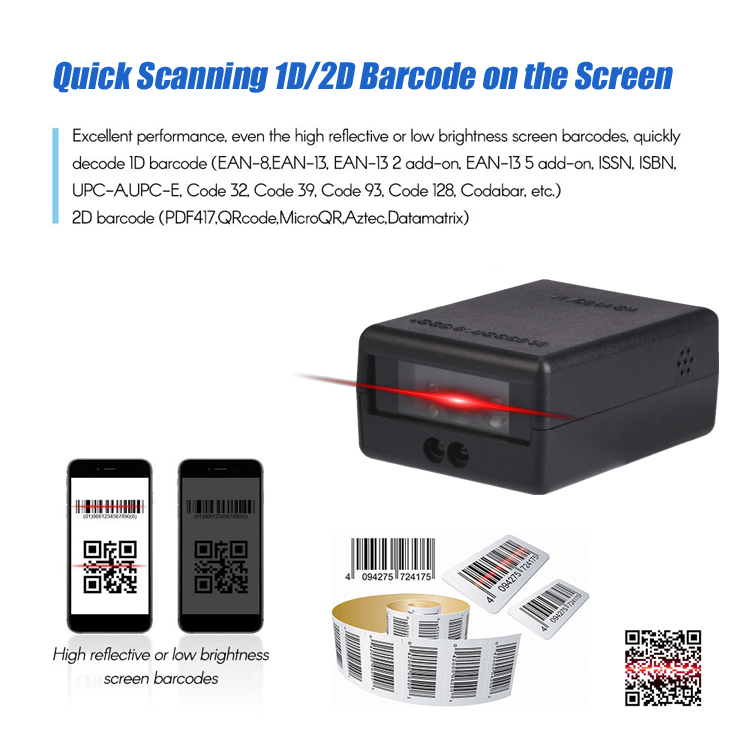

2,Reading bar codes from screen.
3,Applying CMOS image technology, easy to scan.

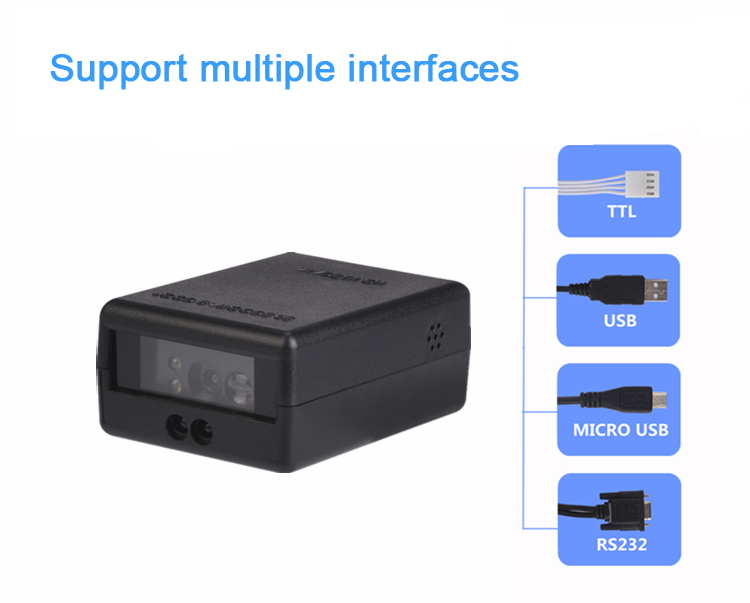

4,Multiple Interface : RS232 / USB.
5,Trigger Mode: Handheld,Continuous,Auto-Induction

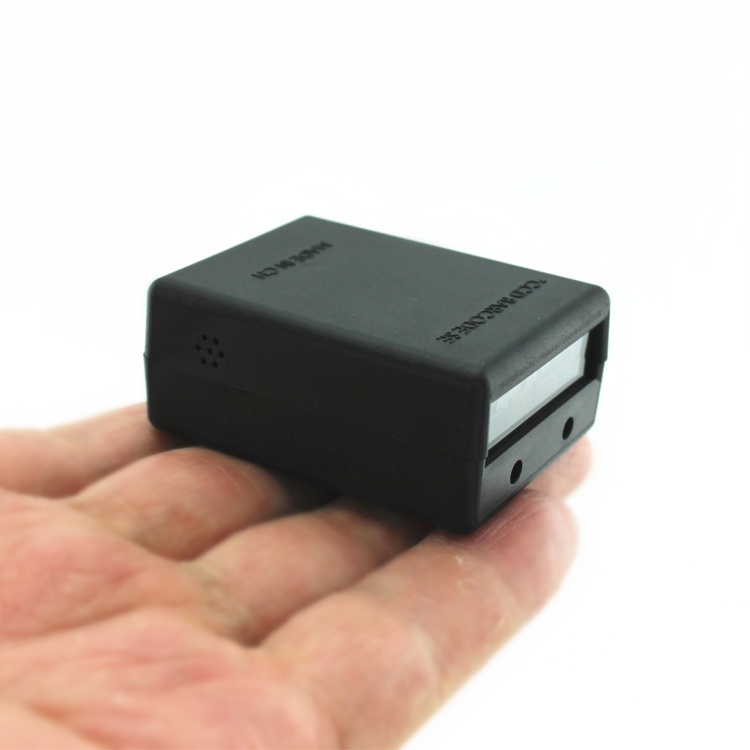

6,Small size,easy to integrate, and can be embedded into a End devices.
7,Full quakeproof, waterproof, dustproof, anti-knock design.

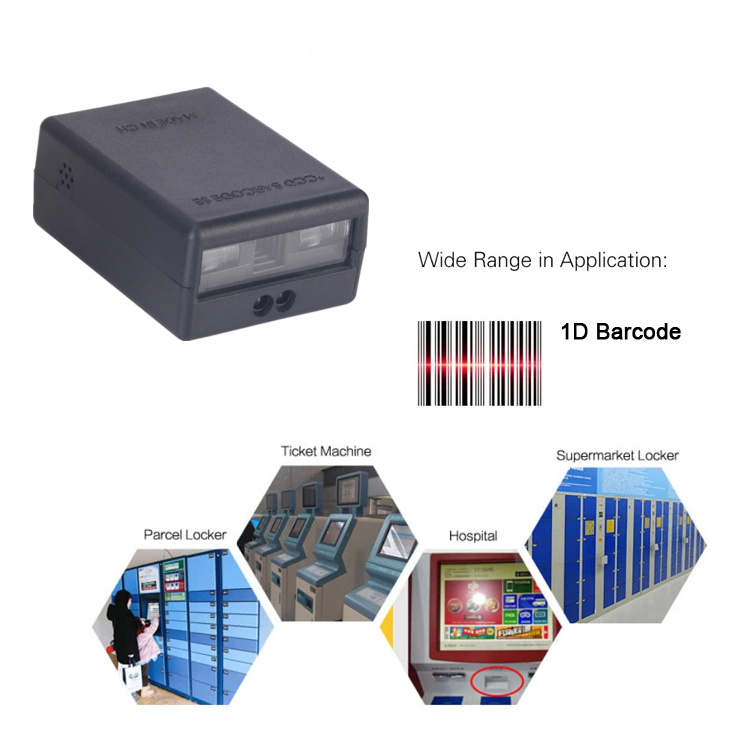

8,Application fields: Supermarket,Retail,Healthcare,Logistics,Communication,Clothing industry, Power Industry, Kiosk,Locker, Factory assembly line.
9,Can be customized according to customer demand.
|
Product Specification: YHD-M300D 2D Wired Barcode Scanner Module |
|
|
Physical parameters |
|
|
Sight |
Red LED, 617nm |
|
Safety performance |
Accord with national level two laser safety standards |
|
Performance parameter |
|
|
Working voltage |
4-5.5V DC |
|
DC power supply |
Class2;5.2VDC@1A |
|
Working power |
2W;400mA@5V-The typical value |
|
Standby power |
0.45W, 90mA@5V-The typical value |
|
Barcode type |
Standard 1D, 2D bar code(PDF417,Data Matrix,QR etc) |
|
Scanning type |
Image type |
|
The light source |
WhiteLED |
|
System interface |
KBW,USB,RS232 |
|
Enviromental parameter |
|
|
Operating temperature |
0℃-40℃ |
|
Storage temperature |
-40℃-60℃ |
|
Operating humidity |
5%-95%Relative humidity, no condensation state |
|
Electrostatic protection |
±15kVDC Air discharge, ±8kVDC Direct / indirect discharge |
|
Fall-down test |
100order/1M |
|
Ambient light immunity |
0-100.000LUX |
|
Exercise tolerance |
100mm /sec 13milUPC |
|
IP Class |
IP40 |
|
LEDSafety certification |
IEC6247 |
|
CB |
IEC60950 |
|
Integrated authentication |
GOST-R(Russia),CE |
|
EMI |
accord en50081,par1 specifications |
|
EMC Electromagnetic compatibility |
EN55022,EN55024 class B |
|
Dust |
Seal to resist invasion of dust particles in the air |
2.Product Pictures
| Welcome OEM, More Choices! | |||||
Picture  |
|||||
| Model | YHD-M300C | YHD-M300D | YHD-M100L | YHD-M500C | YHD-M801D |
| Plug & Play | √ | √ | √ | √ | √ |
| Scanning Technology |
CCD | CMOS | Laser | CCD | CMOS |
| Barcode Types | 1D | 1D&2D | 1D | 1D | 1D&2D |
| Screen Scan | √ | √ | — | √ | √ |
| Weight | 22g | 22g | 47g | 9g | 2g |
| Dimensions | 50*37*22 mm | 50*37*22 mm | 70*50*23 mm | 24*22*9 mm | 21*17*12 mm |
| More product parameters and prices please contact us! | |||||
