266nm UV Solid State Pulsed Laser 1-8uJ/1-18mW Passively Q-switched MPL-FN-266

All solid state 266 nm UV laser is made features of ultra compact, long lifetime, cost effectiveness and easy operating,which is widely used in UV curing, micro-electronics, CD carving, laser medical treatment,scientific experiment, etc

Datasheet PDF Download

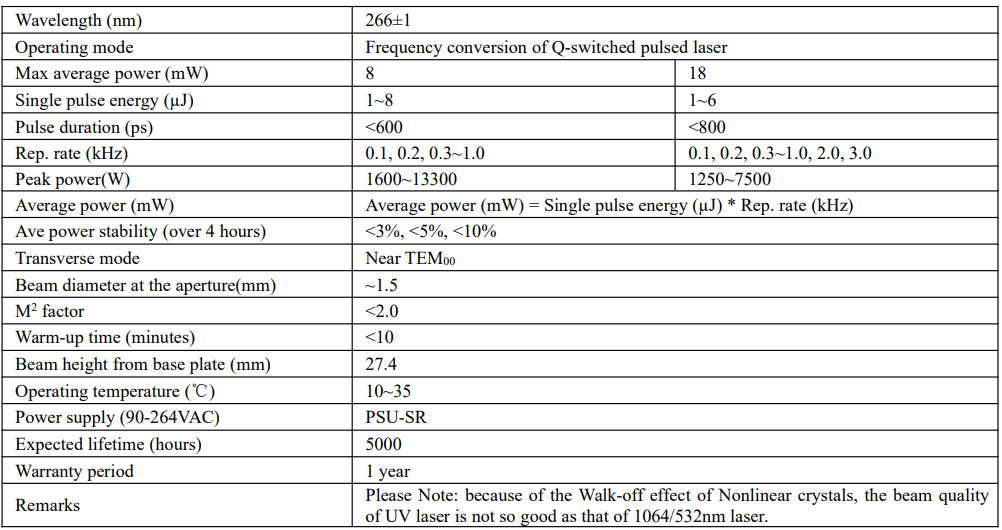

Central wavelength (nm) 266+-1 Output average power (mW) 1~8 Transverse mode Near TEM00 Operating mode Frequency conversion of Q-switched pulsed laser Single pulse energy (uJ) 1~8 Pulse duration (ps) <600 Peak power (W) ~25-2300 Average power (mW) = Single pulse energy (µJ) * Rep. rate (kHz) Ave power stability (over 4 hours) <3~10% Beam diameter at the aperture(mm): 1.5 Warm-up time (minutes) <10 Beam height from base plate (mm) 70 Operating temperature (C) 10~35 Power supply (90-264VAC) PSU-H-FDA Cooling system Air Expected lifetime (hours) 5000 Warranty period 1 year Remarks Please Note: because of the Walk-off effect of Nonlinear crystals, the beam quality of UV laser is not so good as that of 1064/532nm laser.
