Description

266nm Solid State Pulsed Laser 0.1-10uJ/1-120mW Passively Q-switched MPL-N-266

All solid state 266 nm UV laser is made features of ultra compact, long lifetime, cost effectiveness and easy operating,which is widely used in UV curing, micro-electronics, CD carving, laser medical treatment,scientific experiment, etc

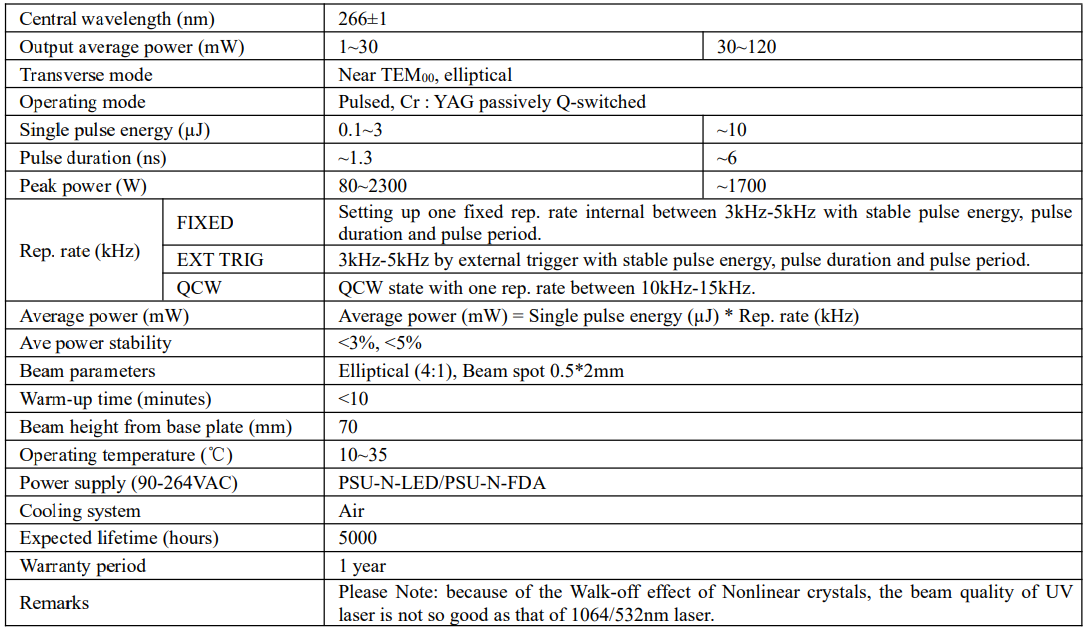

Datasheet PDF Download

Central wavelength (nm) 266+-1
Output average power (mW) 1~30
Transverse mode Near TEM00

operating mode Pulsed, Cr : YAG passively Q-switched
Single pulse energy (uJ) 0.1~3
Pulse duration (ns) 1.3
Peak power (W) 80~2300
Rep. rate (kHz)
FIXED： Setting up one fixed rep. rate internal between 3kHz-5kHz with stable pulse energy, pulse duration and pulse period.
EXT TRIG：3kHz-5kHz by external trigger with stable pulse energy, pulse duration and pulse period.
QCW： QCW state with one rep. rate between 10kHz-15kHz.
Average power (mW) = Single pulse energy (µJ) * Rep. rate (kHz)
Ave power stability <3%, <5%
Beam parameters Elliptical (4:1), Beam spot 0.5*2mm Warm-up time (minutes) <10
Beam height from base plate (mm) 70
Operating temperature 10~35
Power supply (90-264VAC) PSU-N-LED/PSU-N-FDA
Cooling system Air Expected lifetime (hours) 5000
Warranty period 1 year
Please Note: because of the Walk-off effect of Nonlinear crystals, the beam quality of UV laser is not so good as that of 1064/532nm laser.

Download Datasheet

MPL-N-266 266nm industrial laser source
