Description

266nm Pulsed 5-30uJ/500-600mW UV Laser MPL-W-266 Passively Q-switched

All solid state 266 nm UV laser is made features of ultra compact, long lifetime, cost effectiveness and easy operating,which is widely used in UV curing, micro-electronics, CD carving, laser medical treatment,scientific experiment, etc

Datasheet PDF Download

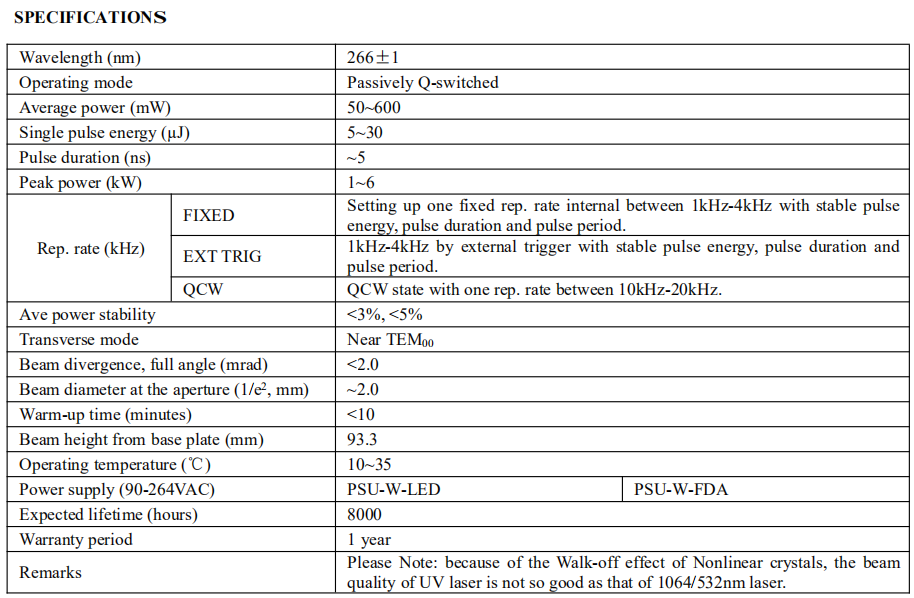

Central wavelength (nm) 266+-1
Output average power (mW) 50~600
operating mode passively Q-switched
Single pulse energy (uJ) 5~30
Pulse duration (ns) 5
Peak power (kW) 1~6
Rep. rate (kHz)
FIXED： Setting up one fixed rep. rate internal between 1kHz-4kHz with stable pulse energy, pulse duration and pulse period.
EXT TRIG：1kHz-4kHz by external trigger with stable pulse energy, pulse duration and pulse period.
QCW： QCW state with one rep. rate between 10kHz-20kHz.
Average power (mW) = Single pulse energy (µJ) * Rep. rate (kHz)
Ave power stability <3%, <5%
Beam parameters Elliptical (4:1), Beam spot 0.5*2mm Warm-up time (minutes) <10
Beam height from base plate (mm) 70
Operating temperature 10~35
Power supply (90-264VAC) PSU-N-LED/PSU-N-FDA
Cooling system Air Expected lifetime (hours) 5000
Warranty period 1 year
Please Note: because of the Walk-off effect of Nonlinear crystals, the beam quality of UV laser is not so good as that of 1064/532nm laser.

Download Datasheet

MPL-W-266nm solid state laser
